196-746-000 - White Outdoor 28" Tiller Attachment (1986) Drive Assembly Parts Diagram

28" Tiller Attachment

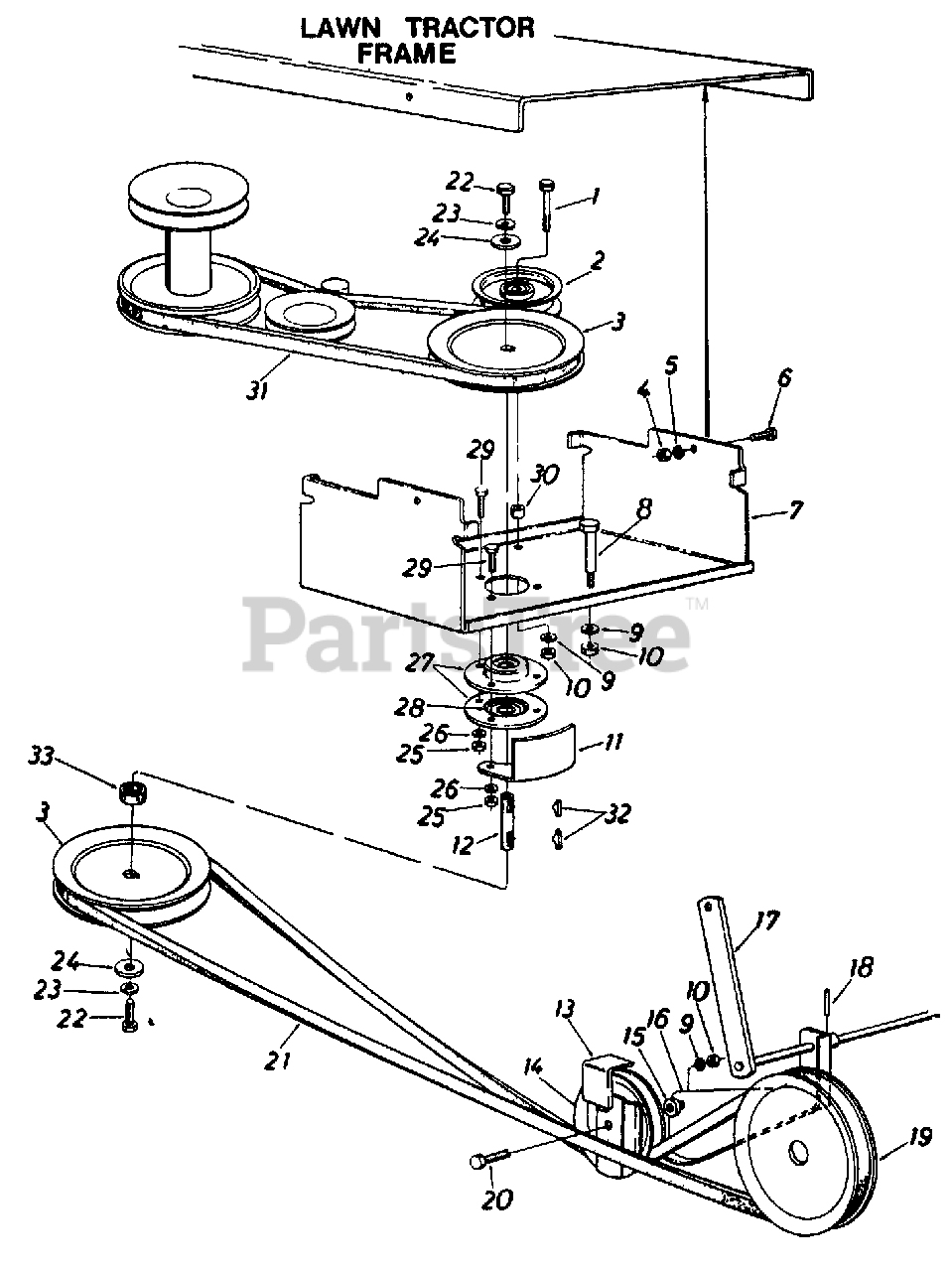

Drive Assembly Parts Diagram

  • Title

1

MTD 710-3144

Hex Bolt 3/8-16 x 2.00" Lg.*

$4.49

$

In Stock, Qty 20+

0

2

MTD 756-0405

Fl.-ldler w/ Flanges 3-3/4" O.D.

$71.99

$

Usually ships in 3-6 days

0

3

MTD 956-0438

5/8" "V"-Pulley .790" I.D. x .650" O.D.

$83.99

$

Usually ships in 3-6 days

0

4

MTD 712-0241

Hex Nut 3/8-24 Thd.*

$4.49

$

In Stock, Qty 13

0

5

MTD 936-0217

L.-Wash. 3/8" I.D. Heavy Duty
(Superseded to 736-0217)

$4.49

$

In Stock, Qty 8

0

6

MTD 710-0696

Hex Bolt 3/8-24 x .88" Lg.*

$6.99

$

In Stock, only 2 left!

0

7

MTD 784-0054A-0637

Carriage Bracket

$

$

Not available

8

MTD 938-0533

Shoulder Bolt .498" Dia. x 1.64
(Superseded to 738-0533)

$7.99

$

Usually ships in 3-6 days

0

9

MTD 936-0169

L.-Wash. 3/8" I.D.*
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

10

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, Qty 12

0

11

MTD 05406-0637

Belt Guard

$

$

Not available

12

MTD 738-0593

Shaft.787" Dia. x 2.56" Lg.

Note: NLA

$

$

Not available

13

MTD 784-0070

Belt Separator Plate

Note: NLA

$

$

Not available

14

MTD 756-0433

Fl.-ldler w/ Flanges 3.25" O.D.

Note: NLA

$

$

Not available

15

MTD 736-0247

Fl.-Wash. .406" I.D. x 1.25" O.D. x .164

$9.49

$

In Stock, Qty 14

0

16

MTD 784-0071

Idler Bracket Ass'y.

Note: NLA

Variations

MTD 784-0071-0637

No Longer Available IDLER-BELT - POWDER BLACK (0637)

$

$

Not available

$

$

17

MTD 784-0073

Idler Brk't. Support Ass'y.

Note: NLA

$

$

Not available

18

MTD 715-0105

Spring Pin Roll 3/16" Dia. x 1.50" Lg.

$

$

Not available

19

MTD 756-0439

5/8" V-Pulley 1.50" I.D. x 6.50" O.D.

Note: NLA

$

$

Not available

20

MTD 710-0347

Hex Bolt 3/8-16 x 1.75" Lg.*.

$5.49

$

In Stock, Qty 20+

0

21

MTD 754-0283

V-Belt 1/2" x 95.0" Lg.

Note: NLA

$

$

Not available

22

MTD 710-0371

Hex Bolt 5/16-18 x .88 " Lg. Spec.
(Superseded to 710-1880)

$4.99

$

In Stock, Qty 11

0

23

MTD 936-0119

L.-Wash. 5/16" I.D.*

$4.99

$

In Stock, Qty 20+

0

24

MTD 936-0231

Fl.-Wash. .344" I.D. x 1.125" O.D. x .125
(Superseded to 736-0231)

$

$

Not available

25

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

26

MTD 936-0119

L.-Wash. 5/16" I.D.*

$4.99

$

In Stock, Qty 20+

0

27

MTD 08253B

Bearing Housing 1.85" I.D.

$19.99

$

In Stock, only 1 left!

0

28

MTD 941-0919A

Ball Bearing.787" I.D. x 1.85" O.D.
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

29

MTD 910-0198

Hex Sems Bolt 5/16-18 x .75"

$

$

Not available

30

MTD 750-0497

Spacer

$10.99

$

Usually ships in 3-6 days

0

31

MTD 954-0229

Belt 1/2" Wide x 52" Long

$59.99

$

Usually ships in 3-6 days

0

32

MTD 914-0161

Hi-Pro Key 3/16" x 5/8"

$4.49

$

In Stock, Qty 20+

0

33

MTD 950-0456

Spacer-.80" I.D. x 1.0" O.D.
(Superseded to 750-0456)

$4.49

$

In Stock, Qty 20+

0
