196-467-000 - MTD Reel Mower Attachment (1986) Hitch Parts Diagram

Reel Mower Attachment

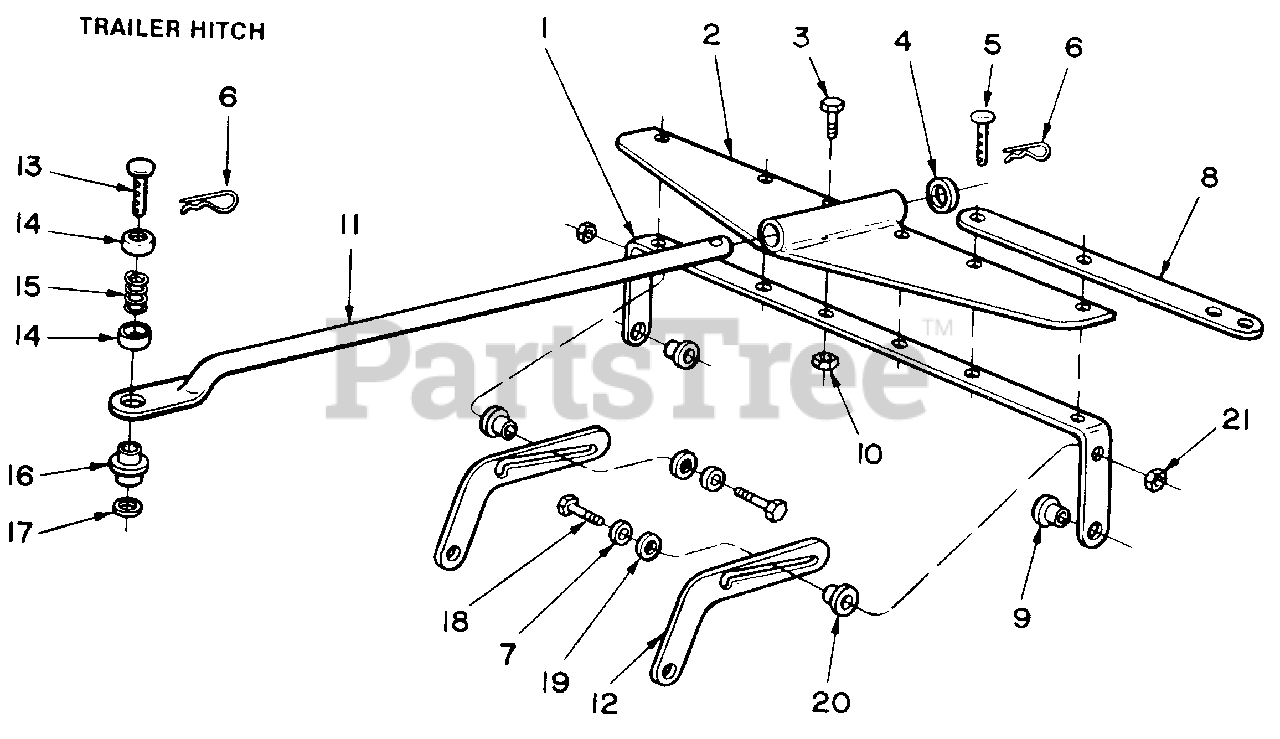

Hitch Parts Diagram

  • Title

1

MTD 3698-003

Bridge

$

$

Currently unavailable

2

MTD 3111-068

Tow Bar Plate Ass'y.

$

$

Not available

3

MTD 1509-017

Bolt 5/16 x 18 x 1*
(Superseded to 710-0376)

$3.99

$

In Stock, only 4 left!

0

4

MTD 1540-058

Washer

$

$

Not available

5

MTD 0041-042

Clevis Pin

$

$

Not available

6

MTD 1547-005

Cotter Pin
(Superseded to 914-0101)

$

$

Not available

7

MTD 1552-008

Washer- Special
(Superseded to 936-0286)

$6.99

$

In Stock, only 2 left!

0

8

MTD 1697-005

Outrigger Bar

$

$

Currently unavailable

9

MTD 1657-005

Spacer Bushing

$

$

Not available

10

MTD 1538-006

Nut 5/16-18*
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

11

MTD 3125-006

Tow Bar Ass'y.

$

$

Not available

12

MTD 2609-217

Transport Brkt.

$

$

Currently unavailable

13

MTD 1545-008

Clevis Pin

$

$

Not available

14

MTD 0041-035

Spring Cup

$

$

Not available

15

MTD 0041-036

Spring

$

$

Not available

16

MTD 1657-016

Bushing

$

$

Not available

17

MTD 0041-046

Washer 11/32 x 7/8*
(Superseded to 936-0231)

$

$

Not available

18

MTD 1513-045

Shoulder Bolt

$

$

Not available

19

MTD 0141-000

Washer

$

$

Not available

20

MTD 1624-135

Spacer

$

$

Not available

21

MTD 1538-008

Hex L-Nut 1/4- 20*
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0
