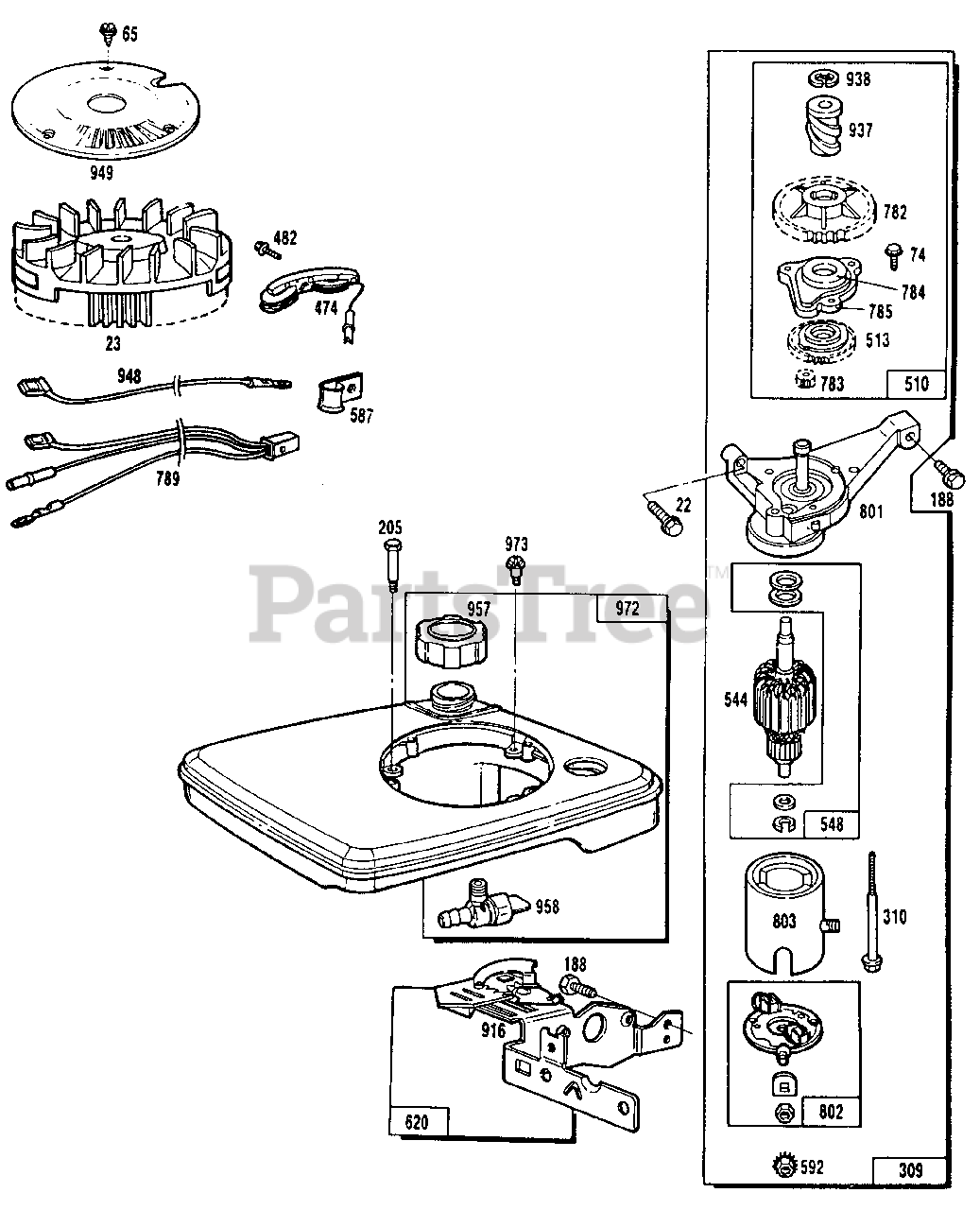

196 (127-196-100) - Cub Cadet Walk-Behind Mower Engine (1987) Max 4.0 HP-110707-3113-01 Part 3 Parts Diagram

Walk-Behind Mower Engine

Max 4.0 HP-110707-3113-01 Part 3 Parts Diagram

  • Title

22

Cub Cadet BS-93032

Screw-Base Mtg. Sem

$

$

Not available

23

Cub Cadet BS-394848

Flywheel-Magneto

$46.99

$

Usually ships in 2-12 days

0

65

Cub Cadet BS-94058

Screw-Guard Mounting

$3.99

$

Usually ships in 2-12 days

0

74

Cub Cadet BS-93490

Screw-Sem
(Superseded to BS-691660)

$3.99

$

In Stock, Qty 8

0

188

Cub Cadet BS-93847

Screw-Starter Mounting

$

$

Currently unavailable

205

Cub Cadet BS-94141

Screw-Hex. Hd.

$

$

Currently unavailable

309

Cub Cadet BS-398635

Motor-Starter (12 Volt)

$178.99

$

Usually ships in 2-12 days

0

310

Cub Cadet BS-94051

Bolt-Starter Motor

$

$

Not available

474

Cub Cadet BS-397880

Stator Ass'y.-Alternator

$

$

Currently unavailable

482

Cub Cadet BS-94016

Screw-Hex. Hd.

$

$

Currently unavailable

510

Cub Cadet BS-395727

Drive Kit-Starter

$

$

Not available

513

Cub Cadet BS-394815

Clutch Assembly-Electric Starter

$

$

Not available

544

Cub Cadet BS-398636

Armature-Starter

$

$

Currently unavailable

548

Cub Cadet BS-396067

Washer Set-Starter Motor

$

$

Currently unavailable

587

Cub Cadet BS-220162

Clip-Shield Grounding

$

$

Currently unavailable

592

Cub Cadet BS-93991

Nut-Hex.-10-24

$

$

Currently unavailable

620

Cub Cadet BS-398638

Plate-Carburetor Control

$

$

Currently unavailable

782

Cub Cadet BS-280038

Gear-Electric Starter Spur

$

$

Currently unavailable

783

Cub Cadet BS-261606

Gear-Electric Starter Pinion

$

$

Not available

784

Cub Cadet BS-223123

Cover-Electric Starter Clutch Gear

$

$

Currently unavailable

785

Cub Cadet BS-271457

Gasket-Electric Starter Clutch Gear Cover

$

$

Currently unavailable

789

Cub Cadet BS-397637

Wiring Harness Ass'y.

$

$

Currently unavailable

801

Cub Cadet BS-398244

Motor Output End Cover and Mounting Bracket

$

$

Currently unavailable

802

Cub Cadet BS-396061

Cap Assembly-End

$

$

Currently unavailable

803

Cub Cadet BS-396059

Housing-Starter

$

$

Currently unavailable

916

Cub Cadet BS-280522

Rack-Gear

$8.49

$

Usually ships in 2-12 days

0

937

Cub Cadet BS-280366

Spline-Starter

$

$

Not available

938

Cub Cadet BS-93941

Ring-Retainer
(Superseded to BS-795094)

$6.99

$

In Stock, only 1 left!

0

948

Cub Cadet BS-397803

Wire Assembly

$

$

Currently unavailable

949

Cub Cadet BS-280571

Cover-Static Guard

$

$

Currently unavailable

957

Cub Cadet BS-397974

Cap Assembly-Fuel
(Superseded to BS-796577)

$16.99

$

In Stock, only 1 left!

0

958

Cub Cadet BS-396244

Valve-Fuel Shut-Off
(Superseded to BS-698182)

$

$

Not available

972

Cub Cadet BS-398230

Tank Assembly-Fuel

$

$

Currently unavailable

973

Cub Cadet BS-94114

Screw-Hex. Hd.

$3.99

$

In Stock, only 3 left!

0
