196-067-000 - MTD Top Discharge Grass Catcher Kit (1986) Top Discharge Grass Catcher Kit Parts Diagram

Top Discharge Grass Catcher Kit

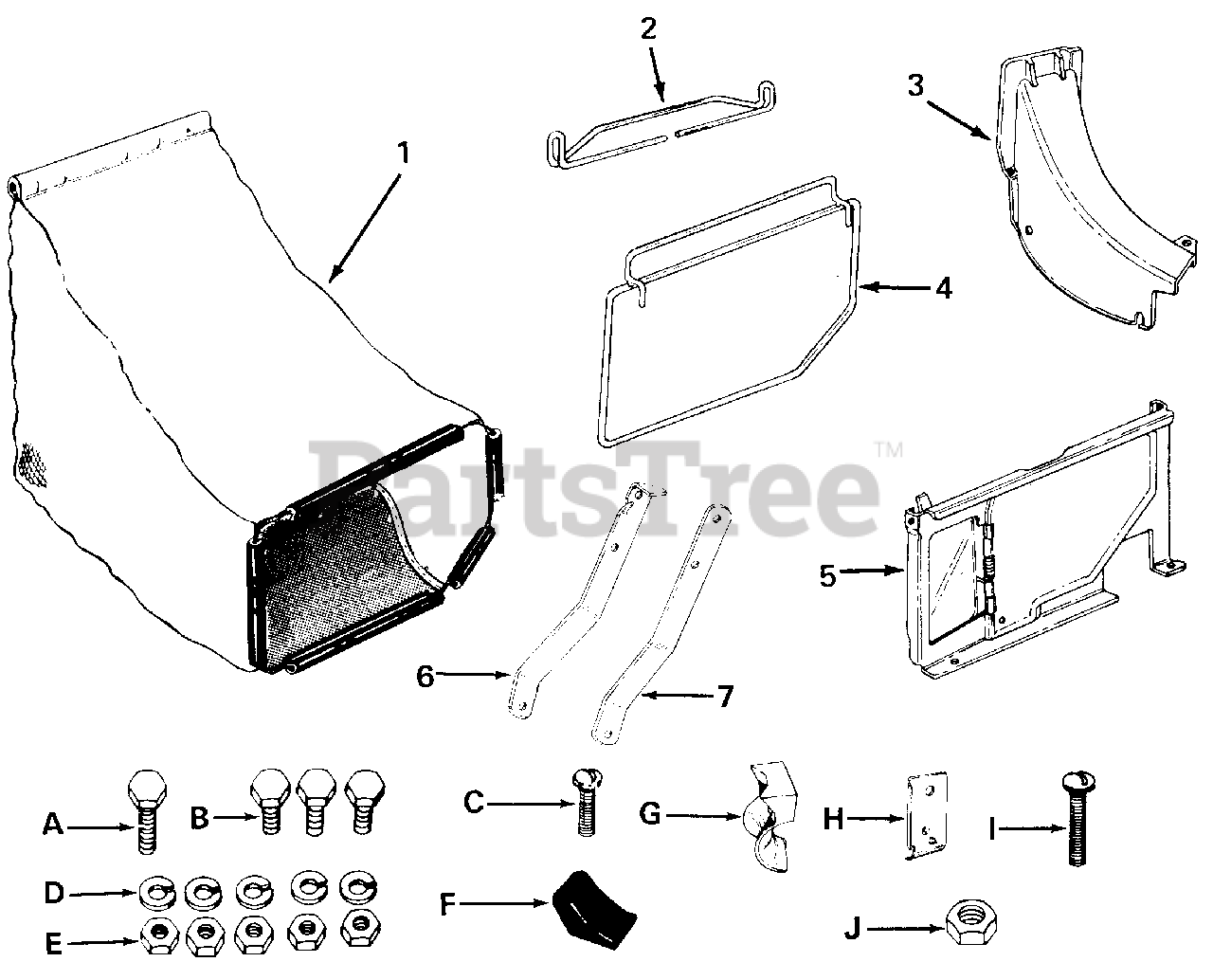

Top Discharge Grass Catcher Kit Parts Diagram

  • Title

1

MTD 764-0212

Grass Bag

$

$

Currently unavailable

2

MTD 747-0495

Grass Catcher Handle

$

$

Not available

3

MTD 731-0733

Top Discharge Chute

$

$

Not available

4

MTD 747-0494

Front Catcher Frame

$

$

Not available

5

MTD 16149

Top Catcher Panel

$

$

Not available

6

MTD 16541

Panel Support Bracket

$

$

Currently unavailable

7

MTD 16129

Panel Support Bracket
(Superseded to 16129A-0637)

$11.99

$

Usually ships in 3-6 days

0

A

MTD 710-0258

Hex Bolt 1/4-20 x 5/8" Lg.*
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

B

MTD 710-0289

Hex Bolt 1/4-20 x 1/2" Lg.*
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

C

MTD 710-0286

Truss Machine Screw 1/4-20 x 1/2 Lg.*

$4.49

$

Usually ships in 3-6 days

0

D

MTD 736-0329

Lock Washer 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

E

MTD 712-0287

Hex Nut 1/4-20 Thread*
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

F

MTD 720-0208

Door Grip

$

$

Not available

G

MTD 751-0434

Rope Guide Half
(Superseded to 719-0279)

$15.99

$

Usually ships in 3-6 days

0

H

MTD 732-0528

Rope Retainer Clip

$

$

Not available

I

MTD 710-0166

Truss Machine Screw 1/4-20 x 1.0 Lg.*
(Superseded to 710-0166A)

$7.49

$

In Stock, only 1 left!

0

J

MTD 712-0267

Hex Nut 5/16-18 Thread*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+
