196-060-000 - MTD Grass Catcher Assembly (1986) Grass Catcher Parts Diagram

Grass Catcher Assembly

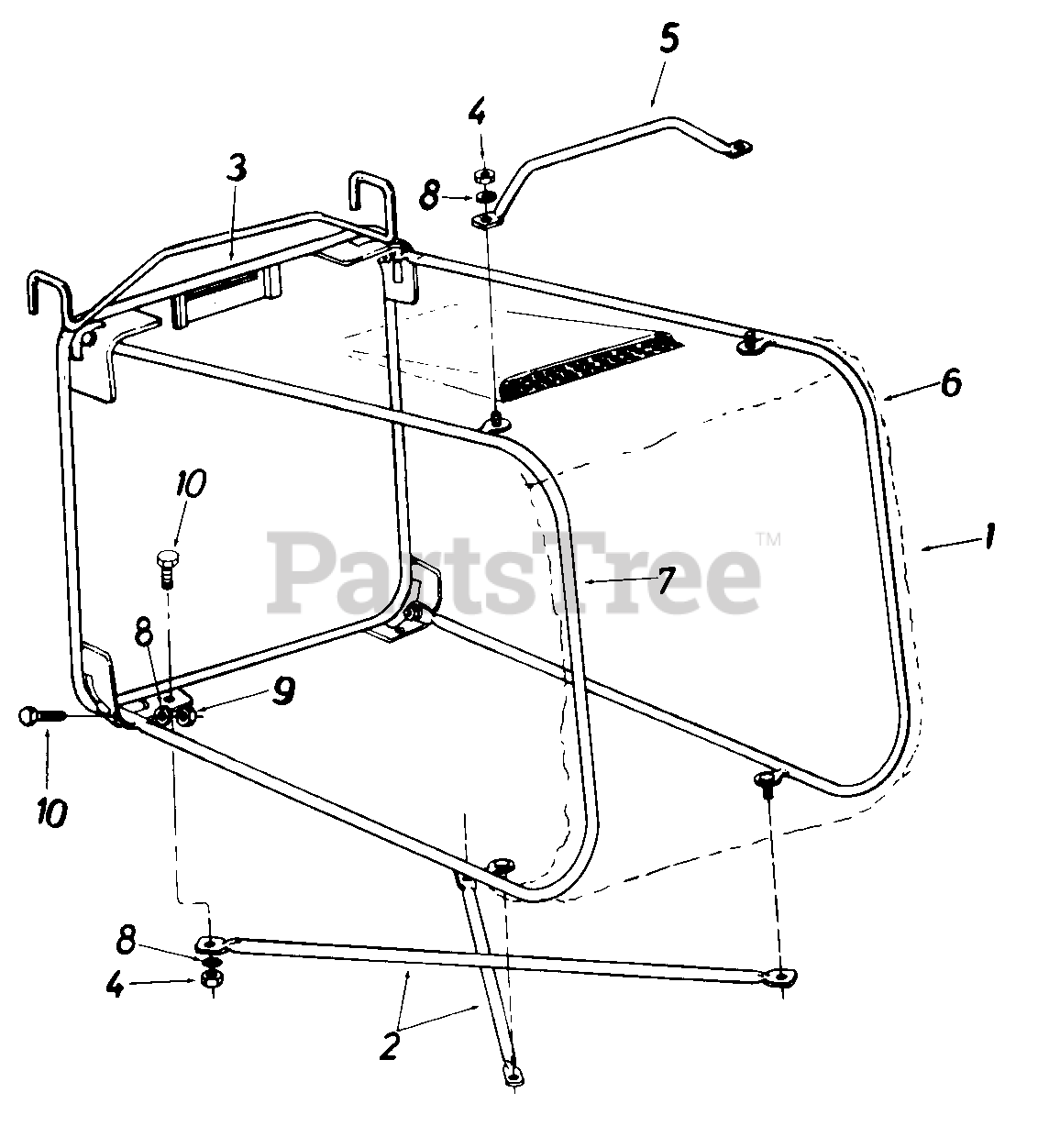

Grass Catcher Parts Diagram

  • Title
1

MTD 764-0211

Grass Catcher Bag

$

$

Not available

2

MTD 749-0652

Bottom Cross Brace

$

$

Not available

3

MTD 15370

Grass Catcher Frame Ass'y.

$

$

Not available

4

MTD 712-0107

Hex Cent. L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

5

MTD 749-0654

Grass Catcher Handle

$

$

Not available

6

MTD 15992

Catcher Side Frame Ass'y. -R.H.

Variations

MTD 15992-0637

No Longer Available FRAME-SIDE - POWDER BLACK (0637)

$

$

Not available

$

$

7

MTD 15993

Catcher Side Frame Ass'y. - L.H.

Variations

MTD 15993-0637

No Longer Available FRAME-SIDE - POWDER BLACK (0637)

$

$

Not available

$

$

8

MTD 736-0175

L.-Wash. 1/4" I.D.*
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

9

MTD 712-0107

Hex Cent. L.-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

10

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.*
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0
