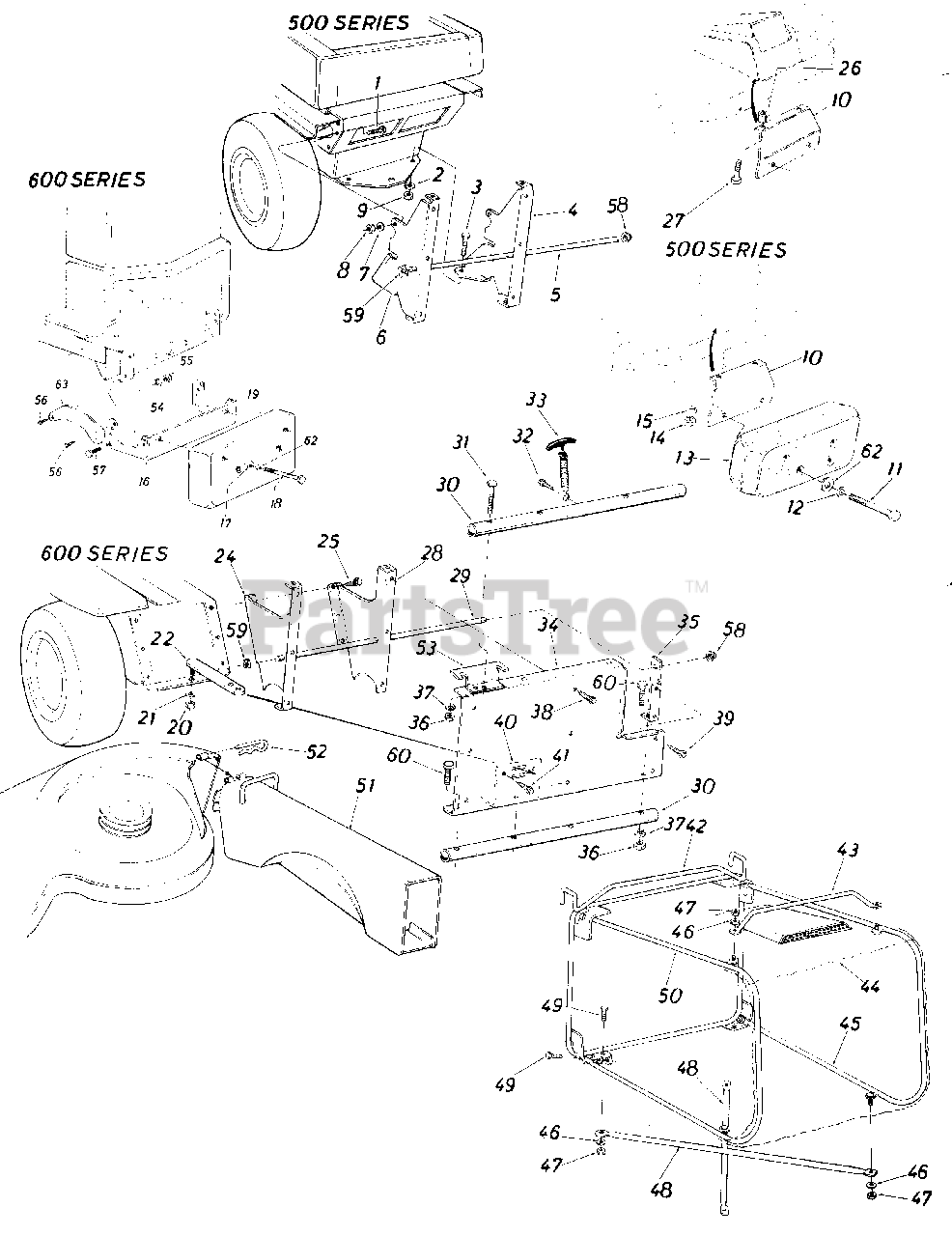

196-058-000 - MTD 36" Rear Discharge Grass Catcher Assembly (1986) Grass Catcher 36" Rear Discharge Decks Parts Diagram

36" Rear Discharge Grass Catcher Assembly

Grass Catcher 36" Rear Discharge Decks Parts Diagram

  • Title

1

MTD 710-0376

Hex Bolt 5/16-18 x 1.0" Lg.*

$3.99

$

In Stock, Qty 20+

0

2

MTD 736-0119

L.-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

3

MTD 710-0376

Hex Bolt 5/16-18 x 1.00"

$3.99

$

In Stock, Qty 20+

0

4

MTD 15970

Catcher Support Brkt -R.H.
(Superseded to 15970A)

$

$

Not available

5

MTD 749-0613

Tubing .38" I.D. x.50" O.D. x 29" L.g.

Variations

MTD 749-0613-0637

No Longer Available TUBING - POWDER BLACK (0637)

$

$

Not available

$

$

6

MTD 15971

Catcher Support Brk't.-L.H.

$

$

Not available

7

MTD 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

8

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

9

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

10

MTD 15539

Counterweight Bracket

$

$

Not available

11

MTD 710-0693

Hex Bolt 3/8-16 x 4.5" Lg.*

$14.99

$

In Stock, only 2 left!

0

12

MTD 736-0105

Belleville Wash..400" I.D. x.88" O.D.

$4.49

$

In Stock, Qty 20+

0

13

MTD 723-0367

Front Counterweight 38lbs.

$

$

Not available

14

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

15

MTD 736-0119

L.-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

16

MTD 15873

Counterweight Bracket

$

$

Not available

17

MTD 736-0105

Belleville Wash. .400" I.D. x.88" O.D.

$4.49

$

In Stock, Qty 20+

0

18

MTD 710-0693

Hex Bolt 3/8-16 x 4.5" Lg.*

$14.99

$

In Stock, only 2 left!

0

19

MTD 723-0367

Front Counterweight 38 Ibs.

$

$

Not available

20

MTD 712-0922

Hex Jam Nut 1/2-13 Thd.*
(Superseded to 712-3029)

$6.99

$

In Stock, Qty 6

0

21

MTD 736-0921

L.-Wash. 1/2" I.D.*

$4.49

$

In Stock, Qty 6

0

22

MTD 16602

Hitch Bar Ass'y.

Variations

MTD 16602-0637

No Longer Available BAR ASM-H - POWDER BLACK (0637)

$

$

Not available

$

$

24

MTD 15363

Catcher Support Brk't. - L.H.

$

$

Not available

25

MTD 710-0726

Hex Wash. Hd. Self Tap Scr. 5/16-18 x .75 Lg.*

$4.49

$

In Stock, Qty 20+

0

26

MTD 711-0242

Spacer .380" I.D. x 1.00" O.D. x .320" Lg.

$4.49

$

In Stock, Qty 9

0

27

Not Part of Kit

$

$

Not available

28

MTD 15364

Catcher Support Brk't.-R.H.

$

$

Not available

29

MTD 749-0613

Tubing.38" I.D. x .50" O.D. x 29" Lg. I

Variations

MTD 749-0613-0637

No Longer Available TUBING - POWDER BLACK (0637)

$

$

Not available

$

$

30

MTD 749-0612

Tubing 1-1/8" O.D. x 20.12" Lg

$

$

Not available

31

MTD 710-0405

Curved Carriage Bolt 5/16-18 x 1.75" Lg.
(Superseded to 710-1174)

$7.49

$

In Stock, Qty 20+

0

32

MTD 710-0776

Hex "AB"-Tap Scr. 1/4 x .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

33

MTD 723-0296

Hood Latch Ass'y.

$

$

Not available

34

MTD 15968

Grass Catcher Adapter

$

$

Currently unavailable

35

MTD 15362

Grass Catcher Support Brk t. - R.H.

$

$

Currently unavailable

36

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

37

MTD 736-0119

L.-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

38

MTD 710-0599

Hex Wash. Hd. Self Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

39

MTD 710-0599

Hex Wash. Hd. Self Tap Scr. 1/4-20 x . 50" Lg.

$4.49

$

In Stock, Qty 20+

0

40

MTD 15459

Hitch Bracket

$

$

Currently unavailable

41

MTD 710-0599

Hex Wash. Hd. Self Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

42

MTD 15981

Grass Bag Frame Ass'y.

$

$

Not available

43

MTD 749-0616

Grass Catcher Handle 26.75

$

$

Currently unavailable

44

MTD 764-0209

Grass Catcher Bag

$

$

Not available

45

MTD 15992

Catcher Side Frame Ass'y.

Variations

MTD 15992-0637

No Longer Available FRAME-SIDE - POWDER BLACK (0637)

$

$

Not available

$

$

46

MTD 736-0175

L.-Wash. .270" I.D. x .57"O.D.
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

47

MTD 712-0107

Hex L.-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

48

MTD 749-0615

Bottom Cross Brace 30.36" Lg.*

$

$

Not available

49

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.*
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

50

MTD 15993

Catcher Side Frame Ass'y. - L.H.

Variations

MTD 15993-0637

No Longer Available FRAME-SIDE - POWDER BLACK (0637)

$

$

Not available

$

$

51

MTD 15972

Chute Extension Ass'y.

$

$

Currently unavailable

52

Not Part of Kit

$

$

Not available

53

MTD 15995

Grass Catcher Support Plate

$

$

Not available

54

MTD 736-0171

L.-Wash. 7/16" I.D.*

$4.49

$

In Stock, only 4 left!

0

55

MTD 712-0240

Hex Nut 7/16-20 Thd.*
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

56

MTD 710-0915

Hex AB Tap Scr. 5/16-18 x 1" Lg.

$

$

Not available

57

MTD 710-0314

Hex Bolt 7/16-20 x 1.00" Lg.*

$4.49

$

In Stock, Qty 13

0

58

MTD 726-0221

Push Cap

$6.49

$

In Stock, only 2 left!

0

59

MTD 712-0247

Speed Nut

$

$

Currently unavailable

60

MTD 710-0380

Hex Bolt 5/16-18 x 1.75" Lg.*
(Superseded to 710-3180)

$5.49

$

In Stock, Qty 20+

0

MTD 748-0193

Spacer
(Superseded to 948-0193)

$

$

Not available

62

MTD 736-0280

Fl.-Wash. .390" I.D. x 1.12" O.D. x .187 Thk.
(Superseded to 736-04005)

$8.99

$

Usually ships in 3-6 days

0

63

MTD 16024

Tie Strap

$

$

Not available
