195432-1110-01 - Briggs & Stratton Horizontal Engine Fuel Tank Assys Parts Diagram

Horizontal Engine

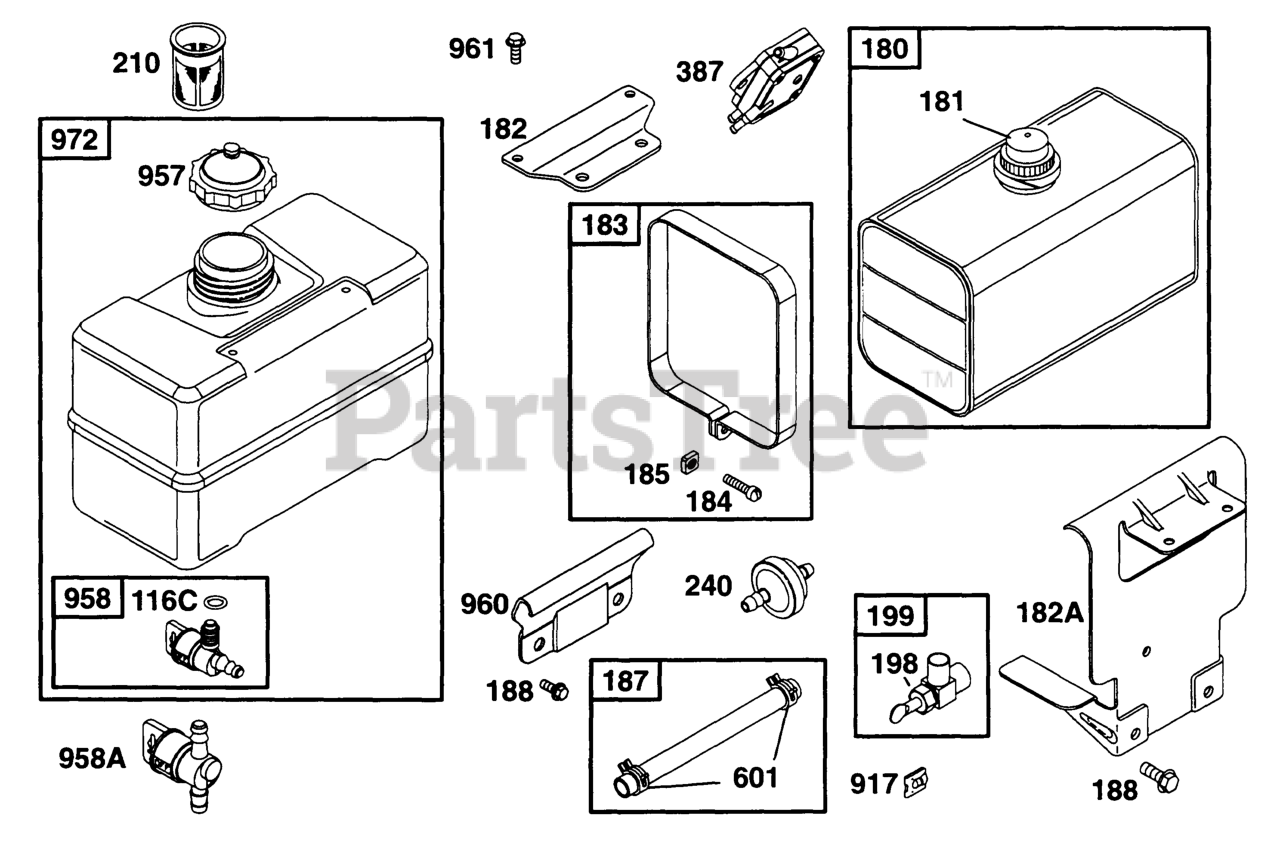

Fuel Tank Assys Parts Diagram

  • Title
116C

Briggs & Stratton 280203

Seal-O
(Superseded to 691898)

$5.49

$

In Stock, only 1 left!

0

180

Briggs & Stratton 291488

Tank-Fuel (6 Quart)

$

$

Not available

181

Briggs & Stratton 392305

Cap-Fuel Tank (Metal)
(Superseded to 791545)

$

$

Not available

182A

Briggs & Stratton 222829

Bracket-Fuel Tank

$

$

Not available

182

Briggs & Stratton 495664

Bracket-Fuel Tank

$

$

Not available

183

Briggs & Stratton 291490

Strap-Fuel Tank
(Superseded to 691937)

$33.99

$

Usually ships in 2-12 days

0

184

Briggs & Stratton 91257

Screw
(Superseded to 690280)

$3.99

$

Usually ships in 2-12 days

0

185

Briggs & Stratton 90970

Nut
(Superseded to 690279)

$3.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 299146

Line-Fuel (Cut To Required Length)
(Superseded to 841589)

$38.99

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 94627

Screw
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

198

Briggs & Stratton 293934

Valve-Shut
(Superseded to 592840)

$43.99

$

In Stock, only 1 left!

0

199

Briggs & Stratton 297563

Outlet-Tank Assembly
(Superseded to 592840)

$43.99

$

In Stock, only 1 left!

0

210

Briggs & Stratton 492044

Filter-Inlet
(Superseded to 691370)

$8.99

$

In Stock, only 1 left!

0

240

Briggs & Stratton 298090

Filter-Fuel
(Superseded to 298090S)

$

$

Not available

387

Briggs & Stratton 491922

Pump-Fuel
(Superseded to 808656)

$27.99

$

In Stock, Qty 20+

0

601

Briggs & Stratton 93053

Clamp-Hose (Green)
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

601

Briggs & Stratton 93807

Clamp-Hose (Black)
(Superseded to 691038)

$3.99

$

In Stock, Qty 16

0

917

Briggs & Stratton 223271

Handle-Shut Valve
(Superseded to 691737)

$7.49

$

Usually ships in 2-12 days

0

957

Briggs & Stratton 493988

Cap-Fuel Tank (Plastic)
(Superseded to 799719)

$40.99

$

In Stock, only 3 left!

0

958A

Briggs & Stratton 494768

Valve-Fuel Shut Off (Upper)
(Superseded to 698183)

$8.49

$

In Stock, Qty 20+

0

958

Briggs & Stratton 399517

Valve-Fuel Shut Off
(Superseded to 698182)

$

$

Not available

960

Briggs & Stratton 492990

Bracket-Fuel Tank (Lower)
(Superseded to 694592)

$17.99

$

In Stock, only 1 left!

0

961

Briggs & Stratton 94095

Screw
(Superseded to 690708)

$2.99

$

Usually ships in 2-12 days

0

972

Briggs & Stratton 493337

Tank-Fuel (Plastic)
(Superseded to 691993)

$166.99

$

In Stock, Qty 10

0
