195432-0911-01 - Briggs & Stratton Horizontal Engine Cyl,Muffler,CrnkCse,Gear Cse Parts Diagram

Horizontal Engine

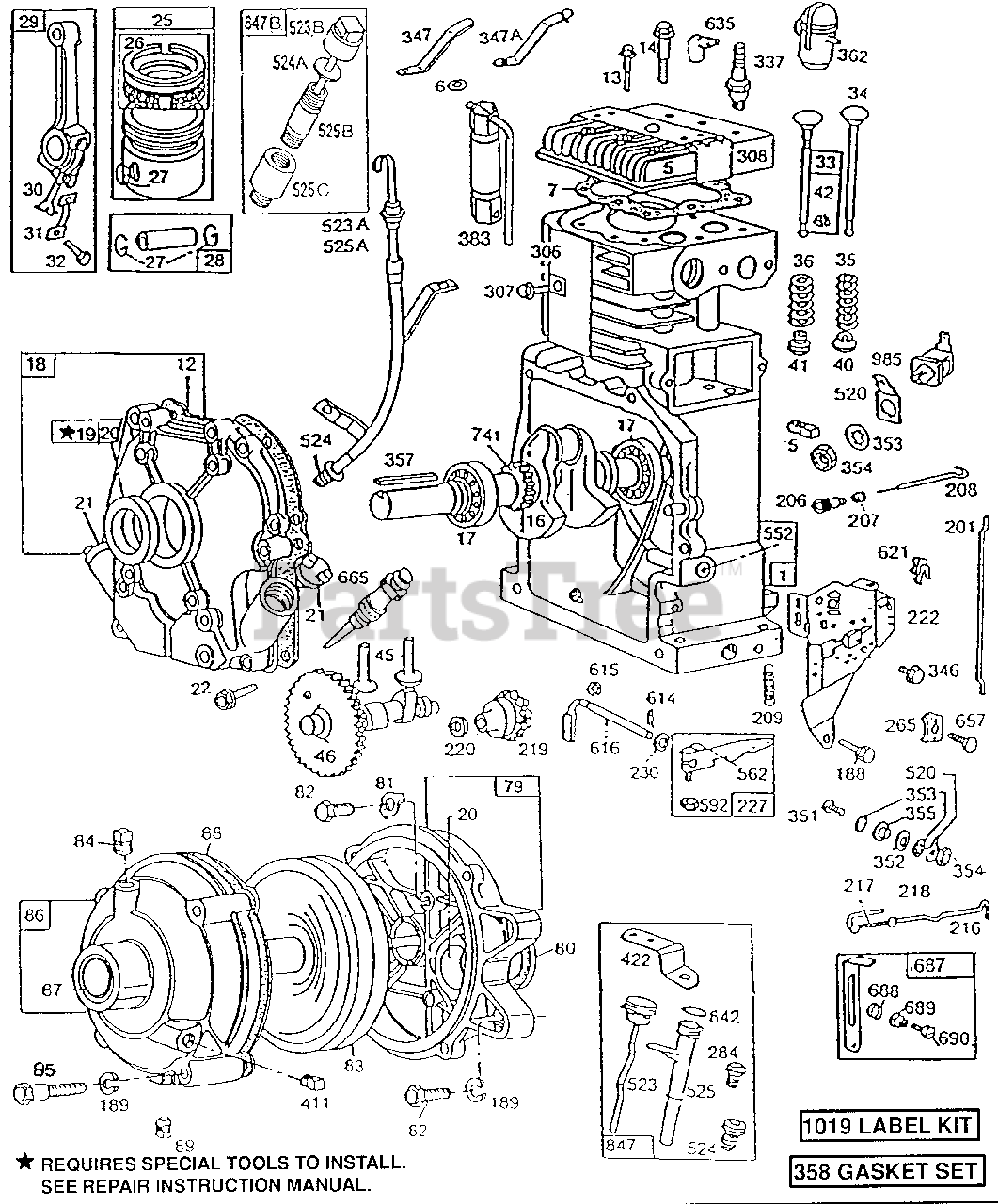

Cyl,Muffler,CrnkCse,Gear Cse Parts Diagram

  • Title

1

Briggs & Stratton 399218

Cylinder Assembly

$

$

Not available

5

Briggs & Stratton 212286

Head-Cylinder
(Superseded to 691715)

$95.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 270430

Gasket-Cylinder Head Breather Assembly
(Superseded to 272163S)

Note: Included in Gasket Set-Part No. 299577

$7.99

$

In Stock, Qty 20+

0

12

Briggs & Stratton 271701

Gasket, Crankcase (.015")
(Superseded to 692221)

Note: Included in Gasket Set-Part No. 299577

$8.99

$

In Stock, Qty 6

0

12

Briggs & Stratton 27876

Gasket-Crkcse (.005" Thick)

Note: Included in Gasket Set-Part No. 299577

$

$

Not available

12

Briggs & Stratton 27877

Gasket-Crkcse (.009" Thick)

Note: Included in Gasket Set-Part No. 299577

$10.99

$

In Stock, only 3 left!

0

13

Briggs & Stratton 93776

Stud, Cylinder Head
(Superseded to 691690)

$

$

Not available

13

Briggs & Stratton 94565

Screw, Machine Hex
(Superseded to 592244)

Note: (Cylinder Head) (3 9/16" Long)

$3.49

$

In Stock, Qty 20+

0

14

Briggs & Stratton 93723

Screw, Machine Hex (3" Long)
(Superseded to 690904)

$11.99

$

In Stock, only 4 left!

0

14

Briggs & Stratton 93781

Stud, Cylinder Head (3 15/16" Long)
(Superseded to 691690)

$

$

Not available

16

Briggs & Stratton 492473

Crankshaft

$260.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 29530

Bearing-Ball
(Superseded to 691069)

$35.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 399898

Cover, Crankcase Ki (Oil Fill On Top Of Cover)

Note: Or 299178 Cover Assembly-Crankcase (Dual Oil Fill on Side of Cover Only) Except as Listed Under Note

$

$

Not available

20

Briggs & Stratton 391086

Seal-Oil
(Superseded to 391086S)

Note: Included in Gasket Set-Part No. 299577

$6.49

$

In Stock, Qty 20+

0

21

Briggs & Stratton 66768

Plug, Oil Fill
(Superseded to 281658S)

$4.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 93585

Screw, Sem Hex Head
(Superseded to 691103)

$3.99

$

In Stock, only 4 left!

0

22

Briggs & Stratton 93685

Screw-Hex

$40.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 93730

Stud
(Superseded to 691695)

$6.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 393868

Piston/Ring Kit (Std.)
(Superseded to 499960)

$140.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 393869

Piston/Ring Kit (.010" O.S.)
(Superseded to 499961)

$67.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 393879

Piston/Ring Kit (.020" O.S.)
(Superseded to 499962)

$156.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 393880

Piston/Ring Kit (.030" O.S.)
(Superseded to 499963)

$

$

Not available

26

Briggs & Stratton 299743

Ring Set-Std Chr
(Superseded to 690014)

$

$

Not available

26

Briggs & Stratton 393881

Ring, Piston Kit (Std.)
(Superseded to 690014)

$

$

Not available

26

Briggs & Stratton 393882

Ring, Piston Kit (.010" O.S.)

$

$

Not available

26

Briggs & Stratton 393883

Ring, Piston Kit (.020" O.S.)
(Superseded to 690016)

$78.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 393884

Ring, Piston Kit (.030" O.S.)
(Superseded to 690017)

$68.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 68546

Lock-Piston Pin
(Superseded to 691073)

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 295840

Pin-Piston Std
(Superseded to 499302)

$15.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 295841

Pin-Piston 005

$6.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 390401

Rod-Connecting (Standard)

Note: For Connecting Rod With .020" Undersize Crankpin Bore-Order No. 390773

$

$

Not available

30

Briggs & Stratton 222113

Dipper-Connecting Rod
(Superseded to 691728)

$8.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 222114

Lock-Rod Screw

$

$

Not available

32

Briggs & Stratton 92659

Screw-Connecting Rod And Bracket Mtg.
(Superseded to 690352)

$6.99

$

In Stock, only 3 left!

0

33

Briggs & Stratton 390420

Valve/Retainer Kit
(Superseded to 691794)

$

$

Not available

34

Briggs & Stratton 261055

Valve-Intake
(Superseded to 261055S)

$32.99

$

In Stock, only 2 left!

0

35

Briggs & Stratton 65906

Spring, Valve
(Superseded to 691605)

$6.99

$

In Stock, only 1 left!

0

36

Briggs & Stratton 26828

Spring, Valve (Exhaust)
(Superseded to 691597)

$10.99

$

In Stock, only 4 left!

0

40

Briggs & Stratton 221596

Retainer, Spring (Used With Valves With Groove In Stem)
(Superseded to 690656)

$

$

Not available

41

Briggs & Stratton 292260

Rotocoil Assy (Exhaust Valve)
(Superseded to 691939)

$27.99

$

In Stock, Qty 5

0

42

Briggs & Stratton 93630

Keeper, Valve (2)
(Superseded to 494553)

$7.99

$

In Stock, only 2 left!

0

45

Briggs & Stratton 260933

Tappet-Valve
(Superseded to 691793)

$6.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 211689

Gear-Cam.
(Superseded to 691167)

$

$

Not available

79

Briggs & Stratton 296179

Gear Case Assy.
(Superseded to 690614)

$90.99

$

Usually ships in 2-12 days

0

80

Briggs & Stratton 27884

Gasket-Gear Case To Crankcase Cover
(Superseded to 691603)

$9.49

$

Usually ships in 2-12 days

0

81

Briggs & Stratton 220234

Lock-Screw Head
(Superseded to 691168)

$5.49

$

Usually ships in 2-12 days

0

82

Briggs & Stratton 92502

Screw-Hex.
(Superseded to 690287)

$2.99

$

Usually ships in 2-12 days

0

83

Briggs & Stratton 291762

Shaft Assy.-Drive
(Superseded to 690387)

$

$

Not available

84

Briggs & Stratton 92617

Screw-Gear Case Mounting Sem
(Superseded to 691121)

$5.99

$

Usually ships in 2-12 days

0

85

Briggs & Stratton 91386

Screw, Hex Head Cap (2" Long)
(Superseded to 691076)

$3.99

$

Usually ships in 2-12 days

0

86

Briggs & Stratton 296053

Cover-Assembly Gear
(Superseded to 690613)

$119.99

$

Usually ships in 2-12 days

0

87

Briggs & Stratton 391086

Seal-Oil
(Superseded to 391086S)

$6.49

$

In Stock, Qty 20+

0

88

Briggs & Stratton 27328

Gasket-Gear Cover
(Superseded to 691601)

$11.99

$

Usually ships in 2-12 days

0

89

Briggs & Stratton 91488

Plug, Pipe (1/8")
(Superseded to 794903)

$5.49

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 93535

Screw, Sem Hex Head (5/16-18 X 3/4)
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

189

Briggs & Stratton 90366

Lockwasher, Zinc Pl
(Superseded to 691075)

$3.49

$

Usually ships in 2-12 days

0

201

Briggs & Stratton 260872

Link-Throttle

$

$

Not available

206

Briggs & Stratton 231266

Nut, Hex (#6-32 Thread)
(Superseded to 691771)

$37.99

$

Usually ships in 2-12 days

0

207

Briggs & Stratton 26855

Spring-Governor Control Rod
(Superseded to 692522)

$

$

Not available

208

Briggs & Stratton 261959

Rod-Governor Control

$4.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 260695

Spring-Governor
(Superseded to 796260)

$4.99

$

In Stock, Qty 13

0

216

Briggs & Stratton 262026

Link-Choke

$10.99

$

Usually ships in 2-12 days

0

217

Briggs & Stratton 261119

Spring-Link
(Superseded to 691267)

$

$

Not available

218

Briggs & Stratton 222352

Washer-Flat
(Superseded to 690407)

$

$

Not available

219

Briggs & Stratton 391737

Gear-Governor

Note: Used Before Code Date 91061000

$38.99

$

In Stock, only 2 left!

0

219

Briggs & Stratton 494845

Gear-Governor

Note: Used After Code Date 91060900

$

$

Not available

220

Briggs & Stratton 221551

Washer, Steel
(Superseded to 691724)

$5.49

$

In Stock, only 2 left!

0

222

Briggs & Stratton 399150

Bracket-Control (Choke-A-Matic)

$45.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 391965

Governor Control Le (For 1/4" Dia. Crank)
(Superseded to 692356)

$1.99

$

Usually ships in 2-12 days

0

230

Briggs & Stratton 222450

Washer, Steel Zinc
(Superseded to 691691)

$3.99

$

In Stock, Qty 5

0

265

Briggs & Stratton 221535

Clamp, Casing (Stamped Steel)
(Superseded to 691024)

$3.99

$

In Stock, Qty 5

0

284

Briggs & Stratton 93886

Screw-Shoulder
(Superseded to 691130)

$2.99

$

Usually ships in 2-12 days

0

306

Briggs & Stratton 223374

Shield-Cylinder
(Superseded to 496797)

$19.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 93949

Screw-Sem
(Superseded to 691003)

$3.49

$

In Stock, Qty 9

0

308

Briggs & Stratton 222636

Cover, Head
(Superseded to 691201)

$7.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 293918

Spark Plug,resistor
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 29693

Spark Plug
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 298809

Spark Plug
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 492167

Spark Plug
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 802592

Spark Plug,resistor
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

346

Briggs & Stratton 93705

Screw, Tapping Hex (8-32 X 3/8)
(Superseded to 690661)

$3.49

$

In Stock, Qty 8

0

347A

Briggs & Stratton 293739

Sparkplug Stop Sw

$4.99

$

Usually ships in 2-12 days

0

347A

Briggs & Stratton 298926

Sparkplug Stop Sw

$34.99

$

Usually ships in 2-12 days

0

347

Briggs & Stratton 220197

Switch, Stop (For 1-1/2" High, 38 Mm. Spark Plugs)
(Superseded to 690578)

$

$

Not available

351

Briggs & Stratton 91920

Screw, Machine Fill (8-32 X 5/8")
(Superseded to 691615)

$3.99

$

Usually ships in 2-12 days

0

351

Briggs & Stratton 93735

Screw-Slotted

$3.49

$

Usually ships in 2-12 days

0

352

Briggs & Stratton 66068

Washer-Fiber

$4.99

$

Usually ships in 2-12 days

0

353

Briggs & Stratton 92791

Lockwasher, Interna
(Superseded to 691077)

$3.49

$

In Stock, only 2 left!

0

354

Briggs & Stratton 90576

Nut, Hex (8-32)
(Superseded to 691612)

$3.49

$

In Stock, only 1 left!

0

355

Briggs & Stratton 66554

Washer-Insulating

$5.49

$

Usually ships in 2-12 days

0

357

Briggs & Stratton 91540

Key, Pulley (1/4")
(Superseded to 691483)

$6.99

$

In Stock, only 1 left!

0

358

Briggs & Stratton 299577

Gasket Set

$35.99

$

In Stock, Qty 11

0

362

Briggs & Stratton 291630

Shield, Spark Plug (With Stop Switch)
(Superseded to 793351)

$14.99

$

In Stock, only 1 left!

0

383

Briggs & Stratton 89838

Wrench-Spark Plugs
(Superseded to 89838S)

$6.49

$

In Stock, only 4 left!

0

411

Briggs & Stratton 93448

Plug, Pipe (Flush) (1/4-18 Nptf)
(Superseded to 691682)

$5.49

$

Usually ships in 2-12 days

0

422

Briggs & Stratton 223375

Bracket-Oil Filler
(Superseded to 690501)

$7.99

$

Usually ships in 2-12 days

0

520

Briggs & Stratton 93722

Terminal, Spade
(Superseded to 691084)

$6.49

$

In Stock, only 1 left!

0

523B

Briggs & Stratton 295923

Cap-Oil Filler

Note: Uses: 230553 Nipple-Oil Filler (5-1/4" Lg.)

$14.99

$

Usually ships in 2-12 days

0

523A

Briggs & Stratton 390848

Cap And Dipstick-Oil Filler

$

$

Not available

523B

Briggs & Stratton 297357

Cap/Dipstick Assy

$

$

Not available

523

Briggs & Stratton 396987

Cap And Dipstick-Oil Filler
(Superseded to 691386)

$

$

Not available

524A

Briggs & Stratton 65304

Gasket-Oil Filler Cap
(Superseded to 690270)

$3.99

$

In Stock, only 1 left!

0

524

Briggs & Stratton 68838

Seal-Oil Filler Tube To Sump
(Superseded to 281370S)

Note: Included in Gasket Set-Part No. 299577

$8.49

$

In Stock, Qty 20+

0

525C

Briggs & Stratton 394884

Adaptor-Oil Filler With Nipple
(Superseded to 691257)

$24.99

$

In Stock, only 3 left!

0

525A

Briggs & Stratton 299284

Tube-Oil Filler

$

$

Not available

525B

Briggs & Stratton 91258

Dipstick Tube (2-1/2" Long)
(Superseded to 691257)

$24.99

$

In Stock, only 3 left!

0

525

Briggs & Stratton 280220

Tube-Oil Filler
(Superseded to 691389)

$32.99

$

In Stock, only 1 left!

0

552

Briggs & Stratton 491893

Bushing-Gov Crank (Includes Seal, Ref. 87)

$107.99

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 92613

Bolt-Gov Lever

$

$

Not available

592

Briggs & Stratton 231082

Nut (10-24)
(Superseded to 691251)

$3.49

$

In Stock, Qty 9

0

614

Briggs & Stratton 93306

Pin, Cotter
(Superseded to 691620)

$4.49

$

In Stock, only 2 left!

0

615

Briggs & Stratton 93307

Retainer-E Ring

$5.99

$

In Stock, only 3 left!

0

616

Briggs & Stratton 231057

Crank, Governor (1/4" Dia.)
(Superseded to 692015)

$16.99

$

In Stock, only 2 left!

0

621

Briggs & Stratton 297472

Switch, Stop Assy
(Superseded to 297472S)

Note: Used Before Code Date 85041500

$

$

Not available

621

Briggs & Stratton 396847

Switch, Stop Assy
(Superseded to 692310)

Note: Used After Code Date 85041400

$5.99

$

In Stock, Qty 20+

0

635

Briggs & Stratton 66538

Elbow-Spark Plug
(Superseded to 66538S)

$3.99

$

In Stock, Qty 5

0

657

Briggs & Stratton 93496

Screw, Sem Hex Head (10-32 X 5/8")
(Superseded to 690804)

$

$

Not available

665

Briggs & Stratton 298859

Oil Minder

$12.99

$

Usually ships in 2-12 days

0

687

Briggs & Stratton 390701

Slide-Friction Control
(Superseded to 691949)

$

$

Not available

688

Briggs & Stratton 221766

Spring-Friction
(Superseded to 690395)

$8.99

$

Usually ships in 2-12 days

0

689

Briggs & Stratton 260847

Spring-Friction
(Superseded to 690529)

$9.99

$

Usually ships in 2-12 days

0

690

Briggs & Stratton 90746

Screw, Machine Fill (10-32 X 5/8")
(Superseded to 690278)

$3.99

$

In Stock, only 1 left!

0

741

Briggs & Stratton 261195

Gear-Timing (For Use With Pin)

$17.99

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 262479

Gear, Timing (For Use With Key)
(Superseded to 691288)

$21.99

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 271170

Seal-Tube
(Superseded to 691870)

Note: Included in Gasket Set-Part No. 299577

$4.49

$

Usually ships in 2-12 days

0

847B

Briggs & Stratton 493955

Tube/Dipstick Assembly

$19.99

$

Usually ships in 2-12 days

0

847

Briggs & Stratton 399901

Fill Group-Oil

$

$

Not available

985

Briggs & Stratton 398525

Terminal-Insulated
(Superseded to 691972)

$8.49

$

In Stock, only 2 left!

0

1019

Briggs & Stratton 491193

Label Kit

$36.99

$

Usually ships in 2-12 days

0
