1950 - Poulan Woodshark Chainsaw, Type 1 (2007-08) Engine Assembly Type 1-5 Parts Diagram

Woodshark Chainsaw, Type 1

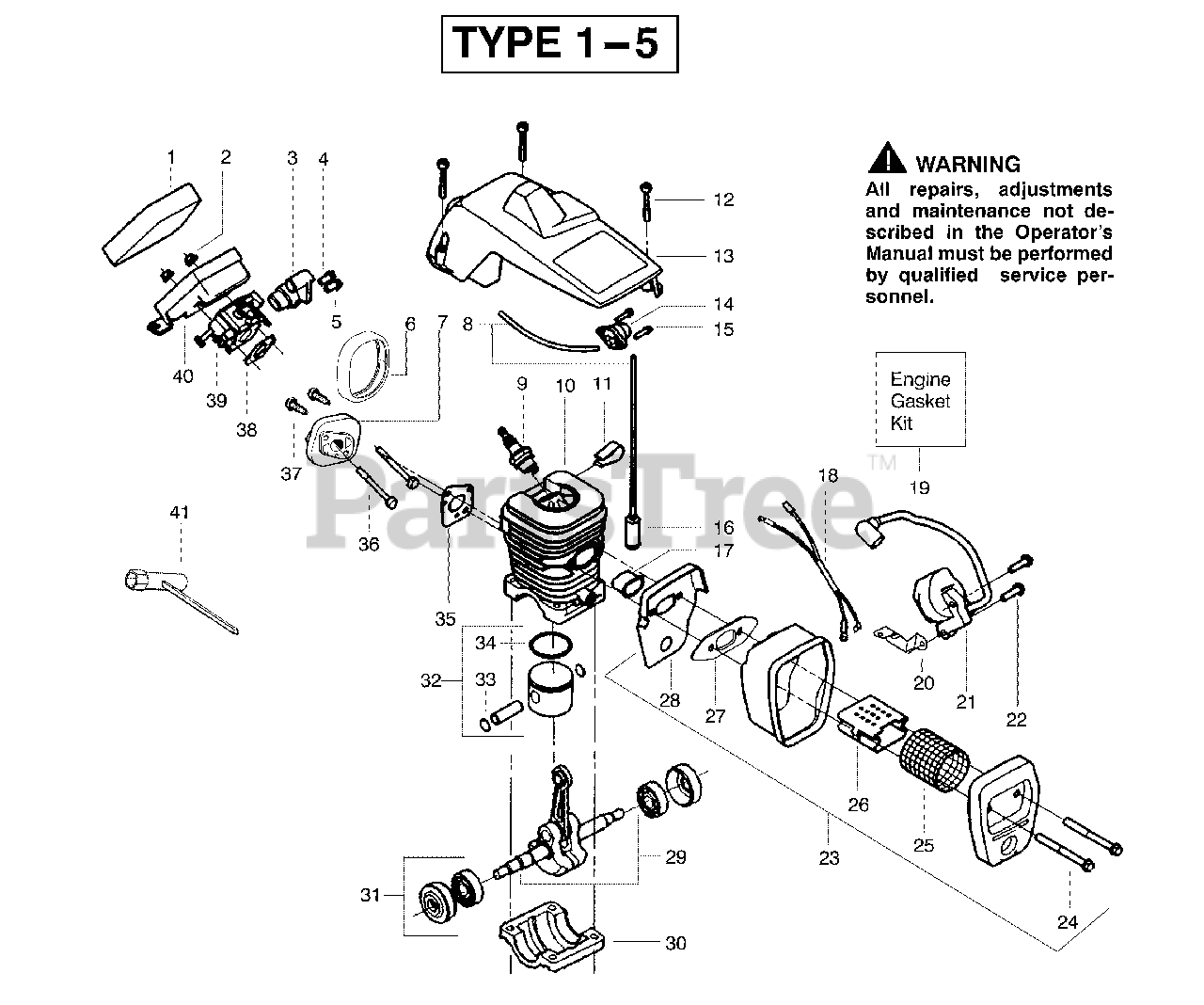

Engine Assembly Type 1-5 Parts Diagram

  • Title

1

Poulan 530037793

Foam- Air Filter

$4.99

$

In Stock, Qty 7

0

2

Poulan 530016101

Nut

$6.49

$

In Stock, only 2 left!

0

3

Poulan 530049244

Grommet-Carb Adjust

$4.99

$

In Stock, only 3 left!

0

4

Poulan 530038479

Limiter Cap-High

$3.99

$

Usually ships in 3-10 days

0

5

Poulan 530038478

Limiter Cap-Low

$3.99

$

In Stock, Qty 19

0

6

Poulan 530054144

Seal-Carb Adapter

$

$

Not available

7

Poulan 530049700

Carb. Adapter

$10.99

$

In Stock, only 1 left!

0

8

Poulan 530069247

Fuel Line Kit (Small)

$7.99

$

In Stock, Qty 20+

0

9

Poulan 952030150

Spark Plug (RCJ-7Y)

$3.49

$

In Stock, Qty 20+

0

10

Poulan 530069606

Cylinder Kit
(Superseded to 530071252)

$34.61

$

Usually ships in 3-10 days

0

11

Poulan 530016136

Clip-High Tension Lead

$3.99

$

Usually ships in 3-10 days

0

12

Poulan 530016153

Screw

$6.49

$

Usually ships in 3-10 days

0

13

Poulan 530071310

Cylinder Shield

$

$

Not available

14

Poulan 530047213

Air Purge Ass'y.
(Superseded to 530071835)

$11.99

$

In Stock, Qty 14

0

15

Poulan 530015780

Screw

$6.49

$

In Stock, only 2 left!

0

16

Poulan 530095646

Fuel Pick-up Ass'y.

$6.99

$

In Stock, Qty 20+

0

17

Poulan 530037652

Heat Insulator

$

$

Not available

18

Poulan 530052296

Assy. -Wire Harness

$7.49

$

Usually ships in 3-10 days

0

19

Poulan 530069608

Kit-Engine Gasket

Note: Incl. 27, 35 & 38

$8.99

$

In Stock, Qty 13

0

20

Poulan 530047442

Strap-Ground

$3.99

$

Usually ships in 3-10 days

0

21

Poulan 530039167

Module- Ignition
(Superseded to 530071905)

$66.99

$

In Stock, only 2 left!

0

22

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 16

0

23

Poulan 530047207

Assy-Muffler
(Superseded to 530071904)

Note: Incl. 24,25,26,27,28

$20.99

$

Usually ships in 3-10 days

0

24

Poulan 530016132

Screw

$6.49

$

In Stock, Qty 10

0

25

Poulan 530036103

Screen-Spark

$

$

Not available

26

Poulan 530037813

Diffuser-Muffler

$4.99

$

In Stock, only 1 left!

0

27

Poulan 530069608

Gasket-Muffler (Kit)

$8.99

$

In Stock, Qty 13

0

28

Poulan 530049870

Backplate-Muffler

$6.49

$

Usually ships in 3-10 days

0

29

Poulan 530047062

Assy. - Crankshaft
(Superseded to 545113101)

$72.99

$

In Stock, only 1 left!

0

30

Poulan 530037935

Cap-Crankcase

$10.99

$

Usually ships in 3-10 days

0

31

Poulan 530056363

Assy.-Seal & Bearing

$18.99

$

In Stock, only 2 left!

0

32

Poulan 530069604

Kit-Piston

Note: Incl. 33 & 34

$

$

Not available

33

Poulan 530015697

Retainer-Piston Pin

$6.49

$

In Stock, Qty 6

0

34

Poulan 530029805

Ring - Piston

$6.49

$

In Stock, Qty 17

0

35

Poulan 530069608

Gasket-Carb. Adap. (Kit)

$8.99

$

In Stock, Qty 13

0

36

Poulan 530016187

Screw

$6.49

$

In Stock, only 2 left!

0

37

Poulan 530016386

Screw

$8.99

$

In Stock, only 1 left!

0

38

Poulan 530069608

Gasket - Carb. (Kit)

$8.99

$

In Stock, Qty 13

0

39

Poulan 530069703

Kit-Carburetor
(Superseded to 545081885)

Note: incl. 4 & 5

$34.99

$

Usually ships in 3-10 days

0

40

Poulan 530037804

Housing- Air Filter
(Superseded to 530057480)

$

$

Not available

41

Poulan 530031163

Wrench - Bar

$9.99

$

In Stock, Qty 12

0

Poulan 530086194

Operator Manual Type 1,2,3,4
(Superseded to 530086524)

Note: Not Shown

$6.49

$

Usually ships in 3-10 days

0

Poulan 530088308

Operator Manual Type 5

Note: Not Shown

$2.99

$

Usually ships in 3-10 days

0

Poulan 530038257

Operator Manual Decal Instruction

Note: Not Shown

$

$

Not available

Poulan 530038486

Operator Manual Decal Stop

Note: Not Shown

$

$

Not available
