1950 LE - Poulan Woodshark Chainsaw, Type 1 Engine Assembly Type 1 Parts Diagram

Woodshark Chainsaw, Type 1

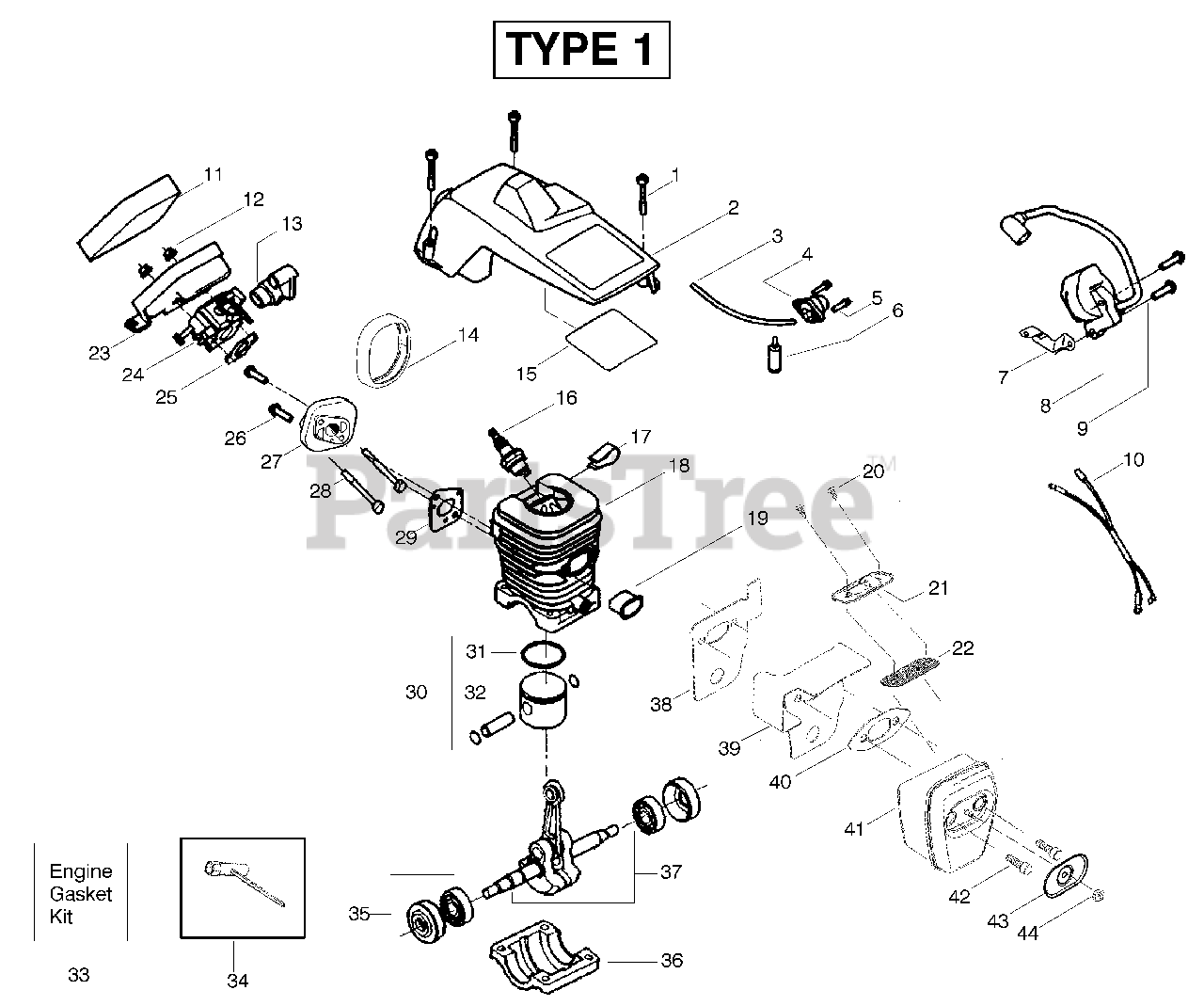

Engine Assembly Type 1 Parts Diagram

  • Title

1

Poulan 530016153

Screw

$6.49

$

Usually ships in 3-10 days

0

2

Poulan 530055637

Assy-Cylinder Shield

Note: (Includes # 15)

$

$

Not available

3

Poulan 530069247

Kit-Fuel Line

Note: (Small)

$7.99

$

In Stock, Qty 20+

0

4

Poulan 530047213

Assy- Air Purge
(Superseded to 530071835)

$11.99

$

In Stock, Qty 14

0

5

Poulan 530015780

Screw

$6.49

$

In Stock, only 2 left!

0

6

Poulan 530095646

Assy-Fuel Pick-Up

$6.99

$

In Stock, Qty 20+

0

7

Poulan 530047442

Strap-Ground

$3.99

$

Usually ships in 3-10 days

0

8

Poulan 530039198

Ignition Module

$56.99

$

In Stock, only 1 left!

0

9

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 16

0

10

Poulan 530052296

Assy-Wire Harness

$7.49

$

Usually ships in 3-10 days

0

11

Poulan 530037793

Foam- Air Filter

$4.99

$

In Stock, Qty 7

0

12

Poulan 530016101

Nut

$6.49

$

In Stock, only 2 left!

0

13

Poulan 530035526

Grommet-Carb Adjust

$

$

Not available

14

Poulan 530054144

Seal-Carb Adapter

$

$

Not available

15

Poulan 530055698

Reflector-Heat

$3.99

$

In Stock, only 1 left!

0

16

Poulan 952030150

Spark Plug

Note: (RCJ-7Y)

$3.49

$

In Stock, Qty 20+

0

17

Poulan 530016136

Clip-High Tension Lead

$3.99

$

Usually ships in 3-10 days

0

18

Poulan 530071412

Kit-Cylinder
(Superseded to 530012550)

$51.99

$

Usually ships in 3-10 days

0

19

Poulan 530037652

Insulator-Heat

$

$

Not available

20

Poulan 530016351

Screw-Outlet Cover

$3.99

$

Usually ships in 3-10 days

0

21

Poulan 530055759

Cover - Outlet

$3.99

$

Usually ships in 3-10 days

0

22

Poulan 530071413

Kit-Spark Arrestor
(Superseded to 530071904)

Note: (Incl. 20,21)

$20.99

$

Usually ships in 3-10 days

0

23

Poulan 530037804

Air Filter Housing
(Superseded to 530057480)

$

$

Not available

24

Poulan 530071410

Kit-Carburetor (WT-600)

$

$

Not available

24

Poulan 530071622

Kit-Carburetor (WT-637)

$53.99

$

In Stock, only 2 left!

0

25

Poulan 530069608

Gasket-Carb.

$8.99

$

In Stock, Qty 13

0

26

Poulan 530016386

Screw

$8.99

$

In Stock, only 1 left!

0

27

Poulan 530049700

Carb. Adapter

$10.99

$

In Stock, only 1 left!

0

28

Poulan 530016187

Screw

$6.49

$

In Stock, only 2 left!

0

29

Poulan 530069608

Gasket-Carb Adaptor

$8.99

$

In Stock, Qty 13

0

30

Poulan 530071408

Kit-Piston

Note: (Incl. 31 & 32)

$

$

Not available

31

Poulan 530038729

Ring-Piston
(Superseded to 545160401)

$6.49

$

In Stock, only 1 left!

0

32

Poulan 530015697

Retainer-Piston Pin

$6.49

$

In Stock, Qty 6

0

33

Poulan 530069608

Kit-Engine Gasket

Note: (Incl. 25, 29 & 40)

$8.99

$

In Stock, Qty 13

0

34

Poulan 530031163

Bar Wrench

$9.99

$

In Stock, Qty 12

0

35

Poulan 530056363

Assy-Seal & Bearing

$18.99

$

In Stock, only 2 left!

0

36

Poulan 530037935

Cap-Crankcase

$10.99

$

Usually ships in 3-10 days

0

37

Poulan 530047062

Assy-Crankshaft
(Superseded to 545113101)

$72.99

$

In Stock, only 1 left!

0

38

Poulan 530054885

Backplate

$

$

Not available

39

Poulan 530054880

Guide-Outlet

$

$

Not available

40

Poulan 530069608

Gasket-Muffler

$8.99

$

In Stock, Qty 13

0

41

Poulan 530054886

Assy-Muffler
(Superseded to 530071904)

Note: (Incl. 22, 38-40)

$20.99

$

Usually ships in 3-10 days

0

42

Poulan 530016338

Bolt-Muffler

$3.99

$

Usually ships in 3-10 days

0

43

Poulan 530055586

Cover-Bolt

$

$

Not available

44

Poulan 530016359

Nut-Brass
(Superseded to 574266401)

$4.99

$

In Stock, Qty 6

0

44

Poulan 530163676

Operator Manual

Note: Not Shown

$

$

Not available
