1950-50 - Dixon Zero-Turn Mower (2004) CONTROLS, TANKS & SEAT FRAME Parts Diagram

Zero-Turn Mower

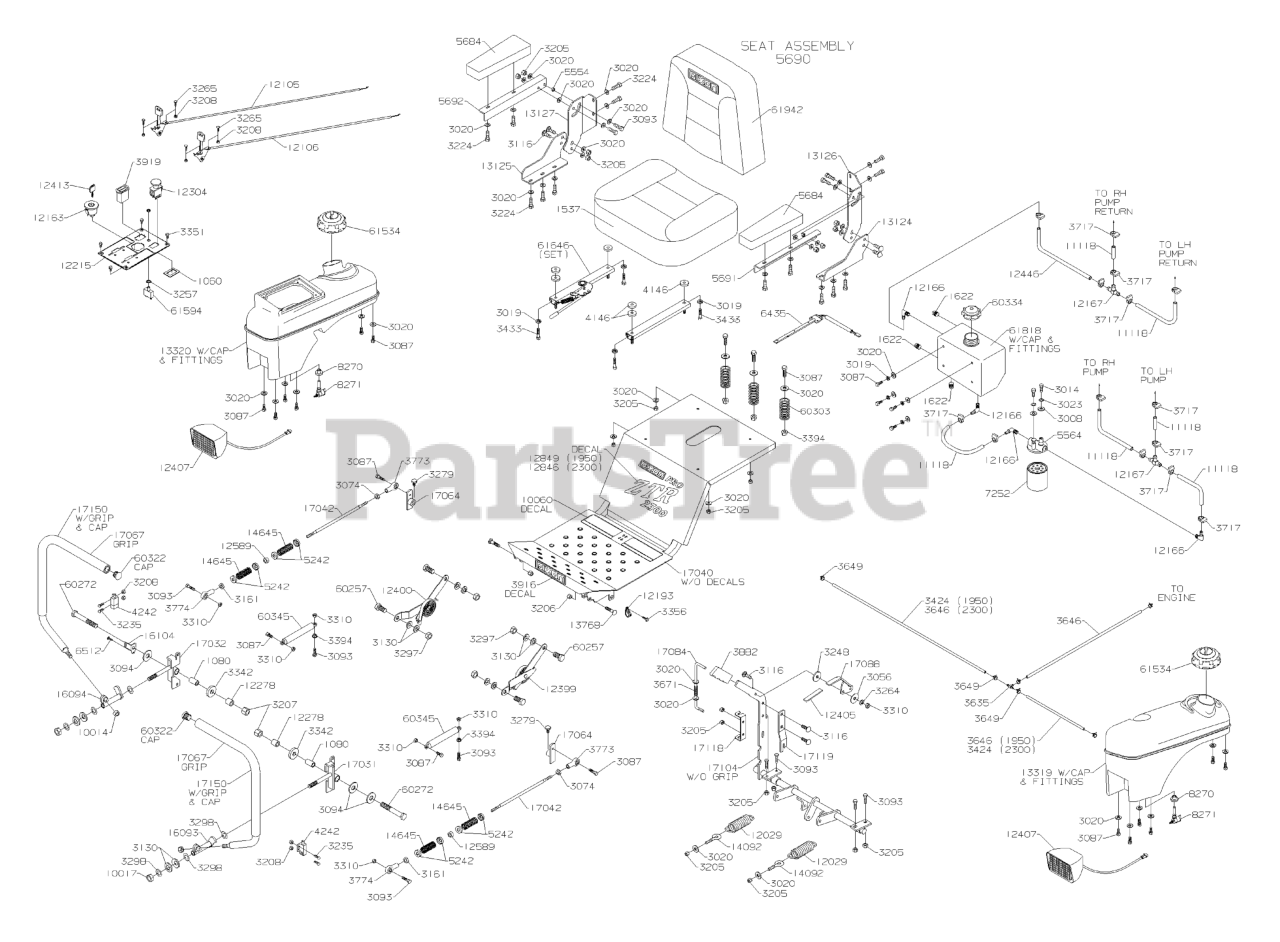

CONTROLS, TANKS & SEAT FRAME Parts Diagram

  • Title

1060

1060

$

$

Not available

1080

1080

BUSHING

$

$

Not available

1537

1537

SEAT BOTTOM

$

$

Not available

1622

1622

PLUG-NO CHARGE 3/8

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3019

3019

5/16HELICAL L-WASHER

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3023

3023

1/4HELICAL L-WASHER

$

$

Not available

3056

3056

WASHER, FENDER 5/16

$

$

Not available

3074

3074

NUT 5/16-24 UNF HEX JAM

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3094

3094

1/2 STD FLAT WASHER

$

$

Not available

3116

3116

RHSNB 5/16-18 X 1 GR 5 ZD

$

$

Not available

3130

3130

CONTACT BELLSPR 1/2

$

$

Not available

3161

Dixon 3161

5/16 24UNF NUT LH TH

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3207

3207

NUT, HEX 1/2-13 W/NY

$

$

Not available

3208

Dixon 3208

#10-24 HEX NUT W/NY

$

$

Not available

3224

3224

5/16-18X1 HHB G5W/NY

$

$

Not available

3235

3235

#10-24X5/8PHIL PANHD

$

$

Not available

3248

3248

5/16IDX1/8THK WASHER

$

$

Not available

3257

3257

7/16 INT TOOTH LWASH

$

$

Not available

3264

3264

5/16 DISC SPRING HD

$

$

Not available

3265

3265

10-24X3/4TRUSS HD PH

$

$

Not available

3279

3279

SET SCREW W/HEX HEAD

$

$

Not available

3297

Dixon 3297

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3298

3298

WASHER.515X.874X.031

$

$

Not available

3310

3310

5/16-18 THIN PROF NY

$

$

Not available

3342

3342

WASHER.525X1.375X.25

$

$

Not available

3351

3351

1/4-20X1/2HWH FORM SCR H

$

$

Not available

3356

3356

SCREW, TAP & DR #12-14 X 3/4

$

$

Not available

3394

3394

5/16-18 FLANGED L-NUT

$

$

Not available

3424

3424

HOSE 1/4 X 44

$

$

Not available

3433

3433

5/16-18X1-1/2 HHB GR5WNY

$

$

Not available

3635

3635

FUEL LINE TEE

$

$

Not available

3646

Dixon 3646

R/B 3646 HOSE 1/4 X 18

$

$

Not available

3649

Dixon 3649

FUEL LINE CLAMP

$

$

Not available

3671

3671

SPRING-.390ID X 1.56

$

$

Not available

3717

3717

CLAMP 3/8

$

$

Not available

3773

Dixon 3773

LH ROD END

$

$

Not available

3774

3774

RH ROD END

$

$

Not available

3882

Dixon 3882

HAND GRIP-NOTCHED

$

$

Not available

3916

Dixon 3916

R/B 3916 DECAL - DIXON

$

$

Not available

3919

Dixon 3919

HOUR METER

$

$

Not available

4146

4146

WASHER NYLON

$

$

Not available

4242

4242

DECK SWITCH

$

$

Not available

5242

5242

PLUG W/HOLE - FLAT

$

$

Not available

5554

Dixon 5554

SPACER

$

$

Not available

5564

5564

FILTER HEAD

$

$

Not available

5684

5684

ARMREST

$

$

Not available

5690

5690

SEAT ASM - ESTATE

$

$

Not available

5691

5691

L.H. ARM REST BRACKET

$

$

Not available

5692

5692

R.H. ARM REST BRACKET

$

$

Not available

6435

6435

SEAT SWITCH ASSEMBLY

$

$

Not available

6512

6512

#10-32X1/2` HHTRS

$

$

Not available

7252

7252

R/B 7252 FILTER

$

$

Not available

8270

8270

TANK FITTING

$

$

Not available

8271

8271

TANK FUEL VALVE # 8271

$

$

Not available

10014

Dixon 10014

1/2-13HEX NUT W/NYL

$

$

Not available

10017

10017

NUT, HEX 1/2-13 THIN W/NY

$

$

Not available

10060

10060

DECAL, OPERATING INST.

$

$

Not available

11118

11118

3/8 X 9 BLACK HOSE

$

$

Not available

12029

12029

SPRING

$

$

Not available

12105

12105

CABLE CHOKE

$

$

Not available

12106

12106

CABLE THROTTLE

$

$

Not available

12163

12163

IGNITION SWITCH

$

$

Not available

12166

12166

MALE ELBOW

$

$

Not available

12167

12167

TEE

$

$

Not available

12193

12193

INSULATED STRAP (MED.)

$

$

Not available

12215

12215

CONTROL PANEL

$

$

Not available

12278

12278

SPACER

$

$

Not available

12304

12304

CLUTCH SWITCH

$

$

Not available

12399

12399

SPRING DRILLED-LH

$

$

Not available

12400

12400

SPRING DRILLED-RH

$

$

Not available

12405

12405

GRIP

$

$

Not available

12407

12407

HEADLIGHT ASM.

$

$

Not available

12413

12413

KEY MOLDED

$

$

Not available

12446

12446

3/8` HOSE - 14`

$

$

Not available

12589

12589

LOCKING COLLAR

$

$

Not available

12846

12846

MODEL DECAL-2300

$

$

Not available

12849

12849

MODEL DECAL-1950

$

$

Not available

13124

13124

R/B 13124 L.H. SEAT BOTTOM BR

$

$

Not available

13125

13125

R/B 13125 R.H. SEAT BOTTOM BR

$

$

Not available

13126

13126

R/B 13126 LH SEAT BACK BRACKE

$

$

Not available

13127

13127

R/B 13127 RH SEAT BACK BRACKE

$

$

Not available

13319

13319

LH TANK W/CAP

$

$

Not available

13320

13320

RH TANK W/CAP

$

$

Not available

13768

13768

CARR BOLT 3/8-16X14-3/4G5

$

$

Not available

14092

14092

EYE BOLT

$

$

Not available

14645

14645

SPRING

$

$

Not available

16093

16093

CONTROL WLDT. LH

$

$

Not available

16094

16094

CONTROL WLDT. RH

$

$

Not available

16104

16104

SWITCH PLATE

$

$

Not available

17031

17031

STEER PIVOT LH

$

$

Not available

17032

17032

STEER PIVOT RH

$

$

Not available

17040

17040

SEAT FRAME WLDT.

$

$

Not available

17042

17042

CONTROL ROD

$

$

Not available

17043

17043

BRAKE SHAFT DRILLED

$

$

Not available

17064

17064

CONTROL ARM WLDT.(DRILL)

$

$

Not available

17067

17067

GRIP

$

$

Not available

17084

17084

LIFT HANDLE CONTROL

$

$

Not available

17088

17088

LIFT TRIGGER (PLATED)

$

$

Not available

17104

17104

LIFT SHAFT-PLATED

$

$

Not available

17118

17118

GUIDE-INSIDE (PLATED)

$

$

Not available

17119

17119

GUIDE-OUTSIDE (PLATED)

$

$

Not available

17150

17150

CONTROL LEVER W/GRIP

$

$

Not available

60257

60257

CAPSCREW HEXHEAD 1/2-13

$

$

Not available

60272

60272

CAPSCREW 1/2-13X3-1/2

$

$

Not available

60303

60303

SEAT SPRING

$

$

Not available

60322

60322

END PLUG 15/16` (BLACK)

$

$

Not available

60334

60334

CAP OPEN COVERED VENT

$

$

Not available

60345

60345

DAMPNER DUAL ACITON #326

$

$

Not available

61534

61534

GASOLINE CAP

$

$

Not available

61594

61594

CIRCUIT BREAKER 30 AMP

$

$

Not available

61646

61646

SEAT SLIDE (SET)

$

$

Not available

61818

61818

RESERVOIR W/CAP& FITTING

$

$

Not available

61942

61942

$

$

Not available
