1950-50 - Dixon Zero-Turn Mower (2004) CHASSIS Parts Diagram

Zero-Turn Mower

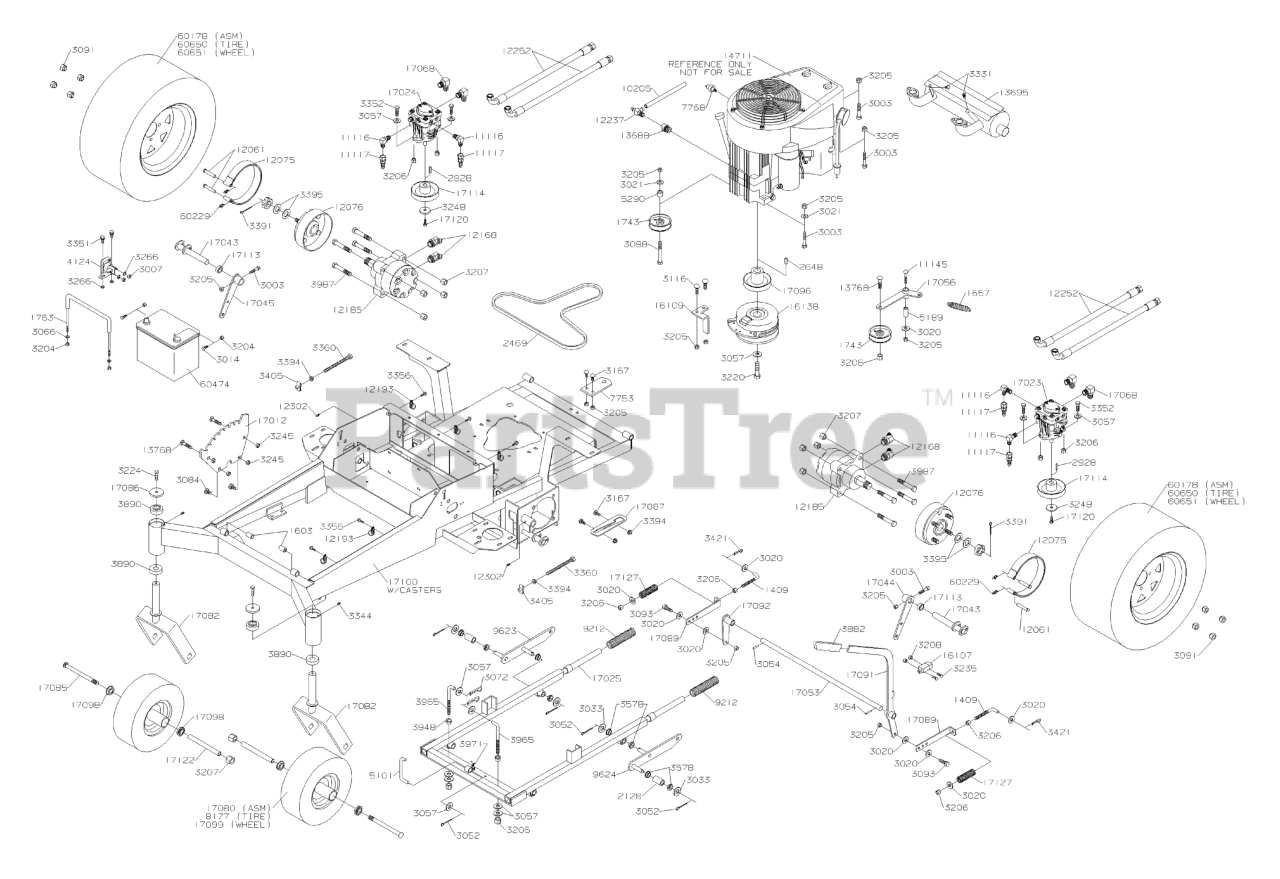

CHASSIS Parts Diagram

  • Title

1409

1409

L ROD 3-7/8

$

$

Not available

1603

1603

BUSHING

$

$

Not available

1657

1657

SPRING

$

$

Not available

1743

1743

1743-IDLER FLAT 3`

$

$

Not available

1763

1763

TIE DOWN W/INSULATOR

$

$

Not available

2128

2128

SLEEVE 7/8 X 1-1/2

$

$

Not available

2469

2469

V-BELT 30`

$

$

Not available

2648

2648

KEY - 1/4 X .88

$

$

Not available

2928

2928

KEY-3/16 DIA X 1

$

$

Not available

3003

3003

5/16X18X1-1/2HHB GR5

$

$

Not available

3007

3007

1/4-20 UNC HEX NUT

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3021

3021

5/16INT EX L-WASHER

$

$

Not available

3033

3033

1/2 FLATWASH NARROW

$

$

Not available

3052

3052

PIN, COTTER 3/32 DIA X 1

$

$

Not available

3054

3054

PIN, ROLL 3/16 DIA X 1

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3066

3066

WASHER, 3/16 STD FLAT

$

$

Not available

3072

3072

$

$

Not available

3084

3084

3/8-16X3/4 CARR BOLT

$

$

Not available

3091

3091

1/2-20UNF HEX LUGNUT

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3098

3098

5/16-18X3 HHB GR5

$

$

Not available

3116

3116

RHSNB 5/16-18 X 1 GR 5 ZD

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3207

3207

NUT, HEX 1/2-13 W/NY

$

$

Not available

3208

Dixon 3208

#10-24 HEX NUT W/NY

$

$

Not available

3220

3220

7/16-20X2-3/4 HHB G5

$

$

Not available

3224

3224

5/16-18X1 HHB G5W/NY

$

$

Not available

3235

3235

#10-24X5/8PHIL PANHD

$

$

Not available

3245

3245

3/8-16 THIN PROF NY

$

$

Not available

3248

3248

5/16IDX1/8THK WASHER

$

$

Not available

3266

3266

1/4" INT TOOTH L.W.

$

$

Not available

3331

3331

M6XP1X8MM HHBG8.8

$

$

Not available

3344

3344

ZERK, 3/16, DRIVE IN

$

$

Not available

3351

3351

1/4-20X1/2HWH FORM SCR H

$

$

Not available

3352

3352

HCS 3/8C X 1 1/4

$

$

Not available

3356

3356

SCREW, TAP & DR #12-14 X 3/4

$

$

Not available

3360

3360

5/16-18X4HHBG5 ALTHD

$

$

Not available

3391

3391

1/8DIAX1-1/2 COT PIN

$

$

Not available

3394

3394

5/16-18 FLANGED L-NUT

$

$

Not available

3395

Dixon 3395

R/B 3395 WASHER-1.033X1.5X.06

$

$

Not available

3405

Dixon 3405

CLIP NUT 5/16-18

$

$

Not available

3421

3421

COTTER HP .08DIAX1.19

$

$

Not available

3578

3578

NYLON BUSHING 1/2 ID

$

$

Not available

3882

Dixon 3882

HAND GRIP-NOTCHED

$

$

Not available

3890

Dixon 3890

BEARING

$

$

Not available

3948

3948

FLIP-LOK BUSHING

$

$

Not available

3965

3965

L-ROD 6.0

$

$

Not available

3971

3971

LINK RETAINER

$

$

Not available

3987

Dixon 3987

1/2-13X2-1/2 HHB GR5

$

$

Not available

4124

4124

BODY WIRING ASM

$

$

Not available

5101

5101

BRAKE LINK

$

$

Not available

5189

5189

BUSHING

$

$

Not available

5290

5290

BUSHING

$

$

Not available

7753

7753

HITCH

$

$

Not available

7768

7768

PRESSURE SWITCH

$

$

Not available

8177

8177

CASTER TIRE - 50`

$

$

Not available

9212

9212

SPRING(YELLOW ZINC CHROM

$

$

Not available

9623

9623

LIFT CAM DRILLED-RH

$

$

Not available

9624

9624

LIFT CAM DRILLED-LH

$

$

Not available

10205

10205

OIL DRAIN HOSE

$

$

Not available

11116

11116

$

$

Not available

11117

11117

FEMALE FLARE 9/16-18 SW.

$

$

Not available

11145

11145

5/16-18 X 2GR.5 CARR.BOL

$

$

Not available

12061

12061

CLEVIS PIN 3/8 X 2`

$

$

Not available

12075

12075

BRAKE BAND

$

$

Not available

12076

12076

BRAKE DRUM

$

$

Not available

12168

12168

ANGLE FITTING 7/8`

$

$

Not available

12185

12185

WHEEL MOTOR

$

$

Not available

12193

12193

INSULATED STRAP (MED.)

$

$

Not available

12237

12237

3/8X2 GALV PIPE NIPP

$

$

Not available

12252

12252

OIL HOSE ASM.

$

$

Not available

12302

12302

GREASE ZERK-1/4"

$

$

Not available

13688

13688

$

$

Not available

13695

13695

MUFFLER

$

$

Not available

13768

13768

CARR BOLT 3/8-16X14-3/4G5

$

$

Not available

14711

14711

$

$

Not available

16107

16107

SWITCH

$

$

Not available

16109

16109

CLUTCH STOP

$

$

Not available

16138

16138

CLUTCH

$

$

Not available

17012

17012

QUADRANT (PLATED)

$

$

Not available

17023

17023

PUMP(BDP-10A-316)

$

$

Not available

17024

17024

PUMP

$

$

Not available

17025

17025

LIFT FRAME WLDT.

$

$

Not available

17043

17043

BRAKE SHAFT DRILLED

$

$

Not available

17044

17044

BRAKE ARM WLDT. DRILLED

$

$

Not available

17045

17045

BRAKE ARM WLDT. DRILLED

$

$

Not available

17053

17053

BRAKE SHAFT

$

$

Not available

17056

17056

IDLER ARM WLDT.

$

$

Not available

17068

17068

90 DEGREE O-RING BOSS

$

$

Not available

17080

17080

WHEEL AND TIRE ASM

$

$

Not available

17082

17082

CASTER WLDT.

$

$

Not available

17085

17085

RHSNB 1/2-13 X 6.50 GR5 ZD

$

$

Not available

17086

17086

WASHER 2.00 X .328 X.25

$

$

Not available

17087

17087

BRAKE QUADRANT

$

$

Not available

17089

17089

SPRING ARM

$

$

Not available

17091

17091

BRAKE HANDLE-DRILLED

$

$

Not available

17092

17092

BRAKE ARM-DRILLED

$

$

Not available

17096

17096

PULLEY

$

$

Not available

17098

17098

BEARING

$

$

Not available

17099

17099

WHEEL

$

$

Not available

17100

17100

$

$

Not available

17113

17113

SPACER

$

$

Not available

17114

17114

PULLEY

$

$

Not available

17120

17120

METRIC BOLT

$

$

Not available

17122

17122

TUBE

$

$

Not available

17127

17127

SPRING

$

$

Not available

60178

60178

TIRE/WHEEL AS`Y 20-10X1

$

$

Not available

60229

60229

COTTER RUE RING 5/16-3/

$

$

Not available

60474

Dixon 60474

BATTERY

$

$

Not available

60650

60650

R/B 60178 REAR TIRE 20`

$

$

Not available

60651

60651

R/B 60178 REAR WHEEL

$

$

Not available
