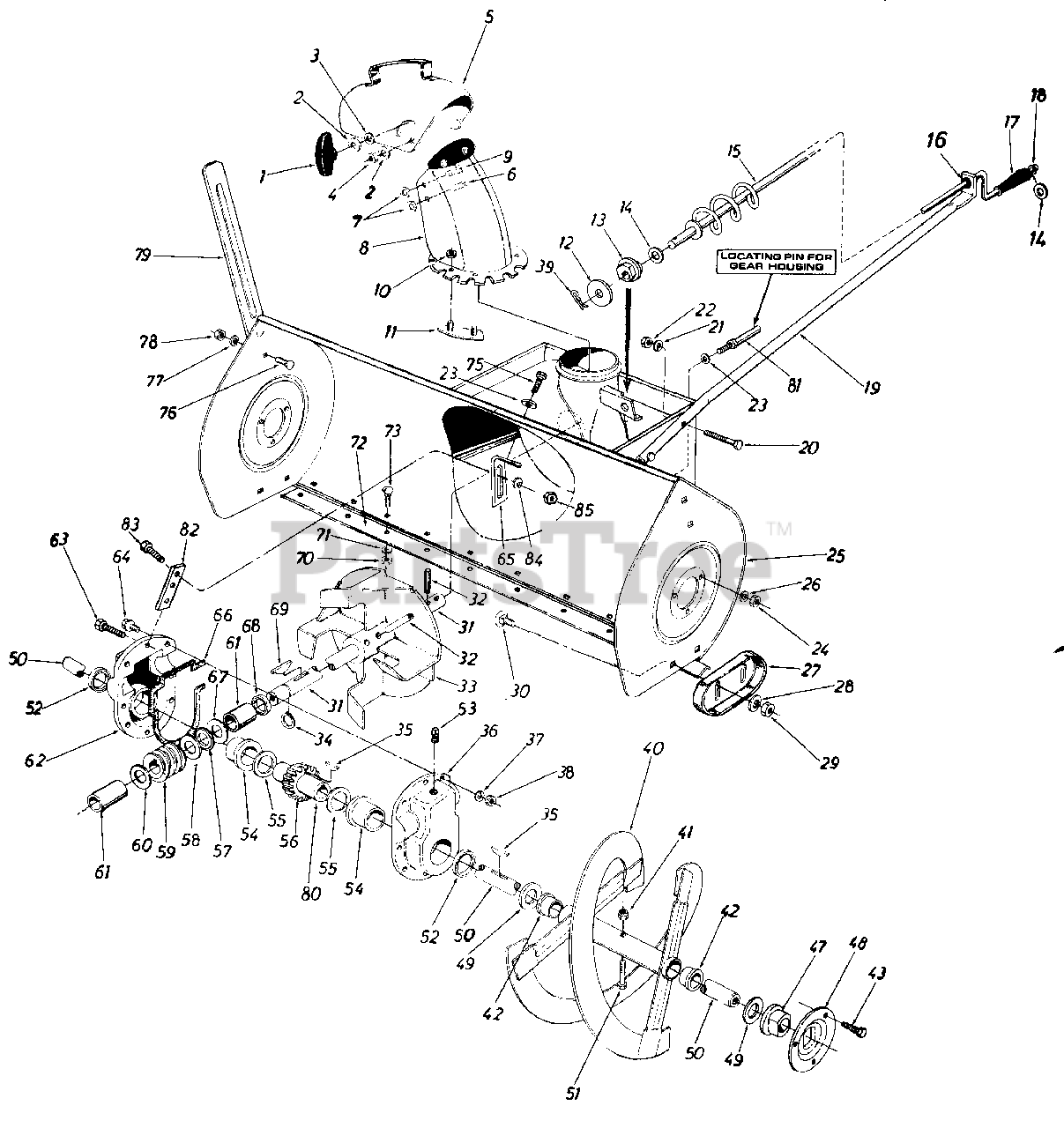

195-990-000 - MTD 45" Snow Thrower Attachment (1985) 45" Snow Blower Parts Diagram

45" Snow Thrower Attachment

45" Snow Blower Parts Diagram

  • Title

1

MTD 09966

Hand Knob Ass'y.
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

2

MTD 736-0242

Bell. Wash. .345 I.D. x .88 O.D. x .060

$4.49

$

In Stock, Qty 20+

0

3

MTD 736-0231

Fl.-Wash. .312 I.D. x 1.125 O.D. x .125

$4.99

$

In Stock, Qty 11

0

4

MTD 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

5

MTD 05225

Top Chute Ass'y.

$

$

Currently unavailable

6

MTD 710-0262

Carriage Bolt 5/16-18 x 1.50" Lg.

$3.99

$

In Stock, Qty 13

0

7

MTD 736-0179

Fl.-Wash. .53 I.D. x 1.25 O.D. x .100

$4.99

$

In Stock, only 2 left!

0

8

MTD 05954

Chute Ass'y.

$

$

Currently unavailable

9

MTD 710-0276

Carriage Bolt 5/16-18 x 1.00"

$3.99

$

In Stock, Qty 14

0

10

MTD 712-0107

Hex Cent. L-Nut 1/4-2 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

11

MTD 05031

Chute Flange Keeper Ass'y.

$

$

Not available

12

MTD 736-0234

Fl-Wash. .39" I.D. x 1.5 "O.D.

$6.49

$

Usually ships in 3-6 days

0

13

MTD 741-0403

Hex Bushing

$

$

Not available

14

MTD 736-0140

Fl-Wash. .385" I.D. x.62 "O.D.

$7.49

$

In Stock, Qty 7

0

15

MTD 05982

Chute Crank Ass'y.

$

$

Not available

16

MTD 735-0218

Grommet
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

17

MTD 720-0171

Knob Black 3/8" Dia. Hole
(Superseded to 920-0171)

$15.99

$

In Stock, only 1 left!

0

18

MTD 726-0100

Push Nut 3/8" rod

$4.49

$

In Stock, only 3 left!

0

19

MTD 749-0230

Chute Crank Support Tubing

$

$

Not available

20

MTD 710-0191

Hex Scr. 3/8-24 x 1.25" Lg.*

$4.99

$

In Stock, Qty 8

0

21

MTD 736-0169

L.-Wash. 3/8" Scr.*

$3.99

$

In Stock, Qty 20+

0

22

MTD 712-0116

Hex Ins. Jam L.-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

23

MTD 736-0242

BelI .-Wash. .345 I.D. x .88 O.D. x .060

$4.49

$

In Stock, Qty 20+

0

24

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

25

MTD 784-5036

Blower Housing Assembly

$

$

Currently unavailable

26

MTD 736-0119

L.-Wash. 5/16" Scr.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

27

MTD 784-5038

Slide Shoe
(Superseded to 784-5038B-0637)

$27.99

$

In Stock, Qty 11

0

28

MTD 736-0105

Bell. Wash. .400 I.D. x .880.D.

$4.49

$

In Stock, Qty 20+

0

29

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

30

MTD 710-0398

Carriage Bolt 3/8-16 x .75" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

31

MTD 738-0360

Blower Axle

$

$

Currently unavailable

32

MTD 715-0118

Spring Pin Spiral 5/16" Dia. x 1.75" Lg.

$12.99

$

In Stock, Qty 7

0

33

MTD 05469

Blower Fan Ass'y.

$

$

Not available

34

MTD 716-0111

Snap Ring .875" Dia. Shaft

$6.99

$

In Stock, Qty 8

0

35

MTD 714-0135

#91 Woodruff Key 1/4" x 3/4" Dia.

$4.99

$

In Stock, only 2 left!

0

36

MTD 717-0297

Gear Housing Half-L.H.
(Superseded to 753-0889)

Note: (Incl. Ref. Nos. 52 & 54)

$

$

Not available

37

MTD 736-0271

Wave Wash. 5/16" I.D.
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

38

MTD 712-0429

Hex Ins. L.-Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

39

MTD 714-0507

Cotter Pin

$4.49

$

In Stock, only 2 left!

0

40

MTD 05609

Spiral Ass'y.-L.H.
(Superseded to 684-04197)

Variations

MTD 05609-0637

USE 684-04197 SPIRAL ASM-LH 4 - POWDER BLACK (0637)

$235.99

$

Usually ships in 3-6 days

0

$235.99

$

Usually ships in 3-6 days

0

MTD 05608

Spiral Ass'y.-R.H.
(Superseded to 684-04196)

Note: (Not Shown)

Variations

MTD 05608-0637

USE 684-04196 SPIRAL ASM-RH 4 - POWDER BLACK (0637)

$235.99

$

Usually ships in 3-6 days

0

$235.99

$

Usually ships in 3-6 days

0

41

MTD 712-0429

Hex L-Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

42

MTD 05136

Plastic Bushing

$

$

Not available

43

MTD 710-0198

Hex Sems Scr. 5/16-18 x .75"
(Superseded to 910-0198)

$

$

Not available

47

MTD 741-0192

Flange Beari ng w/flats 1.00" I.D.
(Superseded to 941-0170)

$19.99

$

In Stock, only 4 left!

0

48

MTD 05845

Bearing Housing
(Superseded to 05845C-0637)

$23.99

$

In Stock, only 2 left!

0

49

MTD 736-0250

Fl-Wash. 1.00" I.D. x 1.75" O.D. x 1.00"

$4.49

$

In Stock, only 2 left!

0

50

MTD 738-0492

Spiral Axle

$205.99

$

Usually ships in 3-6 days

0

51

MTD 710-0891

Hex Scr. 5/16-18 x 1.75" Lg.

$7.49

$

In Stock, Qty 20+

0

52

MTD 721-0146

Oil Seal 1.50" I.D.
(Superseded to 921-0146)

$12.99

$

In Stock, only 3 left!

0

53

MTD 737-0175

Filler Plug

$6.99

$

In Stock, only 4 left!

0

54

MTD 741-0182

Flange Bearing 1.503 I.D.

$

$

Not available

55

MTD 736-0266

Fl.-Wash. 1.50" I.D. x 2.0" O.D. x .030
(Superseded to 936-0266)

$

$

Not available

56

MTD 717-0300

Double Threaded Worm Gear L.H.
(Superseded to 917-1425)

$177.99

$

In Stock, only 2 left!

0

57

MTD 741-0184

Thrust Bearing .88" I.D. x 1.44" O.D.

$16.99

$

In Stock, only 3 left!

0

58

MTD 736-0265

Fl.-Wash. .88" I.D. x 1.5" O.D. x .030

$

$

Not available

59

MTD 717-0299

Double Threaded Worm-L.H.
(Superseded to 917-0299)

$124.99

$

In Stock, only 2 left!

0

60

MTD 736-0291

Fl.-Wash. .88 I.D. x 1.4" O.D. .155

$11.99

$

Usually ships in 3-6 days

0

61

MTD 741-0217

Sleeve
(Superseded to 941-0217)

$17.99

$

In Stock, Qty 10

0

62

MTD 717-0298

Gear Housing Half-R.H.
(Superseded to 753-0889)

Note: (Incl. Ref. Nos. 52 & 54)

$

$

Not available

63

MTD 710-0528

Hex Scr. 5/16-18 x 1.25" Lg.*

$4.49

$

In Stock, Qty 20+

0

64

MTD 710-0376

Hex Scr. 5/16-18 x 1.00" Lg.*

$3.99

$

In Stock, only 4 left!

0

65

MTD 784-5076

Gear Housing Support Brkt.
(Superseded to 784-5076-0637)

Variations

MTD 784-5076-0637

PLATE-SUPPORT-GEAR - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

66

MTD 721-0144

Rubber Gasket
(Superseded to 921-0144)

$11.99

$

Usually ships in 3-6 days

0

67

MTD 736-0291

Fl.-Wash. 88" I.D. x 1.4" O.D. x .155

$11.99

$

Usually ships in 3-6 days

0

68

MTD 721-0145

Oil Seal .875" I.D.
(Superseded to 921-0145)

$9.99

$

In Stock, only 1 left!

0

69

MTD 714-0126

#9 Hi-Pro Key 3/16" x 3/4" Dia. x .155

$4.99

$

In Stock, Qty 19

0

70

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

71

MTD 736-0119

L.-Wash. 5/16" Scr.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

72

MTD 05598

Shave Plate
(Superseded to 05598-0637)

Variations

MTD 05598-0637

Shave Plate - POWDER BLACK (0637)

$108.99

$

Usually ships in 3-6 days

0

$108.99

$

Usually ships in 3-6 days

0

73

MTD 710-0451

Carriage Bolt'5/16-18x .75" Lg.*

$4.49

$

In Stock, Qty 20+

0

75

MTD 710-0726

HexWash. Hd.Self-Tap5/16-18

$4.49

$

In Stock, Qty 20+

0

76

MTD 710-0260

Carriage Bolt 5/16-18 x .62" Lg.*
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

77

MTD 736-0119

L.-Wash. 5/16 " Scr. *
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

78

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

79

MTD 05139

Guide Blade
(Superseded to 790-00181-0637)

$43.99

$

Usually ships in 3-6 days

0

80

MTD 738-0275

Worm GearShaft

$112.99

$

Usually ships in 3-6 days

0

81

MTD 711-0640

Stud 3/8-16 x 2.75" Lg.

$7.99

$

Usually ships in 3-6 days

0

82

MTD 784-5075

Gear Hsg. Support Plte

$

$

Not available

83

MTD 710-0412

Hex Bolt 1/4-28 x .75" Lg.

$5.99

$

In Stock, Qty 8

0

84

MTD 736-0270

Bell.-Wash. .28 I.D. x .75" O.D.

$3.99

$

In Stock, Qty 20+

0

85

MTD 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0
