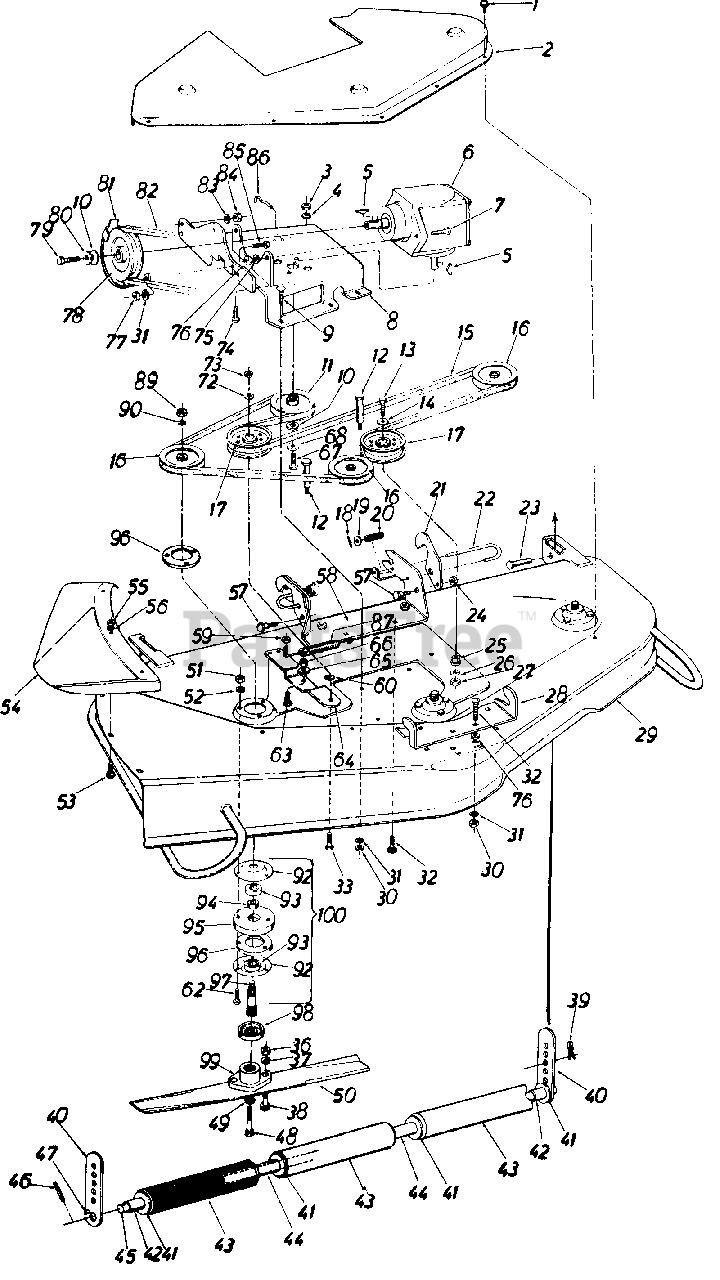

195-958-000 - MTD Mower Deck Assembly Only (1985) Parts Parts Diagram

Mower Deck Assembly Only

Parts Parts Diagram

  • Title

1

MTD 710-0352

Hex "B"-Tapp Scr. 1/4-20 x 3/8" Lg.

$4.99

$

Usually ships in 3-6 days

0

2

MTD 13198

Belt Cover

$

$

Currently unavailable

3

MTD 712-0267

Hex Nut 5/16-29 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

4

MTD 736-0119

L-Wash. 5/16" Scr.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

5

MTD 714-0126

#9 Hi-Pro Key 3/16 x 3/4" Dia.

$4.99

$

In Stock, Qty 16

0

6

Right Angle Gear Box

$

$

Not available

7

MTD 710-0342

Hex Scr. 3/8-16 x 1.25" Lg.*
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

8

MTD 13113

Deck Bracket Ass'y.

$

$

Not available

9

MTD 710-0451

Carriage Bolt 5/16-18 x .75" Lg.*

$4.49

$

In Stock, Qty 20+

0

10

MTD 736-0231

Fl.-Wash. 5/16" I.D. x 1.12 O.D.

$4.99

$

In Stock, Qty 20+

0

11

MTD 756-0285

Deck Pulley-Out Put

$

$

Not available

12

MTD 738-0129

Shoulder Scr 1/2" Dia. x 2.00" Lg.

$11.99

$

In Stock, only 1 left!

0

13

MTD 710-0756

Hex Scr. 3/8-16 x 2.25" Lg.

$

$

Not available

14

MTD 736-0300

Fl-Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 20+

0

15

MTD 754-0215

"V"-Belt 1/2" x 108" Lg.

$

$

Not available

16

MTD 756-0355

Deck Pulley
(Superseded to 756-0519)

$85.99

$

In Stock, only 3 left!

0

17

MTD 711-0306

Idler Pulley 4.62" O.D.

$115.99

$

Usually ships in 3-6 days

0

18

MTD 715-0129

Roll Pin 1/8" Dia.

$4.99

$

In Stock, only 1 left!

0

19

MTD 736-0185

Fl-Wash. .406 I.D. x .734 O.D.

$3.99

$

In Stock, Qty 20+

0

20

MTD 732-0306

Compression Spring .47 O.D. x 1.93
(Superseded to 932-0306A)

$8.49

$

In Stock, only 4 left!

0

21

MTD 12564

Hanger Lock

$

$

Not available

22

MTD 747-0160

Release Pin

$

$

Not available

23

MTD 711-0310

Clevis Pin .500" Dia.

$10.99

$

Usually ships in 3-6 days

0

24

MTD 712-0158

HexCent. L.-Nut5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

25

MTD 711-0656

Idler Adapter

$

$

Not available

26

MTD 736-0169

L-Wash. 3/8" Scr.

$3.99

$

In Stock, Qty 20+

0

27

MTD 712-0214

HexCent. L-Nut 3/8-2 Thd.

$6.49

$

In Stock, only 3 left!

0

28

MTD 12646

Front Deck Hanger Brkt.

Variations

MTD 12646-0637

Front Deck Hanger Brkt. - POWDER BLACK (0637)

$

$

Not available

$

$

29

MTD 12640

50" Deck Ass'y.

Variations

MTD 12640-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 12640-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 12640-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

30

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

31

MTD 736-0119

L.-Wash.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

32

MTD 710-0276

Carriage Bolt 5/16-18 x 1.00" Lg.*

$3.99

$

In Stock, Qty 20+

0

33

MTD 710-0312

Hex Scr. 5/8-18 x 1.31" Lg.

$

$

Not available

36

MTD 712-0237

Hex Cent. L.-Nut 5/16-24 Thd.

$4.99

$

In Stock, only 4 left!

0

37

MTD 736-0119

L.-Wash. 5/16" Scr.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

38

MTD 710-0117

Hex Scr. 5/16-24 x 1.00 Lg.*
(Superseded to 710-0888)

$4.49

$

In Stock, Qty 20+

0

39

MTD 714-0101

Internal Cotter Pin

$4.99

$

In Stock, only 2 left!

0

40

MTD 12650

Height Adjusters

Variations

MTD 12650-0637

Height Adjuster, Powder Black - POWDER BLACK (0637)

$43.99

$

In Stock, only 3 left!

0

MTD 12650-4008

Height Adjuster - WINE RED (4008)

$43.99

$

In Stock, only 3 left!

0

$35.99

$

Usually ships in 3-6 days

0

41

MTD 736-0188

Fl.-Wash. .75 I.D. x 1.50 O.D.

$4.49

$

In Stock, Qty 20+

0

42

MTD 750-0212

Spacer .758" Dia. x 1.25 O.D. x .530

$10.99

$

In Stock, Qty 18

0

43

MTD 731-0335

Roller

$72.99

$

In Stock, Qty 11

0

44

MTD 750-0288

Spacer Tube

Variations

MTD 750-0288-0637

Spacer, .82 x 1.0 x 5.75 - POWDER BLACK (0637)

$

$

Not available

$

$

45

MTD 738-0295

Roller Shaft

$124.99

$

In Stock, only 2 left!

0

46

MTD 715-0246

Roll Pin 3/16" Dia. x 1.25" Lg.
(Superseded to 915-0246)

$6.99

$

In Stock, Qty 7

0

47

MTD 715-0180

Spring-Pin Spiral 1/4" Dia. x 1.00" Lg.

$

$

Currently unavailable

48

MTD 715-0108

Thread Roll Hex Scr. 3/8-24 x .75" Lg.

$4.99

$

In Stock, Qty 15

0

49

MTD 736-0217

L.-Wash. 5/16" Scr. Heavy Duty

$4.49

$

In Stock, Qty 8

0

50

MTD 742-0171

Blade 17"
(Superseded to 942-0171B)

$

$

Not available

51

MTD 712-0237

Hex Cent. L-Nut 5/16-24 Thd.

$4.99

$

In Stock, only 4 left!

0

52

MTD 736-0119

L.-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

53

MTD 710-0451

Carriage Bolt 5/16-18 x .75" Lg.*

$4.49

$

In Stock, Qty 20+

0

54

MTD 12649

Chute Guard
(Superseded to 12649-0637)

Variations

MTD 12649-0637

GUARD-CHUTE - POWDER BLACK (0637)

$168.99

$

Usually ships in 3-6 days

0

MTD 12649-0638

GUARD-CHUTE - MTD/TROY-BILT RED (0638)

$168.99

$

Usually ships in 3-6 days

0

MTD 12649-0648

GUARD-CHUTE - TECH GRAY (0648)

$

$

Not available

MTD 12649-0650

No Longer Available GUARD-CHUT - RED METALLIC (0650)

$

$

Not available

MTD 12649-0662

No Longer Available GUARD-CHUT - OYSTER GRAY (0662)

$

$

Not available

MTD 12649-0665

No Longer Available GUARD-CHUT - YARDMAN GREEN (0665)

$

$

Not available

$168.99

$

Usually ships in 3-6 days

0

55

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

56

MTD 736-0119

L.-Wash. 5/16" Scr.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

57

MTD 738-0296

Shoulder Bolt

$4.49

$

In Stock, Qty 20+

0

58

MTD 12648

Roller Shaft

Variations

MTD 12648-0637

No Longer Available BRACKET-DE - POWDER BLACK (0637)

$

$

Not available

$

$

59

MTD 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

60

MTD 736-0187

Fl-Wash. .62 I.D.

$4.49

$

In Stock, Qty 20+

0

62

MTD 710-0117

Hex Scr. 5/16-24 x 1.00" Lg.*
(Superseded to 710-0888)

$4.49

$

In Stock, Qty 20+

0

63

MTD 712-0376

Hex Scr. 5/16-18 x 1.00" Lg.*

$

$

Not available

64

MTD 13199

Idler Bracket Ass'y.

$

$

Currently unavailable

65

MTD 711-0404

Shoulder Nut

$

$

Not available

66

MTD 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

67

MTD 710-0116

Hex Scr. 5/16-18 x 2.00" Lg.*
(Superseded to 710-3103)

$4.49

$

In Stock, Qty 20+

0

68

MTD 736-0242

Belleville Wash.

$4.49

$

In Stock, Qty 20+

0

72

MTD 736-0187

Fl-Wash. .62 I.D.

$4.49

$

In Stock, Qty 20+

0

73

MTD 712-0923

Hex Cent. L.-Nut 5/8-18 Thd.

$6.99

$

Usually ships in 3-6 days

0

74

MTD 710-0722

Hex Scr. 1/4-20 x 1.25" Lg.
(Superseded to 710-0106)

$3.99

$

In Stock, Qty 12

0

75

MTD 736-0169

L-Wash. 3/8" Scr.*

$3.99

$

In Stock, Qty 20+

0

76

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, Qty 12

0

77

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

78

MTD 756-0284

Pulley 4.75" O.D.-Input

$

$

Not available

79

MTD 710-0116

Hex Scr. 5/16-18 x 2.00" Lg.*
(Superseded to 710-3103)

$4.49

$

In Stock, Qty 20+

0

80

MTD 736-0242

Belleville Wash.

$4.49

$

In Stock, Qty 20+

0

81

MTD 13181

Belt Guard

$

$

Currently unavailable

82

MTD 754-0230

"A"-Section "V"-Belt 1/2" x 56" Lg.
(Superseded to 954-0230)

$32.99

$

Usually ships in 3-6 days

0

83

MTD 736-0119

L.-Wash. 5/16" Scr.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

84

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

85

MTD 710-0118

Hex Scr. 5/16-18 x .75" Lg.*
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

86

MTD 07439

Spri ng Tension Anchor Pin

$

$

Currently unavailable

87

MTD 732-0180

Extension Spring
(Superseded to 932-0180)

$12.99

$

In Stock, only 2 left!

0

89

MTD 712-0318

Hex Jam Nut 5/8-18 Thd.

$3.49

$

In Stock, Qty 12

0

90

MTD 736-0158

L.-Wash. 5/8 I.D.

$4.49

$

In Stock, Qty 11

0

92

MTD 08253

Bearing Housing
(Superseded to 08253B)

$19.99

$

In Stock, only 1 left!

0

93

MTD 741-0919

Ball Bearing
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

94

MTD 750-0456

Spacer

$4.49

$

In Stock, Qty 20+

0

95

MTD 14088

Spindle Spacer Plate
(Superseded to 14088B-0637)

$29.99

$

Usually ships in 3-6 days

0

96

MTD 09164

Reinforcement Plate
(Superseded to 09164A-0637)

$33.99

$

In Stock, only 2 left!

0

97

MTD 738-0469

Spindle
(Superseded to 938-0469B)

$112.99

$

In Stock, only 1 left!

0

98

MTD 13703

Bearing Shield

$

$

Not available

99

MTD 748-0283

Blade Adapter
(Superseded to 748-0235)

$

$

Not available

100

MTD 14199

Deck Spindle Ass'y.

$239.99

$

Usually ships in 3-6 days

0
