195-957-000 - MTD Mower Deck Assembly Only (1985) 42" Mowing Deck Parts Diagram

Mower Deck Assembly Only

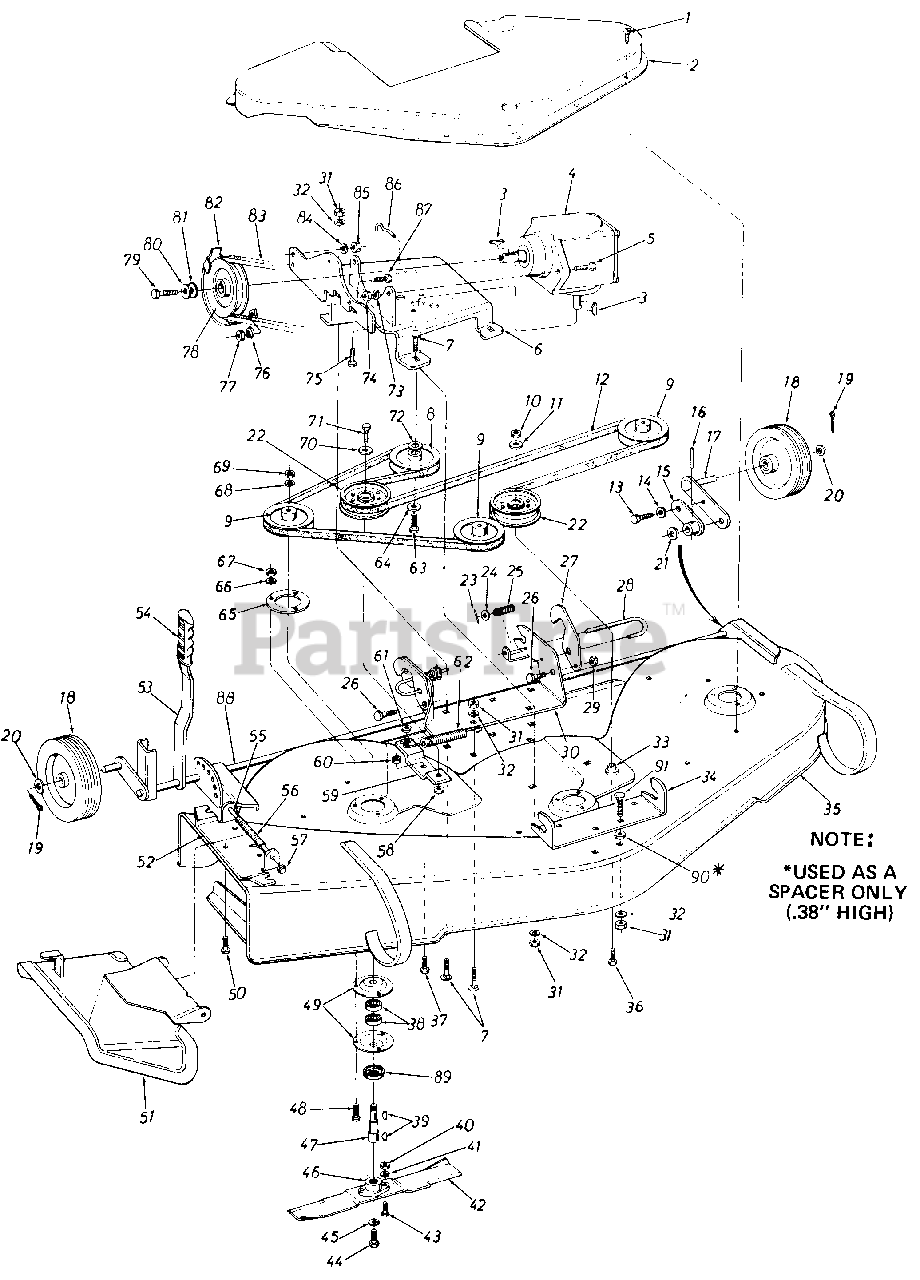

42" Mowing Deck Parts Diagram

  • Title

1

MTD 710-0352

Hex "B"-Tapp Scr. 1/4-20 x 3/8"Lg.

$4.99

$

Usually ships in 3-6 days

0

2

MTD 11933

Belt Cover

$

$

Currently unavailable

3

MTD 714-0126

#9 Hi-Pro-Key 3/16x 3/4" Dia.

$4.99

$

In Stock, Qty 12

0

4

Right Angle Drive

$

$

Not available

5

MTD 710-0342

Hex Scr. 3/8-16 x 1.25" Lg.*
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

6

MTD 13112

Deck Brkt. Ass'y.

$

$

Currently unavailable

7

MTD 710-0451

Carriage Bolt 5/16-18 x .75" Lg.*

$4.49

$

In Stock, Qty 20+

0

8

MTD 756-0118

Deck Pulley-Drive

$

$

Not available

9

MTD 756-0278

Deck Spindle Pulley

$

$

Not available

10

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, Qty 6

0

11

MTD 736-0300

Fl.-Wash. .385 I.D. x .87 O.D.

$4.49

$

In Stock, Qty 20+

0

12

MTD 754-0181

"V"-Belt "A" Section 100" Lg.
(Superseded to 954-0181)

$57.99

$

Usually ships in 3-6 days

0

13

MTD 710-0253

Hex Scr. 3/8-16 x 1.00" Lg.*
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

14

MTD 736-0105

Bell.-Wash. .400 I.D. x .88 O.D.

$4.49

$

In Stock, Qty 20+

0

15

MTD 12669

Wheel Adj. Plate Ass'y.

$

$

Not available

16

MTD 715-0114

Spring Pin Spir. 1/4" Dia. x .1.50" Lg.

$9.49

$

In Stock, Qty 20+

0

17

MTD 12667

Deck Wheel Brkt. Ass'y

$

$

Not available

18

MTD 734-0974

Wheel Ass'y. (Plastic)

$20.99

$

Usually ships in 3-6 days

0

19

MTD 714-0121

Cotter Pin 5/32" Dia. x 1.00" Lg.*
(Superseded to 914-0121)

$

$

Not available

20

MTD 736-0116

Fl.-Wash. .635 I.D. x .93 O.D. x .060
(Superseded to 936-0116)

$6.99

$

In Stock, only 1 left!

0

21

MTD 748-0160

Spacer .755 I.D. x 1.25 O.D. x .180
(Superseded to 948-0160)

$6.99

$

In Stock, Qty 9

0

22

MTD 711-0306

Deck Idler

$115.99

$

Usually ships in 3-6 days

0

23

MTD 715-0129

Spirol Pin-1/8" Dia. x .812 Lg.

$4.99

$

In Stock, only 1 left!

0

24

MTD 736-0185

Fl.-Wash. .406 I.D. x .734 O.D.

$3.99

$

In Stock, Qty 20+

0

25

MTD 732-0306

Compression Spring .47" O.D. x 1.93
(Superseded to 932-0306A)

$8.49

$

In Stock, only 2 left!

0

26

MTD 738-0296

Shoulder Bolt

$4.49

$

In Stock, Qty 20+

0

27

MTD 12564

Hanger Lock

$

$

Not available

28

MTD 747-0160

Release Pin

$

$

Not available

29

MTD 712-0153

Hex Cent. L.-Nut 5/16-18 Thd.

$

$

Currently unavailable

30

MTD 12563

Rear Deck Hanger Ass'y.

$

$

Currently unavailable

31

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

32

MTD 736-0119

LockWasher
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

33

MTD 711-0598

Idler Adapter

$

$

Not available

34

MTD 12562

Front Deck Hanger

$

$

Currently unavailable

35

MTD 12566

Deck Ass'y.

$

$

Currently unavailable

36

MTD 710-0937

Hex Scr. 3/8-16 x 2.50" Lg.*
(Superseded to 710-0859)

$6.99

$

In Stock, Qty 17

0

37

MTD 738-0150

Shld. Scr. .625 Dia. x .960
(Superseded to 938-0150)

$24.99

$

Usually ships in 3-6 days

0

38

MTD 741-0919

Ball Bearing .787 I.D. x 1.85 O.D.
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

39

MTD 714-0365

#6 Hi-Pro-Key 5/32" x 5/8" Dia.

$5.49

$

Usually ships in 3-6 days

0

40

MTD 712-0123

Hex Nut 5/16-24 Thd-.*
(Superseded to 912-3057)

$6.99

$

In Stock, only 2 left!

0

41

MTD 736-0119

L-Wash. 5/16" Scr.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

42

MTD 742-0129

Blade 14.75"
(Superseded to 942-0129B)

$54.99

$

Usually ships in 3-6 days

0

43

MTD 710-0117

Hex Scr. 5/16-24 x 1.00" Lg.*
(Superseded to 710-0888)

$4.49

$

In Stock, Qty 20+

0

44

MTD 710-0459

Hex Scr. 3/8-24 x 1.50" Lg.*
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

45

MTD 736-0217

L-Wash. 3/8" Scr. Heavy Duty

$4.49

$

In Stock, Qty 6

0

46

MTD 10769

Blade Adapter Kit

$

$

Not available

47

MTD 738-0164

Spindle
(Superseded to 938-0164)

$

$

Not available

48

MTD 710-0117

Hex Scr. 5/16-24 x 1.00" Lg.*
(Superseded to 710-0888)

$4.49

$

In Stock, Qty 20+

0

49

MTD 08253

Bearing Housing
(Superseded to 08253B)

$19.99

$

In Stock, only 1 left!

0

50

MTD 710-0230

Hex Scr. 1/4-28 x .50" Lg.*

$

$

Not available

51

MTD 11633

Chute Cover Ass'y. Comp.

$

$

Currently unavailable

52

MTD 11399

Adapter Ass'y.

$

$

Not available

53

MTD 09548

Deck Wheel Adjustment Handle

$

$

Currently unavailable

54

MTD 08118

Grip
(Superseded to 920-0233)

$

$

Not available

55

MTD 711-0571

Hinge Pin

$

$

Not available

56

MTD 732-0261

Torsion Spring

$

$

Not available

57

MTD 726-0106

Pushnut 1/4" Rod

$3.99

$

Usually ships in 3-6 days

0

58

MTD 712-0214

Hex Cent. L.-Nut 3/8-24 Thd.

$6.49

$

In Stock, only 2 left!

0

59

MTD 11941

Deck Spring Idler Brkt.

$

$

Currently unavailable

60

MTD 712-0130

Hex Ins. L-Nut 3/8-16 Thd.

$3.99

$

In Stock, Qty 11

0

61

MTD 712-0158

Hex Cent. L.-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

62

MTD 732-0180

Extension Spring
(Superseded to 932-0180)

$12.99

$

In Stock, only 1 left!

0

63

MTD 710-0116

Hex Scr. 5/16-18 x 2.00" Lg.*
(Superseded to 710-3103)

$4.49

$

In Stock, Qty 20+

0

64

MTD 736-0242

Bell.-Wash.

$4.49

$

In Stock, Qty 20+

0

65

MTD 09164

Deck Reinforcement Plate
(Superseded to 09164A-0637)

$33.99

$

In Stock, only 2 left!

0

66

MTD 736-0119

L-Wash. 5/16" Scr.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

67

MTD 712-0123

Hex Nut 5/16-24 Thd. *
(Superseded to 912-3057)

$6.99

$

In Stock, only 2 left!

0

68

MTD 736-0158

L.-Wash. 5/8" Scr;*

$4.49

$

In Stock, Qty 11

0

69

MTD 712-0261

Hex Jam L.-Nut 5/8-11 Thd.
(Superseded to 912-0261)

$

$

Not available

70

MTD 736-0300

Fl.-Wash. .385 I.D. x .87 O.D.

$4.49

$

In Stock, Qty 20+

0

71

MTD 738-0150

Shld. Scr. .625 Dia. x .960
(Superseded to 938-0150)

$24.99

$

Usually ships in 3-6 days

0

72

MTD 736-0231

Fl.-Wash. 5/16" I.D. x 1.12" O.D.

$4.99

$

In Stock, Qty 20+

0

73

MTD 736-0169

L.-Wash. 3/8" Scr.*

$3.99

$

In Stock, Qty 20+

0

74

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, Qty 6

0

75

MTD 710-0722

Hex Scr. 1/4-20 x 1.25" Lg.*
(Superseded to 710-0106)

$3.99

$

In Stock, Qty 12

0

76

MTD 736-0119

L.-Wash. 5/16" Scr.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

77

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

78

MTD 756-0284

4.75 O.D. Pulley-Input

$

$

Not available

79

MTD 710-0116

Hex Scr. 5/16-18 x 2.00" Lg.*
(Superseded to 710-3103)

$4.49

$

In Stock, Qty 20+

0

80

MTD 736-0242

Bell.-Wash.

$4.49

$

In Stock, Qty 20+

0

81

MTD 736-0231

Fl.-Wash 5/16" I.D. x 1.12 O.D.

$4.99

$

In Stock, Qty 20+

0

82

MTD 13181

Belt Guard

$

$

Currently unavailable

83

MTD 754-0230

V-Belt "A" Section 1/2" x 56" Lg
(Superseded to 954-0230)

$32.99

$

Usually ships in 3-6 days

0

84

MTD 736-0119

L-Wash. 5/16" Scr.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

85

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

86

MTD 07439

Spring Tension Anchor Pin

$

$

Currently unavailable

87

MTD 710-0118

Hex Scr. 5/16-18 x .75" Lg.*
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

88

MTD 12679

Wheel Brkt. Shaft Ass'y.

$

$

Currently unavailable

89

MTD 13703

Bearing Shield

$

$

Not available

90

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

91

MTD 710-0276

Carriage Bolt 5/16-18 x 1" Lg.

$3.99

$

In Stock, Qty 20+
