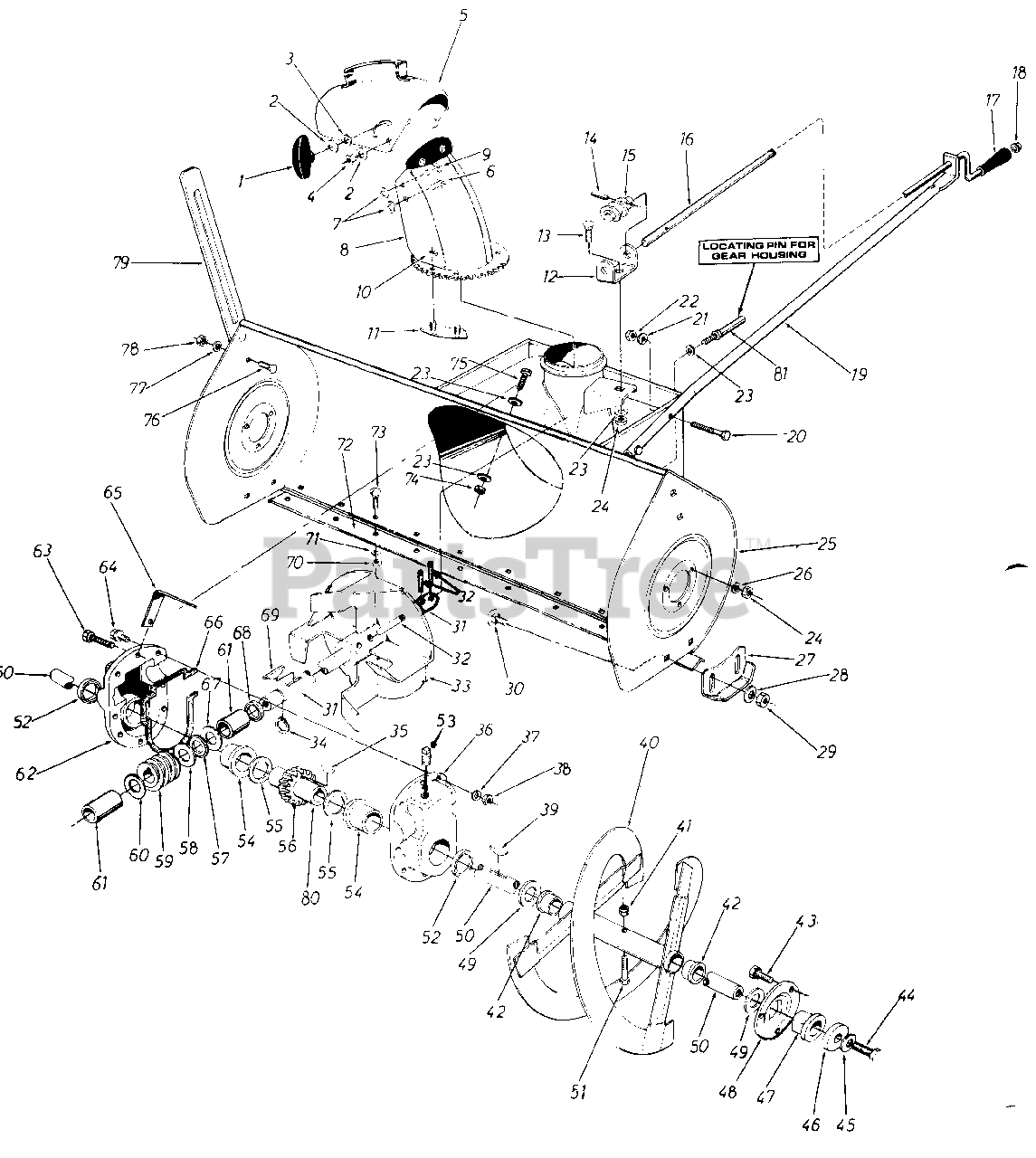

195-955-000 - MTD Snow Thrower Attachment (1985) Parts01 Parts Diagram

Snow Thrower Attachment

Parts01 Parts Diagram

  • Title

1

MTD 09966

Hand Knob Ass'y.
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

2

MTD 736-0242

Bell. Wash. .345 I.D. x .88 O.D. x .060

$4.49

$

In Stock, Qty 20+

0

3

MTD 736-0231

Fl.-Wash. .312 I.D. x 1.125 O.D. x .125

$4.99

$

In Stock, Qty 20+

0

4

MTD 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

5

MTD 05225

Top Chute Ass'y.

$

$

Currently unavailable

6

MTD 710-0262

Carriage Bolt 5/16-18 x 1.50" Lg.

$3.99

$

In Stock, Qty 9

0

7

MTD 736-0179

Fl.-Wash. .53 I.D. x 1.25 O.D. x .100

$4.99

$

In Stock, only 2 left!

0

8

MTD 05738

Chute Ass'y.

$

$

Currently unavailable

9

MTD 710-0276

Carriage Bolt 5/16-18 x 1.00" Lg.

$3.99

$

In Stock, Qty 20+

0

10

MTD 712-0107

Hex Cent. L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

11

MTD 05031

Chute Flange Keeper Ass'y.

$

$

Not available

12

MTD 05515

Chute Bracket

$

$

Currently unavailable

13

MTD 710-0260

Carriage Bolt 5/16-18 x .62" Lg.
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

14

MTD 715-0103

Spring Pin Roll 1/8" Dia. x .75" Lg.

$

$

Not available

15

MTD 717-0301

Worm-R.H. w hree Threads

$

$

Currently unavailable

16

MTD 747-0243

Chute Crank

$

$

Currently unavailable

17

MTD 720-0171

Knob Black 3/8" Dia. Hole
(Superseded to 920-0171)

$15.99

$

In Stock, only 1 left!

0

18

MTD 726-0100

Push Nut 3/8" rod.

$4.49

$

In Stock, Qty 18

0

19

MTD 749-0230

Chute Crank Support Tubins

$

$

Not available

20

MTD 710-0191

Hex Scr. 3/8-24 x 1.25" Lg. *

$4.99

$

In Stock, Qty 9

0

21

MTD 736-0169

L.-Wash. 3/8" Scr.*

$3.99

$

In Stock, Qty 20+

0

22

MTD 712-0116

Hex Ins. Jam L.-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

23

MTD 736-0242

Bell.-Wash. .345 I.D. x .88 O.D. x .060

$4.49

$

In Stock, Qty 20+

0

24

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

25

MTD 05600

Blower Housing Assembly

$

$

Currently unavailable

26

MTD 736-0119

L-Wash. 5/16" Scr.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

27

MTD 05571

Slide Shoe
(Superseded to 784-5038B-0637)

$27.99

$

Usually ships in 3-6 days

0

28

MTD 736-0105

Bell. Wash. .400 I.D. x .88 O.D. x .060

$4.49

$

In Stock, Qty 20+

0

29

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

30

MTD 710-0389

Carriage Bolt 3/8-16 x .75" Lg.

$4.49

$

Usually ships in 3-6 days

0

31

MTD 738-0360

Blower Axle

$

$

Currently unavailable

32

MTD 715-0118

Spring Pin Spiral 5/16" Dia. x 1.75" Lg.

$12.99

$

In Stock, Qty 7

0

33

MTD 05469

Blower Fan Ass'y.

$

$

Not available

34

MTD 716-0111

Snap Ring for .875" Dia. Shaft

$6.99

$

In Stock, only 4 left!

0

35

MTD 714-0135

#91 Woodruff Key 1/4" x 3/4" Dia.

$4.99

$

In Stock, only 2 left!

0

36

MTD 717-0297

Gear Housing Half-L.H.
(Superseded to 753-0889)

$

$

Not available

37

MTD 736-0119

L.-Wash. 5/16" Scr.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

38

MTD 712-0429

Hex Ins. L.-Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

39

MTD 714-0135

#91 Woodruff Key 1/4" x 3/4" Dia.

$4.99

$

In Stock, only 2 left!

0

40

MTD 05609

Spiral Ass'y.-L.H.
(Superseded to 684-04197)

Variations

MTD 05609-0637

USE 684-04197 SPIRAL ASM-LH 4 - POWDER BLACK (0637)

$235.99

$

Usually ships in 3-6 days

0

$235.99

$

Usually ships in 3-6 days

0

MTD 05608

Spiral Ass'y.-R.H.
(Superseded to 684-04196)

Note: (Not Shown)

Variations

MTD 05608-0637

USE 684-04196 SPIRAL ASM-RH 4 - POWDER BLACK (0637)

$235.99

$

Usually ships in 3-6 days

0

$235.99

$

Usually ships in 3-6 days

0

41

MTD 712-0429

Hex Ins. L-Nut5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

42

MTD 05136

Plastic Bushing

$

$

Not available

43

MTD 710-0198

Hex Sems Scr. 5/16-18 x .75" Lg.
(Superseded to 910-0198)

$

$

Not available

44

MTD 710-0371

Hex Scr. 5/16-18 x .88" Lg. Speco
(Superseded to 710-1880)

$4.99

$

In Stock, Qty 11

0

45

MTD 736-0242

Belleville Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

46

MTD 07386

Wash. .390 I.D. x 1.75" O.D. x 3/16" Thk.

$

$

Not available

47

MTD 741-0192

Flange Bearing w/flats 1.00" I.D.
(Superseded to 941-0170)

$19.99

$

In Stock, Qty 6

0

48

MTD 05361

Bearing Housing

$

$

Not available

49

MTD 736-0250

Fl-Wash. 1.00" I.D. x 1.75" O.D. x .100

$4.49

$

In Stock, Qty 20+

0

50

MTD 738-0359

Spiral Axle

$

$

Currently unavailable

51

MTD 710-0380

Hex Scr. 5/16-18 x 1.75" Lg.*
(Superseded to 710-3180)

$5.49

$

In Stock, Qty 20+

0

52

MTD 721-0146

Oil Seal-1.50" I.D.
(Superseded to 921-0146)

$12.99

$

Usually ships in 3-6 days

0

53

MTD 737-0103

Sq. Hd. Pipe Plug 3/8" Thd.
(Superseded to 737-04202)

$6.99

$

Usually ships in 3-6 days

0

54

MTD 741-0182

Flange Bearing 1.503 I.D.

$

$

Not available

55

MTD 736-0266

Fl.-Wash. 1.50" I.D. x 2.0" O.D. x .030
(Superseded to 936-0266)

$

$

Not available

56

MTD 717-0300

Double Threaded Worm Gear-L. H.
(Superseded to 917-1425)

$177.99

$

In Stock, only 1 left!

0

57

MTD 741-0184

Thrust Bearing.88" I.D. x 1.44" O.D.

$16.99

$

Usually ships in 3-6 days

0

58

MTD 736-0265

Fl.-Wash. .88" I.D. x 1.5" O.D. x .030

$

$

Not available

59

MTD 717-0299

Double Threaded Worm-L.H.
(Superseded to 917-0299)

$124.99

$

In Stock, only 1 left!

0

60

MTD 736-0291

Fl.-Wash. .88 I.D. x 1.4" O.D. x .155

$11.99

$

Usually ships in 3-6 days

0

61

MTD 741-0217

Sleeve
(Superseded to 941-0217)

$17.99

$

In Stock, Qty 7

0

62

MTD 717-0298

Gear Housing Half-R.H.
(Superseded to 753-0889)

$

$

Not available

63

MTD 710-0528

Hex Scr. 5/16-18 x 1.25" Lg. *

$4.49

$

In Stock, Qty 19

0

64

MTD 710-0376

Hex Scr. 5/16-18 x 1.00" Lg. *

$3.99

$

In Stock, Qty 20+

0

65

MTD 05572

Gear Housing Support Brkt.
(Superseded to 784-5076-0637)

$46.99

$

Usually ships in 3-6 days

0

66

MTD 721-0144

Rubber Gasket
(Superseded to 921-0144)

$11.99

$

Usually ships in 3-6 days

0

67

MTD 736-0291

Fl.-Wash. .88" I.D. x 1.4" O.D. x .155

$11.99

$

Usually ships in 3-6 days

0

68

MTD 721-0145

Oil Seal. .875" I.D.
(Superseded to 921-0145)

$9.99

$

Usually ships in 3-6 days

0

69

MTD 714-0126

#9 Hi-Pro Key 3/16" x 3/4" Dia.

$4.99

$

In Stock, Qty 12

0

70

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

71

MTD 736-0119

L.-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

72

MTD 05598

Shave Plate
(Superseded to 05598-0637)

Variations

MTD 05598-0637

Shave Plate - POWDER BLACK (0637)

$108.99

$

Usually ships in 3-6 days

0

$108.99

$

Usually ships in 3-6 days

0

73

MTD 710-0451

Carriage Bolt 5/16-18 x .75" Lg.*

$4.49

$

In Stock, Qty 20+

0

74

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

75

MTD 710-0118

Hex Scr. 5/16-18 x .75" Lg.*
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

76

MTD 710-0260

Carriage Bolt 5/16-18 x .62" Lg.*
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

77

MTD 736-0119

L.-Wash. 5/16" Scr.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

78

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

79

MTD 05139

Guide Blade
(Superseded to 790-00181-0637)

$43.99

$

Usually ships in 3-6 days

0

80

MTD 738-0275

Worm Gear Shaft

$112.99

$

Usually ships in 3-6 days

0

81

MTD 711-0640

Stud 3/8-16 x 2.75" Lg.

$7.99

$

Usually ships in 3-6 days

0
