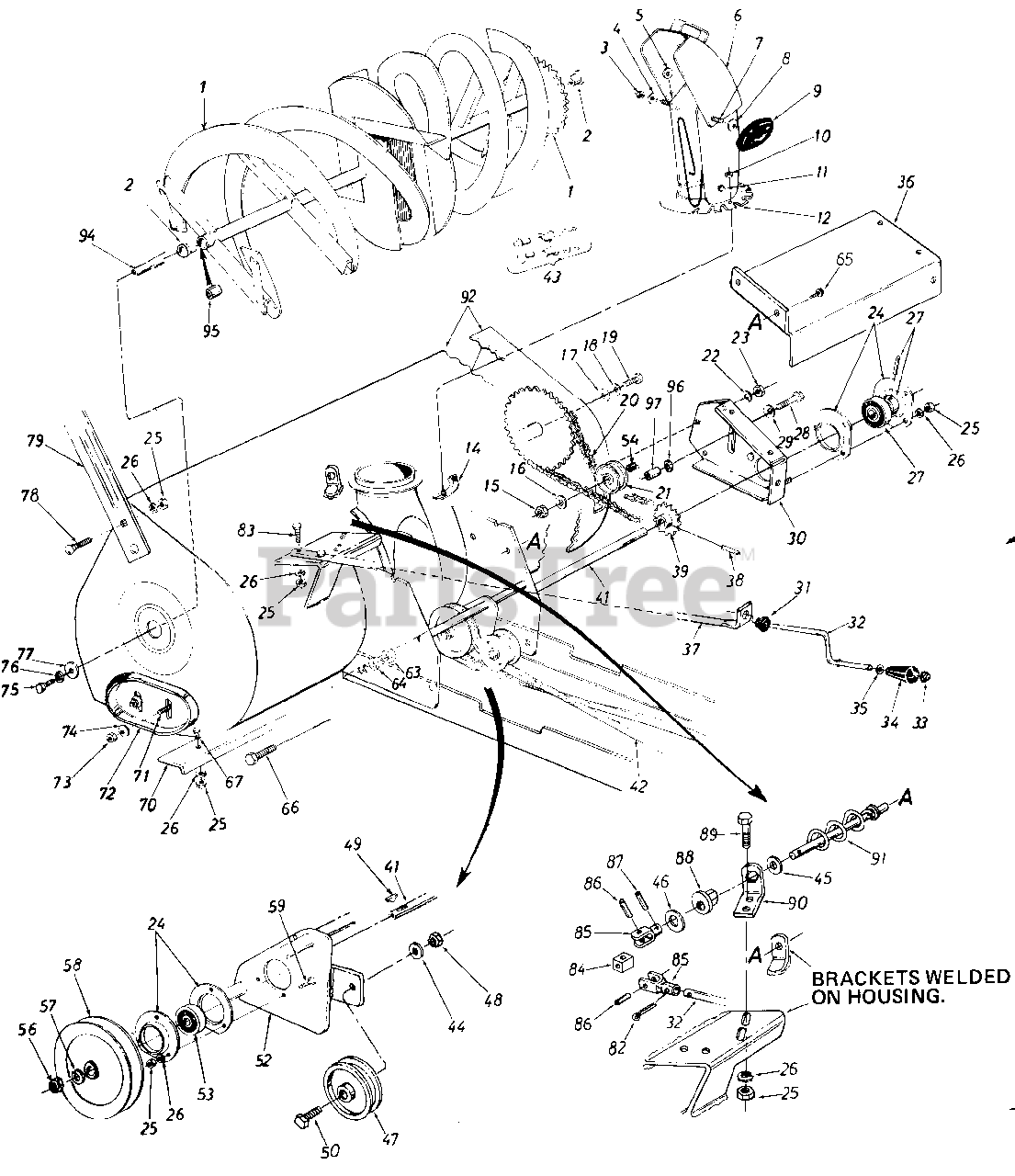

195-930-000 - MTD Snow Thrower Attachment (1985) Snow Thrower Parts Diagram

Snow Thrower Attachment

Snow Thrower Parts Diagram

  • Title

1

MTD 05731

Spiral Ass'y.

$

$

Not available

2

MTD 741-0227

Flange Bearing

$11.99

$

In Stock, Qty 20+

0

3

MTD 712-0158

Hex Cent. L.-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

4

MTD 736-0105

Belleville Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 20+

0

5

MTD 736-0179

Flat Washer 3/8" I.D.

$4.99

$

In Stock, only 2 left!

0

6

MTD 05225

Top Chute Ass'y.

$

$

Currently unavailable

7

MTD 710-0260

Carriage Bolt 5/16-18 x .62" Lg. *
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

8

MTD 736-0105

Belleville Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 20+

0

9

MTD 09966

Hand Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

10

MTD 712-0107

Hex Cent. L.-Nut 1/4-2 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

11

MTD 726-0111

Push CaD.188" Dia. Rod

$

$

Not available

12

MTD 05954

Chute Ass'y.

$

$

Currently unavailable

14

MTD 05031

Chute Flange Keeper Ass'y.

$

$

Not available

15

MTD 712-0375

L.-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

16

MTD 736-0300

F I .-Wash.

$4.49

$

In Stock, Qty 20+

0

17

MTD 736-0179

Fl.-Wash.

$4.99

$

In Stock, only 2 left!

0

18

MTD 736-0253

Belleville Wash.

$3.99

$

In Stock, Qty 20+

0

19

MTD 710-0493

Hex Bolt 1/2-13 x 1.00" Lg.*
(Superseded to 710-3131)

$5.49

$

In Stock, only 1 left!

0

20

MTD 713-0189

#420 Chain 1/2" Pitch x 77 Links

$

$

Not available

21

MTD 756-0358

Plastic Idler 2.00" O.D.

$

$

Not available

22

MTD 736-0329

L.-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

23

MTD 712-0287

Hex Nut 1/4-20 Thd. *
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

24

MTD 741-0311

Bearing Housing
(Superseded to 941-0311)

$

$

Not available

25

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

26

MTD 736-0119

L.-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

27

MTD 741-0310

Self-Aligning Bearing

$

$

Not available

28

MTD 710-0347

Hex Bolt 3/8-16 x 1.75" Lg.*

$5.49

$

In Stock, Qty 20+

0

29

MTD 736-0105

Belleville Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 20+

0

30

MTD 05721

Chain Guard Ass'y.

$

$

Not available

31

MTD 735-0218

Grommet
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

32

MTD 747-0487

Chute Crank .375 Dia. x 39" Lg.

$

$

Not available

33

MTD 726-0100

Push Nut 3/8" Rod

$4.49

$

In Stock, Qty 18

0

34

MTD 720-0171

Knob 3/8" Dia. Hole
(Superseded to 920-0171)

$15.99

$

In Stock, only 1 left!

0

35

MTD 736-0117

Flat Washer
(Superseded to 936-0117)

$7.49

$

In Stock, only 1 left!

0

36

MTD 784-5092

Drive Shaft Cover

$

$

Not available

37

MTD 749-0675

Crank Support Tubing

Variations

MTD 749-0675-0637

No Longer Available TUBING-SUP - POWDER BLACK (0637)

$

$

Not available

$

$

38

MTD 715-0118

Spring Pin Spiral 5/16" Dia. x 1.75" Lg.

$12.99

$

In Stock, Qty 7

0

39

MTD 713-0188

14 Teeth Sprocket Ass'y.

$70.99

$

Usually ships in 3-6 days

0

41

MTD 784-5078

Drive Shaft

$

$

Not available

42

MTD 754-0291A

"V"-Belt 1/2" x .88" Lg. (Kevlar)
(Superseded to 954-0291A)

$57.99

$

In Stock, only 1 left!

0

43

MTD 713-0154

Master Link for #420 Chain
(Superseded to 913-0154)

$

$

Not available

44

MTD 736-0169

L.-Wash. 3/8" I.D.*

$3.99

$

In Stock, Qty 20+

0

45

MTD 736-0140

Fl.-Wash. .385 I.D. x .62"O.D.

$7.49

$

In Stock, Qty 6

0

46

MTD 736-0234

Fl.-Wash. .390 I.D. x 1.50"O.D.

$6.49

$

Usually ships in 3-6 days

0

47

MTD 756-0417

Fl.-Idler with Flanges

$

$

Not available

48

MTD 712-0342

Hex Jam L.-Nut 3/8-26 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 16

0

49

MTD 714-0388

#61 Hi-Pro Key
(Superseded to 914-0388)

$7.99

$

In Stock, Qty 20+

0

50

MTD 710-0520

Hex Bolt 3/8-16 x 1.50" Lg.*

$4.49

$

In Stock, Qty 5

0

52

MTD 05725

Spiral Housing Ass'y.

$

$

Currently unavailable

53

MTD 741-0309

Self-Aligning Bearing
(Superseded to 941-0309)

$74.99

$

Usually ships in 3-6 days

0

54

MTD 741-0322

Sleeve Bearing .50" I.D.

$

$

Not available

56

MTD 712-0301

Hex Nut 3/4-10 Thd.

$7.99

$

In Stock, only 1 left!

0

57

MTD 736-0367

L-Wash. 3/4" I.D
(Superseded to 936-0364)

$

$

Not available

58

MTD 756-0456

" V "-Pu I ley .750" I.D. x 6.00" O.D.

$

$

Not available

59

MTD 710-0198

Hex Sems Bolt 5/16-18 x .75" Lg. *
(Superseded to 910-0198)

$

$

Not available

63

MTD 712-0239

Hex L.-Nut 1/2-20 Thd.

$5.99

$

In Stock, Qty 20+

0

64

MTD 736-0921

L.-Wash. 1/2" I.D.*

$4.49

$

In Stock, Qty 6

0

65

MTD 710-0599

Hex Wash. Hd. Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

66

MTD 710-0504

Hex Bolt 1/2-20 x 1.25" Lq.*

$

$

Not available

67

MTD 710-0260

Carriage Bolt 5/16-18 x .62"*
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

70

MTD 05723

Shave Plate

Variations

MTD 05723-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

71

MTD 710-0389

Carriage Bolt 3/8-16 x .75" Lg. *

$4.49

$

Usually ships in 3-6 days

0

72

MTD 784-5030

Skid Shoe
(Superseded to 784-5038B-0637)

$27.99

$

Usually ships in 3-6 days

0

73

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, Qty 6

0

74

MTD 736-0105

Belleville Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 20+

0

75

MTD 710-0493

Hex Bolt 1/2-13 x 1.00" Lg.*
(Superseded to 710-3131)

$5.49

$

In Stock, only 1 left!

0

76

MTD 736-0253

BellevilleWash. 1/2" I.D.

$3.99

$

In Stock, Qty 20+

0

77

MTD 736-0179

Fl.-Wash.

$4.99

$

In Stock, only 2 left!

0

78

MTD 710-0260

Carriage Bolt 5/16-18 x .62" Lg. *
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

79

MTD 05139

Drift Cutter
(Superseded to 790-00181-0637)

$43.99

$

Usually ships in 3-6 days

0

82

MTD 714-0111

Cotter Pin 3/32" Dia.

$4.99

$

In Stock, Qty 13

0

83

MTD 710-0442

Hex Bolt 5/16-18 x 1.50" Lg. *
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

84

MTD 711-0584

Joint Block

$

$

Not available

85

MTD 05066

Joint BracketAss'y.

$

$

Not available

86

MTD 715-0248

Spring Pin Roll 3/16" Dia. x .75" Lg.*

$

$

Not available

87

MTD 715-0103

Spring, Pin Roll 1/8 Dia. x .75" Lg.*

$

$

Not available

88

MTD 741-0403

Hex Bushing .385 I.D.

$

$

Not available

89

MTD 710-0260

Carriage Bolt 5/16-18 x .62
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

90

MTD 784-5085

Chute Crank Bracket

$

$

Not available

91

MTD 784-5084

Chute Crank Ass'y.

$

$

Not available

92

MTD 05725

Spiral Housing Ass'y.

$

$

Currently unavailable

94

MTD 05737

Spiral AxleAss'y.

$

$

Not available

95

MTD 741-0217

Sleeve Bearing
(Superseded to 941-0217)

$17.99

$

In Stock, Qty 7

0

96

MTD 736-0247

Flat Washer

$9.49

$

In Stock, Qty 12

0

97

MTD 750-0252

Idler Spacer
(Superseded to 950-0252)

$21.99

$

In Stock, Qty 5

0
