195-829-000 - MTD Tiller Hitch Kit (1985) Tiller Hitch Kit Parts Diagram

Tiller Hitch Kit

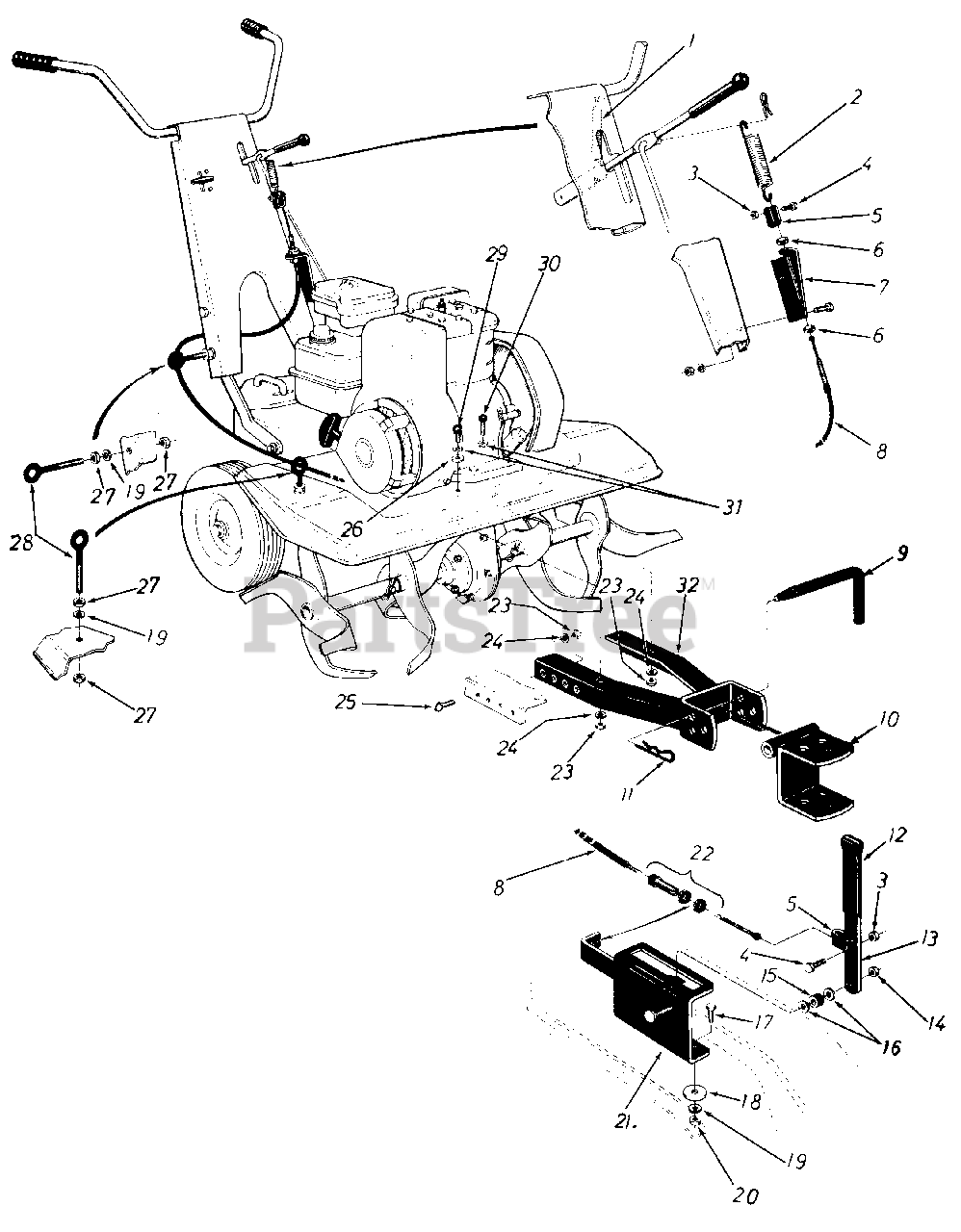

Tiller Hitch Kit Parts Diagram

  • Title
1

MTD 732-0264

Spring 2-1/2" Lg.
(Superseded to 932-0264)

$4.99

$

In Stock, Qty 20+

0

2

MTD 732-0245

Spring 3-1/2" Lg.

$

$

Not available

3

MTD 712-0107

Hex Cent. L.-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

4

MTD 710-0258

Hex Scr. 1/4-20 x .62" Lg.*
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

5

MTD 761-0145

Clevis Fitting

$

$

Currently unavailable

6

MTD 712-0256

Hex Jam Nut 5/16-24 Thd.*

$

$

Not available

7

MTD 12897

Bracket

$

$

Currently unavailable

8

MTD 746-0262

Control Cable

$

$

Currently unavailable

9

MTD 711-0282

Hitch Pin

$72.99

$

Usually ships in 3-6 days

0

10

MTD 12694

Hitch Bar Brkt. Ass'y.

$

$

Currently unavailable

11

MTD 714-0117

Hair Pin Cotter

Note: (l)

$4.49

$

In Stock, Qty 6

0

12

$3.99

$

Usually ships in 3-6 days

0

13

MTD 04614

Shift Grip

$

$

Currently unavailable

14

MTD 712-0158

Hex Cent. L.-Nut 5/16-18 Thd.*
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

15

MTD 735-0126

Rubber Washer
(Superseded to 735-0126A)

$

$

Not available

16

MTD 736-0159

Fl.-Wash. .344 I.D.

$4.49

$

In Stock, Qty 20+

0

17

MTD 710-0253

Hex Scr. 3/8-16 x 1.00" Lg.*
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

18

MTD 736-0133

Fl.-Wash. .406 I.D.

$5.49

$

In Stock, Qty 7

0

19

MTD 736-0169

L. Wash. 3/8" I.D.*

$3.99

$

In Stock, Qty 20+

0

20

MTD 712-0375

Hex Cent. L.-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

21

MTD 12684

Engagement Lever Brkt.

$

$

Currently unavailable

22

MTD 746-0248

Adjustment Ferrule

$

$

Not available

23

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

24

MTD 736-0119

L.-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

25

MTD 710-0118

Hex Scr. 5/16-18 x .75" Lg.*
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

26

MTD 736-0264

Fl.-Wash. .344" I.D.

$6.99

$

In Stock, only 1 left!

0

27

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, only 2 left!

0

28

MTD 710-0580

Eye Bolt

$

$

Currently unavailable

29

MTD 710-0376

Hex Scr. 5/16-18 x 1.00" Lg.*

$3.99

$

In Stock, only 4 left!

0

30

MTD 710-0116

Hex Scr. 5/16-18 x 2.00" Lg.*
(Superseded to 710-3103)

$4.49

$

In Stock, only 4 left!

0

31

MTD 736-0607

External L.-Wash. 5/16" I.D.*

$3.99

$

In Stock, Qty 20+

0

32

MTD 12689

Tiller Hitch Ass'y.

$

$

Currently unavailable
