195-802-000 - MTD Mower Deck Assembly Only (1985) 36" Rear Discharge Mowing Deck Parts Diagram

Mower Deck Assembly Only

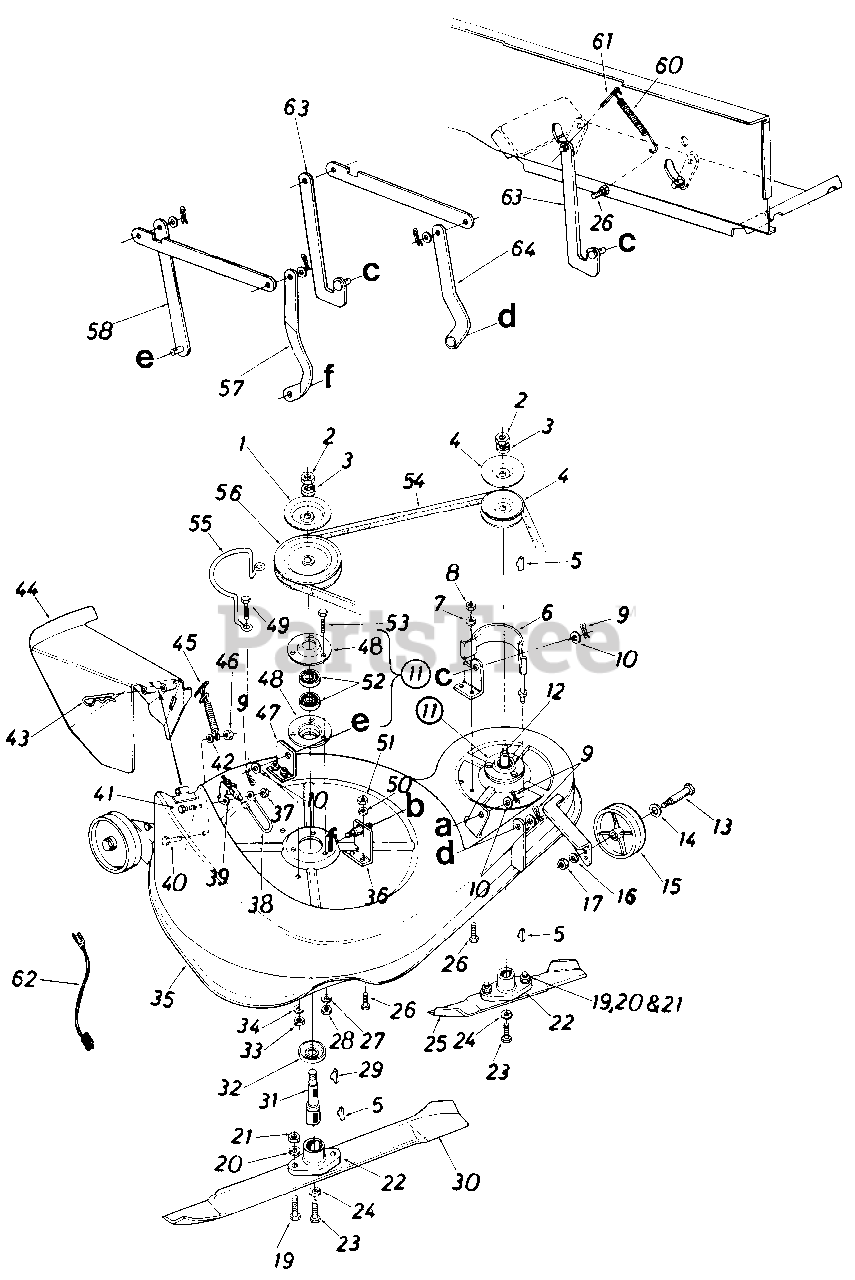

36" Rear Discharge Mowing Deck Parts Diagram

  • Title

1

MTD 09322

Brake Disc

$

$

Not available

2

MTD 712-0318

Hex Jam Nut 5/16-18 Thd.

$3.49

$

In Stock, Qty 12

0

3

MTD 736-0317

Bell-Wash. .630" I.D. x 1.25" O.D.

$7.99

$

In Stock, Qty 20+

0

4

MTD 756-0413

Pulley Ass'y. 3.5" O.D. x 5/8

$

$

Not available

5

MTD 714-0365

#6 Hi-Pro Key 5/32" x 5/8" Dia.

$5.49

$

Usually ships in 3-6 days

0

6

MTD 15967

Belt Guard Ass'y.-L.H.

$

$

Currently unavailable

7

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

8

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

9

MTD 714-0101

Internal Cotter Pin 1/2" Dia.

$4.99

$

In Stock, only 2 left!

0

10

MTD 736-0192

Fl-Wash. .531" I.D. x .93" O.D.

$4.49

$

In Stock, Qty 18

0

11

MTD 717-0808

Blade Spindle Ass'y.

$

$

Currently unavailable

12

MTD 738-0559

Blade Spindle

$

$

Currently unavailable

13

MTD 738-0414

Shld. Bolt .498" Dia. x 1.635

$

$

Not available

14

MTD 736-0105

Bell-Wash. .400" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

15

MTD 734-0973

Deck Wheel 5.0" x 1.38"

$12.99

$

In Stock, Qty 20+

0

16

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

17

MTD 712-0798

Hex ut 3/8-16 Thd .

$4.49

$

In Stock, Qty 12

0

MTD 736-0169

L-Wash. 3/8" I.D.*

$3.99

$

In Stock, Qty 20+

0

19

MTD 710-0117

Hex Bolt 5/16-24 x 1.00" Lg. (Grade 5)
(Superseded to 710-0888)

$4.49

$

In Stock, Qty 20+

0

20

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

21

MTD 712-0123

Hex Nut 5/16-24 Thd.*
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

22

MTD 748-0189

Blade Adapter

$

$

Not available

23

MTD 710-0459

Hex Bolt 3/8-24 x 1.50" Lg. (Grade 5)
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

24

MTD 736-0217

L-Wash. 3/8" I.D. H.D.

$4.49

$

In Stock, Qty 8

0

25

MTD 742-0206

13" Blade

$

$

Not available

26

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

27

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

28

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

29

MTD 714-0365

#6 Hi-Pro Key 5/32" x 518" Dia.

$5.49

$

Usually ships in 3-6 days

0

30

MTD 742-0267

24" Blade

$

$

Not available

31

MTD 738-0559

Blade Spindle

$

$

Currently unavailable

32

MTD 13703

Bearing Shield

$

$

Not available

33

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

34

MTD 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

35

MTD 15951

36" Deck Assy.

$

$

Currently unavailable

36

MTD 15961

Deck Hanger Brkt.-R.H. Front

$

$

Currently unavailable

37

MTD 712-0287

Hex Nut 1/4-20 Thd
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

38

MTD 725-0765

Ground Wire

$

$

Not available

39

MTD 725-1001

Safety Switch

$

$

Not available

40

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .50" Lg.

$4.49

$

Usually ships in 3-6 days

0

41

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

42

MTD 736-0142

Fl-Wash. .281" I.D. x .50" O.D.

$4.99

$

In Stock, Qty 20+

0

43

MTD 714-0155

Internal Cotter Pin
(Superseded to 714-0174)

$

$

Not available

44

MTD 15990

Chute Deflector Ass'y.

$

$

Not available

45

MTD 723-0296

Spring Latch Ass'y.

$

$

Not available

46

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

47

MTD 15966

Deck Hanger Brkt.-R.H. Rear

$

$

Currently unavailable

48

MTD 08253

Brg. Housing 1.85" I.D.
(Superseded to 08253B)

$19.99

$

In Stock, only 1 left!

0

49

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

50

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

51

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

52

MTD 741-0919

Ball Brg. .787" I.D. x 1.85" O.D.
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

53

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

54

MTD 754-0277

"V"-Belt 1/2" x 71" Lg.
(Superseded to 954-0277)

Note: (Full A Sec.)

$

$

Not available

55

MTD 747-0466

Belt Guard

$

$

Not available

56

MTD 756-0414

Pulley 6.0" O.D. x 5/8"

$

$

Not available

57

MTD 15958

Link Deck Hanger-Front-R.H

$

$

Currently unavailable

58

MTD 14804

Link Deck Hanger Ass'y.-Rear R.H.

$

$

Not available

60

MTD 732-0157

Ext. Spring

$14.99

$

Usually ships in 3-6 days

0

61

MTD 714-0470

Cotter Pin 1/8" Dia. x 1.25" Lg.

$4.49

$

In Stock, Qty 20+

0

62

MTD 725-1000

Wire Lead

$

$

Currently unavailable

63

MTD 15959

Link Deck Hanger Ass'y.-Rear L.H

$

$

Not available

64

MTD 15998

Link Deck Hanger Ass'y.-Front L.H

$

$

Currently unavailable

MTD 15950

36" Deck Ass'y.-Comp.

Note: (Service Only)

$

$

Currently unavailable
