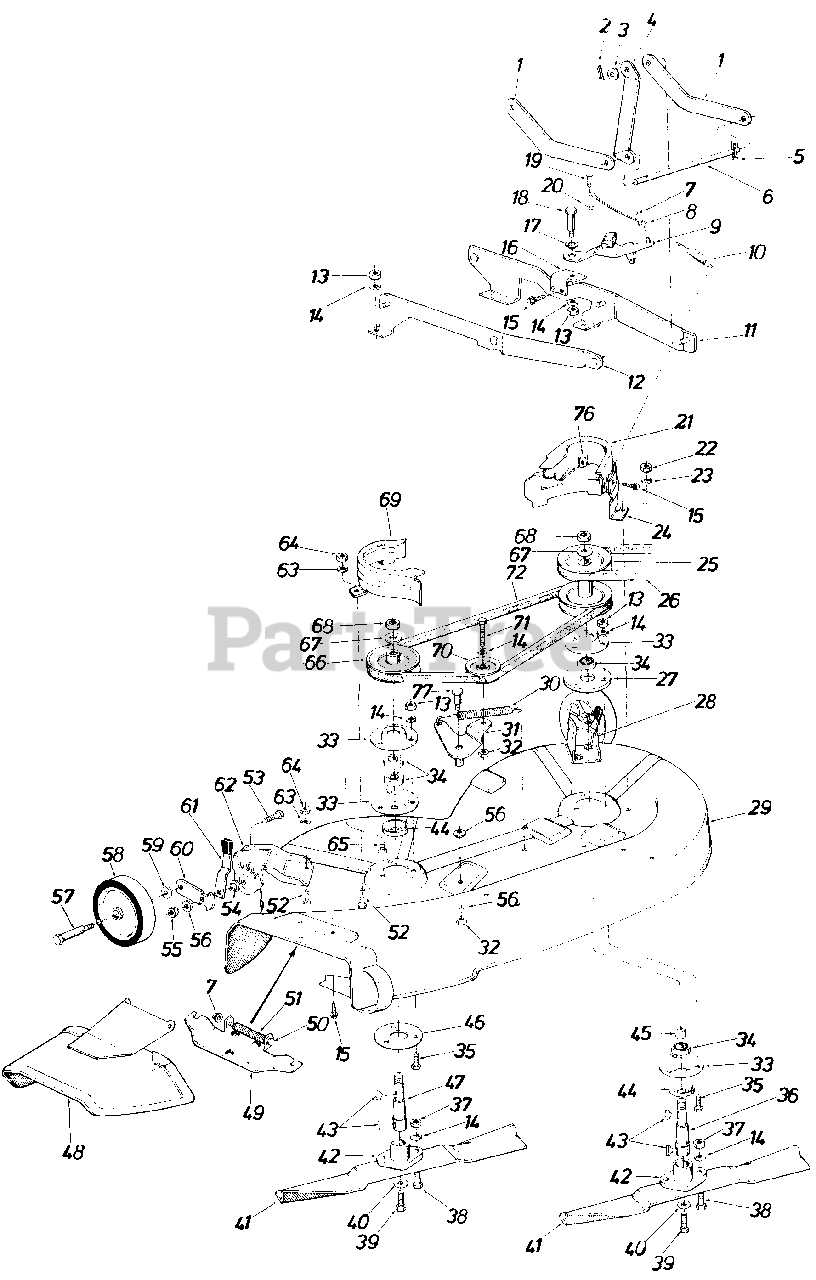

195-765-000 - MTD Mower Deck Assembly Only (1985) Deck Parts Diagram

Mower Deck Assembly Only

Deck Parts Diagram

  • Title

1

MTD 13866

Deck Stabilizer

Variations

MTD 13866-0637

No Longer Available STABILIZER - POWDER BLACK (0637)

$

$

Not available

$

$

2

MTD 714-0111

Cotter Pin 3/32" Dia. x 1.00" Lg.

$4.99

$

In Stock, Qty 13

0

3

MTD 736-0192

Fl-Wash. 50" I.D. x 1.00" O.D. x .090 Thk.

$4.49

$

In Stock, Qty 8

0

4

MTD 13867

Diagonal Brace

Variations

MTD 13867-0637

No Longer Available BRACE-DIAG - POWDER BLACK (0637)

$

$

Not available

$

$

5

MTD 714-0149

Hairpin Cotter
(Superseded to 914-0149B)

$

$

Not available

6

MTD 738-0392

Deck Connecting Rod

$

$

Not available

7

MTD 726-0106

Push Cap 1/4" Rod

$3.99

$

Usually ships in 3-6 days

0

8

MTD 746-0237

Brake Cable Ass'y.
(Superseded to 946-0237)

$

$

Not available

9

MTD 13908

Spindle Brake Arm Ass'y.

$

$

Currently unavailable

10

MTD 732-0250

Extension Spring
(Superseded to HG-50384)

$

$

Not available

11

MTD 14091

Hanger Brkt. Ass'y.-L.H. Side

$

$

Currently unavailable

12

MTD 14092

Hanger Brkt. Ass'y.-R.H. Side

$

$

Currently unavailable

13

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

14

MTD 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

15

MTD 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

16

MTD 14096

Spindle Brake Pivot Brkt.

$

$

Currently unavailable

17

MTD 736-0141

WaveWash. .438" I.D. x .750" O.D. x .15 Thk.
(Superseded to 936-0141)

$6.99

$

Usually ships in 3-6 days

0

18

MTD 738-0155

Shld. Bolt.437" Dia. x .162" Lg. 5/16-18 Thd.
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

19

MTD 711-0701

Clevis Pin 1/4" Dia. x 1.00" Lg.
(Superseded to 911-0701)

$6.99

$

In Stock, only 1 left!

0

20

MTD 714-0100

Hairpin Cotter 1/4" Dia.

$

$

Currently unavailable

21

MTD 14090

Upper Belt Guard-L.H. Side

$

$

Currently unavailable

22

MTD 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

23

MTD 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

24

MTD 14089

Lower Belt Guard-L.H. Side

$

$

Currently unavailable

25

MTD 756-0346

Deck Drive Pulley

$

$

Not available

26

MTD 754-0251

"V"-Belt 1/2" x 51.0" Lg. (Kevlar) "A" Sec.
(Superseded to 954-0251)

$

$

Not available

27

MTD 14088

Spindle Spacer Plate
(Superseded to 14088B-0637)

$29.99

$

Usually ships in 3-6 days

0

28

MTD 09082

Wheel Brkt.-L.H. Side

$

$

Not available

29

MTD 14767

38" Deck Ass'y.

$

$

Currently unavailable

30

MTD 732-0121

Extension Spring
(Superseded to 932-0121)

$14.99

$

In Stock, only 1 left!

0

31

MTD 14768

Deck Idler Brkt. Ass'y.

$

$

Currently unavailable

32

MTD 712-0375

HexCent. L-Nut 3/8-1 Thd.

$4.49

$

In Stock, Qty 6

0

33

MTD 08253

Bearing Housing
(Superseded to 08253B)

$19.99

$

In Stock, only 1 left!

0

34

MTD 741-0919

Ball Brg. .787 I.D. x 1.85 O.D x .55
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

35

MTD 710-0322

Hex Bolt 5/16-18x 1.0" Lg.*

$

$

Not available

36

MTD 738-0466

Blade Spindle

$

$

Not available

37

MTD 712-0123

Hex Nut 5/16-24 Thd.*
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

38

MTD 710-0888

Hex Bolt 5/16-24 x 1.00" Lg.*

Note: (Special)

$4.49

$

In Stock, Qty 5

0

39

MTD 710-0459

Hex Bolt 3/8-24 x 1.50" Lg.*
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

40

MTD 736-0217

L-Wash. 3/8" I.D. Heavy Duty

$4.49

$

In Stock, Qty 9

0

41

MTD 742-0122

19" Blade

$

$

Not available

42

MTD 10769

Blade Adpater Kit

$

$

Not available

43

MTD 714-0365

#6 Hi-Pro Key 5/32 x 5/8" Dia.

$5.49

$

Usually ships in 3-6 days

0

44

MTD 13703

Bearing Shield

$

$

Not available

45

MTD 750-0142

Spacer.790" I.D. x 1.0" O.D. x.315 Lg.
(Superseded to 950-0142)

$

$

Not available

46

MTD 09164

Deck Reinforcement Plate
(Superseded to 09164A-0637)

$33.99

$

In Stock, only 2 left!

0

47

MTD 711-0255

Blade Spindle
(Superseded to 911-0255)

$

$

Not available

48

MTD 11574

Chute Cover Ass'y.

$

$

Currently unavailable

49

MTD 11396

Adapter Plate

$

$

Not available

50

MTD 711-0570

Hinge Pin

$

$

Not available

51

MTD 732-0261

Torsion Spring

$

$

Not available

52

MTD 710-0289

Hex Bolt 1/4-20 x .50" Lg.*
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

53

MTD 710-0342

Hex Bolt 3/8-16 x 1.25" Lg.*
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 12

0

54

MTD 748-0279

Shoulder Spacer

$

$

Not available

55

MTD 712-0181

Hex Jam L-Nut 3/8-16 Thd.

$4.49

$

In Stock, only 3 left!

0

56

MTD 736-0219

BellevilleWash..400" I.D. x 1.13" O.D. x .030
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

57

MTD 738-0373

Shld. Bolt. 498 Dia. x 1.53" Lg.
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

58

MTD 734-0973

DeckWheel 5" Plastic- Comp.

$12.99

$

In Stock, Qty 20+

0

59

MTD 736-0105

Belleville Wash. .400" I.D. x .88" O.D. x .060

$4.49

$

In Stock, Qty 20+

0

60

MTD 10937

Wheel Pivot Bar-Deck

$

$

Not available

61

MTD 14082

Spring Lever Ass'y. w/Knob

$

$

Not available

62

MTD 09080

Wheel Brkt.-R.H.

$

$

Not available

63

MTD 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

64

MTD 712-0287

Hex Nut 1/4-2 Thd.*
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

65

MTD 710-0399

Sems Truss Hd. Scr. 5/16-18 x.50" Lg.
(Superseded to 710-0473)

$4.49

$

In Stock, only 2 left!

0

63

MTD 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

64

MTD 712-0287

Hex Nut 1/4-2 Thd.*
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

65

MTD 710-0399

Sems Truss Hd. Scr. 5/16-18 x.50" Lg.*
(Superseded to 710-0473)

$4.49

$

In Stock, only 2 left!

0

66

MTD 756-0352

Pulley 4.75" O.D.

$

$

Not available

67

MTD 736-0158

L-Wash. 5/8" I.D.*

$4.49

$

In Stock, only 1 left!

0

68

MTD 712-0242

Hex Jam Nut 5/8-18 Thd.
(Superseded to 912-0261)

$

$

Not available

69

MTD 14095

Belt Guard

Note: (R.H. Side)

$

$

Currently unavailable

70

MTD 756-0293

4" "V"-Idler Pulley
(Superseded to 756-0487)

$48.99

$

In Stock, only 1 left!

0

71

MTD 710-0342

Hex Bolt 3/8-16 x 1.25" Lg.*
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 12

0

72

MTD 754-0250

"V"-Belt.50" x 53.0 Lg. (4L)
(Superseded to 954-0250)

$

$

Not available

76

MTD 726-0292

Speed Nut 1/4-20 Thd.

$

$

Currently unavailable

77

MTD 738-0297

Shld. Bolt .50" Dia. x .71" Lg. 3/8-16 Thd.
(Superseded to 938-0297)

$

$

Not available
