195-747-000 - MTD Electric Lift Kit (1985) Electric Lift Kit Parts Diagram

Electric Lift Kit

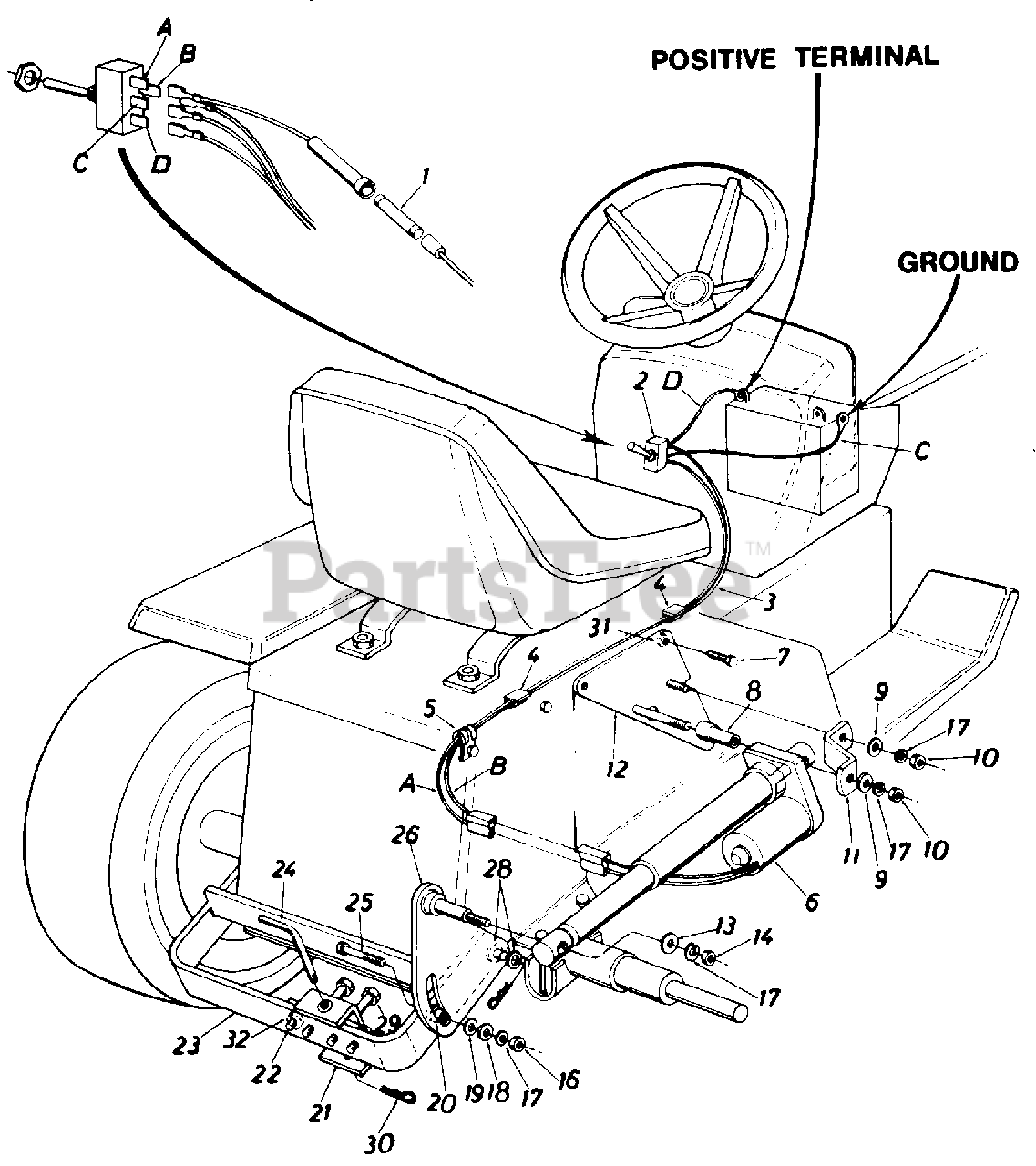

Electric Lift Kit Parts Diagram

  • Title

1

MTD 725-0300

Fuse 30 AMP

Note: (Service Only)

$

$

Currently unavailable

2

MTD 725-1053

Toggle Switch
(Superseded to 925-1053)

$105.99

$

Usually ships in 3-6 days

0

3

MTD 725-1052

Wire Harness

$

$

Currently unavailable

4

MTD 726-0141

Adjustment Clamp

$

$

Not available

5

MTD 726-0175

Clamp

$

$

Not available

6

MTD 717-0812

Electric Actuator

$

$

Currently unavailable

7

MTD 710-0601

Hex Wash. TT. Tap Scr. 5/16 x .62" Lg.
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

8

MTD 750-0607

Spacer Special for Actuator

$

$

Currently unavailable

9

MTD 736-0206

Fl.-Wash. .378" I.D. x 1.00" O.D. x .125 Thk.
(Superseded to 936-0206)

$4.49

$

Usually ships in 3-6 days

0

10

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, Qty 12

0

11

MTD 16071

Bracket Actuator Mounting

$

$

Currently unavailable

12

MTD 16090

Mounting Plate Ass'y.

$

$

Currently unavailable

13

MTD 736-0267

Fl.-Wash. .385" I.D. x .87" O.D. x .060 (H.T.)

$4.49

$

In Stock, Qty 20+

0

14

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, Qty 12

0

16

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, Qty 12

0

17

MTD 736-0169

L.-Wash. 3/8" I.D.*

$3.99

$

In Stock, Qty 20+

0

18

MTD 736-0206

Fl.-Wash. .378" I.D. x 1.00" 0.D. x .125" Thk.
(Superseded to 936-0206)

$4.49

$

Usually ships in 3-6 days

0

19

MTD 736-0256

Fl.-Wash. .635 I.D. x 1.00" O.D. x .030" Thk. (H.T.)
(Superseded to 936-0256)

$7.49

$

Usually ships in 3-6 days

0

20

MTD 748-0241

Shoulder Spacer

$

$

Not available

21

MTD 13269

Hitch BracketAss'y.
(Superseded to 13269-0637)

Variations

MTD 13269-0637

BRACKET ASSY-HITCH - POWDER BLACK (0637)

$

$

Not available

$

$

22

MTD 710-0493

Hex Bolt 1/2-13 x 1.00" Lg. *
(Superseded to 710-3131)

$5.49

$

In Stock, only 1 left!

0

23

MTD 16091

Hitch BarAss'y.

$

$

Currently unavailable

24

MTD 711-0282

Hitch Pin

$72.99

$

Usually ships in 3-6 days

0

25

MTD 710-0347

Hex Bolt 3/8-16 x 1.75" Lg.*

$5.49

$

In Stock, Qty 20+

0

26

MTD 16074

Lifting Plate Ass'y.

$

$

Currently unavailable

28

MTD 736-0156

Fl.-Wash. .63" I.D. x 1.12" O.D. x .100 Thk.

$4.49

$

In Stock, Qty 12

0

29

MTD 710-0182

Hex Bolt 1/2-13 x 3.00" Lg.*
(Superseded to 710-0182A)

$7.99

$

In Stock, only 2 left!

0

30

MTD 714-0117

Intern. Cotter Pin 5/8" Dia.

$4.49

$

In Stock, Qty 16

0

31

MTD 736-0206

Fl.-Wash. .378" I.D. x 1.00" O.D. x .125
(Superseded to 936-0206)

$4.49

$

Usually ships in 3-6 days

0

32

MTD 736-0921

L-Wash. 1/2" I.D.*

$4.49

$

In Stock, Qty 6

0
