195-746-190 - White Outdoor 8 HP Tiller Attachment (1985) Tiller Drive Assembly Parts Diagram

8 HP Tiller Attachment

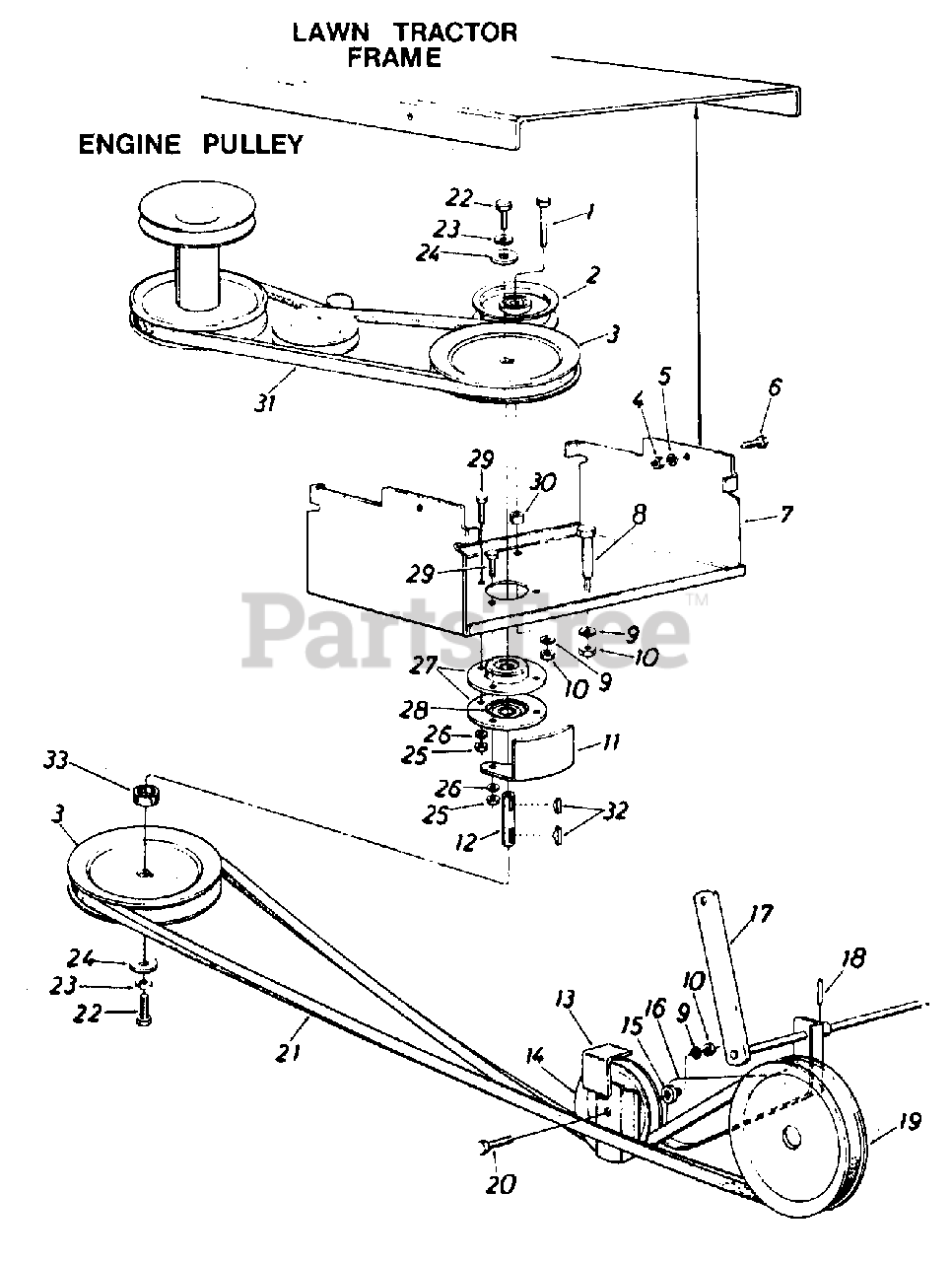

Tiller Drive Assembly Parts Diagram

  • Title

1

White Outdoor 710-0427

Hex Bolt 3/8-16 x 2.00" Lg.*
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

2

White Outdoor 756-0405

Fl.-ldler w/ Flanges 3-3/4" O.D.

$71.99

$

Usually ships in 3-6 days

0

3

White Outdoor 756-0438

5/8" "V"-Pulley .790" I.D. x .650" O.D.
(Superseded to 956-0438)

$83.99

$

Usually ships in 3-6 days

0

4

White Outdoor 712-0241

Hex N ut 3/8-24 Thd.*

$4.49

$

In Stock, Qty 13

0

5

White Outdoor 736-0217

L.-Wash. 3/8" I.D. Heavy Duty

$4.49

$

In Stock, Qty 8

0

6

White Outdoor 710-0696

Hex Bolt 3/8-24 x .88" Lg.*

$6.99

$

In Stock, only 2 left!

0

7

White Outdoor 784-0054

Carriage Bracket
(Superseded to 784-0054A-0637)

$

$

Not available

8

White Outdoor 738-0533

Shoulder Bolt .498" Dia. x 1.64

$7.99

$

Usually ships in 3-6 days

0

9

White Outdoor 736-0169

L.-Wash. 3/8" I.D.*

$3.99

$

In Stock, Qty 20+

0

10

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, Qty 12

0

11

White Outdoor 05406

Belt Guard
(Superseded to 05406-0637)

Variations

White Outdoor 05406-0637

GUARD-BELT - POWDER BLACK (0637)

$

$

Not available

$

$

12

White Outdoor 738-0593

Shaft .787" Dia. x 2.56" Lg.

$

$

Not available

13

White Outdoor 784-0070

Belt Separator Plate

$

$

Not available

14

White Outdoor 756-0433

Fl.-ldler w/ Flanges 3.25" O.D.

$

$

Not available

15

White Outdoor 736-0235

Fl.-Wash. .406" I.D. x 1.25" O.D. x .164
(Superseded to 736-0247)

$9.49

$

In Stock, Qty 14

0

16

White Outdoor 784-0071

Idler Bracket Ass'y.

Variations

White Outdoor 784-0071-0637

No Longer Available IDLER-BELT - POWDER BLACK (0637)

$

$

Not available

$

$

17

White Outdoor 784-0073

Idler Brk't. Support Ass'y.

$

$

Not available

18

White Outdoor 715-0105

Spring Pin Roll 3/16" Dia. x 1.50" Lg.

$

$

Not available

19

White Outdoor 756-0439

5/8" V-Pulley 1.50" I.D. x 6.50" O.D.

$

$

Not available

20

White Outdoor 710-0347

Hex Bolt 3/8-16 x 1.75" Lg.*

$5.49

$

In Stock, Qty 20+

0

21

White Outdoor 754-0283

"V"-Belt 1/2" x 95.0" Lg.

$

$

Not available

22

White Outdoor 710-0371

HexBolt5/16-18 x .88" Lg. Spec.
(Superseded to 710-1880)

$4.99

$

In Stock, Qty 11

0

23

White Outdoor 736-0119

L.-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

24

White Outdoor 736-0231

Fl.-Wash. .344" I.D. x 1.125" O.D. x .125

$4.99

$

In Stock, Qty 20+

0

25

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

26

White Outdoor 736-0119

L.-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

27

White Outdoor 08253

Bearing Housing 1.85" I.D.
(Superseded to 08253B)

$19.99

$

In Stock, only 1 left!

0

28

White Outdoor 741-0919

Ball Bearing .787" I.D. x 1.85" O.D.
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

29

White Outdoor 710-0198

Hex Sems Bolt 5/16-18 x .75"
(Superseded to 910-0198)

$

$

Not available

30

White Outdoor 750-0497

Spacer

$10.99

$

Usually ships in 3-6 days

0

31

White Outdoor 754-0229

Belt 1/2" Wide x 52" Long
(Superseded to 954-0229)

$59.99

$

Usually ships in 3-6 days

0

32

White Outdoor 714-0161

Hi-Pro Key 3/16" x 5/8"
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 20+

0

33

White Outdoor 750-0456

Spacer-.80" I.D. x 1.0" O.D.

$4.49

$

In Stock, Qty 20+

0
