195-486-000 - MTD Snow Thrower Attachment (1985) Snow Thrower Attachment Parts Diagram

Snow Thrower Attachment

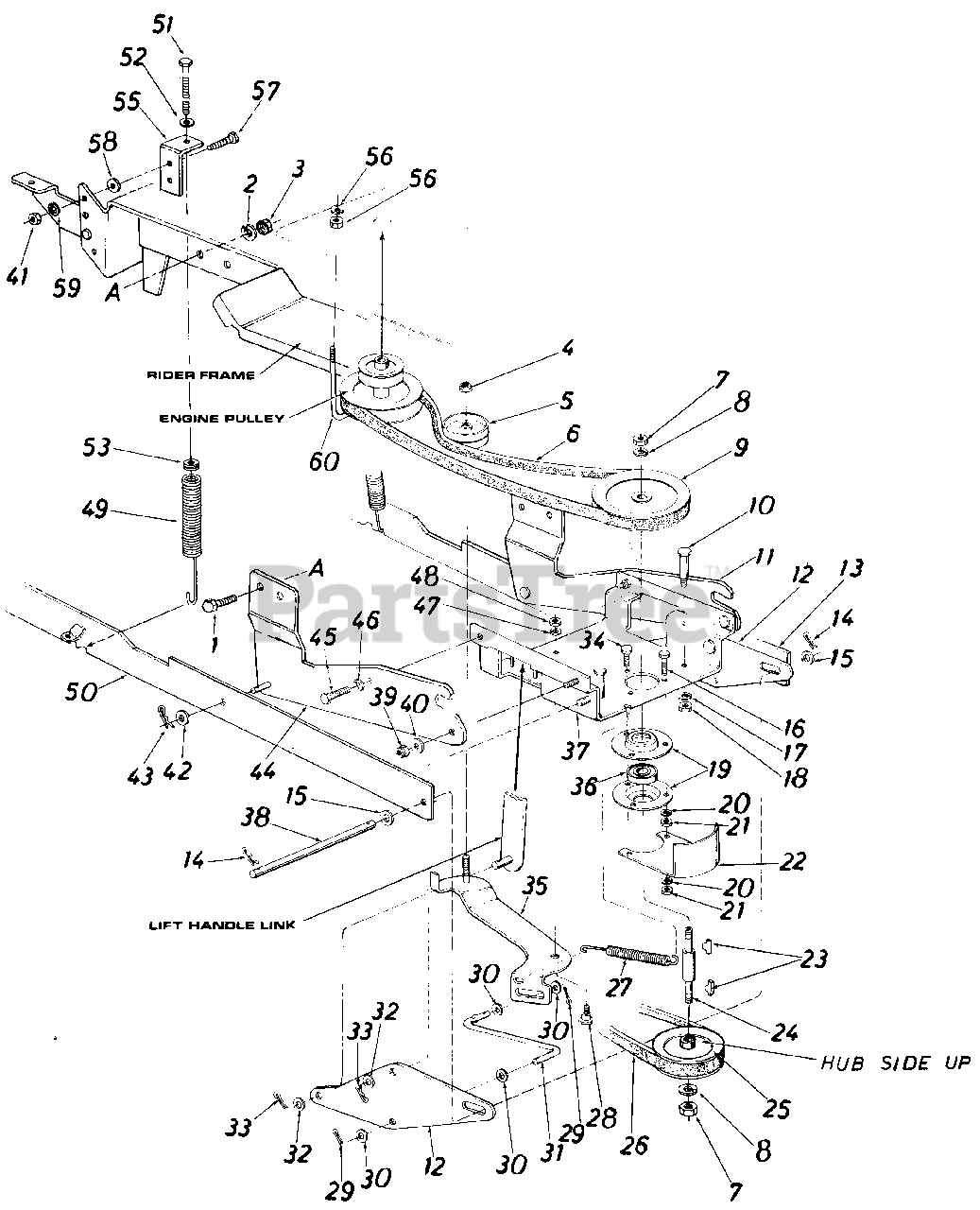

Snow Thrower Attachment Parts Diagram

  • Title

1

MTD 710-0412

Hex Scr. 1/4-28 x .75" Lg. Grade 5

$5.99

$

In Stock, Qty 9

0

2

MTD 736-0329

L-Wash. 1/4" Scr.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

3

MTD 712-0138

Hex Nut 1/4-2 Thd.*

$6.99

$

Usually ships in 3-6 days

0

4

MTD 712-0116

Hex Ins. Jam Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

5

MTD 756-0218

Flat Idler 3.25" O.D.

$34.99

$

Usually ships in 3-6 days

0

6

MTD 754-0185

"V"-Belt 1/2 x 49" Lg.

$

$

Not available

7

MTD 712-0242

Hex Jam Nut 5/8-11 Thd.
(Superseded to 912-0261)

$

$

Not available

8

MTD 736-0158

L-Wash. 5/8" I.D.*

$4.49

$

In Stock, Qty 11

0

9

MTD 756-0216

6.50" O.D. x 5/8 Pulley

$

$

Not available

10

MTD 738-0129

ShoulderScrew

$11.99

$

In Stock, only 1 left!

0

11

MTD 05826

Channel Supporting Brkt.-R.H.

$

$

Not available

12

MTD 05835

Linkage Brkt.

$

$

Currently unavailable

13

MTD 05838

Linkage Arm Ass'y. R. H.

$

$

Currently unavailable

14

MTD 714-0101

Intern. Cotter Pin .500" Dia.*

$4.99

$

In Stock, only 2 left!

0

15

MTD 736-0192

Fl.-Wash.

$4.49

$

In Stock, Qty 18

0

16

MTD 710-0528

Hex Scr. 5/16-18 x 1.25" Lg. *

$4.49

$

In Stock, Qty 20+

0

17

MTD 736-0169

L.-Wash. 3/8" Scr.*

$3.99

$

In Stock, Qty 20+

0

18

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, Qty 12

0

19

MTD 08253

Bearing Housing
(Superseded to 08253B)

$19.99

$

In Stock, only 1 left!

0

20

MTD 736-0119

L.-Wash. 5/16" Scr.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

21

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

22

MTD 05406

Belt Guard
(Superseded to 05406-0637)

Variations

MTD 05406-0637

GUARD-BELT - POWDER BLACK (0637)

$

$

Not available

$

$

23

MTD 714-0388

#6 Hi-Pro-Key 3/16 x 5/8" Dia.
(Superseded to 914-0388)

$7.99

$

In Stock, Qty 20+

0

24

MTD 738-0246

Pulley Spindle

$

$

Not available

25

MTD 756-0213

4.00 O.D. x 5/8 Pulley

$

$

Currently unavailable

26

MTD 754-0236

"V"-Belt 1/2 x 85.2" Lg.
(Superseded to 954-0236)

$

$

Not available

27

MTD 732-0146

Extension Spring

$

$

Not available

28

MTD 738-0140

Shoulder Screw

$5.99

$

In Stock, Qty 15

0

29

MTD 714-0111

Cotter Pin 3/32" Dia. x 1.00*

$4.99

$

In Stock, Qty 13

0

30

MTD 736-0300

F l-Wash.

$4.49

$

In Stock, Qty 20+

0

31

MTD 747-0396

Control Rod

$

$

Not available

32

MTD 736-0192

Fl-Wash.

$4.49

$

In Stock, Qty 18

0

33

MTD 714-0101

Inter. Cotter Pin .500" Dia.*

$4.99

$

In Stock, only 2 left!

0

34

MTD 710-0322

Hex Sems Scr. 5/16-18 x 1.0" Lg.

$

$

Not available

35

MTD 05409

Clutch Idler Brkt. Ass'y.

$

$

Not available

36

MTD 741-0919

Ball Bearing
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

37

MTD 05411

Channel Ass'y.

$

$

Not available

38

MTD 738-0242

Lift Handle Shaft

$

$

Not available

39

MTD 712-0130

Hex Ins. L-Nut 3/8-16 Thd.

$3.99

$

In Stock, Qty 11

0

40

MTD 736-0300

F l.-Wash.

$4.49

$

In Stock, Qty 20+

0

41

MTD 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

42

MTD 736-0192

F l.-Wash.

$4.49

$

In Stock, Qty 18

0

43

MTD 714-0101

Intern. Cotter Pin .500" Dia.*

$4.99

$

In Stock, only 2 left!

0

44

MTD 05827

Channel Supporting Brkt.-L.H.
(Superseded to 05827B-0637)

$

$

Not available

45

MTD 710-0253

Hex Scr. 3/8-16 x 1.00" Lg. *
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

46

MTD 736-0169

L.-Wash. 3/8" Scr.*

$3.99

$

In Stock, Qty 20+

0

47

MTD 736-0119

L.-Wash. 5/16" Scr.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

48

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

49

MTD 732-0323

Helper Spring

$

$

Not available

50

MTD 05837

Linkage Arm Ass'y.-L.H.

$

$

Currently unavailable

51

MTD 710-0646

Hex Scr. 5/16-18 x 2.0" Lg. Special
(Superseded to 710-04039)

$4.99

$

In Stock, only 4 left!

0

52

MTD 736-0159

Fl.-Wash. 5/16" Scr.*

$4.49

$

In Stock, Qty 20+

0

53

MTD 711-0509

Spring Insert

$60.99

$

Usually ships in 3-6 days

0

55

MTD 05933

Helper Spring Bracket

Variations

MTD 05933-0637

No Longer Available BRACKET-HE - POWDER BLACK (0637)

$

$

Not available

$

$

56

Parts on Tractor

$

$

Not available

57

MTD 710-0252

Hex Bolt 1/4-20 x .75" Lg. *
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

58

MTD 736-0176

Fl.-Wash..264" I.D.

$4.99

$

In Stock, only 4 left!

0

59

MTD 736-0329

L.-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

60

MTD 710-0836

J-Bolt 5/16-18

$

$

Not available

MTD 726-0228

Cable Tie
(Superseded to 725-0157)

Note: (Not Shown)

$3.99

$

In Stock, Qty 20+

0
