195-067-000 - MTD Grass Catcher Kit (1985) Top Discharge Grass Catcher Kit Parts Diagram

Grass Catcher Kit

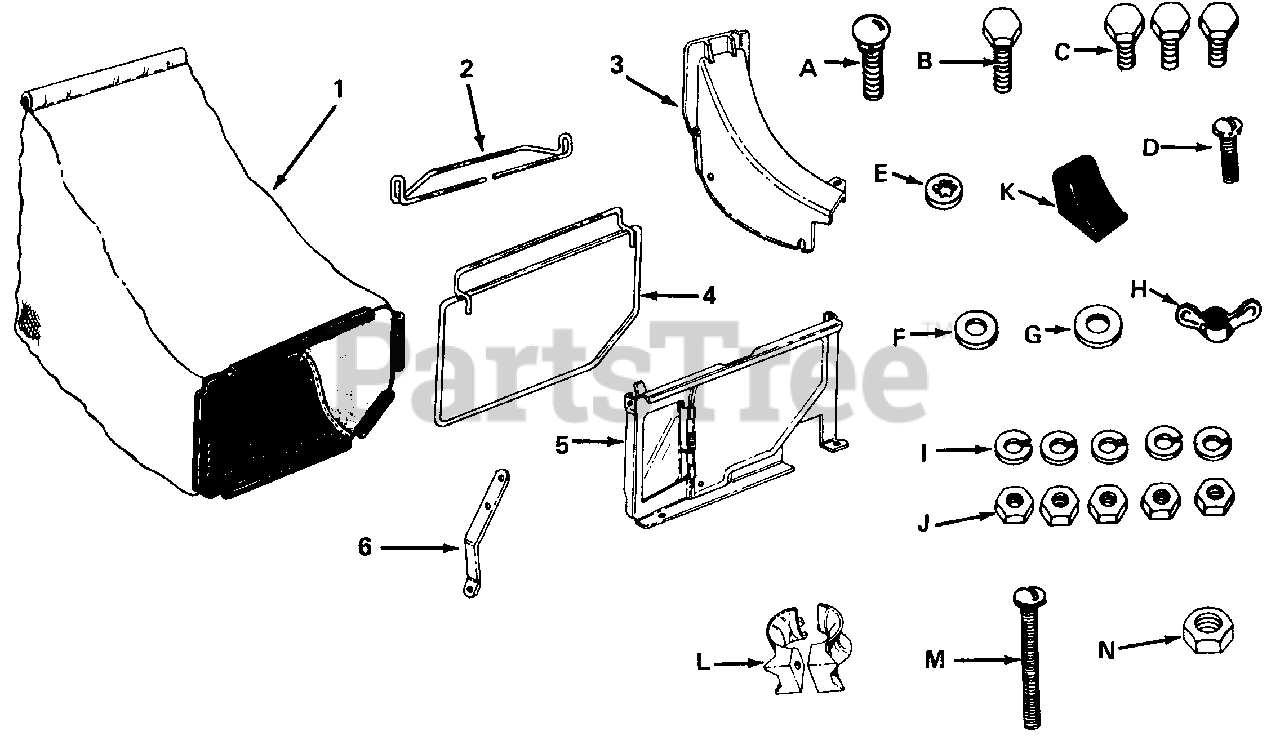

Top Discharge Grass Catcher Kit Parts Diagram

  • Title

1

MTD 764-0212

Grass Bag

$

$

Currently unavailable

2

MTD 747-0495

Grass Catcher Handle

$

$

Not available

3

MTD 731-0733

Top Discharge Chute

$

$

Not available

4

MTD 747-0494

Front Catcher Frame

$

$

Not available

5

MTD 16149

Top Catcher Panel

$

$

Not available

6

MTD 16441

Panel Support Bracket

$

$

Not available

A

MTD 710-0134

Carriage Bolt 1/4-20 x 5/8" Lg.*

$4.49

$

In Stock, Qty 20+

0

B

MTD 710-0258

Hex Bolt 1/4-20 x 5/8" Lg.*
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

C

MTD 710-0289

Hex Bolt 1/4-20 x 1/2" Lg.*
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

D

MTD 710-0286

Truss Machine Screw 1/4-20 x 1/2" Lg.*

$4.49

$

Usually ships in 3-6 days

0

E

MTD 726-0233

Bolt Retainer

$4.49

$

In Stock, only 3 left!

0

F

MTD 736-0204

FlatWasher 5/16" I.D. x 5/8" O.D.

$4.49

$

In Stock, Qty 7

0

G

MTD 736-0463

Flat Washer 1/4" I.D. x 5/8" O.D.

$4.49

$

In Stock, only 2 left!

0

H

MTD 712-0109

Wing Nut 1/4-20 Thread

$

$

Not available

I

MTD 736-0329

Lock Washer 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

J

MTD 712-0287

Hex Nut 1/4-20 Thread*
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

K

MTD 720-0208

Door Grip

$

$

Not available

L

MTD 751-0434

Rope Guide Half
(Superseded to 719-0279)

$15.99

$

Usually ships in 3-6 days

0

M

MTD 710-0578

Truss Machine Screw 1/4-20 x 1-1/2" Lg.*

$4.49

$

Usually ships in 3-6 days

0

N

MTD 712-0267

Hex Nut 5/16-18 Thread*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0
