195-065-190 - White Outdoor Side Discharge Grass Catcher (1985) Grass Catcher Parts Diagram

Side Discharge Grass Catcher

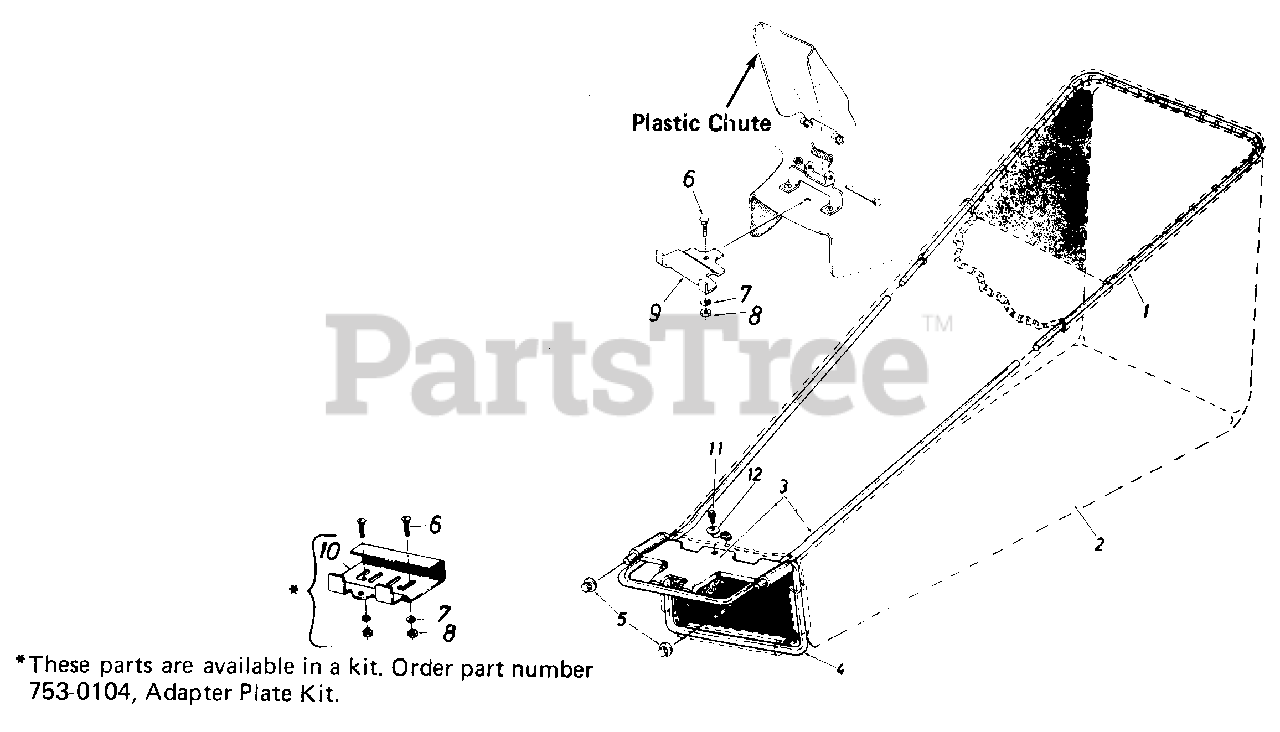

Grass Catcher Parts Diagram

  • Title

1

White Outdoor 749-0677

Frame-Upper

$

$

Not available

2

White Outdoor 764-0217

Grass Catcher Bag

$

$

Not available

3

White Outdoor 16307

Frame-Lower

$

$

Not available

4

749-0678

Lower Frame Rod

$

$

Not available

5

White Outdoor 726-0135

Push Cap

Note: (Optional)

$6.99

$

In Stock, only 1 left!

0

6

White Outdoor 710-0167

Carriage Bolt
(Superseded to 710-05177)

Note: (066)

$4.99

$

In Stock, Qty 20+

0

7

White Outdoor 736-0329

LockWasher1/4" I.D.
(Superseded to 936-0329)

Note: (066)

$4.49

$

In Stock, Qty 11

0

8

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

Note: (066)

$4.99

$

Usually ships in 3-6 days

0

9

14343

Adapter Plate

Note: (066)

$

$

Not available

10

08832

Adapter Plate

Note: (066)

$

$

Not available

11

White Outdoor 710-0599

Self-Tap Scr. 1/4 x 1/2" Lg.

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0
