195-065-000 - MTD Grass Catcher Kit (1985) Grass Catcher Parts Diagram

Grass Catcher Kit

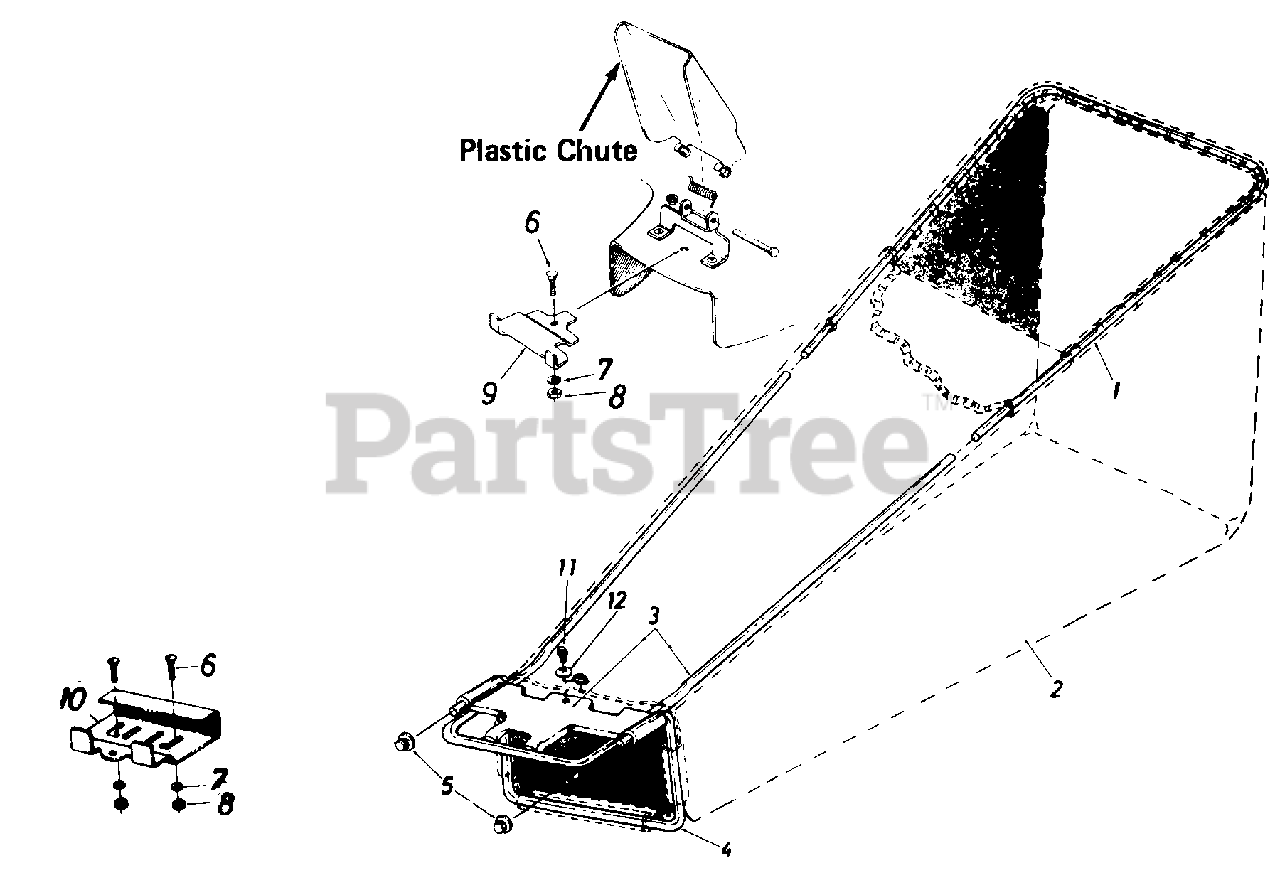

Grass Catcher Parts Diagram

  • Title

1

MTD 749-0677

Frame-Upper

$

$

Not available

2

MTD 764-0217

Grass Catcher Bag

$

$

Not available

3

MTD 16307

Frame-Lower

$

$

Not available

4

MTD 749-0678

Lower Frame Rod

$

$

Currently unavailable

5

MTD 726-0135

Push Cap

Note: (Optional)

$6.99

$

In Stock, only 1 left!

0

6

MTD 710-0167

Carriage Bolt
(Superseded to 710-05177)

Note: (066)

$4.99

$

In Stock, Qty 20+

0

7

MTD 736-0329

LockWasher 1/4" I.D. *
(Superseded to 936-0329)

Note: (066)

$4.49

$

In Stock, Qty 11

0

8

MTD 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

Note: (066

$4.99

$

In Stock, only 1 left!

0

9

MTD 14343

Adapter Plate

Note: (066)

$

$

Currently unavailable

10

MTD 08832

Adapter Plate

Note: (066)

$

$

Currently unavailable

11

MTD 710-0599

Self-Tap Scr. 1/4 x 1/2" Lg.

$4.49

$

In Stock, Qty 20+

0

12

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0
