195-038-000 - MTD Grass Catcher Kit (1985) Grass Catcher Kit Parts Diagram

Grass Catcher Kit

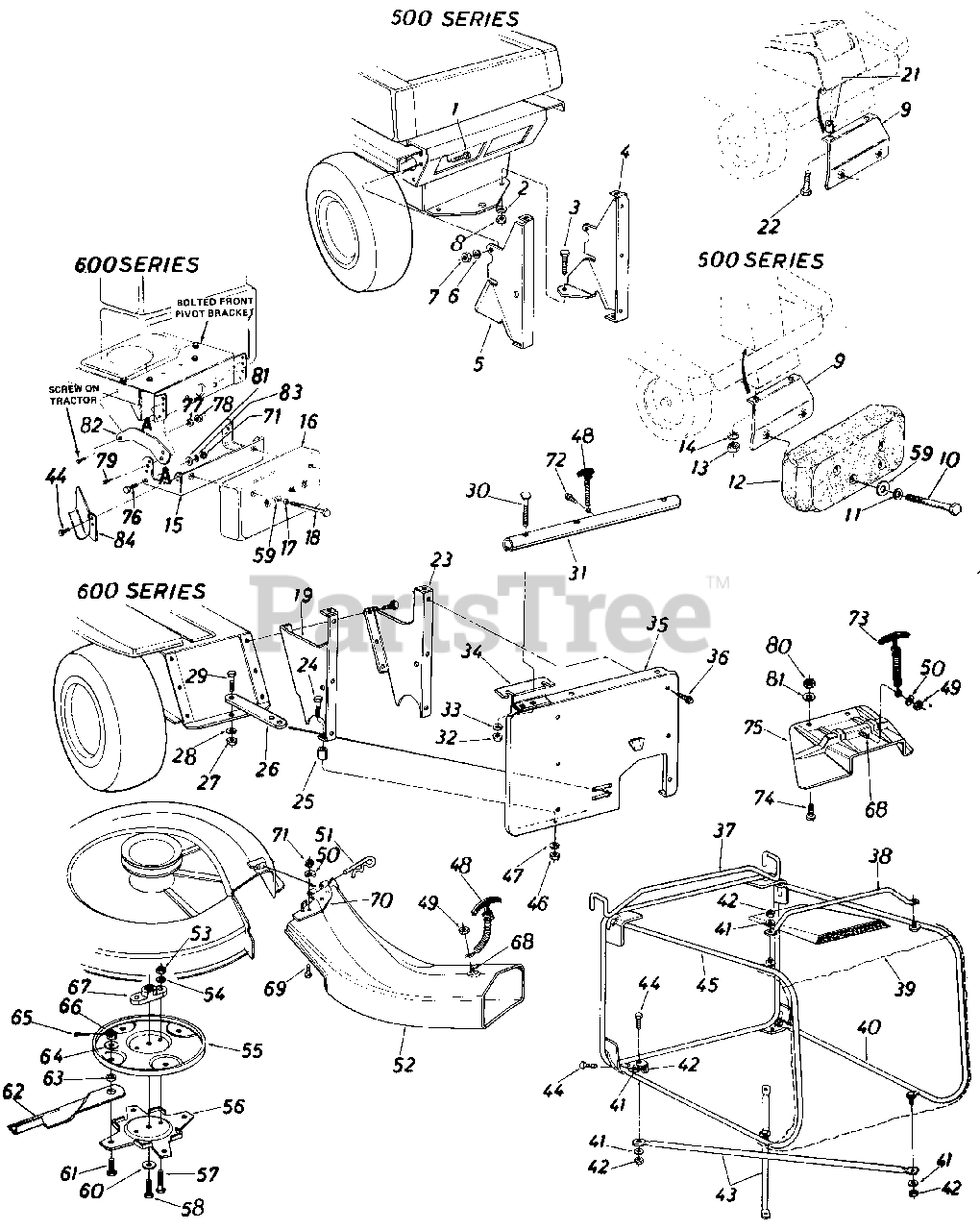

Grass Catcher Kit Parts Diagram

  • Title

1

MTD 710-0376

Hex Bolt 5/16-18 x 1.00" Lg. *

$3.99

$

In Stock, Qty 20+

0

2

MTD 736-0119

L.-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

3

MTD 710-0376

Hex Bolt 5/16-18 x 1.00" Lg.*

$3.99

$

In Stock, Qty 20+

0

4

MTD 15970

Catcher Support Brk't.-R.H.
(Superseded to 15970A)

$

$

Not available

5

MTD 15971

Catcher Support Brk't.-L.H.

$

$

Not available

6

MTD 736-0119

L.-Wash. 5/16"1.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

7

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

8

MTD 712-0267

Hex Nut 5/16-18 Thd. *
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

9

MTD 15539

Counterweight Support Brk't. Ass'y.

$

$

Not available

10

MTD 710-0693

Hex Bolt 3/8-16 x 4.5" Lg.*

$14.99

$

In Stock, only 2 left!

0

11

MTD 736-0105

Belleville Wash. .400" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

12

MTD 723-0367

Counterweight 38 Ibs.

$

$

Not available

13

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

14

MTD 736-0119

L.-Wash. 5/16"1.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

15

MTD 15873

Counterweight Support Brk't. Ass'y.

$

$

Not available

16

MTD 723-0367

Counterweight 38 lbs.

$

$

Not available

17

MTD 736-0105

Belleville Wash. .400" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

18

MTD 710-0693

Hex Bolt 3/8-16 x 4.5" Lg.*

$14.99

$

In Stock, only 2 left!

0

19

MTD 15363

Catcher Support Brkt.-L.H

$

$

Not available

21

MTD 711-0242

Spacer.380" I.D. x 1. 00" O.D. x .320" Lg.

$4.49

$

In Stock, Qty 9

0

22

Not Part of Kitt

$

$

Not available

23

MTD 15364

Catcher Support Brk't.-R.H.

$

$

Not available

24

MTD 710-0442

Hex Bolt 5/16-18 x 1.50" Lg *
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

25

MTD 750-0434

Spacer .380" I.D. x .47" O.D. x 1.00"Lg.

$6.99

$

Usually ships in 3-6 days

0

26

MTD 05400

Linkage Bracket

Variations

MTD 05400-0637

No Longer Available BRACKET-LI - POWDER BLACK (0637)

$

$

Not available

$

$

27

MTD 712-0922

Hex Jam Nut 1/2-20 Thd.
(Superseded to 712-3029)

$6.99

$

In Stock, Qty 6

0

28

MTD 736-0921

L.-Wash. 1/2" I.D.

$4.49

$

In Stock, Qty 6

0

29

MTD 710-0493

Hex Bolt 1/2-20 x 1.00" Lg.*
(Superseded to 710-3131)

$5.49

$

In Stock, only 1 left!

0

30

MTD 710-0405

Curved Carriage Bolt 5/16-18 x 1.75" Lg.
(Superseded to 710-1174)

$7.49

$

In Stock, Qty 20+

0

31

MTD 749-0659

Grass Catcher Support Tube

Variations

MTD 749-0659-0637

No Longer Available SUPPORT-TU - POWDER BLACK (0637)

$

$

Not available

$

$

32

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

33

MTD 736-0119

L.-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

34

MTD 15995

Grass Catcher Support Plate

$

$

Not available

35

MTD 15923

Rear Discharge Panel

$

$

Not available

36

MTD 710-0599

Hex Wash. Hd. Self Tap. Scr. 1/4 x 20 x .50

$4.49

$

In Stock, Qty 20+

0

37

MTD 15991

Grass Catcher Frame Ass'y..30"

$

$

Not available

38

MTD 749-0653

Grass Catcher Handle 21.82
(Superseded to 749-0653-0637)

Variations

MTD 749-0653-0637

HANDLE-CATCHER - POWDER BLACK (0637)

$

$

Not available

$

$

39

MTD 764-0210

Grass Catcher Bag 23.32

$

$

Not available

40

MTD 15992

Catcher Side Frame Ass'y.-R.H.

Variations

MTD 15992-0637

No Longer Available FRAME-SIDE - POWDER BLACK (0637)

$

$

Not available

$

$

41

MTD 736-0175

Spring-Wash 270" I.D. x .57" O.D. x .0251
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

42

MTD 712-0107

Hex L.-Nut 1/2-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

43

MTD 749-0651

Bottom Cross Brace 26.62

$

$

Not available

44

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.*
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

45

MTD 15993

CatcherSide Frame Ass'y.-L.H.

Variations

MTD 15993-0637

No Longer Available FRAME-SIDE - POWDER BLACK (0637)

$

$

Not available

$

$

46

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

47

MTD 736-0119

L.-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

48

MTD 723-0296

Hook Latch Ass'y.

$

$

Not available

49

MTD 712-0107

Hex L.-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

50

MTD 736-0142

Fl.-Wash. 1/4 " I. D. *

$4.99

$

In Stock, Qty 20+

0

51

Not Part of Kitt

$

$

Not available

52

MTD 15920

R.D. Banana Chute Ass'y.

$

$

Not available

53

MTD 712-0123

Hex Nut 5/16-24 Thd.*
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

54

MTD 736-0119

L.-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

55

MTD 742-0265

Upper Blade Disc.
(Superseded to 742-0286-0637)

$

$

Not available

56

MTD 742-0279

Lower Blade Disc.

Variations

MTD 742-0279-0637

Lower Blade Disc - POWDER BLACK (0637)

$

$

Not available

$

$

57

MTD 710-0888

Hex Bolt 5/16-24 x 1.00" Lg. (Grade 5)

$4.49

$

In Stock, Qty 20+

0

58

MTD 710-0152

Hex Bolt 3/8-24 x 1.00" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

59

MTD 736-0280

Fl.-Wash....39" I.D. x 1.12" O.D.
(Superseded to 736-04005)

$8.99

$

Usually ships in 3-6 days

0

60

MTD 736-0356

Bell.-Wash...39" I.D. x 1.38" O.D.
(Superseded to 936-0356)

$

$

Not available

61

MTD 738-0587

Shld. Bolt. .500" Dia. x .360 Spec.
(Superseded to 938-0587)

$

$

Not available

62

MTD 742-0266

30" Blade Tip

$

$

Not available

63

MTD 750-0604

Spacer. 505" I.D. x .750" O.D. x 1.25" Lg.

$

$

Not available

64

MTD 736-0179

Fl.-Wash500" I.D. x 1.25" O.D.

$4.99

$

In Stock, only 2 left!

0

65

MTD 714-0111

Cotter Pin 3/32" Dia. x 1.00" Lg.*

$4.99

$

In Stock, Qty 13

0

66

MTD 712-0114

Hex Slotted Nut 1/2-20 Thd.
(Superseded to 912-0114)

$

$

Not available

67

MTD 748-0300

Blade Adapter

$13.99

$

In Stock, only 4 left!

0

68

MTD 710-0289

Hex Bolt 1/4-20 x .50" Lg.*
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

69

MTD 710-0286

Truss Mach. Scr. 1/4-20 x.50" Lg.*

$4.49

$

Usually ships in 3-6 days

0

70

MTD 15921

Chute Mounting Brk't.

Variations

MTD 15921-0637

Chute Mounting Brkt. - POWDER BLACK (0637)

$

$

Not available

$

$

71

MTD 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

72

MTD 710-0776

Hex "AB"-Tap Scr. 1/4 x .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

73

MTD 723-0370

Hook Latch Ass'y. x 7.0" Lg.

$

$

Not available

74

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .50" Lg. 4

$4.49

$

Usually ships in 3-6 days

0

75

MTD 731-0721

R D Chute Extension

$91.99

$

Usually ships in 3-6 days

0

76

MTD 710-0505

Hex Bolt 7/16-14 x 1.00" Lg.*

$6.99

$

Usually ships in 3-6 days

0

77

MTD 736-0171

L.-Wash. 7/16" I.D.4

$4.49

$

In Stock, only 4 left!

0

78

MTD 712-0275

Hex Nut 7/16-14 Thd.*
(Superseded to 912-3019)

$6.99

$

In Stock, only 1 left!

0

79

MTD 710-0915

Self-Tap Scr. 5/16-18 x 1.0" Lg.

$

$

Not available

80

MTD 712-0107

Hex L.-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

81

MTD 736-0142

Fl. Wash. .281" I.D. x .50" O.D. x .063

$4.99

$

In Stock, Qty 20+

0

82

MTD 16024

Tie Strap

$

$

Not available

83

MTD 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

84

MTD 15949

Exhaust Deflector

$

$

Currently unavailable
