19491C - MTD 36" Snow Thrower Attachment (1986) 36" Parts Diagram

36" Snow Thrower Attachment

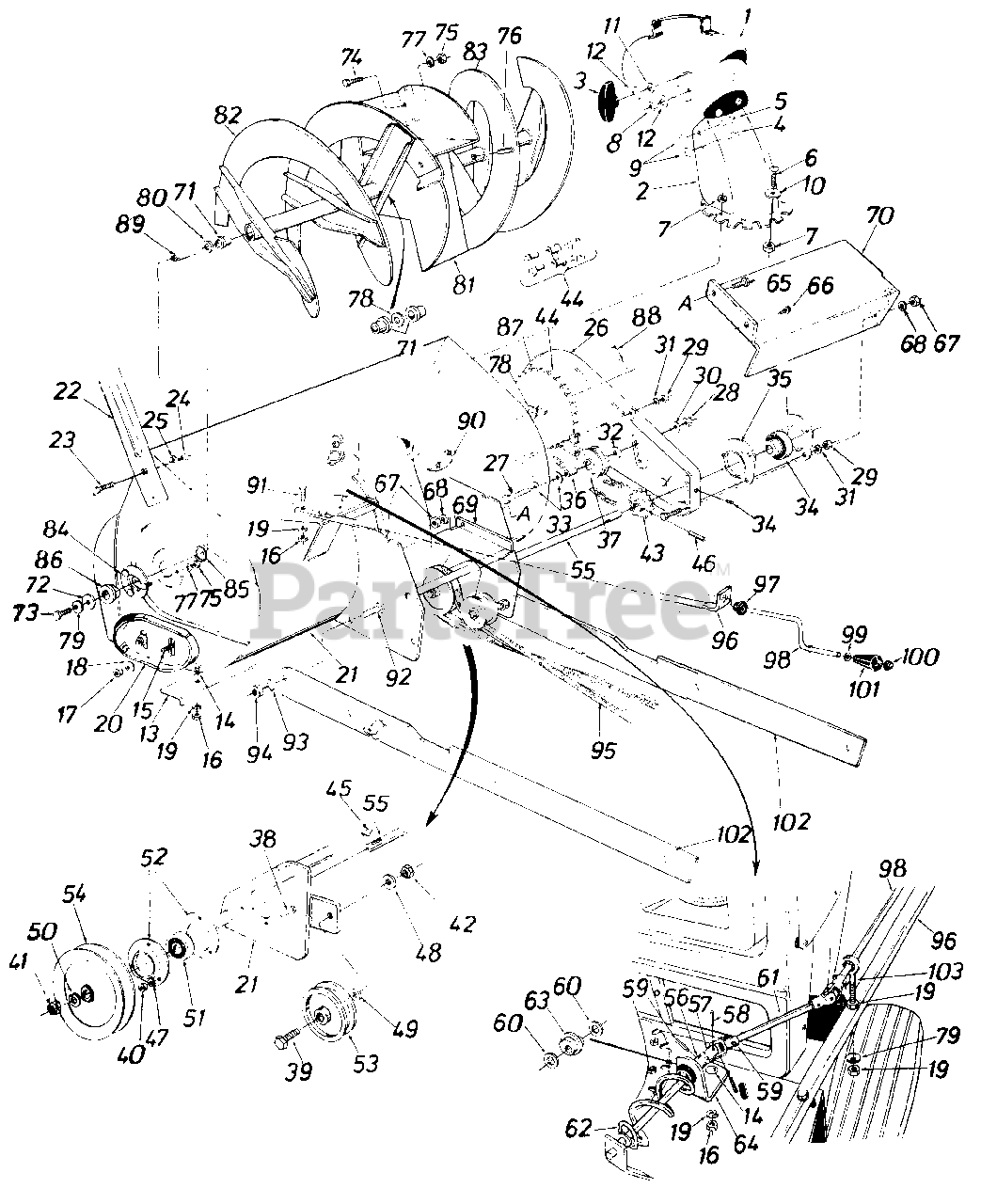

36" Parts Diagram

  • Title

1

MTD 05225

Top Chute Ass'y.

$

$

Currently unavailable

2

MTD 05954

Chute Ass'y. w/Guard

$

$

Currently unavailable

3

MTD 09966

Knob Handle Ass'y.
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

4

MTD 710-0260

Carriage Bolt 5/16-18 x .62" Lg.
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-0276

Carriage Bolt 5/16-18 x 1.0" Lg.

$3.99

$

In Stock, Qty 20+

0

6

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .50" Lg.

$4.49

$

Usually ships in 3-6 days

0

7

MTD 712-0107

Hex Cent. L.-Nut 1 /4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

8

MTD 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

9

MTD 736-0179

Fl.-Wash. .531" I.D. x 1.25" O.D.

$4.99

$

In Stock, only 2 left!

0

10

MTD 736-0211

Fl.-Wash. .285" I.D. x 1 25" O.D

$6.99

$

In Stock, only 3 left!

0

11

MTD 736-0231

Fl. Wash. .344" I.D. x I.D. x 1.125" O.D.

$4.99

$

In Stock, Qty 20+

0

12

MTD 736-0242

Bell.-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

13

MTD 05378

Shave Plate
(Superseded to 05378-0637)

Variations

MTD 05378-0637

Shave Plate, 33" Lg - POWDER BLACK (0637)

$78.99

$

Usually ships in 3-6 days

0

$78.99

$

Usually ships in 3-6 days

0

14

MTD 710-0260

Carriage Bolt 5/16-18 x .62" Lg.
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

15

MTD 710-0790

Carriage Bolt 3/8-16 x .62" Lg.
(Superseded to 710-0389)

$4.49

$

Usually ships in 3-6 days

0

16

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

17

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 16

0

18

MTD 736-0105

Bell. Wash. .400" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

19

MTD 736-0119

L.-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

20

MTD 784-5038

Slide Shoe
(Superseded to 784-5038B-0637)

$27.99

$

Usually ships in 3-6 days

0

21

MTD 784-5212

Spiral Hsg. Ass'y.-36"

$

$

Currently unavailable

22

MTD 05139

Guide Blade
(Superseded to 790-00181-0637)

$43.99

$

Usually ships in 3-6 days

0

23

MTD 710-0260

Carriage Bolt 5/16-18 x .62" Lg.
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

24

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

25

MTD 736-0119

L.-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

26

MTD 05379

Chain Guard Ass'y.

$

$

Not available

27

MTD 710-0427

Hex Bolt 3/8-16 x 2.00 Lg.
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

28

MTD 712-0130

Hex Inst.-Nut 3/8-16 Thd.

$3.99

$

In Stock, Qty 11

0

29

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

30

MTD 736-0105

Bell.-Wash. .400" I.D. x .88 O.D.

$4.49

$

In Stock, Qty 20+

0

31

MTD 736-0119

L.-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

32

MTD 736-0235

Fl.-Wash. .406" I.D. x 1.25" O.D.
(Superseded to 736-0247)

$9.49

$

In Stock, Qty 12

0

33

MTD 736-0300

Fl.-Wash. .385" I.D. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0

34

MTD 741-0310

Ball Brg. .75" I.D.

$

$

Not available

35

MTD 741-0311

Flangette
(Superseded to 941-0311)

$

$

Not available

36

MTD 750-0252

Spacer .375" I.D. x .60" O.D.
(Superseded to 950-0252)

$21.99

$

In Stock, Qty 5

0

37

MTD 756-0192

Fl.-Idler w/Flanges 2.0" O.D. Plastic

$

$

Not available

38

MTD 710-0198

Hex Sems Bolt 5/18 x .75" Lg.
(Superseded to 910-0198)

$

$

Not available

39

MTD 710-0347

Hex Bolt 3/8-16 x 1.75" Lg.

$5.49

$

In Stock, Qty 20+

0

40

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

41

MTD 712-0301

Hex Jam Nut 3/4-10 Thd.

$7.99

$

In Stock, only 1 left!

0

42

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 16

0

43

MTD 713-0188

Sprocket Ass'y. 14 Teeth

$70.99

$

Usually ships in 3-6 days

0

44

MTD 713-0369

#420 Chain x 112" Pitch 78 Links

$

$

Not available

45

MTD 714-0388

#61 Hi-Pro-Key 3/16 x 5/8" Dia.
(Superseded to 914-0388)

$7.99

$

In Stock, Qty 20+

0

46

MTD 715-0118

Spring Pin Spir. 5/16" Dia. x 1.75" Lg.

$12.99

$

In Stock, Qty 7

0

47

MTD 736-0119

L.-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

48

MTD 736-0169

L.-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

49

MTD 736-0235

Fl.-Wash. .406" I.D. x 1.25" O.D.
(Superseded to 736-0247)

$9.49

$

In Stock, Qty 12

0

50

MTD 736-0367

Spring L.-Wash. 3/4" I.D.
(Superseded to 936-0364)

$

$

Not available

51

MTD 741-0309

Self-Aligning Brg.
(Superseded to 941-0309)

$74.99

$

Usually ships in 3-6 days

0

52

MTD 741-0311

Flangette
(Superseded to 941-0311)

$

$

Not available

53

MTD 756-0417

Idler Pulley

$

$

Not available

54

MTD 756-0456

5/8 V Pulley .75" I.D. x 6.0" O.D.

$

$

Not available

55

MTD 784-5077

Drive Shaft Ass'y.

$

$

Not available

56

MTD 05066

Joint Brkt. Ass'y.

$

$

Not available

57

MTD 711-0584

Joint Block

$

$

Not available

58

MTD 715-0120

Spring Pin Spir. 3/16 Dia. x 1.0" Lg.

$10.99

$

In Stock, only 1 left!

0

59

MTD 715-0129

Spirol Pin-1/8" Dia. x .812" Lg.

$4.99

$

In Stock, only 1 left!

0

60

MTD 736-0140

Fl.-Wash. .385" I.D. x .62" O.D.

$7.49

$

In Stock, Qty 6

0

61

MTD 747-0523

Chute Crank Ext. Rod 3/8" Dia. x6.0" Lg.

$

$

Not available

62

MTD 784-5084

Chute Crank Ass'y. R.H. 6-1/4" Lg.

$

$

Not available

63

MTD 741-0475

Plastic Bushing .380 I.D.
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

64

MTD 784-5085

Chute Crank Brkt.

$

$

Not available

65

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg .
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

66

MTD 710-0599

Hex Wash. S-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

67

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

68

MTD 736-0329

L.-Wash. 1/4..I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

69

MTD 784-5214

Belt Cover

$

$

Not available

70

MTD 784-5215

Drive Shaft Cover

$

$

Not available

71

MTD 05136

Plastic Bushing

$

$

Not available

72

MTD 07386

Washer .39" I.D. x 1.75" O.D.

$

$

Not available

73

MTD 710-0371

Hex Bolt 5/16-18 x .88" Spec.
(Superseded to 710-1880)

$4.99

$

In Stock, Qty 11

0

74

MTD 710-0451

Carriage Bolt 5/16-18 x x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

75

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

76

MTD 715-0118

Spring Pin Spir. 5/16" Dia. x 1. 75" 1 Lg.

$12.99

$

In Stock, Qty 7

0

77

MTD 736-0119

L.-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

78

MTD 736-0163

Truss Wash. 1.03" I.D. x 1.62" O.D.

$4.49

$

In Stock, Qty 20+

0

79

MTD 736-0242

Bell.-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

80

MTD 736-0250

Fl.-Wash. 1.0" I.D. xl.75" O.D.

$4.49

$

In Stock, Qty 20+

0

81

MTD 784-5216

Rotor Paddle Ass'y.
(Superseded to 784-5216-0637)

Variations

MTD 784-5216-0637

PADDLE ASSY-ROTOR - POWDER BLACK (0637)

$

$

Not available

$

$

82

MTD 784-5219

36" Spiral Ass'y. L.H.

Variations

MTD 784-5219-0637

No Longer Available SPIRAL ASM - POWDER BLACK (0637)

$

$

Not available

$

$

83

MTD 784-5220

36" Spiral Ass'y. R.H.

Variations

MTD 784-5220-0637

No Longer Available SPIRAL ASM - POWDER BLACK (0637)

$

$

Not available

MTD 784-5220-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

84

MTD 05360

Bearing Hsg. Ass'y.
(Superseded to 05361)

$

$

Not available

85

MTD 716-0121

Snap R ing for 1. 50" Shaft
(Superseded to GW-9502)

$14.99

$

In Stock, only 1 left!

0

86

MTD 741-0170

Flange Brg. w/flats 1.00" I.D.
(Superseded to 941-0170)

$19.99

$

In Stock, Qty 6

0

87

MTD 713-0177

Sprocket Hub Ass'y. 40 Teeth

$

$

Not available

88

MTD 715-0118

Spring Pin Spir 5/16 Dia. x 1.75" Lg.

$12.99

$

In Stock, Qty 7

0

89

MTD 738-0229

Spiral Axle

$

$

Not available

90

MTD 05783

Chute Flange Keeper Ass'y.

$

$

Not available

91

MTD 710-0442

Hex Bolt 5/16-18 x 1.5" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

92

MTD 710-0474

Hex Bolt 1/2-13 x 1.25" Lg.

$

$

Not available

93

MTD 736-0921

L.-Wash. 112" I.D.

$4.49

$

In Stock, Qty 6

0

94

MTD 712-0206

Hex Nut 1/2"-13 Thd.

$4.49

$

In Stock, Qty 20+

0

95

MTD 754-0294

"V"-Belt 1/2" "A" x 89.0" Lg.
(Superseded to 954-0294)

$68.99

$

Usually ships in 3-6 days

0

96

MTD 749-0675

Chute Crank Support Tubing

Variations

MTD 749-0675-0637

No Longer Available TUBING-SUP - POWDER BLACK (0637)

$

$

Not available

$

$

97

MTD 735-0218

Chute Crank Grommet
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

98

MTD 747-0522

Chute Crank .375" Dia. x 33.0" Lg.

$

$

Not available

99

MTD 736-0104

Fl.-Wash..35" I.D. x .62" O.D.
(Superseded to 936-0104)

$4.99

$

Usually ships in 3-6 days

0

100

MTD 726-0100

Push Nut 3/8" Rod

$4.49

$

In Stock, Qty 18

0

101

MTD 720-0171

Knob Black 3/8" Dia. Hole
(Superseded to 920-0171)

$15.99

$

In Stock, only 1 left!

0

102

MTD 05836

Linkage Arm

$

$

Not available

103

MTD 747-0481

Eye Bolt 5/16-18 x 3.0" Lg.

$

$

Not available
