19486C - MTD 36" Snow Thrower Attachment (1986) 36" Parts Diagram

36" Snow Thrower Attachment

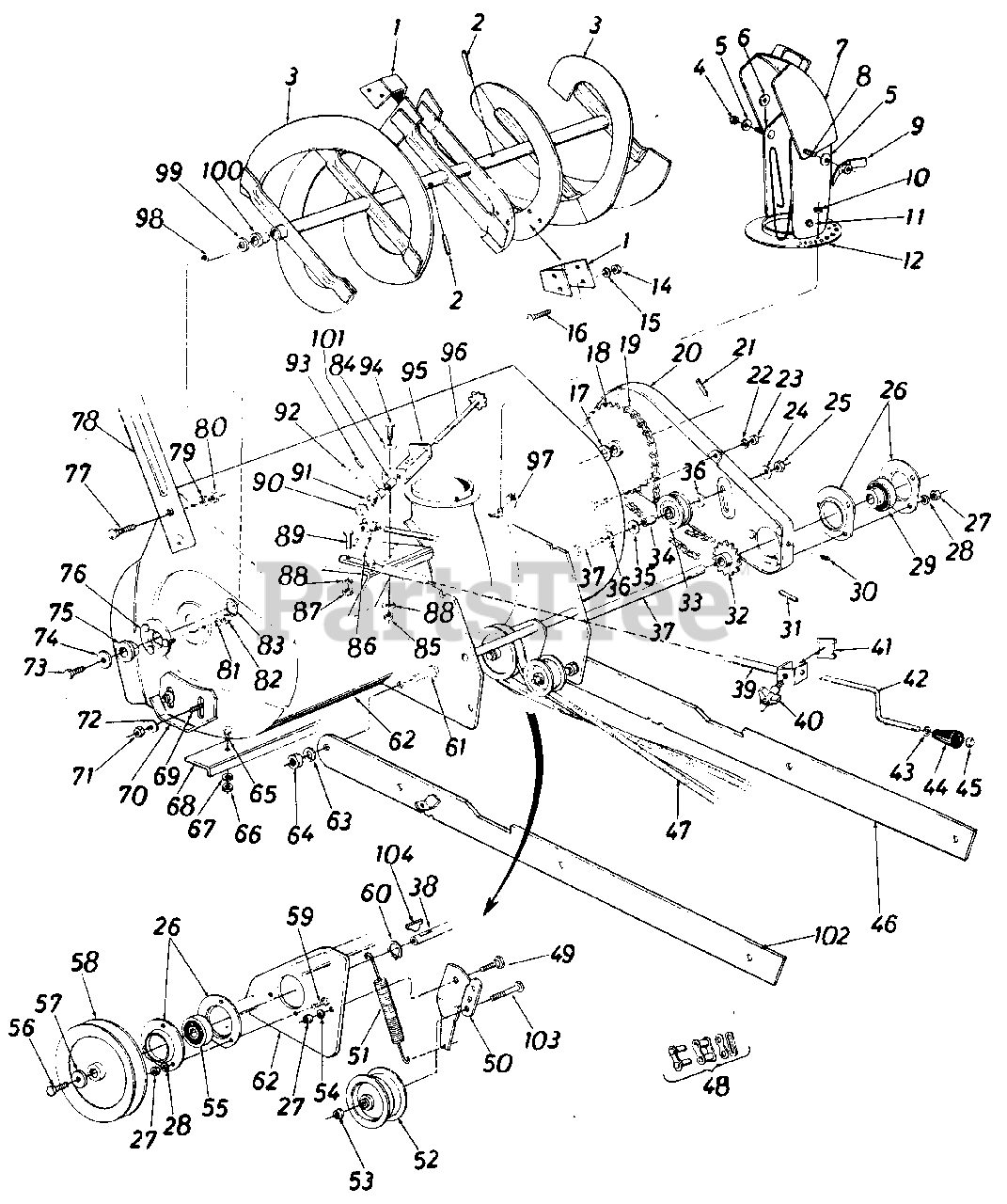

36" Parts Diagram

  • Title

1

MTD 05023

Spiral Plate

$

$

Currently unavailable

2

MTD 715-0118

Spring Pin Spir. 5/16 x 1.75" Lg.

$12.99

$

In Stock, Qty 7

0

3

MTD 05375

Spiral Ass'y.

$

$

Currently unavailable

4

MTD 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

5

MTD 736-0105

Bell. Wash.

$4.49

$

In Stock, Qty 20+

0

6

MTD 736-0179

Fl-Wash.

$4.99

$

In Stock, only 2 left!

0

7

MTD 05225

Top Chute Ass'y.

$

$

Currently unavailable

8

MTD 710-0260

Car. Bolt 5/16-18 x .62" Lg.
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

9

MTD 05140

Chute Wing Ass'y.

$

$

Currently unavailable

10

MTD 712-0107

Hex Cent. L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

11

MTD 726-0111

Push Cap.188" Dia. Rod

$

$

Not available

12

MTD 05766

Chute Ass'y.

$

$

Currently unavailable

14

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

15

MTD 736-0119

L-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

16

MTD 710-0260

Car. Bolt5/16-18x.62" Lg.
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

17

MTD 736-0163

Fl-Wash.

$4.49

$

In Stock, Qty 20+

0

18

MTD 713-0177

Sprocket Hub Ass'y 40 Teeth

$

$

Not available

19

MTD 713-0189

#420Chainx 1/2" Pitch .77 Links

$

$

Not available

20

MTD 05379

Chain Guard Ass'y.

$

$

Not available

21

MTD 715-0118

Spring Pin Spir. 5/16

$12.99

$

In Stock, Qty 7

0

22

MTD 736-0119

L-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

23

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

24

MTD 736-0105

Bell. Wash.

$4.49

$

In Stock, Qty 20+

0

25

MTD 712-0130

Hex Ins. L-Nut 3/8-16 Thd.

$3.99

$

In Stock, Qty 13

0

26

MTD 05244

Bearing Housing
(Superseded to 05244B)

$23.99

$

In Stock, only 2 left!

0

27

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

28

MTD 736-0119

L-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

29

MTD 741-0162

Self Aligning Brg. w/Set Scr.

$

$

Not available

30

Comes with Ref. No. 29

$

$

Not available

31

MTD 715-0118

Spring Pin Spir. 5/16x 1.75

$12.99

$

In Stock, Qty 7

0

32

MTD 713-0188

14 Teeth Sprocket Ass'y.

$70.99

$

Usually ships in 3-6 days

0

33

MTD 756-0192

1.875" Dia. Flat Idler

$

$

Not available

34

MTD 750-0252

Idler Spacer
(Superseded to 950-0252)

$21.99

$

In Stock, Qty 5

0

35

MTD 736-0235

Fl-Wash.
(Superseded to 736-0247)

$9.49

$

In Stock, Qty 16

0

36

MTD 736-0300

Fl-Wash.

$4.49

$

In Stock, Qty 20+

0

37

MTD 710-0427

Hex Scr. 3/8-16x 2.00" Lg.
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 7

0

38

MTD 738-0244

Drive Shaft

$

$

Not available

39

MTD 05922

Crank Support Tubing Ass'y.

$

$

Currently unavailable

40

MTD 720-0170

Hand Knob 5/16-18 Thd.

$11.99

$

In Stock, only 2 left!

0

41

MTD 05403

Chute Crank Brkt.

$

$

Currently unavailable

42

MTD 05120

Chute Crank

$

$

Currently unavailable

43

MTD 736-0117

Fl-Wash.
(Superseded to 936-0117)

$7.49

$

In Stock, only 1 left!

0

44

MTD 720-0171

Knob-Black 3/8" Dia. Hole
(Superseded to 920-0171)

$15.99

$

In Stock, only 1 left!

0

45

MTD 726-0100

Push Nut 3/8" Rod

$4.49

$

In Stock, only 3 left!

0

46

MTD 05837

Linkage Arm Ass'y.

$

$

Currently unavailable

47

MTD 754-0236

"V"-Belt 1/2" x 85" Lg. (Kevlar)
(Superseded to 954-0236)

$

$

Not available

48

MTD 713-0154

Master Link for #420 Chain
(Superseded to 913-0154)

$

$

Not available

49

MTD 738-0140

Shoulder Scr.

$5.99

$

In Stock, Qty 15

0

50

MTD 05724

Idler Brkt. Ass'y.

$

$

Currently unavailable

51

MTD 732-0383

Extension Spring

$

$

Currently unavailable

52

MTD 756-0217

Fl. Idlerwith Flange
(Superseded to 956-0217)

$22.99

$

In Stock, only 1 left!

0

53

MTD 712-0130

Hex Ins. Jam Nut 3/8-16 Thd.

$3.99

$

In Stock, Qty 13

0

54

MTD 736-0119

L-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

55

MTD 741-0174

Self Aligning Brg.
(Superseded to 941-0174)

$125.99

$

Usually ships in 3-6 days

0

56

MTD 710-0538

Hex Scr. 5/16-18 x .62" Lg.

$4.49

$

In Stock, Qty 9

0

57

MTD 736-0231

Fl-Wash.

$4.99

$

In Stock, Qty 11

0

58

MTD 756-0215

5.50 O.D. x 5/8 Pulley

$

$

Currently unavailable

59

MTD 710-0198

Hex Sems Scr. 5/16-18 x .75"
(Superseded to 910-0198)

$

$

Not available

60

MTD 716-0119

Snap Ring for.75 Dia. Shaft
(Superseded to 716-3001)

$4.99

$

In Stock, only 1 left!

0

61

MTD 710-0474

HexScr. 1/2-13x 1.25" Lg.

$

$

Not available

62

MTD 05432

Spiral Housing Ass'y.

$

$

Currently unavailable

63

MTD 736-0921

L-Wash. 1/2" Scr.

$4.49

$

In Stock, Qty 5

0

64

MTD 712-0206

Hex Nut 1/2-13 Thd.

$4.49

$

In Stock, Qty 20+

0

65

MTD 710-0260

Car. Bolt 5/16-18 x .62" Lg.
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

66

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

67

MTD 736-0119

L-Wash. 5/16'l Scr.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

68

MTD 05378

Shave Plate
(Superseded to 05378-0637)

Variations

MTD 05378-0637

Shave Plate, 33" Lg - POWDER BLACK (0637)

$78.99

$

Usually ships in 3-6 days

0

$78.99

$

Usually ships in 3-6 days

0

69

MTD 710-0389

Car. Bolt 3/8-16 x .75" Lg.

$4.49

$

In Stock, Qty 10

0

70

MTD 05002

Slide Shoe
(Superseded to 05002-0637)

Variations

MTD 05002-0637

SLIDE SHOE - POWDER BLACK (0637)

$

$

Not available

$

$

71

MTD 712-0798

Hex Nut 3/8-16

$4.49

$

In Stock, only 2 left!

0

72

MTD 736-0105

Bell. Wash.

$4.49

$

In Stock, Qty 20+

0

73

MTD 710-0538

Hex Scr. 5/16-18x.62" Lg.

$4.49

$

In Stock, Qty 9

0

74

MTD 736-0227

Fl-Wash.

$6.49

$

In Stock, Qty 13

0

75

MTD 741-0170

Flange Brg. with Flats
(Superseded to 941-0170)

$19.99

$

In Stock, only 4 left!

0

76

MTD 05360

Brg. Housing Ass'y.
(Superseded to 05361)

$

$

Not available

77

MTD 710-0260

Car. Solt 5/16-18 x .62" Lg.
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

78

MTD 05139

Guide Blade
(Superseded to 790-00181-0637)

$43.99

$

Usually ships in 3-6 days

0

79

MTD 736-0119

L-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

80

MTD 712-0267

Hex Nut 5/16-18 rld
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

81

MTD 736-0119

L-Wash . 5/16-18 Scr.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

82

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

83

MTD 716-0121

Snap Ring for 1.50" Dia. Shaft
(Superseded to GW-9502)

$14.99

$

In Stock, only 1 left!

0

84

MTD 736-0242

Bell. Wash.

$4.49

$

In Stock, Qty 20+

0

85

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

86

MTD 714-0111

Cotter Pin 3/32 x 1.00" Lg.

$4.99

$

In Stock, Qty 13

0

87

MTD 712-0267

Hex Nut 5/16-18 Thd
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

88

MTD 736-0119

L-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

89

MTD 710-0442

Hex Scr. 5/16-18 x 1.50" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

90

MTD 711-0584

Joint Block

$

$

Not available

91

MTD 05066

Joint Brkt. Ass'y.

$

$

Not available

92

MTD 715-0139

Spring Pin Roll 3/16" x .81" Lg.
(Superseded to 915-0247)

$

$

Not available

93

MTD 715-0103

Spring Pin Roll 1/8 x .75" Lg. *

$

$

Not available

94

MTD 710-0118

Hex Scr. 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

95

MTD 05402

Chute Brkt.

$

$

Currently unavailable

96

MTD 05118

Sprocket Shaft Ass'y.

$

$

Not available

97

MTD 05031

Chute Flange Keeper Ass'y.

$

$

Not available

98

MTD 738-0229

Spiral Axle

$

$

Not available

99

MTD 736-0250

Fl-Wash.

$4.49

$

In Stock, only 2 left!

0

100

MTD 05136

Plastic Bushing

$

$

Not available

101

MTD 748-0193

Spacer .380 I.D. x .630 O.D. x .565
(Superseded to 948-0193)

$

$

Not available

102

MTD 05838

Li n kage Arm Ass'y.-R.H.

$

$

Currently unavailable

103

MTD 710-0347

Hex Bolt 3/8-16 x 1.75" Lg.

$5.49

$

In Stock, Qty 20+

0

104

MTD 714-0388

#61 Hi-Pro Key
(Superseded to 914-0388)

$7.99

$

In Stock, Qty 5

0
