19477 - Toro Guardian Walk-Behind Mower (SN: 007000001 - 007999999) (1977) ENGINE ASSEMBLY Parts Diagram

Guardian Walk-Behind Mower

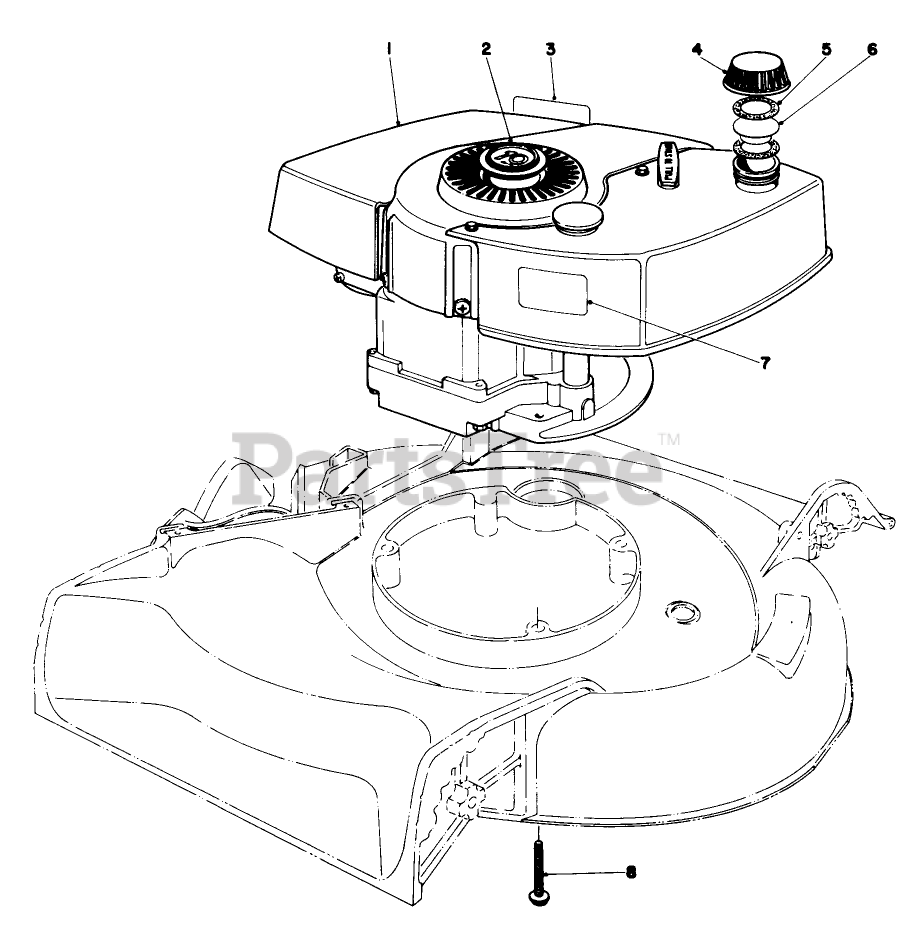

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro 221-538

Engine

$

$

Currently unavailable

2

Toro 21-4870

PLUG BUTTON

$

$

Not available

3

Toro 20-2710

Decal Maintenance

$

$

Not available

4

Toro 27-7870

Gas Cap (Incl. Ref. #5 & 6)
(Superseded to 42-0682)

$

$

Not available

5

Toro 2210-144

GASKET

$9.99

$

Usually ships in 3-6 days

0

6

Toro 2210-143

GAS CAP BAFFLE

$

$

Not available

7

Toro 28-5410

Decal Engine

$

$

Currently unavailable

8

Toro 11-0580

3/8-16 X 2-3/4 CAPSCR

$16.99

$

Usually ships in 3-6 days

0
