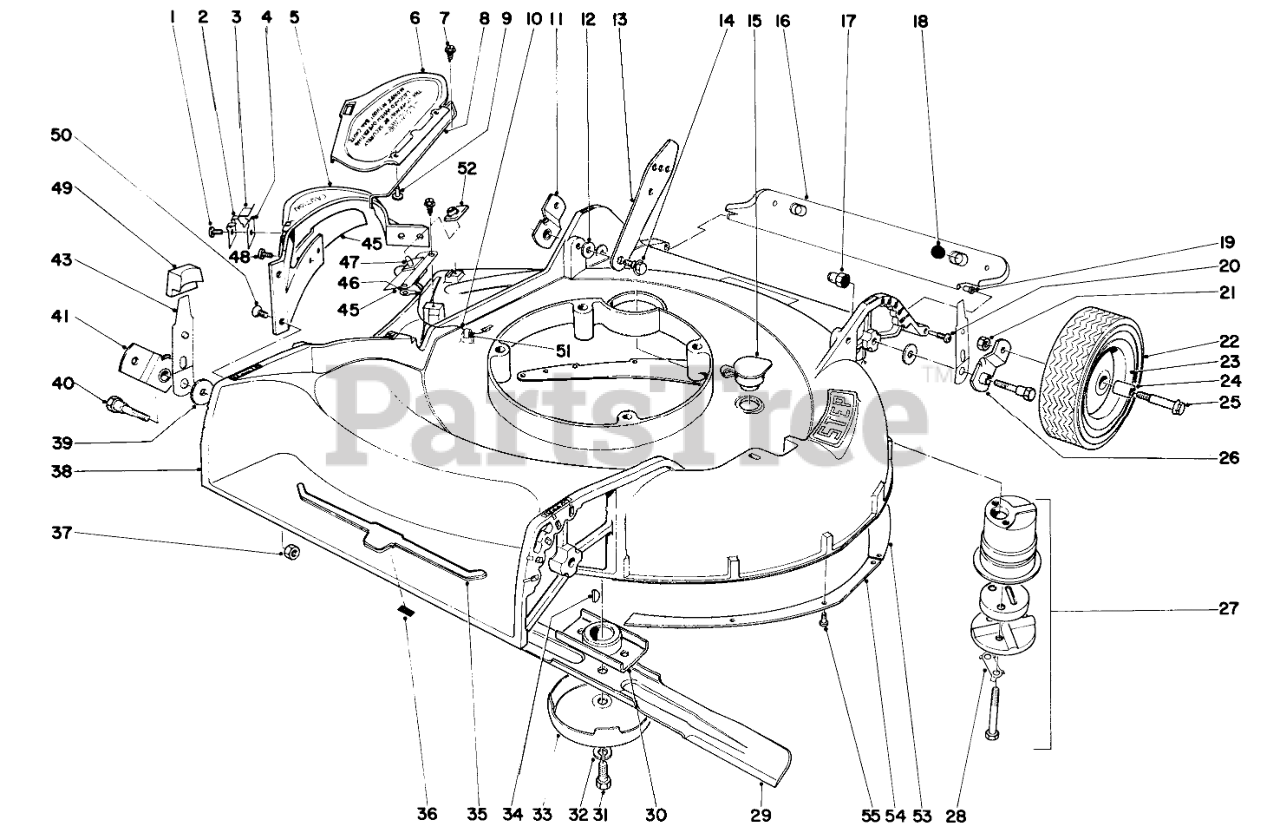

19472 - Toro Guardian Walk-Behind Mower (SN: 001000001 - 001999999) (1971) HOUSING ASSEMBLY MODEL NO. 19472 Parts Diagram

Guardian Walk-Behind Mower

HOUSING ASSEMBLY MODEL NO. 19472 Parts Diagram

  • Title

1

Toro 32104-90

Screw

$

$

Currently unavailable

2

Toro 8-5140

Lower Clip

$

$

Currently unavailable

3

Toro 8-5110

Upper Clip

$

$

Currently unavailable

4

Toro 8-5130

Wear Plate

$

$

Currently unavailable

5

Toro 8-1900

Deflector

$

$

Currently unavailable

6

Toro 8-5760

Deflector (Incl. Ref #8 & #9)

$

$

Currently unavailable

7

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

8

Toro 8-5250

Hinge Pin

$

$

Currently unavailable

9

Toro 3295-22

Rivet

$

$

Currently unavailable

10

Toro 8-5120

Lead Wire

$

$

Currently unavailable

11

Toro 8-4260

Pivot Arm
(Superseded to 98-1527)

$

$

Not available

12

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 16

0

13

Toro 8-6910

Handle Latch
(Superseded to 43-1550)

$

$

Not available

14

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

15

Toro 6-4500

WASHOUT PLUG

$

$

Not available

16

Toro 8-6060

Safety Shield (Incl. #18& #19)
(Superseded to 28-3780)

$

$

Not available

17

Toro 3-6482

Nut
(Superseded to 12-2080)

$25.99

$

Usually ships in 3-6 days

0

18

Toro 5-6450

SKID BUTTON

$

$

Not available

19

Toro 8-6080

SAFTEY SHIELD BUSHING

$

$

Not available

20

Toro 8-6160

SAFTEY SHIELD SCREW

$

$

Not available

21

Toro 32146-12

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

22

Toro 4-2600

8 TIRE

$

$

Not available

23

Toro 3-2563

Wheel (IncI. Ref. #24)

$0.99

$

In Stock, Qty 20+

0

24

Toro 3-2664

Bushing

$

$

Not available

25

Toro 3-2652

Bolt

$

$

Not available

26

Toro 8-4280

Pivot Arm
(Superseded to 98-1511)

$

$

Not available

27

Toro 2-9329

Muffler
(Superseded to 5-4769)

$62.99

$

Usually ships in 3-6 days

0

28

Toro 3-5094

CLIP - LOCKING

$11.99

$

Usually ships in 3-6 days

0

29

Toro 8-5230

Blade
(Superseded to 8-5230-03)

$38.99

$

Usually ships in 3-6 days

0

30

Toro 8-5380

BLADE RETAINER WA

$

$

Not available

31

Toro 3-5246

SPECIAL SCREW

$

$

Not available

32

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

33

Toro 8-4240

AntiScalp Cup
(Superseded to 80-2770)

$17.99

$

Usually ships in 3-6 days

0

34

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, only 4 left!

0

35

Toro 8-5460

Emblem, Bullshead

$

$

Currently unavailable

36

Toro 3290-299

CLIP

$

$

Not available

37

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

38

Toro 5-2869

Housing (Incl.Ref. #53- #55)

$

$

Currently unavailable

39

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

40

Toro 3-0655

5/16-18 PIVOT SCREW

$15.99

$

In Stock, only 1 left!

0

41

Toro 8-4280

Pivot Arm
(Superseded to 98-1511)

$

$

Not available

43

Toro 8-3840

Spring Arm
(Superseded to 23-0400)

$

$

Not available

44

Toro 8-5650

Mounting Plate

$

$

Currently unavailable

45

Toro 10-8960

DefIector Bar

$

$

Currently unavailable

46

Toro 8-5440

Ground Wire

$

$

Currently unavailable

47

Toro 8-5510

Switch

$

$

Currently unavailable

48

Toro 32104-90

Screw

$

$

Currently unavailable

49

Toro 84220

Knob Arm

$

$

Currently unavailable

50

Toro 11-3010

Screw

$

$

Not available

51

Toro 2412-9

Clip

$

$

Currently unavailable

52

Toro 11-3070

Boot Switch

$

$

Not available

53

Toro 8-5550

Main Skirt

$

$

Currently unavailable

54

Toro 8-5570

Secondary Skirt

$

$

Currently unavailable

55

Toro 32104-90

Screw

$

$

Currently unavailable

Toro 8-7340

Loose Parts, Model #19472

$

$

Currently unavailable
