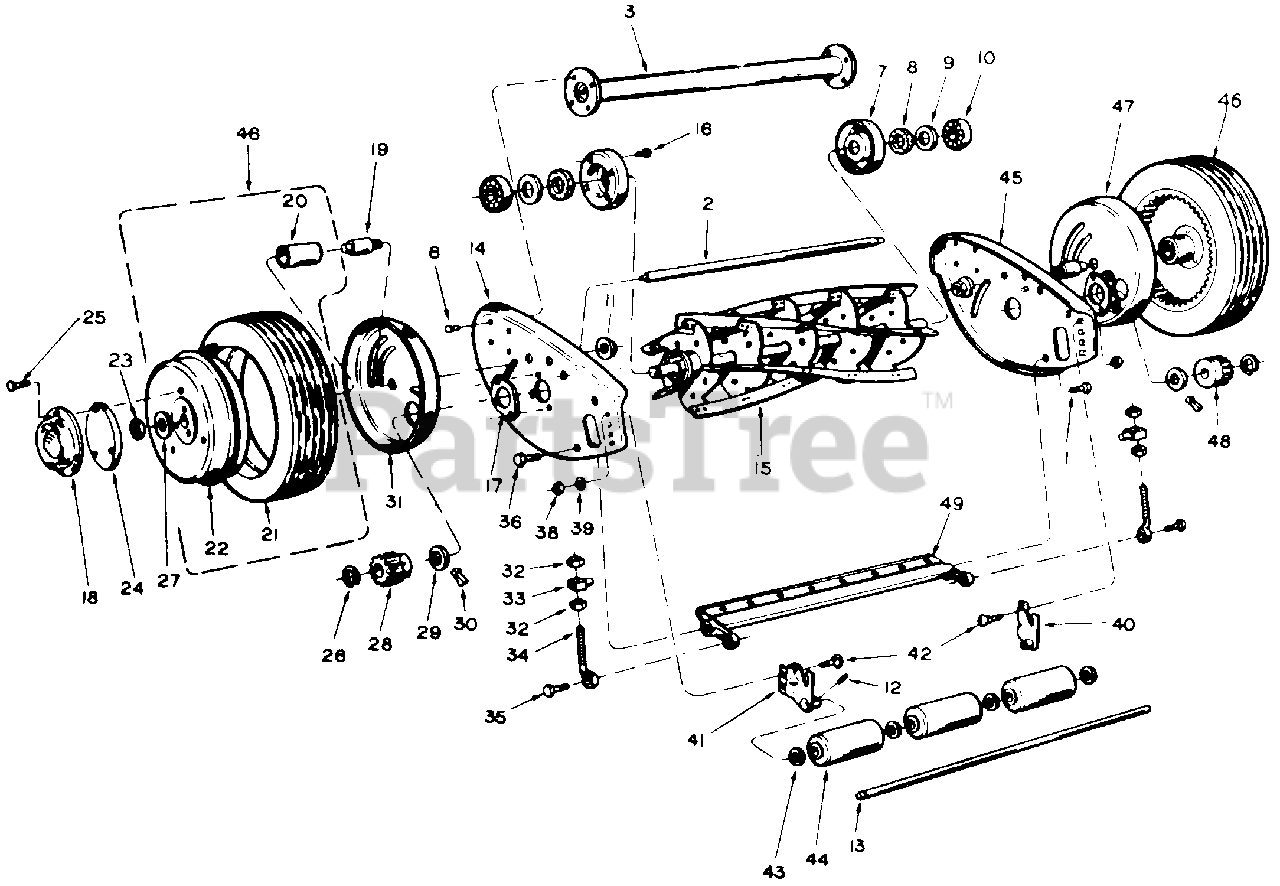

19467S - MTD Reel Mower Attachment (1985) Gang Parts Diagram

Reel Mower Attachment

Gang Parts Diagram

  • Title

1

MTD 1509-086

Screw Front L.H. Thd.

$

$

Currently unavailable

2

MTD 2624-110

Spacer End Plate

$

$

Currently unavailable

3

MTD 1112-015

Spacer Tube Ass'y.

$

$

Currently unavailable

6

MTD 1530-006

Rivet 3/16 x 3/8 Rd. Hd.*

$

$

Currently unavailable

7

MTD 1629-028

Retainer

$

$

Currently unavailable

8

MTD 0104-000

Felt Washer

$

$

Currently unavailable

9

MTD 0106-000

Felt Retainer

$

$

Currently unavailable

10

MTD 0003-000

Beari ng

$

$

Not available

11

MTD 1137-003

Nut-Special

$

$

Not available

12

MTD 1548-007

Roll Pin

$

$

Currently unavailable

13

MTD 1632-084

Roller Shaft

$

$

Not available

14

MTD 1129-180

End Plate Trunnions-L.H.

$

$

Currently unavailable

15

MTD 3135-036

Reel Ass'y.-21"

$

$

Currently unavailable

16

MTD 1530-020

Rivet 3/16 x 13/32 Rd. Hd.*
(Superseded to 728-0131)

$3.49

$

Usually ships in 3-6 days

0

17

MTD 1629-009

Bearing Retainer

$

$

Currently unavailable

18

MTD 2674-027

Hub Cap

$

$

Currently unavailable

19

MTD 1631-051

Axle

$

$

Not available

20

MTD 1652-052

Bearing

$

$

Not available

21

MTD 2619-034

Tire

$

$

Not available

22

MTD 1110-030

DriveWheel-LessTire

$

$

Not available

23

MTD 1650-001

Retaining Ring
(Superseded to 916-0104)

$3.99

$

In Stock, Qty 20+

0

24

MTD 2718-003

Wheel Weight

$

$

Not available

25

MTD 1511-029

Scr. #10-32 x 1 3/8 Thd. Cutting

$

$

Currently unavailable

26

MTD 1650-021

Retaining Ring*
(Superseded to AF-1650-21)

$6.49

$

Usually ships in 3-6 days

0

27

MTD 1540-118

Washer

$

$

Not available

28

MTD 0428-000

Pinion Gear-L.H.

$

$

Not available

29

MTD 0109-000

Felt Washer

$

$

Currently unavailable

30

MTD 0323-000

Pawl

$

$

Not available

31

MTD 1118-014

Gear Housing-L.H.

$

$

Currently unavailable

32

MTD 0052-000

Hex Nut 3/8-24 Semi Fin*
(Superseded to 712-0241)

$4.49

$

In Stock, Qty 13

0

33

MTD 0011-000

Trunnion

$

$

Not available

34

MTD 0451-000

Cutter Bar Adjusting Bolt

$

$

Not available

35

MTD 0453-000

Screw-Rear

$

$

Not available

36

MTD 0455-000

Screw-Front R.H. Thd.

$

$

Not available

38

MTD 0070-000

Nut 5/8-18*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

39

MTD 736-0119

L. Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

40

MTD 2132-045

Roller Brk't.-R.H.

$

$

Not available

41

MTD 2132-044

Roller Brk't.-L.H.

$

$

Not available

42

MTD 2003-000

Carr. Bolt 5/16-18 x 1*

$

$

Not available

43

MTD 1540-059

Washer 1/2 x 1 1/16*

$

$

Not available

44

MTD 1658-012

Roller

$

$

Not available

45

MTD 1129-181

End Plate with Trunnions-R.H.

$

$

Currently unavailable

46

MTD 1108-095

Drive Wheel Ass'y. w/tire

$

$

Not available

47

MTD 1118-013

Gear Housing-R.H.

$

$

Currently unavailable

48

MTD 0425-000

Pinion Gear-R.H.

$

$

Not available

49

MTD 3134-024

Cutter Bar Ass'y.

$

$

Currently unavailable
