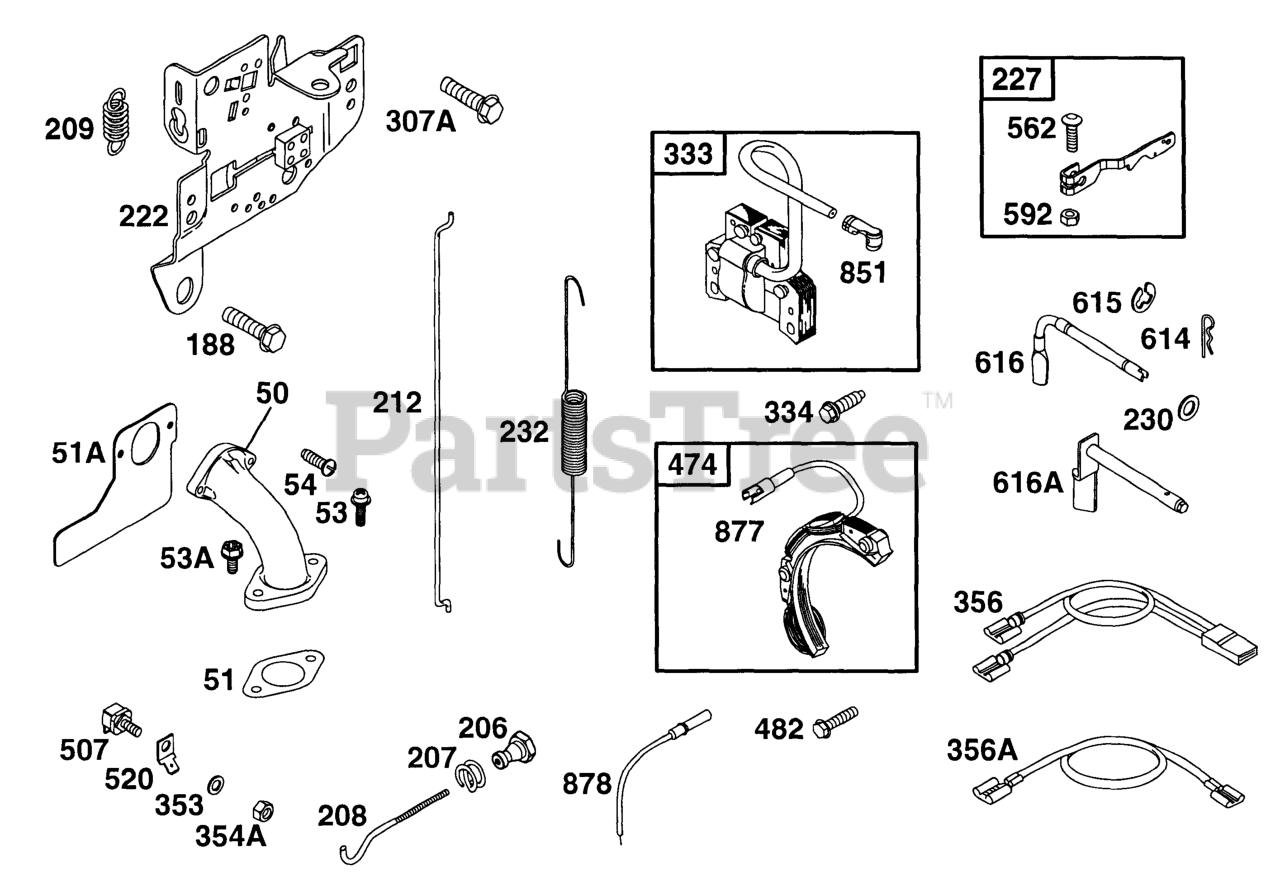

194412-1111-XX - Briggs & Stratton Horizontal Engine Controls, Elect Parts Diagram

Horizontal Engine

Controls, Elect Parts Diagram

  • Title

50

Briggs & Stratton 212488

Manifold-Intake

$

$

Not available

51A

Briggs & Stratton 27828

Gasket-Spacer To Cylinder Mounting
(Superseded to 27828S)

Note: Included in Gasket Set-Part No. 299577. Included in Valve Overhaul Gasket Set-Part No. 498533

$4.99

$

In Stock, Qty 6

0

51

Briggs & Stratton 270684

Gasket-Intake Elbow

Note: Included in Gasket Set-Part No. 299577. Included in Carburetor Kit-Part No. 398235

$4.99

$

In Stock, Qty 8

0

53A

Briggs & Stratton 94616

Screw, Hex Head Tor (T/30)
(Superseded to 690953)

$5.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 93956

Screw-Shoulder
(Superseded to 94839)

$4.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 93208

Screw-Sem

$8.49

$

In Stock, only 1 left!

0

188

Briggs & Stratton 94627

Screw, Sem Hex Head
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

206

Briggs & Stratton 231266

Nut, Hex (#6-32 Thread)
(Superseded to 691771)

$37.99

$

Usually ships in 2-12 days

0

207

Briggs & Stratton 26855

Spring-Governor Control Rod
(Superseded to 692522)

$

$

Not available

208

Briggs & Stratton 261959

Rod-Governor Control

$4.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 260695

Spring-Governor
(Superseded to 796260)

$4.99

$

In Stock, Qty 15

0

212

Briggs & Stratton 260872

Link-Throttle

$

$

Not available

222

Briggs & Stratton 399151

Bracket-Control (Manual Choke)

$

$

Not available

227

Briggs & Stratton 391965

Governor Control Le (For 1/4" Dia. Crank)
(Superseded to 692356)

$1.99

$

Usually ships in 2-12 days

0

230

Briggs & Stratton 94927

Washer, Plain
(Superseded to 691691)

$3.99

$

In Stock, Qty 5

0

232

Briggs & Stratton 260478

Spring, Link Used On Mechanical Governor
(Superseded to 690545)

$

$

Not available

307A

Briggs & Stratton 93343

Screw, Tapping Hex
(Superseded to 690297)

$3.49

$

In Stock, Qty 12

0

333

Briggs & Stratton 398811

Armature-Mag (Magnetron Ignition)

$63.99

$

In Stock, Qty 19

0

334

Briggs & Stratton 94731

Screw, Hex Wash Hea
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

353

Briggs & Stratton 92791

Lockwasher, Interna
(Superseded to 691077)

$3.49

$

In Stock, only 2 left!

0

354A

Briggs & Stratton 90576

Nut, Hex (8-32)
(Superseded to 691612)

$3.49

$

In Stock, only 1 left!

0

356A

Briggs & Stratton 398838

Wire-Stop

$7.99

$

Usually ships in 2-12 days

0

356

Briggs & Stratton 491391

Wire-Stop

$6.49

$

Usually ships in 2-12 days

0

474

Briggs & Stratton 391529

Stator, Alternator (Dc Only)
(Superseded to 592828)

$124.99

$

Usually ships in 2-12 days

0

482

Briggs & Stratton 93621

Screw, Tapping Hex
(Superseded to 691183)

$3.49

$

Usually ships in 2-12 days

0

507

Briggs & Stratton 398525

Terminal-Insulated
(Superseded to 691972)

$8.49

$

In Stock, only 3 left!

0

520

Briggs & Stratton 93722

Terminal, Spade
(Superseded to 691084)

$6.49

$

In Stock, only 2 left!

0

562

Briggs & Stratton 92613

Bolt-Gov Lever

$

$

Not available

592

Briggs & Stratton 231082

Nut (10-24)
(Superseded to 691251)

$3.49

$

In Stock, Qty 9

0

592

Briggs & Stratton 92278

Nut, Hex (1/4-20)
(Superseded to 691029)

$5.49

$

Usually ships in 2-12 days

0

614

Briggs & Stratton 93306

Pin, Cotter
(Superseded to 691620)

$4.49

$

In Stock, only 2 left!

0

615

Briggs & Stratton 93307

Retainer-E Ring

$5.99

$

In Stock, only 3 left!

0

616A

Briggs & Stratton 495241

Crank-Governor
(Superseded to 692015)

$16.99

$

In Stock, only 2 left!

0

616

Briggs & Stratton 231057

Crank, Governor (1/4" Dia.)
(Superseded to 692015)

$16.99

$

In Stock, only 2 left!

0

851

Briggs & Stratton 493880

Terminal-Cable
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

877

Briggs & Stratton 393814

Alternator Connecto (Dc Only)

$18.99

$

In Stock, only 2 left!

0

878

Briggs & Stratton 393422

Socket/Wire Assy (Dc Only)
(Superseded to 692306)

$17.99

$

Usually ships in 2-12 days

0
