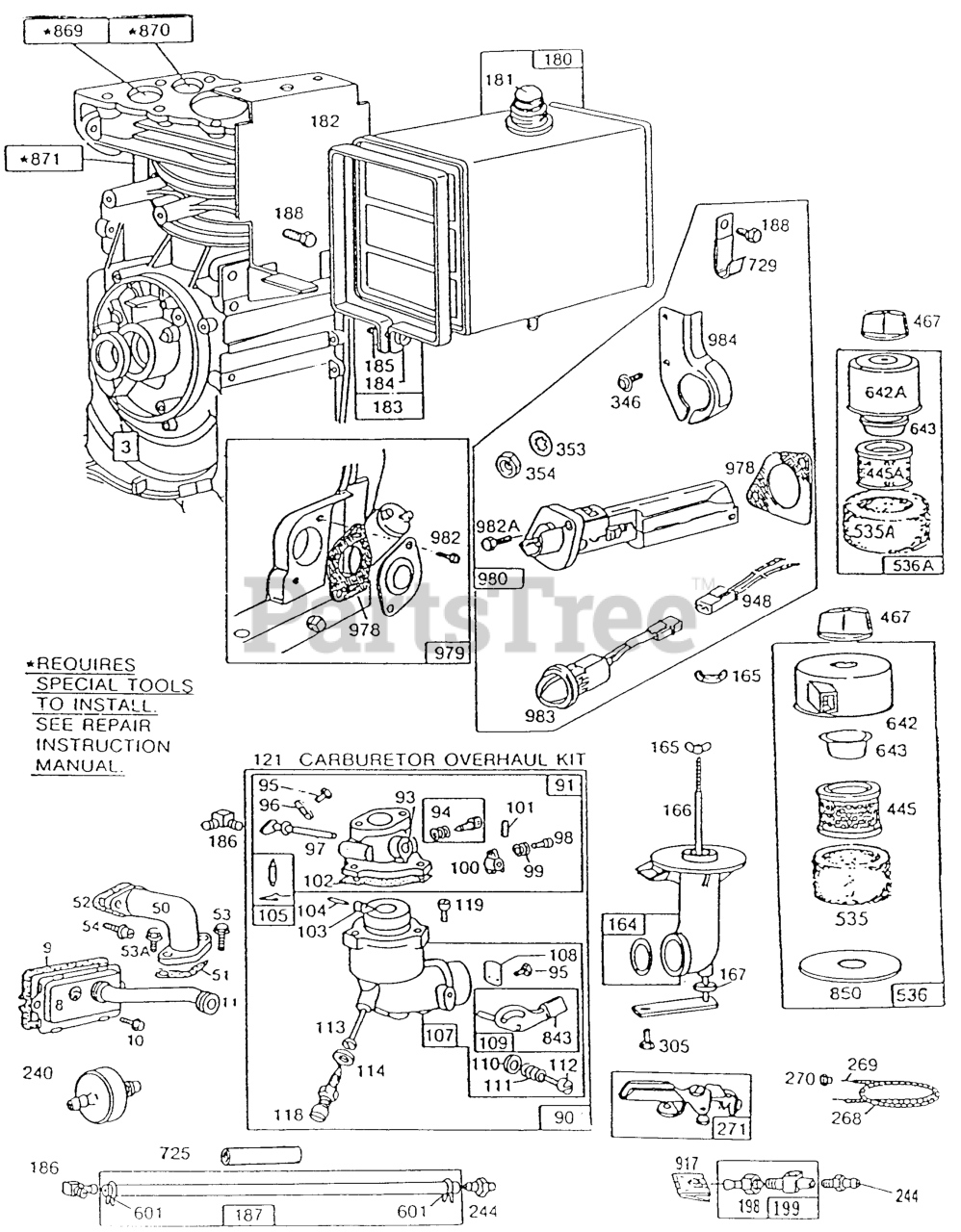

194412-0123-XX - Briggs & Stratton Horizontal Engine Carb,Primer,Fuel Tank,A/C Parts Diagram

Horizontal Engine

Carb,Primer,Fuel Tank,A/C Parts Diagram

  • Title

3

Briggs & Stratton 294606

Seal, Oil
(Superseded to 294606S)

Note: Included in Gasket Set-Part No. 299577

$9.49

$

In Stock, Qty 11

0

8

Briggs & Stratton 390321

Breather-Assembly
(Superseded to 495724)

$122.99

$

In Stock, only 2 left!

0

9

Briggs & Stratton 27803

Gasket-Valve Cover
(Superseded to 27803S)

Note: Included in Gasket Set-Part No. 299577

$4.49

$

In Stock, Qty 20+

0

10

Briggs & Stratton 94621

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 280267

Tube-Breather

Note: (Used with Nylon Air Cleaner Pipe)

$12.99

$

In Stock, only 1 left!

0

50

Briggs & Stratton 212488

Manifold-Intake

$

$

Not available

51

Briggs & Stratton 270684

Gasket-Intake Elbow

Note: Included in Gasket Set-Part No. 299577

$4.99

$

In Stock, Qty 9

0

52

Briggs & Stratton 27828

Gasket-Spacer To Cylinder Mounting
(Superseded to 27828S)

Note: Included in Gasket Set-Part No. 299577

$4.99

$

In Stock, Qty 6

0

53A

Briggs & Stratton 93357

Screw-Sem, Phillips Hex. Hd.
(Superseded to 690953)

$5.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 93956

Screw-Shoulder
(Superseded to 94839)

$4.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 93208

Screw-Sem

$8.49

$

In Stock, only 3 left!

0

90

Briggs & Stratton 390323

Carburetor (Manual Choke)

$

$

Not available

91

Briggs & Stratton 399443

Body Assy-Upper Upper

$128.99

$

Usually ships in 2-12 days

0

93

Briggs & Stratton 23108

Bushing-Throttle Shaft
(Superseded to 691769)

$9.49

$

In Stock, only 2 left!

0

94

Briggs & Stratton 292681

Valve-Idle Mixture

Note: Included in Carburetor Overhaul Kit-Part No. 398235

$11.99

$

In Stock, only 1 left!

0

95

Briggs & Stratton 93499

Screw, Sem Pan Head (Throttle Valve)
(Superseded to 691437)

$3.99

$

In Stock, only 3 left!

0

96

Briggs & Stratton 223370

Valve-Throttle

$9.49

$

Usually ships in 2-12 days

0

97

Briggs & Stratton 298826

Shaft-Throttle

$30.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 91920

Screw, Machine Fill (8-32 X 5/8")
(Superseded to 691615)

$3.99

$

Usually ships in 2-12 days

0

99

Briggs & Stratton 26157

Spring, Compression
(Superseded to 693942)

$8.99

$

Usually ships in 2-12 days

0

100

Briggs & Stratton 212904

Stop-Throttle Lever
(Superseded to 691708)

$8.99

$

Usually ships in 2-12 days

0

101

Briggs & Stratton 93043

Pin-Throttle Stop And Governor Shaft
(Superseded to 691616)

$4.49

$

Usually ships in 2-12 days

0

102

Briggs & Stratton 27918

Gasket-Carburetor Body

Note: Included in Carburetor Overhaul Kit-Part No. 398235

$4.49

$

In Stock, Qty 12

0

103

Briggs & Stratton 99333

Float-Carburetor

$13.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 230896

Pin-Hinge
(Superseded to 691775)

Note: Included in Carburetor Overhaul Kit-Part No. 398235

$3.99

$

In Stock, only 1 left!

0

105

Briggs & Stratton 394681

Kit-Needle/seat (Gravity Feed)

Note: Included in Carburetor Overhaul Kit-Part No. 398235

$7.99

$

In Stock, only 3 left!

0

105

Briggs & Stratton 394682

Kit-Needle/seat (For Gravity Feed).

$9.99

$

In Stock, only 2 left!

0

107

Briggs & Stratton 399442

Body Assy-Lower Lower

$128.99

$

Usually ships in 2-12 days

0

108

Briggs & Stratton 62872

Valve-Choke

$9.49

$

Usually ships in 2-12 days

0

109

Briggs & Stratton 391987

Shaft-Choke (Manual)

$9.99

$

Usually ships in 2-12 days

0

110

Briggs & Stratton 222712

Washer-Friction

$5.49

$

Usually ships in 2-12 days

0

111

Briggs & Stratton 26155

Spring-Lever
(Superseded to 691590)

$4.99

$

In Stock, Qty 7

0

112

Briggs & Stratton 23123

Screw-Shoulder
(Superseded to 691587)

$6.49

$

In Stock, only 1 left!

0

113

Briggs & Stratton 398202

Nozzle-Carburetor

Note: Included in Carburetor Overhaul Kit-Part No. 398235

$29.99

$

In Stock, only 2 left!

0

114

Briggs & Stratton 68667

Washer, Fiber (Viton Seat)
(Superseded to 691610)

Note: Included in Carburetor Overhaul Kit-Part No. 398235

$6.49

$

In Stock, only 1 left!

0

118

Briggs & Stratton 99525

Valve-Needle
(Superseded to 99525S)

Note: Includes: 22235 Washer-Brass 26336 Spring 65978 O-Ring 394033 Valve-Needle. Included in Carburetor Overhaul Kit-Part No. 398235

$12.99

$

In Stock, only 1 left!

0

119

Briggs & Stratton 94152

Screw, Sem Hex Head (10-32 X 3/4")
(Superseded to 691090)

$3.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 398235

Carburetor Overhaul Kit
(Superseded to 394693)

$31.99

$

In Stock, Qty 20+

0

164

Briggs & Stratton 398592

Pipe-Air Cleaner

Note: Uses: 271265 O-Ring Seal

$45.99

$

In Stock, only 3 left!

0

165

Briggs & Stratton 94289

Nut-Wing
(Superseded to 691331)

$5.99

$

In Stock, only 2 left!

0

166

Briggs & Stratton 392105

Strap-Cl Mtg (9-9/16" Long)

$25.99

$

Usually ships in 2-12 days

0

167

Briggs & Stratton 65978

Seal, O-Ring (Needle Valve)
(Superseded to 691606)

$5.99

$

In Stock, only 3 left!

0

180

Briggs & Stratton 290816

Tank-Fuel (4 Quart)

$

$

Not available

181

Briggs & Stratton 392305

Cap, Tank (Metal) A
(Superseded to 791545)

$

$

Not available

182

Briggs & Stratton 222758

Bracket-Fuel Tank

$64.99

$

Usually ships in 2-12 days

0

183

Briggs & Stratton 291367

Strap-Fuel Tank (4 Quart)

$60.99

$

Usually ships in 2-12 days

0

184

Briggs & Stratton 91257

Screw, Machine Fill (1/4-20 X 1-1/2")
(Superseded to 690280)

$3.99

$

Usually ships in 2-12 days

0

185

Briggs & Stratton 90970

Nut, Square (1/4-20)
(Superseded to 690279)

$3.99

$

Usually ships in 2-12 days

0

186

Briggs & Stratton 67218

Connector, Fuel
(Superseded to 691609)

$7.49

$

In Stock, Qty 7

0

187

Briggs & Stratton 296004

Line-Fuel (23" Cut To Length)
(Superseded to 791745)

$10.99

$

In Stock, Qty 20+

0

188

Briggs & Stratton 93535

Screw, Sem Hex Head (5/16-18 X 3/4)
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

198

Briggs & Stratton 293934

Valve, Shutoff Assy
(Superseded to 592840)

$43.99

$

In Stock, only 1 left!

0

199

Briggs & Stratton 297563

Outlet, Tank Assy
(Superseded to 592840)

$43.99

$

In Stock, only 1 left!

0

240

Briggs & Stratton 298090

Filter, Fuel
(Superseded to 298090S)

$

$

Not available

244

Briggs & Stratton 230318

Connector, Fuel
(Superseded to 691764)

$14.99

$

In Stock, only 4 left!

0

268

Briggs & Stratton 65616

Casing, Wire (72", Cut To Required Length)
(Superseded to 691025)

Note: If Longer Casing is Required, Specify Length in Inches; if Shorter Wire is Needed, Order No. 65616 and Cut to Required Length.

$

$

Not available

269

Briggs & Stratton 26633

Wire, Control (78" Cut To Required Length)
(Superseded to 691026)

Note: If Longer Wire is Required, Specify Length in Inches; if Shorter Wire is Needed, Order No. 26633 and Cut to Required Length.

$

$

Not available

270

Briggs & Stratton 63426

Nut, Hex
(Superseded to 691027)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 290568

Lever-Control
(Superseded to 691028)

$45.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 93158

Screw, Sem Hex Head (1/4-20 X 5/8")
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

346

Briggs & Stratton 93705

Screw, Tapping Hex (8-32 X 3/8)
(Superseded to 690661)

$3.49

$

In Stock, Qty 8

0

353

Briggs & Stratton 92791

Lockwasher, Interna
(Superseded to 691077)

$3.49

$

In Stock, only 2 left!

0

354

Briggs & Stratton 90576

Nut, Hex (8-32)
(Superseded to 691612)

$3.49

$

In Stock, only 1 left!

0

445

Briggs & Stratton 393957

Filter-Air
(Superseded to 393957S)

$19.99

$

In Stock, only 1 left!

0

467

Briggs & Stratton 212706

Knob-Choke Rod
(Superseded to 691668)

$5.49

$

In Stock, only 1 left!

0

535A

Briggs & Stratton 270782

Element-Air Cleaner
(Superseded to 271794S)

$4.99

$

In Stock, Qty 7

0

535

Briggs & Stratton 271794

Filter-Precleaner
(Superseded to 271794S)

$4.99

$

In Stock, Qty 7

0

536A

Briggs & Stratton 391063

Cleaner-Air
(Superseded to 593702)

$

$

Not available

536

Briggs & Stratton 399810

Cleaner-Air

$

$

Not available

601

Briggs & Stratton 93053

Clamp, Hose (Green)
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

642A

Briggs & Stratton 222271

Cover-Air Cleaner
(Superseded to 593373)

$

$

Not available

642

Briggs & Stratton 398462

Cover-Air Cleaner
(Superseded to 496093)

$

$

Not available

643

Briggs & Stratton 222272

Retainer-Filter
(Superseded to 691730)

$10.99

$

Usually ships in 2-12 days

0

725

Briggs & Stratton 222175

Deflector, Heat
(Superseded to 690403)

$6.99

$

Usually ships in 2-12 days

0

729

Briggs & Stratton 223528

Clip, Retainer
(Superseded to 690430)

$4.99

$

Usually ships in 2-12 days

0

843

Briggs & Stratton 280149

Sleeve-Lever
(Superseded to 691895)

$4.99

$

In Stock, only 1 left!

0

850

Briggs & Stratton 271793

Seal-Base

$

$

Not available

869

Briggs & Stratton 211661

Seat-Valve (Intake)
(Superseded to 691844)

$18.99

$

In Stock, only 1 left!

0

870

Briggs & Stratton 211661

Seat-Valve (Intake)
(Superseded to 691844)

$18.99

$

In Stock, only 1 left!

0

871

Briggs & Stratton 231218

Bushing-Guide (Brass)

Note: See Repair Manual

$14.99

$

In Stock, Qty 7

0

871

Briggs & Stratton 261961

Bushing-Guide

$14.99

$

Usually ships in 2-12 days

0

917

Briggs & Stratton 223271

Valve Handle-Fuel Shut-Off
(Superseded to 691737)

$7.49

$

Usually ships in 2-12 days

0

948

Briggs & Stratton 398661

Harness-Wiring

$34.99

$

Usually ships in 2-12 days

0

978

Briggs & Stratton 271736

Gasket, Switch
(Superseded to 273326S)

Note: Included in Gasket Set-Part No. 299577

$7.49

$

In Stock, only 1 left!

0

979

Briggs & Stratton 398194

Cover-Oilgard Hole
(Superseded to 691382)

$4.99

$

Usually ships in 2-12 days

0

980

Briggs & Stratton 398182

Switch-Oil Gard

$102.99

$

Usually ships in 2-12 days

0

982A

Briggs & Stratton 94146

Screw-Oil Guard Mtg.
(Superseded to 690350)

$3.99

$

Usually ships in 2-12 days

0

982

Briggs & Stratton 94139

Screw-Oilgard Cover
(Superseded to 690351)

$3.99

$

In Stock, only 2 left!

0

983

Briggs & Stratton 398660

Light-Indicator

Note: (For Mounting With Light Bracket)

$

$

Not available

984

Briggs & Stratton 223773

Bracket-Stop Switch
(Superseded to 692340)

$5.49

$

Usually ships in 2-12 days

0
