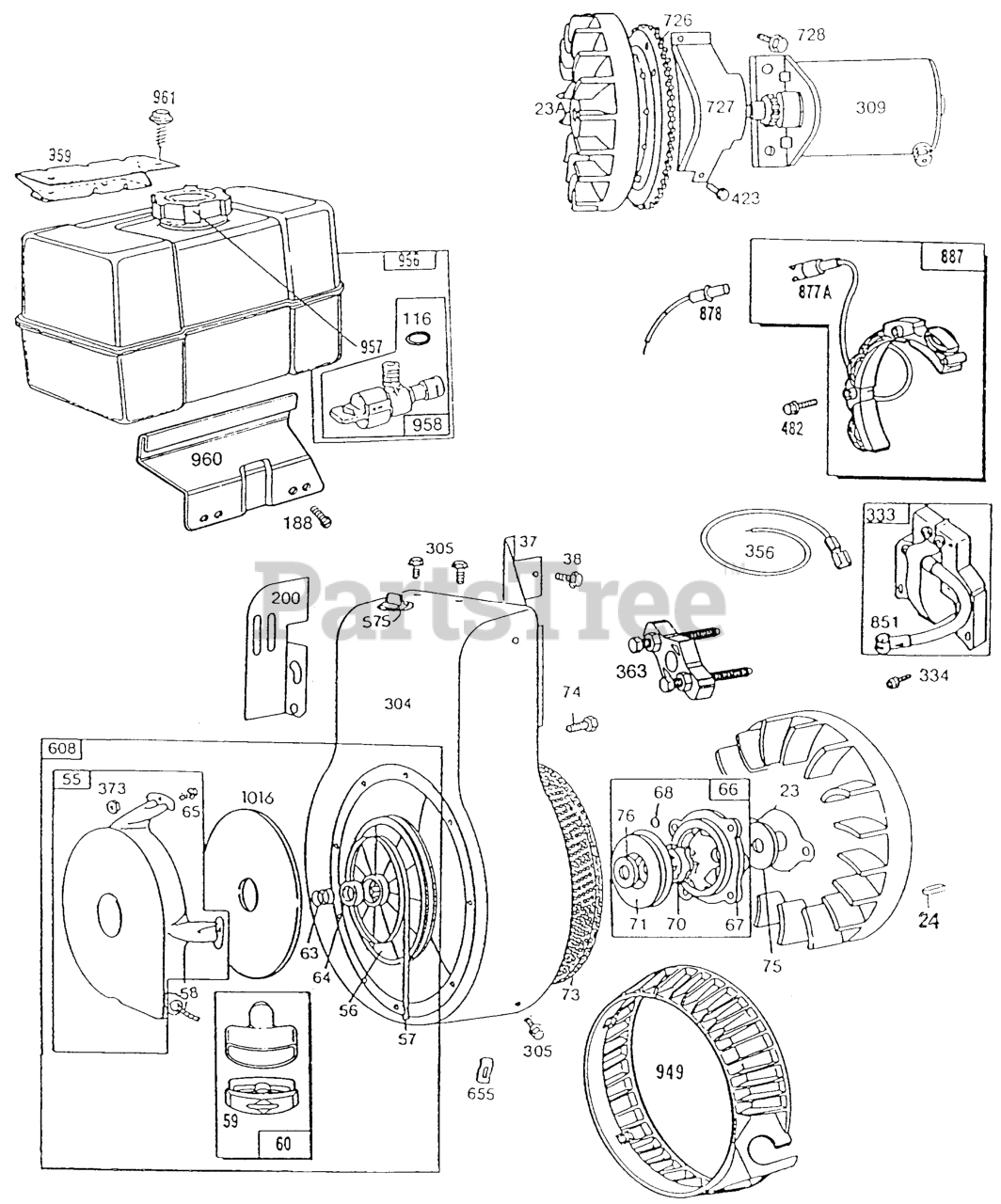

194412-0123-XX - Briggs & Stratton Horizontal Engine Blower Hsg,Rewind,Fuel Tank Parts Diagram

Horizontal Engine

Blower Hsg,Rewind,Fuel Tank Parts Diagram

  • Title

23A

Briggs & Stratton 391983

Flywheel/Gear Assy (For Engines With Alternator)

Note: For Use on Engines WITH ALTERNATOR. (Includes Aluminum Ring Gear)

$

$

Not available

23

Briggs & Stratton 298260

Flywheel-Magneto

$

$

Not available

24

Briggs & Stratton 222698

Key, Flywheel
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

37

Briggs & Stratton 222475

Guard-Flywheel
(Superseded to 690411)

$

$

Not available

38

Briggs & Stratton 93777

Screw, Sem Hex Head
(Superseded to 690364)

$3.99

$

In Stock, only 2 left!

0

55

Briggs & Stratton 393576

Housing-Rew Str

$85.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 295871

Pulley-Starter (Includes 63" Rope)

Note: Includes 63" Rope; if Longer Rope is Required, Order Rope No. 66894 and Cut to Required Length.

$14.99

$

In Stock, Qty 20+

0

57

Briggs & Stratton 490179

Spring-Rewind Starter

$

$

Not available

58

Briggs & Stratton 66884

Rope, Starter (63" Cut To Required Length)
(Superseded to 692188)

Note: For Use With Plastic Pulley; if Longer Rope is Needed, Order No. 66894 and Cut to Required Length.

$8.49

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 490653

Insert-Starter Rope
(Superseded to 490652)

$5.49

$

In Stock, Qty 10

0

60

Briggs & Stratton 490652

HANDLE, Starter Rope

$5.49

$

In Stock, Qty 10

0

63

Briggs & Stratton 260414

Spring-Ratchet
(Superseded to 690547)

$8.49

$

In Stock, Qty 5

0

64

Briggs & Stratton 230543

Adapter-Spring
(Superseded to 691920)

$11.99

$

In Stock, Qty 5

0

65

Briggs & Stratton 94128

Screw-Stamped Steel Housing Mtg. Sem
(Superseded to 690837)

$3.49

$

In Stock, Qty 20+

0

66

Briggs & Stratton 399671

Clutch-Starter

Note: (Uses Rubber Coated Retainer Washer-Ref. 71)

$34.99

$

In Stock, Qty 20+

0

67

Briggs & Stratton 394897

Housing-Starter Clutch

$36.99

$

In Stock, only 1 left!

0

68

Briggs & Stratton 63770

Ball-Clutch
(Superseded to 691604)

$

$

Not available

70

Briggs & Stratton 298799

Ratchet Assy
(Superseded to 691945)

Note: (For engine W/Ring Gear on FW equipped for Elec Start)

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 394506

Seal/Retainer Assy (Rubber Coated)
(Superseded to 691359)

$9.99

$

In Stock, Qty 13

0

73

Briggs & Stratton 221796

Switch-Stop
(Superseded to 691754)

$31.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 93758

Screw, Hex Wash Hd
(Superseded to 690345)

$4.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 224061

Washer, Flat (5/8" Hole)
(Superseded to 690582)

$4.49

$

In Stock, only 3 left!

0

76

Briggs & Stratton 68238

Seal-Ratchet
(Superseded to 691359)

$9.99

$

In Stock, Qty 13

0

116

Briggs & Stratton 280203

Seal-O
(Superseded to 691898)

$5.49

$

In Stock, only 1 left!

0

188

Briggs & Stratton 93535

Screw, Sem Hex Head (5/16-18 X 3/4)
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

200

Briggs & Stratton 221760

Guide-Air
(Superseded to 691170)

$15.99

$

Usually ships in 2-12 days

0

304

Briggs & Stratton 491592

Housing-Blower

$

$

Not available

305

Briggs & Stratton 93158

Screw, Sem Hex Head (1/4-20 X 5/8")
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

309

Briggs & Stratton 394805

Motor/Drive Assy (For 3-1/16" Housing Length)
(Superseded to 497595)

$110.99

$

In Stock, Qty 20+

0

333

Briggs & Stratton 398811

Armature-Mag (Magnetron Ignition)

$63.99

$

In Stock, Qty 17

0

334

Briggs & Stratton 93381

Screw, Machine Hex
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 398874

Wire, Dual Stop Ass
(Superseded to 491391)

$6.49

$

Usually ships in 2-12 days

0

363

Briggs & Stratton 19165

Puller-Flywheel (Optional Accessory)

$25.99

$

Usually ships in 2-12 days

0

373

Briggs & Stratton 92987

Nut, Hex Mach
(Superseded to 690800)

$3.99

$

In Stock, Qty 13

0

423

Briggs & Stratton 93984

Screw, Shoulder Hex
(Superseded to 691002)

$8.49

$

In Stock, only 2 left!

0

482

Briggs & Stratton 93621

Screw, Tapping Hex
(Superseded to 691183)

$3.49

$

Usually ships in 2-12 days

0

575

Briggs & Stratton 396691

Switch, Rotary Stop (Mech. Gov.)
(Superseded to 692309)

$20.99

$

In Stock, only 1 left!

0

608

Briggs & Stratton 390391

Starter-Rewind
(Superseded to 693900)

Note: For Starter Assy. With Longer Than Standard Rope-Order No. 299640

$131.99

$

In Stock, Qty 10

0

655

Briggs & Stratton 222598

Insert, Spring
(Superseded to 691734)

Note: (For Stamped Rewind Housing)

$4.99

$

Usually ships in 2-12 days

0

726

Briggs & Stratton 392134

Gear, Ring Kit
(Superseded to 696537)

$50.99

$

Usually ships in 2-12 days

0

727

Briggs & Stratton 395405

Cover-Str Drive

$

$

Not available

728

Briggs & Stratton 93535

Screw, Sem Hex Head (5/16-18 X 3/4)
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

851

Briggs & Stratton 221798

Terminal-Spark Plug
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

878

Briggs & Stratton 393422

Socket/Wire Assy (Dc Only)
(Superseded to 692306)

$17.99

$

Usually ships in 2-12 days

0

887

Briggs & Stratton 391529

Stator, Alternator (Dc Only)
(Superseded to 592828)

$124.99

$

Usually ships in 2-12 days

0

949

Briggs & Stratton 280685

Guard-Rewind Starter
(Superseded to 691904)

$27.99

$

Usually ships in 2-12 days

0

956

Briggs & Stratton 493337

Tank/Cap Black Assy (4 Quart Plastic)
(Superseded to 691993)

$166.99

$

In Stock, Qty 10

0

957

Briggs & Stratton 397975

Cap, Tank (Plastic) (2-1/4" I.d.)
(Superseded to 799719)

$40.99

$

In Stock, only 3 left!

0

958

Briggs & Stratton 399517

Vlv-Shut Off Plas (Plastic)
(Superseded to 698182)

$

$

Not available

960

Briggs & Stratton 492990

Bracket-Fuel Tank (Lower)
(Superseded to 694592)

$17.99

$

In Stock, only 1 left!

0

961

Briggs & Stratton 94095

Screw, Tapping Hex
(Superseded to 690708)

$2.99

$

Usually ships in 2-12 days

0

1016

Briggs & Stratton 490817

Spacer=rewind

$9.49

$

In Stock, Qty 5

0
