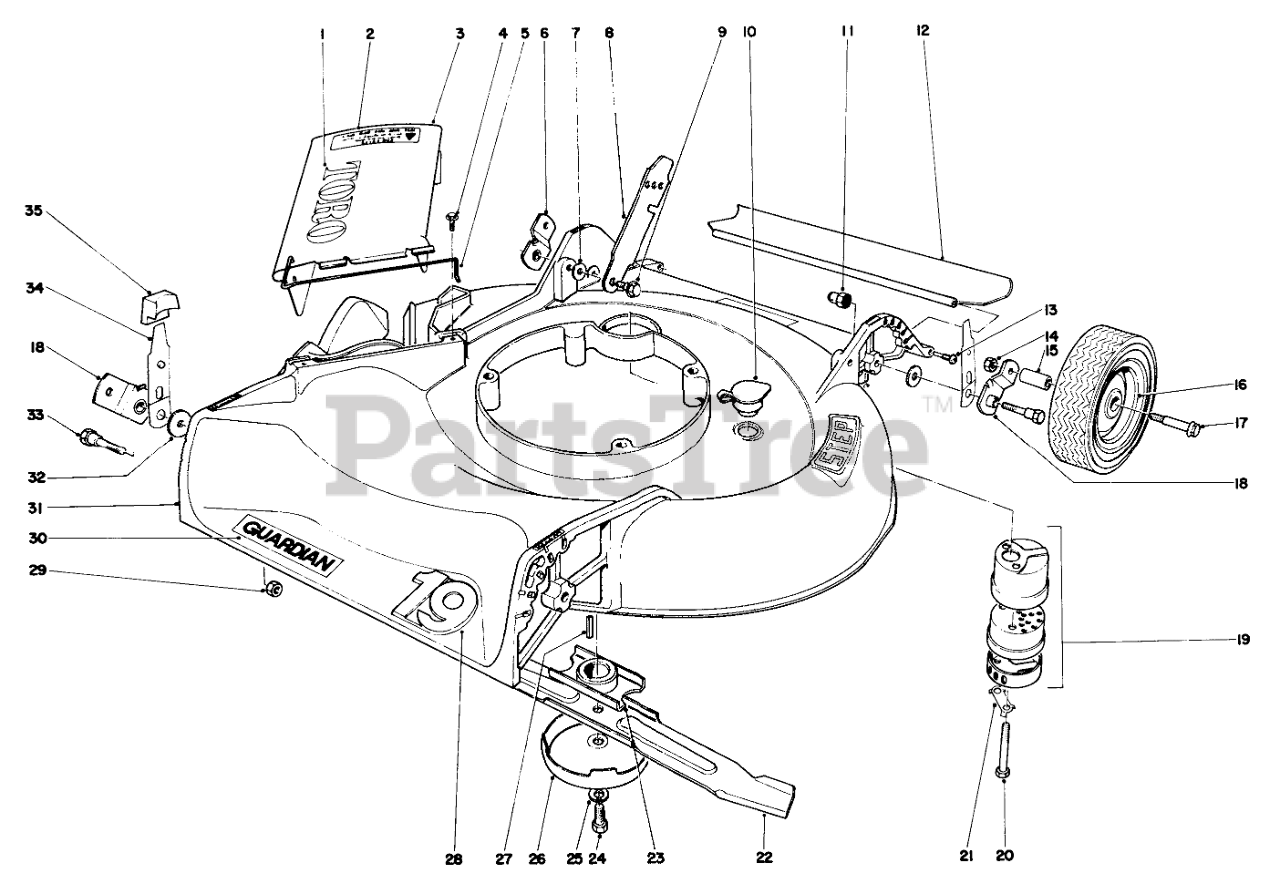

19400 - Toro Guardian Walk-Behind Mower (SN: 004000001 - 004999999) (1974) HOUSING ASSEMBLY Parts Diagram

Guardian Walk-Behind Mower

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 20-4690

TORO LOGO DECAL

$7.99

$

Usually ships in 3-6 days

0

2

Toro 20-4330

Caution Decal

$

$

Not available

3

Toro 20-2800

Deflector Cover (Incl. Ref. No. 1-2 & 5)
(Superseded to 13-4049)

$

$

Not available

4

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0

5

Toro 2_2640

Hinge Spring

$

$

Currently unavailable

6

Toro 20-2130

Pivot Arm
(Superseded to 98-1527)

$

$

Not available

7

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 16

0

8

Toro 5-2446

Latch
(Superseded to 43-1550)

$

$

Not available

9

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

10

Toro 6-4500

WASHOUT PLUG

$

$

Not available

11

Toro 12-2080

HANDLE PIVOT NUT

$25.99

$

Usually ships in 3-6 days

0

12

Toro 22-4960

SHIELD - TRAILING

$91.99

$

Usually ships in 3-6 days

0

Toro 22-4950

REAR SAFETY SHIELD 21

Note: Not illustrated

$

$

Not available

13

Toro 8-6160

SAFTEY SHIELD SCREW

$

$

Not available

14

Toro 32146-12

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

15

Toro 17-4560

Bushing
(Superseded to 27-6250)

$2.99

$

In Stock, only 4 left!

0

16

Toro 17-4120

Wheel & Tire Assembly (Incl. No.15) (Model 19400)
(Superseded to 99-5256)

$

$

Not available

Toro 17-4140

Wheel & Tire Assembly (Incl. No.15) (Model 21500)

Note: Not illustrated

$

$

Not available

17

Toro 3-2652

Bolt

$

$

Not available

18

Toro 20-2140

Pivot Arm
(Superseded to 98-1511)

$

$

Not available

19

Toro 5-4769

Muffler Assembly (Incl. Ref. Nos. 20-21)

$62.99

$

Usually ships in 3-6 days

0

20

Toro 321-20

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

21

Toro 3-5094

CLIP - LOCKING

$11.99

$

Usually ships in 3-6 days

0

22

Toro 20-2730

Blade
(Superseded to 20-2730-03)

$

$

Not available

Toro 20-2720

Blade
(Superseded to 20-2720-03)

Note: Not illustrated

$41.99

$

In Stock, only 2 left!

0

23

Toro 20-2750

Blade Retailer
(Superseded to 49-7890)

$

$

Not available

24

Toro 3-5246

SPECIAL SCREW

$

$

Not available

25

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

26

Toro 8-4240

AntiScalp Cup
(Superseded to 80-2770)

$17.99

$

Usually ships in 3-6 days

0

27

Toro 21-5070

KEY-SQUARE

$

$

Not available

28

Toro 20-2680

Emblem Deck

$

$

Currently unavailable

Toro 20-2670

Emblem Deck

Note: Not illustrated

$

$

Currently unavailable

29

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

30

Toro 22-4770

Decal

$

$

Currently unavailable

31

Toro 6-0659

Housing

$

$

Currently unavailable

Toro 6-0669

Housing

Note: Not illustrated

$

$

Currently unavailable

32

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

33

Toro 3-0655

5/16-18 PIVOT SCREW

$15.99

$

In Stock, only 1 left!

0

34

Toro 23-0400

SPRING ARM ASM

$

$

Not available

35

Toro 8-4220

Knob
(Superseded to 25-7740)

$4.99

$

In Stock, Qty 20+

0

Toro 17-4040

Loose Parts Bag

Note: Not illustrated

$

$

Currently unavailable
