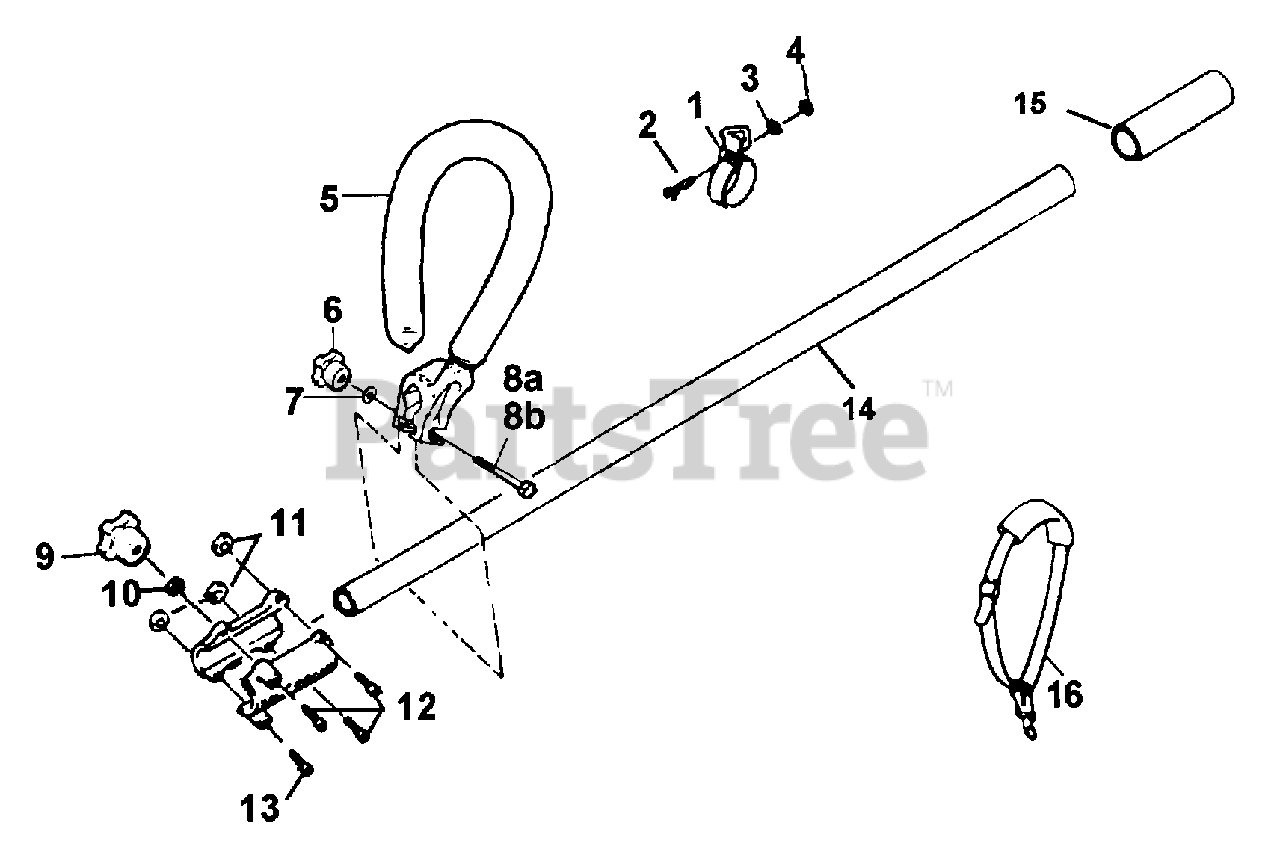

1940 (UT-26030) - Green Machine String Trimmer Upper Tube Parts Diagram

String Trimmer

Upper Tube Parts Diagram

  • Title

1

Homelite GM250312

HANGER ASSY.

$

$

Not available

2

Homelite GM010002

SCREW

$2.49

$

Usually ships in 3-7 days

0

3

Homelite GM041101

WASHER

$

$

Not available

4

Homelite GM050003

NUT

Note: Torque Specifications: 5-30 In/Lbs; 5-3.4 Nm

$

$

Not available

5

Homelite GM300302

HANDLE ASSY.

$

$

Not available

6

Homelite 08290

KNOB

Note: Torque Specifications: 25-35 In/Lbs; 2.8-4.0 Nm

$

$

Not available

7

Homelite 84006

WASHER

$

$

Not available

8A

Homelite 80295

BOLT, HEX HEAD

$4.99

$

Usually ships in 3-7 days

0

8B

Homelite GM257606

CARRIAGE BOLT
(Superseded to 80295)

Note: (Used on OLD Non-Padded handle)

$4.99

$

Usually ships in 3-7 days

0

Homelite A07901

COUPLER ASSY.

$

$

Not available

9

Homelite 08290

KNOB

Note: Torque Specifications: 25-35 In/Lbs; 2.8-4.0 Nm

$

$

Not available

10

Homelite GM040016

WASHER

$

$

Not available

11

Homelite 81267

NUT

Note: Torque Specifications: 50-60 In/Lbs; 4.5-6.8 Nm

$

$

Not available

12

Homelite GM011426

BOLT
(Superseded to 82278)

$2.49

$

Usually ships in 3-7 days

0

13

Homelite M030017

BOLT

$

$

Currently unavailable

14

Homelite A07902

TUBE ASSY. W/DRIVESHAFT & LINER
(Superseded to UP04545)

$

$

Not available

15

Homelite 03234A

GRIP

$

$

Not available

16

Homelite GM280311

HARNESS
(Superseded to DG07819)

Note: (OPT)

$

$

Not available
