1940 (UT-26030-A) - Green Machine String Trimmer Starter Parts Diagram

String Trimmer

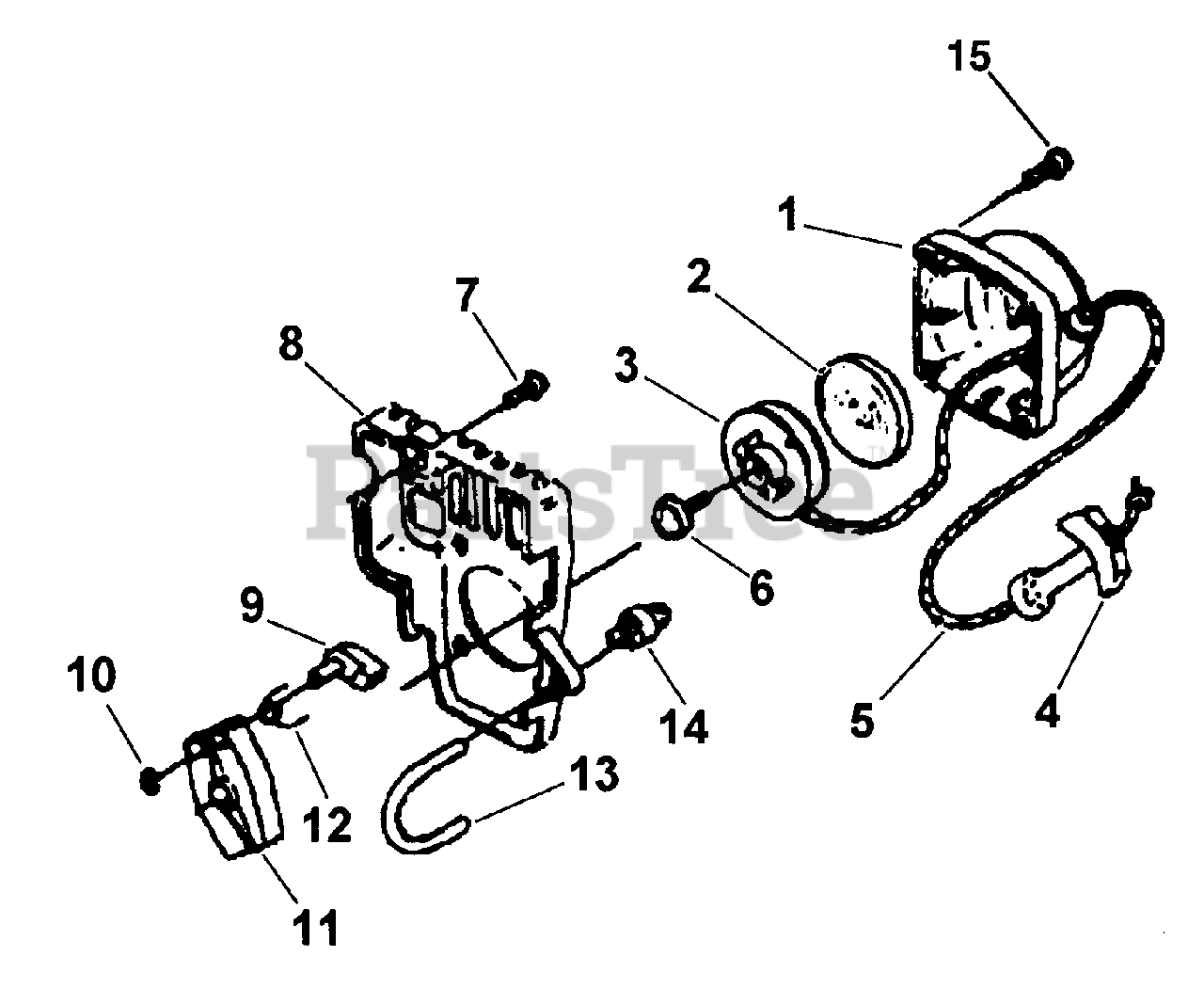

Starter Parts Diagram

  • Title

1

Homelite A04069

STARTER ASSY

$

$

Not available

2

Homelite 0406906

SPRING, RECOIL
(Superseded to UP04871)

$

$

Not available

3

Homelite 0406905

PULLEY, STARTER
(Superseded to UP04880)

$96.99

$

Usually ships in 3-7 days

0

4

Homelite 0406902

GRIP, STARTER

$

$

Not available

5

Homelite 0406903

ROPE, STARTER

$

$

Not available

6

Homelite 0406904

SCREW

Note: Torque Specifications: 25-35 In/Lbs; 2.8-3.9 Nm

$

$

Not available

7

Homelite 82541

SCREW

Note: Torque Specifications: 25-35 In/Lbs; 2.8-3.9 Nm

$1.99

$

In Stock, only 3 left!

0

8

Homelite 04023

COWLING, ENGINE
(Superseded to UP05884)

$

$

Not available

9

Homelite 0401802

PAWL, STARTER
(Superseded to UP04879)

$

$

Not available

10

Homelite 0401804

RING, RETAINING
(Superseded to UP04879)

$

$

Not available

11

Homelite A04018

CUP, STARTER
(Superseded to UP04879)

$

$

Not available

12

Homelite 0401803

SPRING, STARTER
(Superseded to UP04879)

$

$

Not available

13

Homelite 0143932

TUBING, PRIMER LINE 8"
(Superseded to UP03825)

$

$

Not available

14

Homelite 01183

BULB, PRIMER
(Superseded to 300780002)

$

$

Not available

15

Homelite 82538

SCREW, TAPTITE 10-24 X 3/4

Note: Torque Specifications: 40-50 In/Lbs; 4.5-5.6 Nm

$1.99

$

Usually ships in 3-7 days

0
