1940 (UT-26030-A) - Green Machine String Trimmer Clutch Parts Diagram

String Trimmer

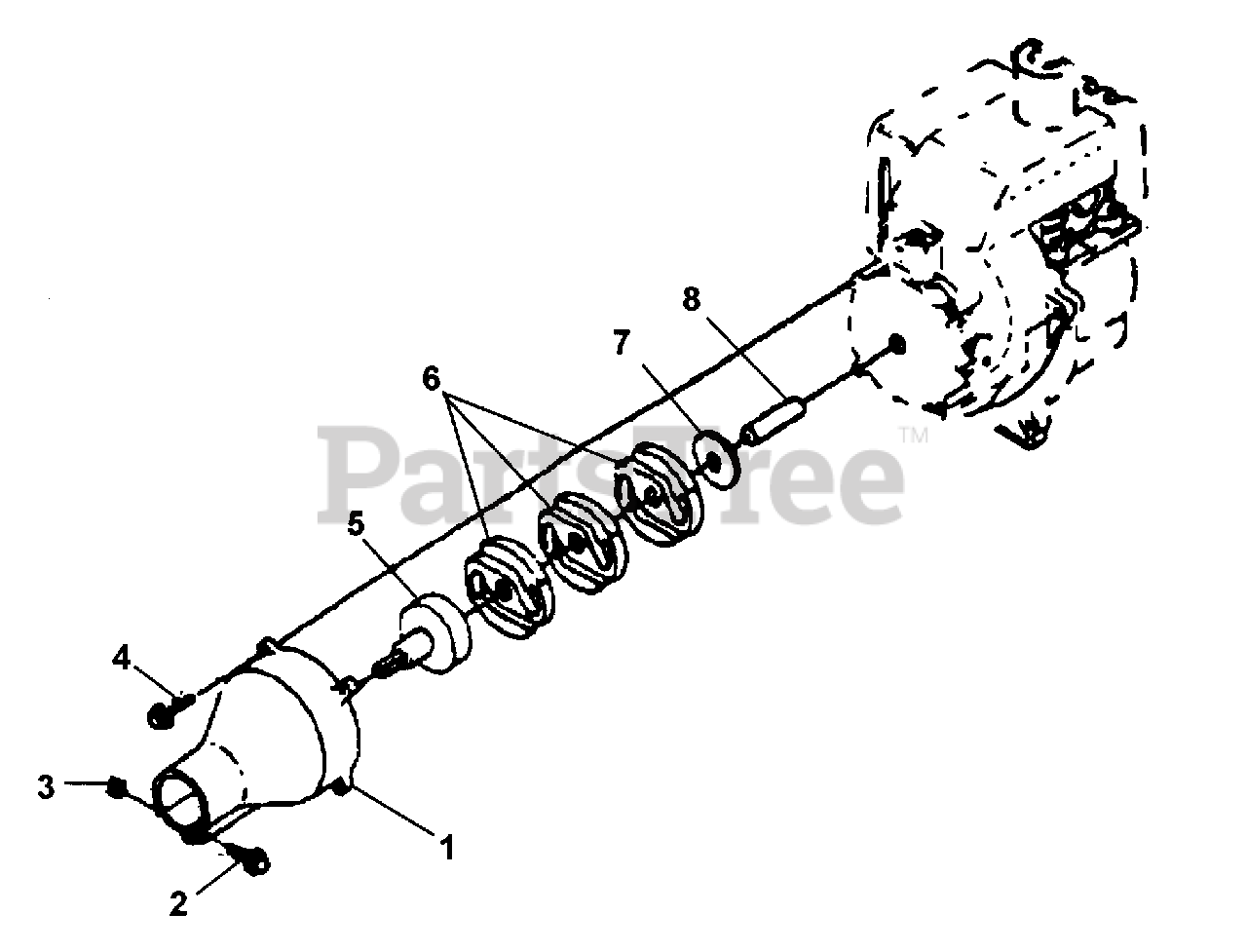

Clutch Parts Diagram

  • Title
1

Homelite A02396A

CLUTCH CASE ASSY

$

$

Currently unavailable

2

Homelite 96624

SCREW, SEMS HEXHEAD 10-24 X 1 1/4"

Note: Torque Specifications: 40-50 In/Lbs; 4.5-5.6 Nm

$

$

Not available

3

Homelite 81208

NUT, HEX 10-24

$

$

Not available

4

Homelite 88052

SCREW, SEMS HEXHEAD 10-24 X 7/8"

Note: Torque Specifications: 40-50 In/Lbs; 4.5-5.6 Nm

$4.99

$

Usually ships in 3-7 days

0

5

Homelite A04655

DRUM & CONNECTOR

$

$

Currently unavailable

6

$

$

Not available

7

Homelite 03372

WASHER, CLUTCH

$

$

Not available

8

Homelite 035661

SPACER
(Superseded to PS035661)

$5.49

$

Usually ships in 3-7 days

0
