1940 - Green Machine String Trimmer 2361 Power Blower Attachment Parts Diagram

String Trimmer

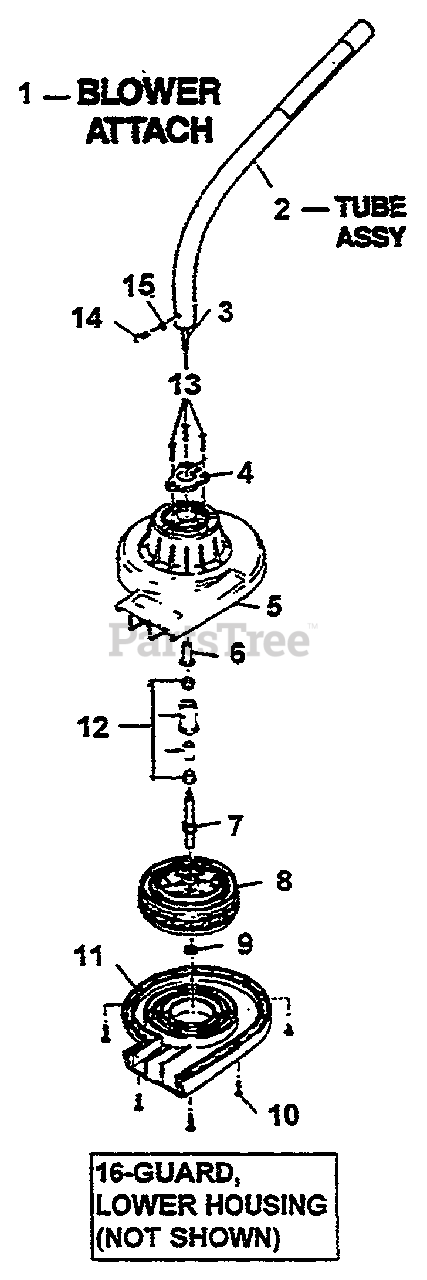

2361 Power Blower Attachment Parts Diagram

  • Title

1

Use UT26308

Note: Includes Ref#s 2-16

$

$

Not available

2

Homelite GM280314

TUBE ASSY
(Superseded to UP06790)

$

$

Currently unavailable

3

Homelite A07844

FLEX CABLE

$

$

Not available

4

Homelite GM235205

CLAMP

$

$

Not available

5

Homelite GM235215

UPPER HOUSING
(Superseded to UP06874)

$

$

Not available

6

Homelite GM166501

ARBOR ADAPTER

$

$

Not available

7

Homelite GM236701

ARBOR SHAFT
(Superseded to UP04699)

$

$

Not available

8

Homelite GM235203

IMPELLER

$

$

Not available

9

Homelite GM167602

PAL NUT

$

$

Not available

10

Homelite GM201044

SCREW
(Superseded to UP04141)

$2.49

$

Usually ships in 3-7 days

0

11

Homelite GM235216

LOWER HOUSING
(Superseded to UP04697)

$

$

Not available

12

Homelite GM160305

ARBOR BUSHING ASSY
(Superseded to UP06876)

$

$

Not available

13

Homelite GM011102

SCREW
(Superseded to UP04250)

$

$

Not available

14

Homelite GM011401

SCREW

$

$

Not available

15

Homelite GM041101

WASHER

$

$

Not available

16

Homelite GM286903

GUARD, LOWER HOUSING

$

$

Not available
