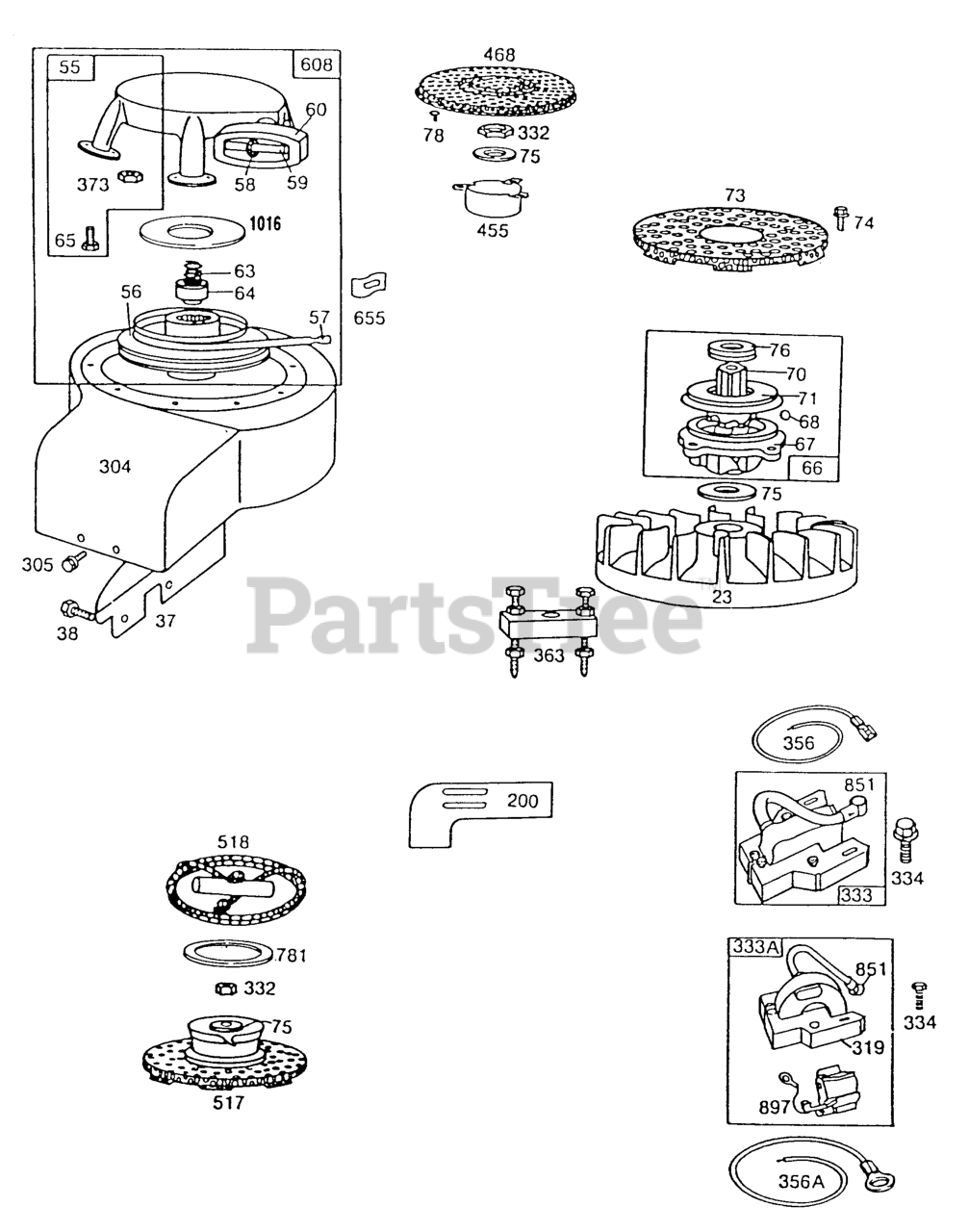

193707-0161-01 - Briggs & Stratton Vertical Engine Blower Hsg,Rewind,Armature Parts Diagram

Vertical Engine

Blower Hsg,Rewind,Armature Parts Diagram

  • Title

23

Briggs & Stratton 298260

Flywheel-Magneto

$

$

Not available

37

Briggs & Stratton 222475

Guard-Flywheel
(Superseded to 690411)

$

$

Not available

38

Briggs & Stratton 93535

Screw, Sem Hex Head (5/16-18 X 3/4)
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

38

Briggs & Stratton 93777

Screw, Sem Hex Head
(Superseded to 690364)

$3.99

$

In Stock, only 2 left!

0

55

Briggs & Stratton 393576

Housing-Rew Str

$85.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 295871

Pulley-Starter (Includes 63" Rope)

Note: Includes 63" Rope; if longer Rope is required, Order Rope No. 66894 and cut to required length.

$14.99

$

In Stock, Qty 20+

0

57

Briggs & Stratton 490179

Spring-Rewind Starter

$

$

Not available

58

Briggs & Stratton 66884

Rope, Starter (63" Cut To Required Length)
(Superseded to 692188)

$8.49

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 230228

Pin-Starter Rope
(Superseded to 230228S)

$3.99

$

In Stock, only 4 left!

0

60

Briggs & Stratton 66728

Grip-Starter Rope.
(Superseded to 490652)

$5.49

$

In Stock, Qty 10

0

63

Briggs & Stratton 260414

Spring-Ratchet
(Superseded to 690547)

$8.49

$

In Stock, Qty 5

0

64

Briggs & Stratton 230543

Adapter-Spring
(Superseded to 691920)

$11.99

$

In Stock, Qty 5

0

65

Briggs & Stratton 94128

Screw-Stamped Steel Housing Mtg. Sem
(Superseded to 690837)

$3.49

$

In Stock, Qty 20+

0

66

Briggs & Stratton 394558

Clutch Assy
(Superseded to 399671)

Note: (For engines w/Ring Gear on Flywheel equipped for Electric Start)

$34.99

$

In Stock, Qty 20+

0

66

Briggs & Stratton 399671

Clutch-Starter

Note: (Uses Rubber Coated Retainer Washer-Ref. 71)

$34.99

$

In Stock, Qty 20+

0

67

Briggs & Stratton 394897

Housing-Starter Clutch

$36.99

$

In Stock, only 1 left!

0

68

Briggs & Stratton 63770

Ball-Clutch
(Superseded to 691604)

$

$

Not available

70

Briggs & Stratton 298799

Ratchet Assy
(Superseded to 691945)

Note: (For engine W/Ring Gear on FW equipped for Elec Start)

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 221653

Washer, Steel (Non-Coated)
(Superseded to 691359)

$9.99

$

In Stock, Qty 13

0

71

Briggs & Stratton 394506

Seal/Retainer Assy (Rubber Coated)
(Superseded to 691359)

$9.99

$

In Stock, Qty 13

0

73

Briggs & Stratton 221796

Switch-Stop
(Superseded to 691754)

$31.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 93042

Screw, Sem Hex Head
(Superseded to 691078)

$4.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 220865

Washer, Belleville (Used With Heavy Flywheel)
(Superseded to 690582)

$4.49

$

In Stock, only 3 left!

0

76

Briggs & Stratton 68238

Seal-Ratchet
(Superseded to 691359)

$9.99

$

In Stock, Qty 13

0

78

Briggs & Stratton 93805

Screw-Sem
(Superseded to 691655)

$3.99

$

Usually ships in 2-12 days

0

200

Briggs & Stratton 221760

Guide-Air
(Superseded to 691170)

$15.99

$

Usually ships in 2-12 days

0

304

Briggs & Stratton 393981

Housing-Blower
(Superseded to 491579)

$64.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 93158

Screw, Sem Hex Head (1/4-20 X 5/8")
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

319

Briggs & Stratton 395326

Armature-Mag (Electronic Ignition-Without Module)
(Superseded to 398811)

$63.99

$

In Stock, Qty 17

0

332

Briggs & Stratton 92284

Nut, Jam (Flywheel)
(Superseded to 690662)

$5.99

$

In Stock, only 1 left!

0

333A

Briggs & Stratton 395492

Ignition Grp (Magnetron Ignition)
(Superseded to 398811)

$63.99

$

In Stock, Qty 17

0

333

Briggs & Stratton 398811

Armature-Mag (Magnetron Ignition)

$63.99

$

In Stock, Qty 17

0

334

Briggs & Stratton 93381

Screw, Machine Hex
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

356A

Briggs & Stratton 298693

Wire, Ground Assy (30" long-Cut To Suit)
(Superseded to 398808)

$11.99

$

In Stock, only 1 left!

0

356

Briggs & Stratton 398808

WIRE, Stop (30" Cut To Required Length)

$11.99

$

In Stock, only 1 left!

0

363

Briggs & Stratton 19165

Puller-Flywheel (Optional Accessory)

$25.99

$

Usually ships in 2-12 days

0

373

Briggs & Stratton 92987

Nut, Hex Mach
(Superseded to 690800)

$3.99

$

In Stock, Qty 13

0

455

Briggs & Stratton 222561

Cup-Screen Mtg.
(Superseded to 691173)

$37.99

$

Usually ships in 2-12 days

0

468

Briggs & Stratton 222562

Screen-Rotating
(Superseded to 691748)

$232.99

$

In Stock, only 1 left!

0

517

Briggs & Stratton 295423

Screen/Pulley Assy
(Superseded to 496084)

$173.99

$

Usually ships in 2-12 days

0

518

Briggs & Stratton 69932

Rope/Grip Assy (55")
(Superseded to 69932S)

$9.49

$

In Stock, only 1 left!

0

608

Briggs & Stratton 390391

Starter-Rewind
(Superseded to 693900)

$131.99

$

In Stock, Qty 10

0

655

Briggs & Stratton 222598

Insert, Spring
(Superseded to 691734)

Note: (For Stamped Rewind Housing)

$4.99

$

Usually ships in 2-12 days

0

781

Briggs & Stratton 280068

Cap-Starter Pully

$1.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 221798

Terminal-Spark Plug
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

897

Briggs & Stratton 394970

Magnetron Ign Kit

$

$

Not available

1016

Briggs & Stratton 490817

Spacer=rewind

$9.49

$

In Stock, Qty 5

0
