193702-0171-01 - Briggs & Stratton Vertical Engine Cyl,Sump,Piston,Mufflers Parts Diagram

Vertical Engine

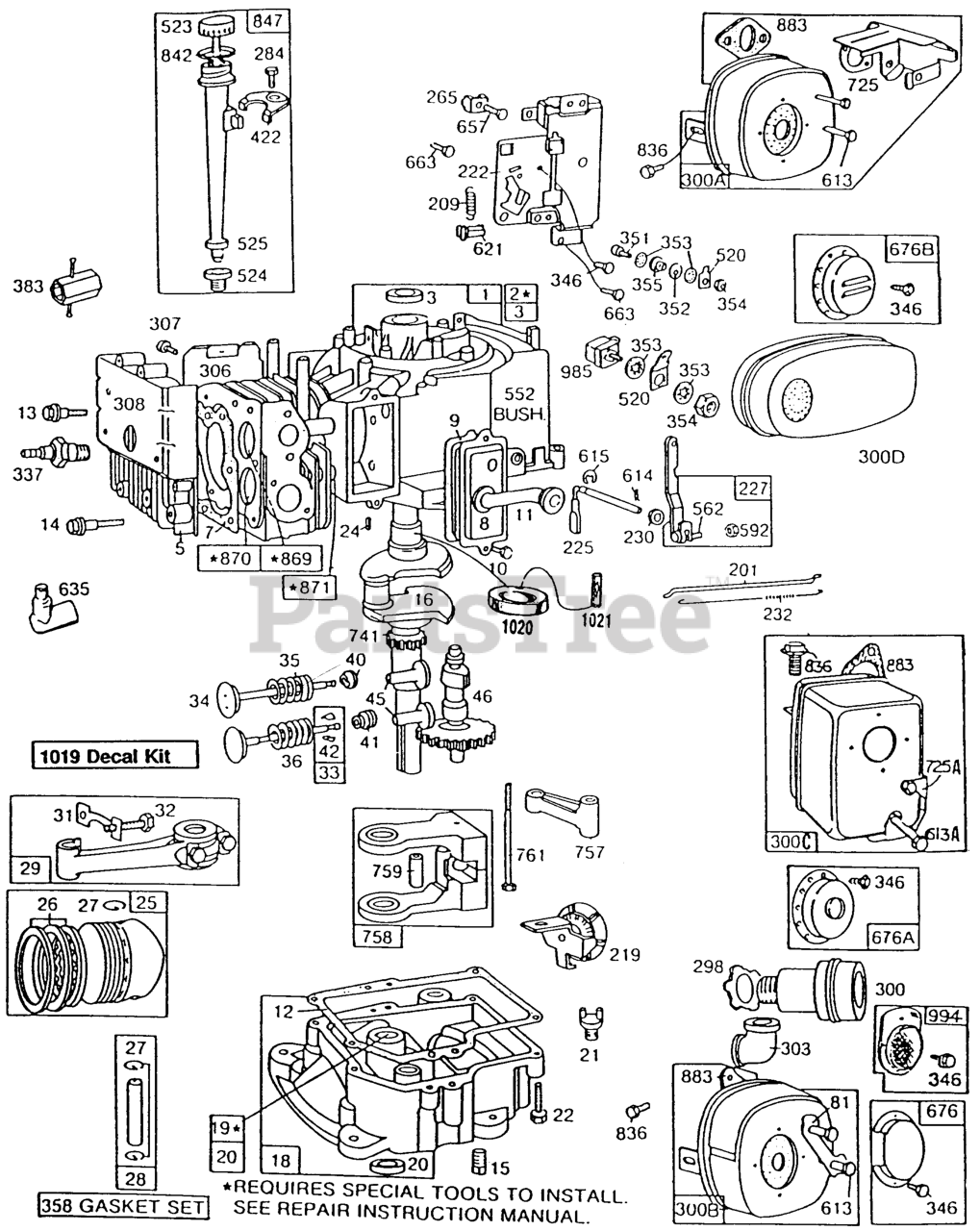

Cyl,Sump,Piston,Mufflers Parts Diagram

  • Title

1

Briggs & Stratton 397240

Cylinder Assembly

$

$

Not available

2

Briggs & Stratton 261960

Bushing-Cylinder
(Superseded to 790179)

Note: Requires special tools for installation.

$4.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 294606

Seal, Oil
(Superseded to 294606S)

$9.49

$

In Stock, Qty 11

0

5

Briggs & Stratton 212286

Head-Cylinder
(Superseded to 691715)

$95.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 270430

Gasket-Cylinder Head Breather Assembly
(Superseded to 272163S)

Note: Included in Gasket Set-Part No. 299577

$7.99

$

In Stock, Qty 20+

0

8

Briggs & Stratton 391406

Breather Assy.
(Superseded to 495735)

$63.99

$

In Stock, Qty 5

0

9

Briggs & Stratton 27803

Gasket-Valve Cover
(Superseded to 27803S)

Note: Included in Gasket Set-Part No. 299577

$4.49

$

In Stock, Qty 20+

0

10

Briggs & Stratton 93394

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 280005

Tube-Breather
(Superseded to 692293)

$10.99

$

In Stock, Qty 6

0

12

Briggs & Stratton 27750

Gasket, Crankcase (1/64" Thick)
(Superseded to 692221)

Note: Included in Gasket Set-Part No. 299577

$8.99

$

In Stock, Qty 7

0

12

Briggs & Stratton 27876

Gasket-Crkcse (.005" Thick)

Note: Included in Gasket Set-Part No. 299577

$

$

Not available

12

Briggs & Stratton 27877

Gasket-Crkcse (.009" Thick)

Note: Included in Gasket Set-Part No. 299577

$10.99

$

In Stock, only 3 left!

0

13

Briggs & Stratton 22963

Washer, Flat
(Superseded to 691261)

$3.99

$

In Stock, only 3 left!

0

14

Briggs & Stratton 22963

Washer, Flat
(Superseded to 691261)

$3.99

$

In Stock, only 3 left!

0

15

Briggs & Stratton 93418

Plug, Pipe (Flush)
(Superseded to 691680)

$5.99

$

In Stock, only 1 left!

0

16

Briggs & Stratton 396876

Crankshaft

Note: Order Part 230978 for Timing Gear Pin Replacement

$225.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 397305

Sump-Engine

$68.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 295963

Bushing/Seal Kit

Note: Requires special tools for installation.

$

$

Not available

20

Briggs & Stratton 391086

Seal-Oil
(Superseded to 391086S)

$6.49

$

In Stock, Qty 20+

0

21

Briggs & Stratton 66768

Plug, Oil Fill
(Superseded to 281658S)

$4.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 93585

Screw, Sem Hex Head
(Superseded to 691103)

$3.99

$

In Stock, only 4 left!

0

24

Briggs & Stratton 222698

Key, Flywheel
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 393868

Piston/Ring Kit (Std.)
(Superseded to 499960)

$140.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 393869

Piston/Ring Kit (.010" O.S.)
(Superseded to 499961)

$67.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 393879

Piston/Ring Kit (.020" O.S.)
(Superseded to 499962)

$156.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 393880

Piston/Ring Kit (.030" O.S.)
(Superseded to 499963)

$

$

Not available

26

Briggs & Stratton 299743

Ring Set-Std Chr
(Superseded to 690014)

$

$

Not available

26

Briggs & Stratton 393881

Ring, Piston Kit (Std.)
(Superseded to 690014)

$

$

Not available

26

Briggs & Stratton 393882

Ring, Piston Kit (.010" O.S.)

$

$

Not available

26

Briggs & Stratton 393883

Ring, Piston Kit (.020" O.S.)
(Superseded to 690016)

$78.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 393884

Ring, Piston Kit (.030" O.S.)
(Superseded to 690017)

$68.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 68546

Lock-Piston Pin
(Superseded to 691073)

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 295840

Pin-Piston Std
(Superseded to 499302)

$15.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 295841

Pin-Piston 005

$6.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 390402

Rod-Connecting (Standard)

Note: For Connecting Rod with .020" Undersize Crankpin Bore-Order No. 390773

$84.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 222114

Lock-Rod Screw

$

$

Not available

32

Briggs & Stratton 92659

Screw-Connecting Rod And Bracket Mtg.
(Superseded to 690352)

$6.99

$

In Stock, only 3 left!

0

33

Briggs & Stratton 390420

Valve/Retainer Kit
(Superseded to 691794)

$

$

Not available

34

Briggs & Stratton 261055

Valve-Intake
(Superseded to 261055S)

$32.99

$

In Stock, only 2 left!

0

35

Briggs & Stratton 65906

Spring, Valve
(Superseded to 691605)

$6.99

$

In Stock, only 1 left!

0

36

Briggs & Stratton 26828

Spring, Valve (Exhaust)
(Superseded to 691597)

$10.99

$

In Stock, only 4 left!

0

40

Briggs & Stratton 221596

Retainer, Spring (Used With Valves With Groove In Stem)
(Superseded to 690656)

$

$

Not available

41

Briggs & Stratton 292260

Rotocoil Assy (Exhaust Valve)
(Superseded to 691939)

$27.99

$

In Stock, Qty 5

0

42

Briggs & Stratton 93630

Keeper, Valve (2)
(Superseded to 494553)

$7.99

$

In Stock, only 2 left!

0

45

Briggs & Stratton 260933

Tappet-Valve
(Superseded to 691793)

$6.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 211689

Gear-Cam.
(Superseded to 691167)

$

$

Not available

81

Briggs & Stratton 222263

Lock, Screw Head (3/8" Dia. Bolt Holes)
(Superseded to 691729)

$5.99

$

In Stock, only 3 left!

0

201

Briggs & Stratton 261611

Link-Governor

$20.99

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 261306

Spring-Governor
(Superseded to 792813)

$6.99

$

In Stock, only 3 left!

0

219

Briggs & Stratton 392718

Oil Slinger, Gov. Gear & Brkt Assy
(Superseded to 691980)

$

$

Not available

222

Briggs & Stratton 390784

Plate-Governor Control (Choke-A-Matic)
(Superseded to 491594)

Note: Used After Code Date 85041400

$

$

Not available

222

Briggs & Stratton 396199

Plate-Governor Control
(Superseded to 491594)

Note: Used Before Code Date 85041500

$

$

Not available

225

Briggs & Stratton 231058

Crank, Governor (1/4" Dia.)
(Superseded to 692012)

$13.99

$

In Stock, only 2 left!

0

227

Briggs & Stratton 391733

Governor Control Le (For 1/4" Dia. Crank)
(Superseded to 692942)

$19.99

$

Usually ships in 2-12 days

0

230

Briggs & Stratton 222450

Washer, Steel Zinc
(Superseded to 691691)

$3.99

$

In Stock, Qty 5

0

232

Briggs & Stratton 261911

Spring-Governor Link

$

$

Not available

265

Briggs & Stratton 221535

Clamp, Casing (Stamped Steel)
(Superseded to 691024)

$3.99

$

In Stock, Qty 7

0

284

Briggs & Stratton 93804

Screw-Clamp Mtg.
(Superseded to 690664)

$5.49

$

In Stock, only 1 left!

0

298

Briggs & Stratton 261409

Locknut, Muffler/El
(Superseded to 690453)

$4.49

$

In Stock, Qty 9

0

300D

Briggs & Stratton 392101

Muffler Assy (Super Lo-tone)
(Superseded to 498984S)

$84.99

$

Usually ships in 2-12 days

0

300C

Briggs & Stratton 399355

Muffler-Exhaust
(Superseded to 494222)

$68.99

$

Usually ships in 2-12 days

0

300A

Briggs & Stratton 398507

Muffler-Exhaust
(Superseded to 691971)

$74.99

$

In Stock, only 1 left!

0

300B

Briggs & Stratton 391313

Muffler-Exhaust
(Superseded to 692304)

$34.99

$

In Stock, only 4 left!

0

300

Briggs & Stratton 393010

Muffler Assy (Round Lo-tone)
(Superseded to 393010S)

$22.99

$

In Stock, Qty 5

0

303

Briggs & Stratton 91205

Elbow, Exhaust (90 Degrees)
(Superseded to 692835)

$11.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 93163

Screw, Sem Hex Head
(Superseded to 691003)

$3.49

$

In Stock, Qty 9

0

308

Briggs & Stratton 222636

Cover, Head
(Superseded to 691201)

$7.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 293918

Spark Plug,resistor
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 298809

Spark Plug
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

346

Briggs & Stratton 93705

Screw, Tapping Hex (8-32 X 3/8)
(Superseded to 690661)

$3.49

$

In Stock, Qty 9

0

351

Briggs & Stratton 93735

Screw-Slotted

$3.49

$

Usually ships in 2-12 days

0

352

Briggs & Stratton 66068

Washer-Fiber

$4.99

$

Usually ships in 2-12 days

0

353

Briggs & Stratton 92791

Lockwasher, Interna
(Superseded to 691077)

$3.49

$

In Stock, only 2 left!

0

354

Briggs & Stratton 90576

Nut, Hex (8-32)
(Superseded to 691612)

$3.49

$

In Stock, only 1 left!

0

355

Briggs & Stratton 66554

Washer-Insulating

$5.49

$

Usually ships in 2-12 days

0

358

Briggs & Stratton 299577

Gasket Set

$35.99

$

In Stock, Qty 11

0

383

Briggs & Stratton 89838

Wrench-Spark Plugs
(Superseded to 89838S)

$6.49

$

In Stock, only 4 left!

0

422

Briggs & Stratton 222502

Clamp-Oil Filler Tube
(Superseded to 690593)

$11.99

$

In Stock, only 1 left!

0

520

Briggs & Stratton 93722

Terminal, Spade
(Superseded to 691084)

$6.49

$

In Stock, only 2 left!

0

523

Briggs & Stratton 391840

Cap/Dipstick Assy (Screw Cap)
(Superseded to 691387)

$16.99

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 68838

Seal-Oil Filler Tube To Sump
(Superseded to 281370S)

$8.49

$

In Stock, Qty 20+

0

525

Briggs & Stratton 280133

Tube, O-Fill
(Superseded to 692963)

Note: (For Plastic Screw Cap Dipstick)

$

$

Not available

552

Briggs & Stratton 231055

Bushing, Governor S (1/4" I.d.)
(Superseded to 491986)

$

$

Not available

562

Briggs & Stratton 92613

Bolt-Gov Lever

$

$

Not available

592

Briggs & Stratton 231082

Nut (10-24)
(Superseded to 691251)

$3.49

$

In Stock, Qty 9

0

613A

Briggs & Stratton 94054

Screw, Shoulder Muf
(Superseded to 691351)

$8.49

$

In Stock, only 1 left!

0

613

Briggs & Stratton 94042

Screw, Shoulder Muf
(Superseded to 691632)

$8.49

$

In Stock, only 2 left!

0

614

Briggs & Stratton 93306

Pin, Cotter
(Superseded to 691620)

$4.49

$

In Stock, only 2 left!

0

615

Briggs & Stratton 93307

Retainer-E Ring

$5.99

$

In Stock, only 3 left!

0

621

Briggs & Stratton 297472

Switch, Stop Assy
(Superseded to 297472S)

Note: Used Before Code Date 85041500

$

$

Not available

621

Briggs & Stratton 396847

Switch, Stop Assy
(Superseded to 692310)

Note: Used After Code Date 85041400

$5.99

$

In Stock, Qty 20+

0

635

Briggs & Stratton 66538

Elbow-Spark Plug
(Superseded to 66538S)

$3.99

$

In Stock, Qty 12

0

657

Briggs & Stratton 93496

Screw, Sem Hex Head (10-32 X 5/8")
(Superseded to 690804)

$

$

Not available

663

Briggs & Stratton 93572

Screw, Hex Head Tap (10-32 X 3/8)
(Superseded to 690664)

$5.49

$

In Stock, only 1 left!

0

676B

Briggs & Stratton 393758

Deflector-Muff (Louvered Outlet)

$26.99

$

Usually ships in 2-12 days

0

676A

Briggs & Stratton 395700

Deflector-Muff (Direct Outlet)

$15.99

$

In Stock, only 1 left!

0

676

Briggs & Stratton 393757

Deflector-Muff (Side Outlet)
(Superseded to 796956)

$10.99

$

In Stock, only 1 left!

0

725A

Briggs & Stratton 223645

Shield-Muffler
(Superseded to 690433)

$21.99

$

Usually ships in 2-12 days

0

725

Briggs & Stratton 223540

Shield-Muffler
(Superseded to 690431)

$23.99

$

In Stock, only 1 left!

0

741

Briggs & Stratton 261195

Gear-Timing (For Use With Pin)

$17.99

$

Usually ships in 2-12 days

0

757

Briggs & Stratton 212359

Link-Counterwieght
(Superseded to 691714)

$

$

Not available

758

Briggs & Stratton 390172

Pin-Counterweight
(Superseded to 690619)

$49.99

$

Usually ships in 2-12 days

0

759

Briggs & Stratton 298909

Pin-Piston

$8.99

$

In Stock, only 2 left!

0

761

Briggs & Stratton 93874

Screw, Hex Head Cap
(Superseded to 690346)

$7.49

$

Usually ships in 2-12 days

0

836

Briggs & Stratton 93559

Screw-Tank To Bracket
(Superseded to 690810)

$3.49

$

In Stock, only 3 left!

0

842

Briggs & Stratton 270920

Seal, Oil Fill Tube
(Superseded to 691870)

$4.49

$

Usually ships in 2-12 days

0

847

Briggs & Stratton 392066

Dipstick/Tube Assy

$

$

Not available

869

Briggs & Stratton 211661

Seat-Valve (Intake)
(Superseded to 691844)

$18.99

$

In Stock, only 1 left!

0

870

Briggs & Stratton 210940

Seat-Exhaust Valve (Standard)
(Superseded to 691844)

$18.99

$

In Stock, only 1 left!

0

871

Briggs & Stratton 231218

Bushing-Guide (Brass)

Note: See Repair Manual

$14.99

$

In Stock, Qty 7

0

871

Briggs & Stratton 261961

Bushing-Guide

$14.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 270918

Gasket-Muffler
(Superseded to 692237)

$5.49

$

In Stock, only 3 left!

0

985

Briggs & Stratton 398525

Terminal-Insulated
(Superseded to 691972)

$8.49

$

In Stock, only 3 left!

0

994

Briggs & Stratton 399541

Spark Arrester

$28.99

$

Usually ships in 2-12 days

0

1019

Briggs & Stratton 491185

Label Kit

$29.99

$

Usually ships in 2-12 days

0

1020

Briggs & Stratton 261190

Eccentric
(Superseded to 691268)

Note: Used After Code Date 85020100

$11.99

$

Usually ships in 2-12 days

0

1021

Briggs & Stratton 94160

Pin-Groove
(Superseded to 691679)

Note: Used Before Code Date 85020100

$4.49

$

Usually ships in 2-12 days

0
