19367 - Toro Whirlwind Walk-Behind Mower (SN: 001000001 - 001999999) (1971) HOUSING ASSEMBLY MODEL NO. 20600 Parts Diagram

Whirlwind Walk-Behind Mower

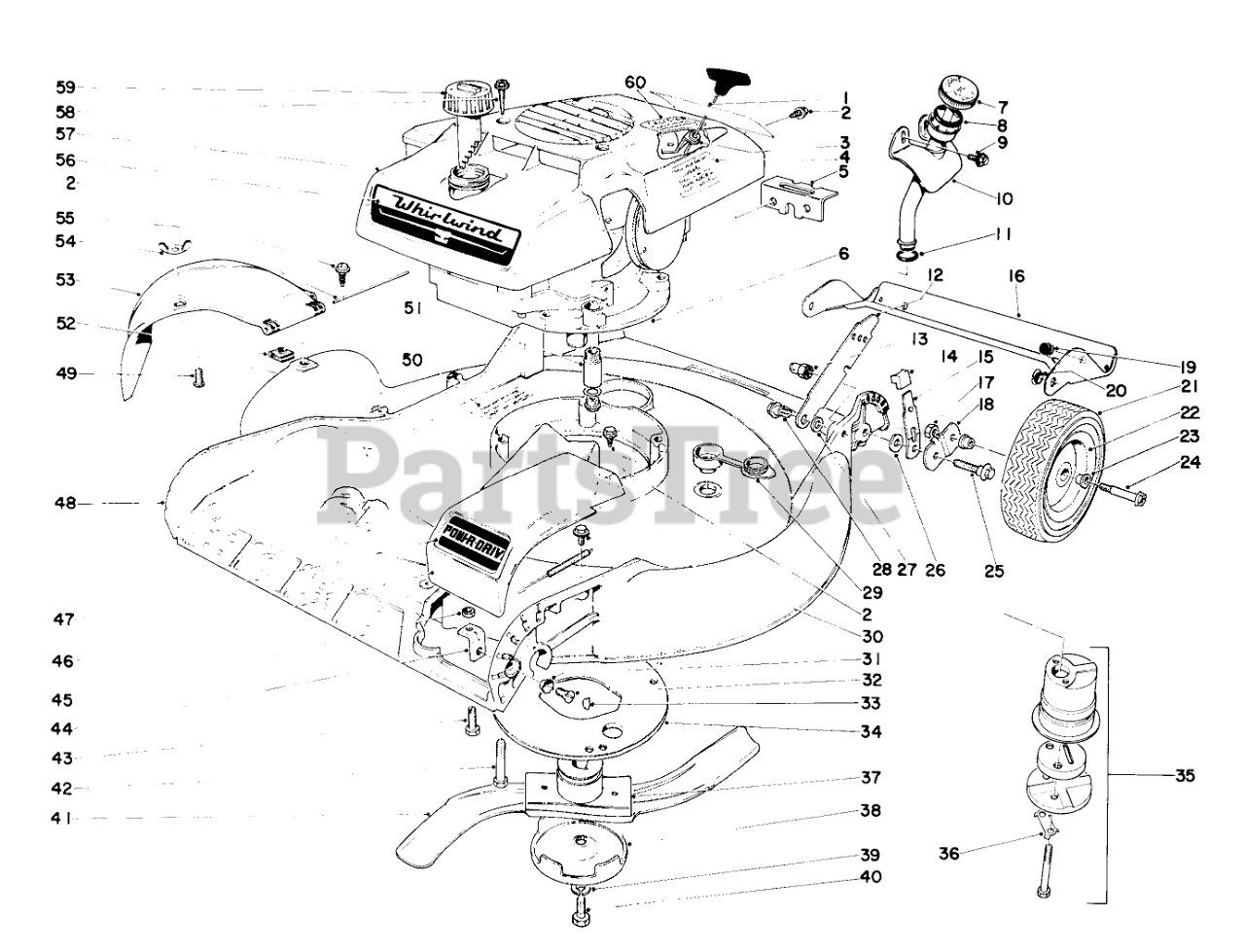

HOUSING ASSEMBLY MODEL NO. 20600 Parts Diagram

  • Title

1

Toro 6-1260

Decal,Maintenance

$

$

Currently unavailable

2

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

3

Toro 5-3340

Bracket,Recoil

$

$

Currently unavailable

4

Toro 5-4706

Decal,Start

$

$

Currently unavailable

5

Toro 5-3307

Bracket

$

$

Currently unavailable

6

Toro 221-386

Engine

$

$

Currently unavailable

7

Toro 5-4591

Dipstick

$

$

Currently unavailable

8

Toro 237-75

O-Ring
(Superseded to 237-21)

$0.99

$

In Stock, Qty 10

0

9

Toro 32140-66

Screw

$

$

Currently unavailable

10

Toro 6-0470

Oiler Tube

$

$

Not available

11

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 8

0

12

Toro 5-2446

Latch
(Superseded to 43-1550)

$

$

Not available

13

Toro 3-6482

Nut
(Superseded to 12-2080)

$25.99

$

Usually ships in 3-6 days

0

14

Toro 5-0656

Knob

$

$

Not available

15

Toro 5-3357

Spring Arm

$

$

Not available

16

Toro 4-8889

Rear Safety Shield (Incl. Ref. Nos. 19)

$

$

Currently unavailable

17

Toro 32146-12

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

18

Toro 5-4471

Pivot Arm

$

$

Currently unavailable

19

Toro 5-6450

SKID BUTTON

$

$

Not available

20

Toro 256-194

Nyliner

$

$

Currently unavailable

21

Toro 4-2600

8 TIRE

$

$

Not available

22

Toro 3-7350

Wheel (Incl. Ref. No. 23)

$

$

Not available

23

Toro 5-4504

FLANGE BUSHING

$

$

Not available

24

Toro 5-4503

Wheel Bolt

$

$

Currently unavailable

25

Toro 5-3351

Pivot Screw
(Superseded to 12-2440)

$21.99

$

In Stock, only 1 left!

0

26

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 6

0

27

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 6

0

28

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

29

Toro 5-0655

Washer Plug
(Superseded to 6-4500)

$

$

Not available

30

Toro 32140-69

Screw
(Superseded to 32144-11)

$7.99

$

In Stock, Qty 6

0

31

Toro 3255-12

Lockwasher

$

$

Not available

32

Toro 32108-20

SCREW

$0.99

$

Usually ships in 3-6 days

0

33

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, only 4 left!

0

34

Toro 3-7626

Grass Guard

$

$

Not available

35

Toro 2-9329

Muffler
(Superseded to 5-4769)

$62.99

$

Usually ships in 3-6 days

0

36

Toro 3-5094

CLIP - LOCKING

$11.99

$

Usually ships in 3-6 days

0

37

Toro 3-7286

BLADE RETAINER WA

$213.99

$

Usually ships in 3-6 days

0

38

Toro 5-9530

ANTI-SCALP CUP

$

$

Not available

39

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

40

Toro 3-5246

SPECIAL SCREW

$

$

Not available

41

Toro 3-6286

Blade

$

$

Not available

42

Toro 11-0580

3/8-16 X 2-3/4 CAPSCR

$18.99

$

Usually ships in 3-6 days

0

43

Toro 3-7281

SCREW

$

$

Not available

44

Toro 3-7278

ADJ BRACKET

$

$

Not available

45

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

46

Toro 5-3305

Guard, Belt

$

$

Currently unavailable

47

Toro 5-3303

Decal

$

$

Currently unavailable

48

Toro 5-3324

Housing

$

$

Currently unavailable

49

Toro 3290-133

SCREW

$1.49

$

Usually ships in 3-6 days

0

50

Toro 3-7643

Decal
(Superseded to 104-8589)

$7.49

$

Usually ships in 3-6 days

0

51

Toro 3-0761

Extension Oil Drain

$

$

Currently unavailable

52

Toro 3290-199

NUT-SPEED

$5.49

$

Usually ships in 3-6 days

0

53

Toro 11-0450

Deflector
(Superseded to 71-8640)

$

$

Not available

54

Toro 32103-14

NUT-WING SPECL

$15.99

$

In Stock, only 1 left!

0

55

Toro 3-2644

HINGE PIN

$

$

Not available

56

Toro 5-3304

Decal

$

$

Currently unavailable

57

Toro 5-9550

Shroud

$

$

Currently unavailable

58

Toro 32104-88

SCREW-HWH

$

$

Not available

59

Toro 5-3460

Gas Cap
(Superseded to 42-0682)

$

$

Not available

60

Toro 5-4752

Decal-Warning

$

$

Not available

Toro 5-4472

Pivot Arm

Note: Not illustrated

$

$

Not available

Toro 5-0657

ARM KNOB

Note: Not illustrated

$

$

Not available
