1935-0 - Husqvarna 6,500 Watt Portable Generator Main Unit Parts Diagram

6,500 Watt Portable Generator

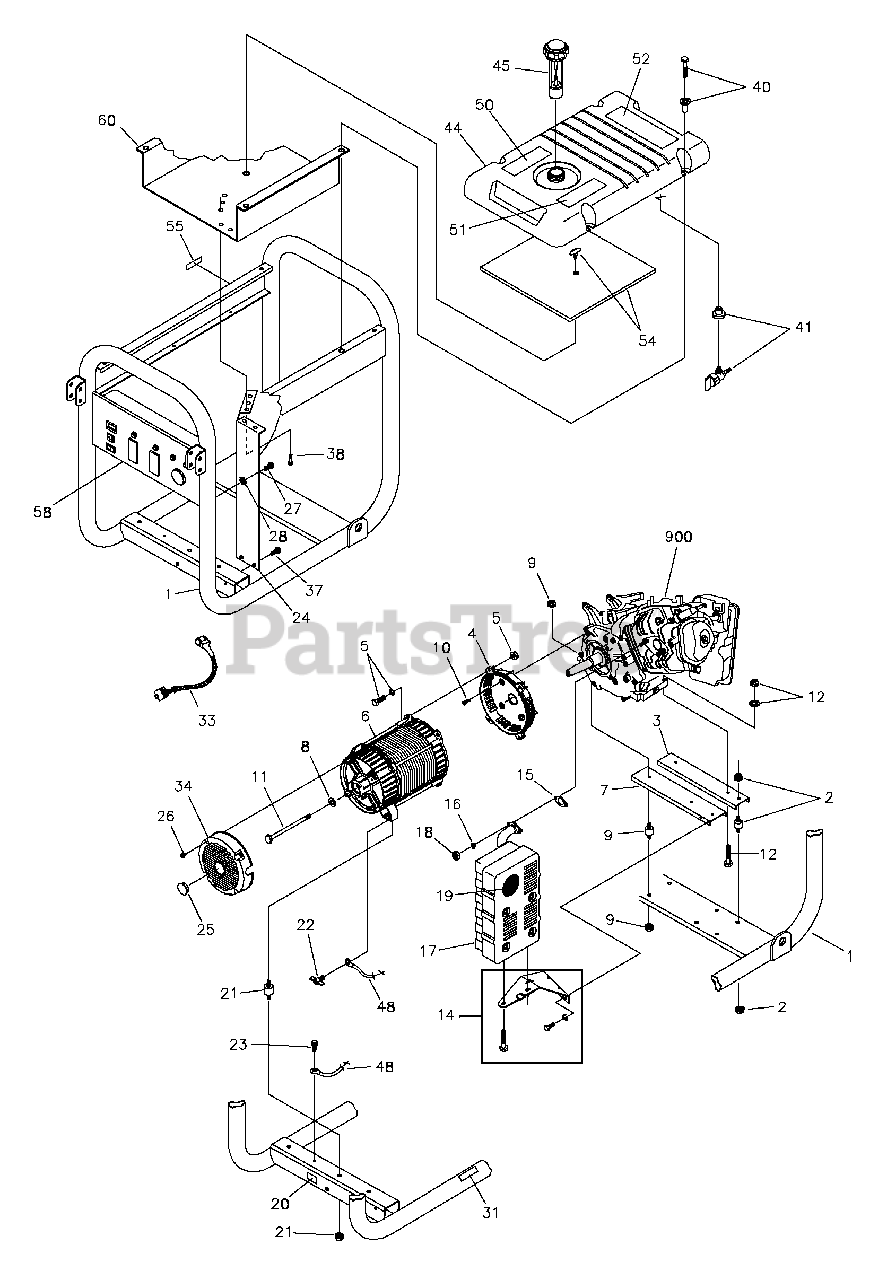

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton N192958GS

KIT, Cradle

Note: (Includes Items 20, 31 & 55)

$533.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 194218GS

KIT,Vibration Mount

$16.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton N92531GS

SUPPORT, Engine
(Superseded to B92531GS)

$30.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 190220GS

HOUSING, Engine Adapter

$43.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 194151GS

KIT, Hardware Mounting Adapter

$22.99

$

Usually ships in 2-12 days

0

6

NSP

ASSY,Alternator (see "Alternator")

$

$

Not available

7

Briggs & Stratton N92731GS

SUPPORT, Eng/Muffler

$24.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 96796GS

WASHER, M8 Flat

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 194219GS

KIT,Vibration Mount

$16.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 190274BGS

SBHCS, 3/8-16 x 1.0 Lg.

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 187365JGS

HHCS, 5/16-24 x 7.75

$21.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 195078GS

KIT, Engine Mounting Hardware

$11.99

$

In Stock, only 2 left!

0

14

Briggs & Stratton 195079GS

KIT, Muffler Bracket w/ Hardware

$23.99

$

Usually ships in 2-12 days

0

15

NSP

GASKET, Muffler

$

$

Not available

16

Briggs & Stratton 31579GS

SPACER, 3/8 x 3/4 x 3/8

$19.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 192569GS

MUFFLER

$179.99

$

In Stock, only 1 left!

0

18

Briggs & Stratton 67989GS

NUT, Flange Serrated

$3.49

$

In Stock, Qty 5

0

19

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, only 2 left!

0

20

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194153GS

KIT,Vibration Mount

$11.99

$

In Stock, Qty 5

0

22

Briggs & Stratton 86494GS

SCREW,Wing, M6 - 1.0 x 16

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 86292GS

SCREW, 10 - 16 x 3/4, Self Drill
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 194390GS

SHIELD, Heat

$86.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 191190GS

CAP

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

TAPTITE, M5-0.8 x 10

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton B2153GS

SCREW, 12-14 x 7/8, Self Drill

$4.49

$

Usually ships in 2-12 days

0

28

WASHER, Shakeproof Ext. #10

Note: (Purchase locally)

$

$

Not available

31

Briggs & Stratton 196830GS

DECAL, Hot Muffler

$15.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 193157GS

HARNESS,Wire, Power

$42.99

$

In Stock, only 1 left!

0

34

Briggs & Stratton 195422GS

COVER, Bearing Carrier w/ Cap

$13.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 192376GS

SCREW, 12-24 x 1/2 Thd Forming

$3.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 56893GS

SCREW, 10-24 x 1/2 Crimptite

$3.49

$

In Stock, only 1 left!

0

40

Briggs & Stratton 195076GS

KIT, Fuel Tank Hardware

$5.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 192980GS

KIT,Valve Fuel Tank

$17.99

$

In Stock, Qty 20+

0

44

Briggs & Stratton 193500GS

ASSY,Tank, Fuel

Note: (Includes Items 41, 50, 51 & 52)

$

$

Not available

45

Briggs & Stratton B4363GS

CAP, Fuel Gauge

$41.99

$

In Stock, Qty 20+

0

48

Briggs & Stratton 195373GS

WIRE, Ground

$2.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 188333GS

DECAL, Instruction, Fuel Level

$23.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 194799GS

DECAL, Danger

$11.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 189235GS

DECAL, Start Instructions

$19.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 194448GS

KIT, Insulation with Clip

$31.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 197798GS

DECAL, Fuel Shut-off

$9.49

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 193049GS

ASSY, Control Panel (see "Control Panel")

$

$

Not available

60

Briggs & Stratton 194389GS

SHIELD, Heat
(Superseded to 208564GS)

$133.99

$

Usually ships in 2-12 days

0

900

ENGINE

Note: Contact Engine Manufacturer

$

$

Not available

Briggs & Stratton 43438GS

PLUG, 250V 30A, 4 Prong

Note: Not Illustrated

$26.99

$

Usually ships in 2-12 days

0

Briggs & Stratton BB3061BGS

OIL, Bottle
(Superseded to 100005)

Note: Not Illustrated

$8.99

$

In Stock, Qty 20+

0

Briggs & Stratton 65787GS

CABLE, Battery Charge

Note: Not Illustrated

$24.99

$

Usually ships in 2-12 days

0

Briggs & Stratton B1464GS

MANUAL, Engine

Note: Not Illustrated

$17.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 193174GS

MANUAL, Owners

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 195077GS

KIT, Decals, Srv

Note: Not Illustrated

$75.99

$

Usually ships in 2-12 days

0
