1934-2 - Briggs & Stratton PRO 8,000 Watt Portable Generator, CSA Compliant Alternator Parts Diagram

PRO 8,000 Watt Portable Generator, CSA Compliant

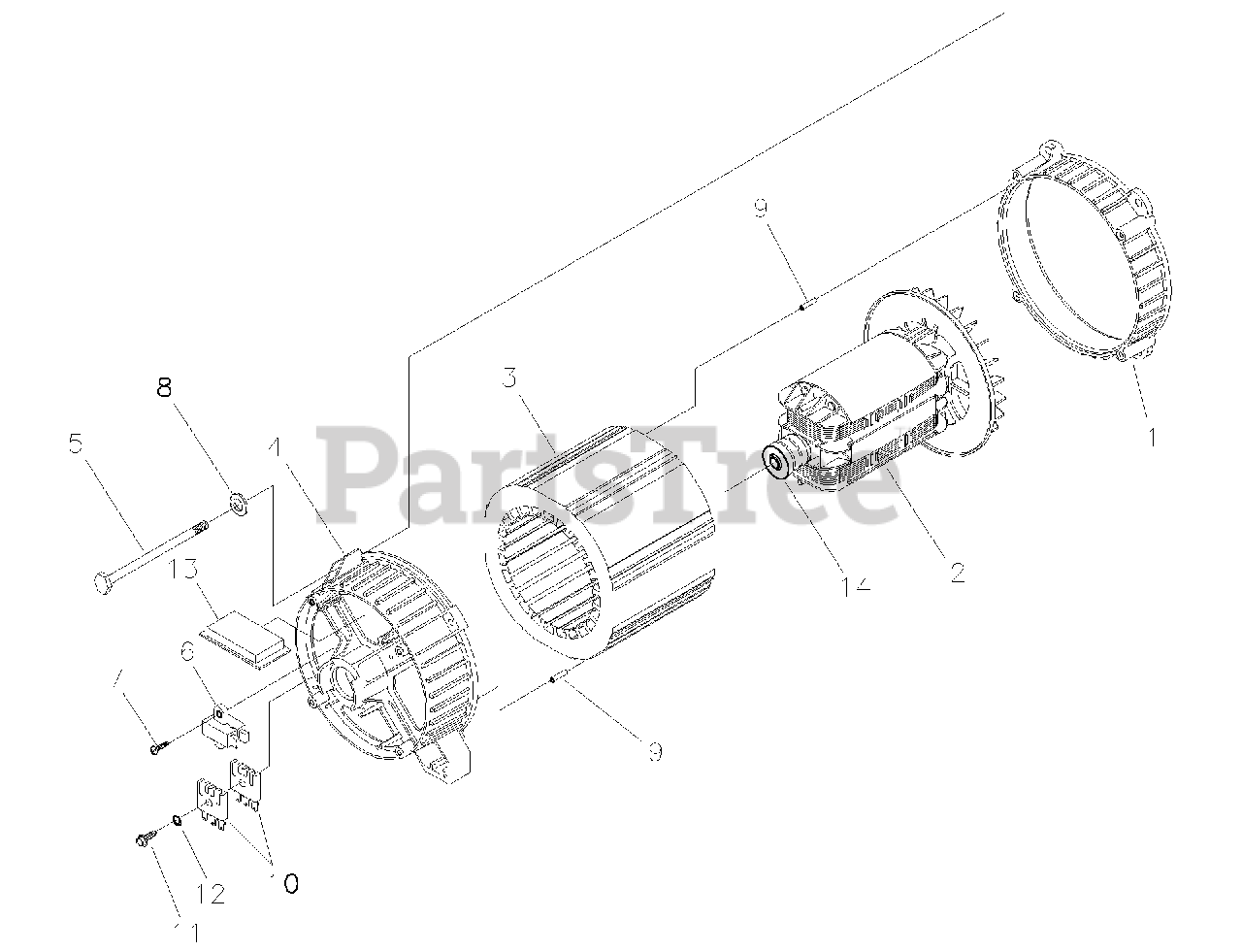

Alternator Parts Diagram

  • Title

1

Briggs & Stratton 186059GS

ADAPTER, Mounting, Alternator
(Superseded to 209599GS)

$35.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 192938GS

ROTOR

$434.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 192937AGS

STATOR

$633.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 186060GS

RBC, with O-Ring (p/n 189197GS)
(Superseded to 193336GS)

$39.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 66449LGS

HHCS, M6 - 1.0 x 190 SEMS

$30.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 66386GS

ASSY, Holder, Rectifier/Brush

$23.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton 66849GS

TAPTITE, M5 - 0.8 x 16

$4.99

$

Usually ships in 2-12 days

0

8

LOCKWASHER, 1/4 - M6

Note: Purchase locally

$

$

Not available

9

Briggs & Stratton 81917GS

PIN, Roll, 4mm x 10

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 65795GS

RECTIFIER, Battery Charge

$

$

Not available

11

Briggs & Stratton 66849CGS

TAPTITE, M5 - 0.8 x 30

$4.99

$

Usually ships in 2-12 days

0

12

WASHER, Shakeproof, Ext. #10

Note: Purchase locally

$

$

Not available

13

Briggs & Stratton 189769GS

REGULATOR, Voltage-AVR
(Superseded to 205858GS)

$107.99

$

In Stock, Qty 18

0

14

Briggs & Stratton 65791GS

BEARING

$34.99

$

Usually ships in 2-12 days

0
