1933-1 - Generac PRO 6,500 Watt Portable Generator, CSA Compliant Main Unit Parts Diagram

PRO 6,500 Watt Portable Generator, CSA Compliant

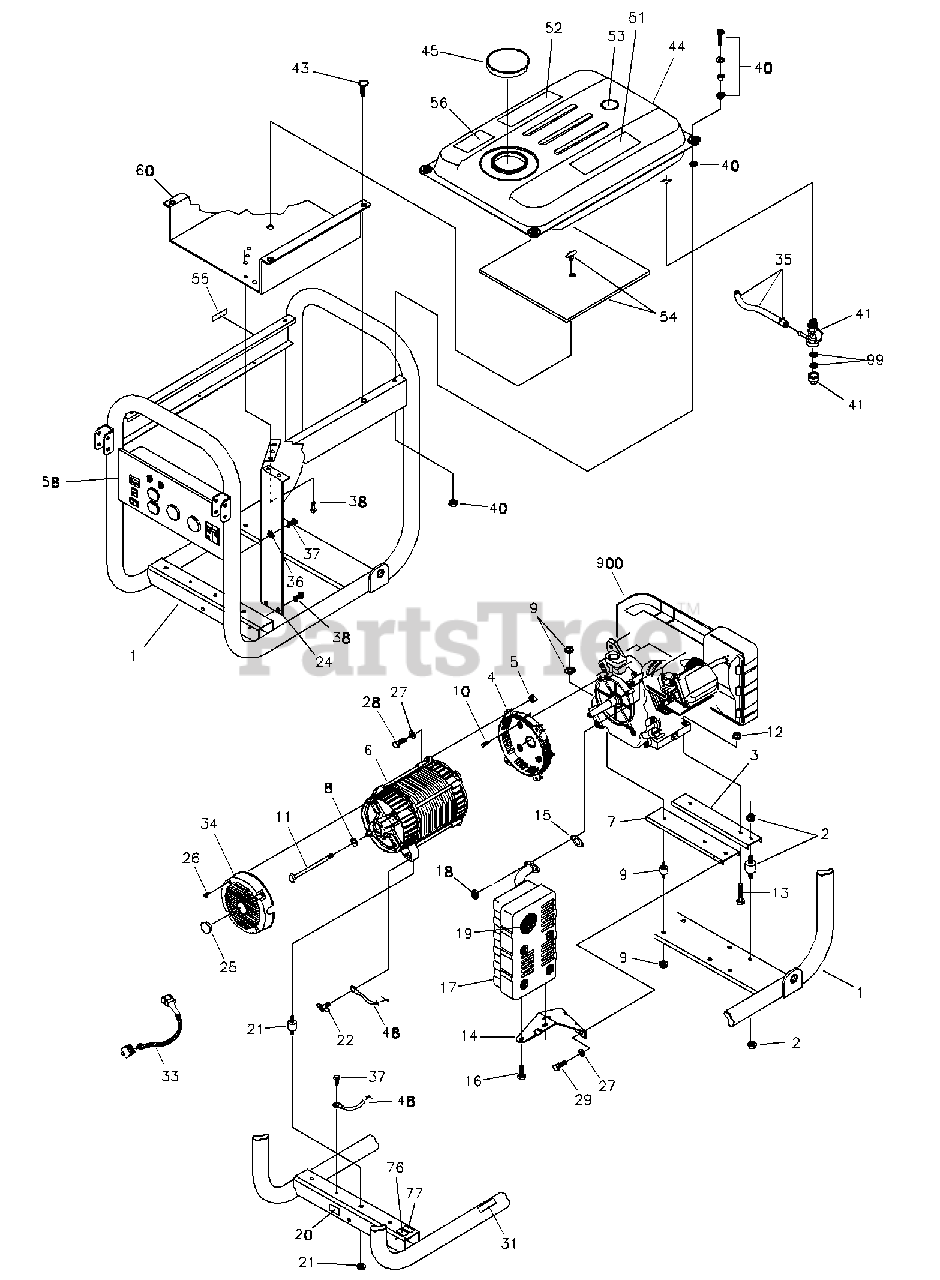

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton B192958GS

KIT, Cradle (Includes Items 20, 31, 55, 76 & 77)

$352.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 194218GS

MOUNT, Vibration

$16.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton B92531GS

SUPPORT, Engine

$30.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 190220GS

HOUSING, Engine Adapter

$43.99

$

Usually ships in 2-12 days

0

5

NUT, Hex, M8 - 1.25

Note: Purchase locally

$

$

Not available

6

NSP

ASSY, Alternator (see page 4)

$

$

Not available

7

Briggs & Stratton B190723GS

SUPPORT, Eng/Muffler

$36.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 96796GS

WASHER, 8.4 x 22.2 x 3

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 194219GS

KIT, Vibration Mount

$16.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 190274DGS

SBHCS, 3/8-16 x 7/8"

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 187365JGS

HHCS, 5/16-24 x 7.75

$21.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 189160GS

NUT, 5/16-18 Serrated Flange

$2.99

$

Usually ships in 2-12 days

0

13

HHCS, 5/16-18 x 1-3/4"

Note: Purchase locally

$

$

Not available

14

Briggs & Stratton 92532GS

BRACKET, Muffler

$22.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 710250

GASKET, Muffler

$8.49

$

In Stock, only 1 left!

0

16

HHCS, M6- 1.0 x 12

Note: Purchase locally

$

$

Not available

17

Briggs & Stratton B4206GS

MUFFLER

$112.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 67989GS

NUT, Flange Serrated

$3.49

$

In Stock, Qty 9

0

19

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, only 2 left!

0

20

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194153GS

KIT, Vibration Mount

$11.99

$

In Stock, Qty 7

0

22

Briggs & Stratton 86494GS

SCREW, M6-1.0 x 16 Wing

$2.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton J194390GS

SHIELD, Heat

$94.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 191190GS

CAP

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

TAPTITE, M5-0.8 x 10

$2.99

$

Usually ships in 2-12 days

0

27

WASHER, 5/16 - M8, Lock

Note: Purchase locally

$

$

Not available

28

HHCS, M8-1.25 x 25

Note: Purchase locally

$

$

Not available

29

HHCS, 5/16-18 x 3/4

Note: Purchase locally

$

$

Not available

31

Briggs & Stratton 200310GS

DECAL, Hot Muffler

$15.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 193157GS

HARNESS, Wire, Power

$42.99

$

In Stock, only 1 left!

0

34

Briggs & Stratton 195422GS

COVER, RBC, Plastic w/Cap

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 791745

KIT, Fuel Line (cut to fit)

$10.99

$

In Stock, Qty 20+

0

36

WASHER, M6 - 1/4, Int, Shakeproof

Note: Purchase locally

$

$

Not available

37

Briggs & Stratton B2153GS

SCREW, 12-14 x 7/8 Self Drill

$4.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 192376GS

SCREW, 12-24 x 1/2 Thread Forming

$3.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 196034GS

KIT, Hardware Tank Fuel (Includes qty of 4)

$13.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 193272GS

VALVE, Fuel (Includes Item 99)
(Superseded to 310574GS)

$10.99

$

In Stock, Qty 20+

0

43

Briggs & Stratton B1797GS

CLIP, Tree

$3.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 196035GS

ASSY, Fuel Tank, 7-Gal (Includes 41, 51, 52, 53 & 56)

$

$

Not available

45

Briggs & Stratton 189135GS

CAP, Fuel

$20.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 195373GS

WIRE, Ground

$2.49

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 194984GS

DECAL, Warning

$17.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 94480GS

DECAL, Start Instructions

$17.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 192724GS

GAUGE, Fuel

$

$

Not available

54

Briggs & Stratton 194448GS

KIT, Insulation w/ Clip

$31.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 197797GS

DECAL, Fuel Shut-off

$8.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 202997GS

DECAL, Warning CO

$13.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 202531GS

ASSY, Control Panel

$713.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton J194389GS

SHIELD, Heat

$94.99

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 195459GS

DECAL, Neutral Ground

$6.99

$

Usually ships in 2-12 days

0

77

Briggs & Stratton 195940GS

DECAL, Ground French

$6.99

$

Usually ships in 2-12 days

0

99

Briggs & Stratton 189759GS

KIT, Fuel Valve Repair
(Superseded to 310574GS)

$10.99

$

In Stock, Qty 20+

0

900

ENGINE

Note: Contact Engine Manufacturer

$

$

Not available

Briggs & Stratton MS6669

MANUAL, Engine
(Superseded to 279775WST)

Note: Parts Not Illustrated

$8.49

$

Usually ships in 2-12 days

0

Briggs & Stratton 195994GS

MANUAL, Operator’s

Note: Parts Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 43438GS

PLUG, 120/240V, 30A

Note: Parts Not Illustrated

$26.99

$

Usually ships in 2-12 days

0

Briggs & Stratton BB3061BGS

OIL BOTTLE
(Superseded to 100005)

Note: Parts Not Illustrated

$8.99

$

In Stock, Qty 20+

0

Briggs & Stratton 202179GS

DECAL, Family EVP

Note: Parts Not Illustrated

$8.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 65787GS

CABLE, Battery Charge

Note: Parts Not Illustrated

$24.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 100523GS

PLUG, 125V, 30A

Note: Parts Not Illustrated

$20.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 193412GS

KIT, Decals

Note: Parts Not Illustrated

$55.99

$

Usually ships in 2-12 days

0
