1932-1 - Briggs & Stratton PRO 4,000 Watt Portable Generator, CSA Compliant Main Unit Parts Diagram

PRO 4,000 Watt Portable Generator, CSA Compliant

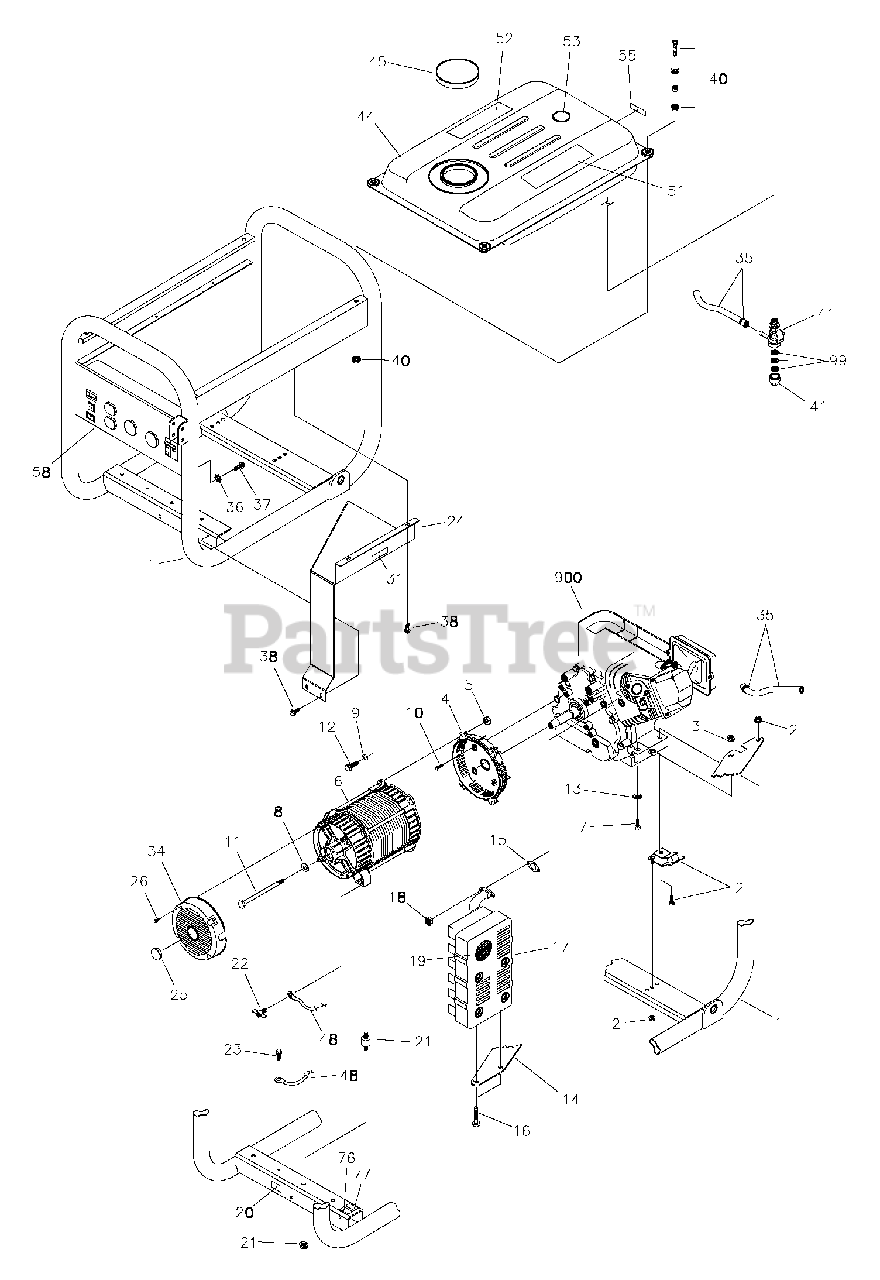

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton B192658GS

CRADLE

$372.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 194150GS

KIT, Mount,Vibration, 45°

$13.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 67989GS

NUT, M8 Flange Serrated

$3.49

$

In Stock, Qty 9

0

4

Briggs & Stratton 190220GS

HOUSING, Engine Adapter

$43.99

$

Usually ships in 2-12 days

0

5

NUT, Hex M8 - 1.25

Note: (Purchase locally)

$

$

Not available

6

NSP

ASSY, Alternator

Note: (see "Alternator")

$

$

Not available

7

TPHMS, M8 - 1.25 x 25

Note: (Purchase locally)

$

$

Not available

8

Briggs & Stratton 96796GS

WASHER, M8 Flat

$3.49

$

Usually ships in 2-12 days

0

9

WASHER, M8 5/16 Lock

Note: (Purchase locally)

$

$

Not available

10

Briggs & Stratton 190274DGS

SCREW, 3/8-16 x 7/8

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 53122GS

HHCS, 5/16-24 x 6-1/2

$10.99

$

In Stock, only 1 left!

0

12

HHCS, M8 1.25 x 25

Note: (Purchase locally)

$

$

Not available

13

WASHER, 5/16 Flat

Note: (Purchase locally)

$

$

Not available

14

Briggs & Stratton 193021GS

BRACKET, Muffler

$36.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 710082

GASKET, Exhaust

$7.99

$

In Stock, only 1 left!

0

16

HHCS, M6 - 1.0 x 12

Note: (Purchase locally)

$

$

Not available

17

Briggs & Stratton 192898GS

MUFFLER

$

$

Not available

18

Briggs & Stratton 710090

NUT

$3.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, only 2 left!

0

20

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 194153GS

KIT, Vibration Mount

$11.99

$

In Stock, Qty 5

0

22

Briggs & Stratton 86494GS

SCREW, Wing M6 1.0 x 16

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 86292GS

SCREW, 10-16 x 3/4, Self Drill
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton J193053GS

SHIELD, Heat

$110.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 191190GS

CAP

$3.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 74908GS

TAPTITE, M5-0.8 x 10

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 191436GS

DECAL, Caution Hot Muffler

$8.49

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 195422GS

COVER, RBC, Platic with Cap

$13.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 791745

KIT, Fuel Hose (cut to fit)

$10.99

$

In Stock, Qty 20+

0

36

WASHER, M6 - 1/4 Int. Shakeproof

Note: (Purchase locally)

$

$

Not available

37

Briggs & Stratton B2153GS

SCREW, #10 Self Drilling

$4.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 192376GS

SCREW, 12-24 x 1/2 THD Forming

$3.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 194212GS

KIT, Fuel Tank Hardware

$9.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 193272GS

VALVE, Tank
(Superseded to 310574GS)

$10.99

$

In Stock, Qty 20+

0

44

Briggs & Stratton 195988GS

ASSY, Tank, Fuel

Note: (Includes Items 41, 51, 52 & 53)

$

$

Not available

45

Briggs & Stratton 189135GS

CAP, Fuel,Vented

$20.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 195373GS

WIRE, Ground

$2.49

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 194984GS

DECAL, Danger

$17.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 94480GS

DECAL, Start Instructions

$17.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 189136GS

GAUGE, Fuel

$18.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 197797GS

DECAL, Fuel Shutoff

$8.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 195512GS

ASSY, Control Panel

Note: (see "Control Panel")

$

$

Not available

76

Briggs & Stratton 195459GS

DECAL, Neutral Ground

$6.99

$

Usually ships in 2-12 days

0

77

Briggs & Stratton 195940GS

DECAL, Ground French

$6.99

$

Usually ships in 2-12 days

0

99

Briggs & Stratton 189759GS

KIT, Fuel Repair Valve
(Superseded to 310574GS)

$10.99

$

In Stock, Qty 20+

0

900

ENGINE

Note: Contact engine manufacturer.

$

$

Not available

Briggs & Stratton 43483GS

PLUG, 250V 20A, 4 Prong
(Superseded to 100522GS)

Note: Not Illustrated

$34.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 100523GS

PLUG, 125V 30A, 3 Prong

Note: Not Illustrated

$20.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 65787GS

CABLE, Battery Charge

Note: Not Illustrated

$24.99

$

Usually ships in 2-12 days

0

Briggs & Stratton BB3061GS

OIL BOTTLE

Note: Not Illustrated

$13.99

$

Usually ships in 2-12 days

0

Briggs & Stratton MS6669

MANUAL, Engine
(Superseded to 279775WST)

Note: Not Illustrated

$8.49

$

Usually ships in 2-12 days

0

Briggs & Stratton 195541GS

MANUAL, Operator's

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 199383GS

DECAL, Family CA, EVP

Note: Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 193642GS

KIT, Decals Service

Note: Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 100031

STABILIZER, Fuel
(Superseded to 100126)

Note: Optional Accessories

$3.49

$

In Stock, Qty 20+

0
