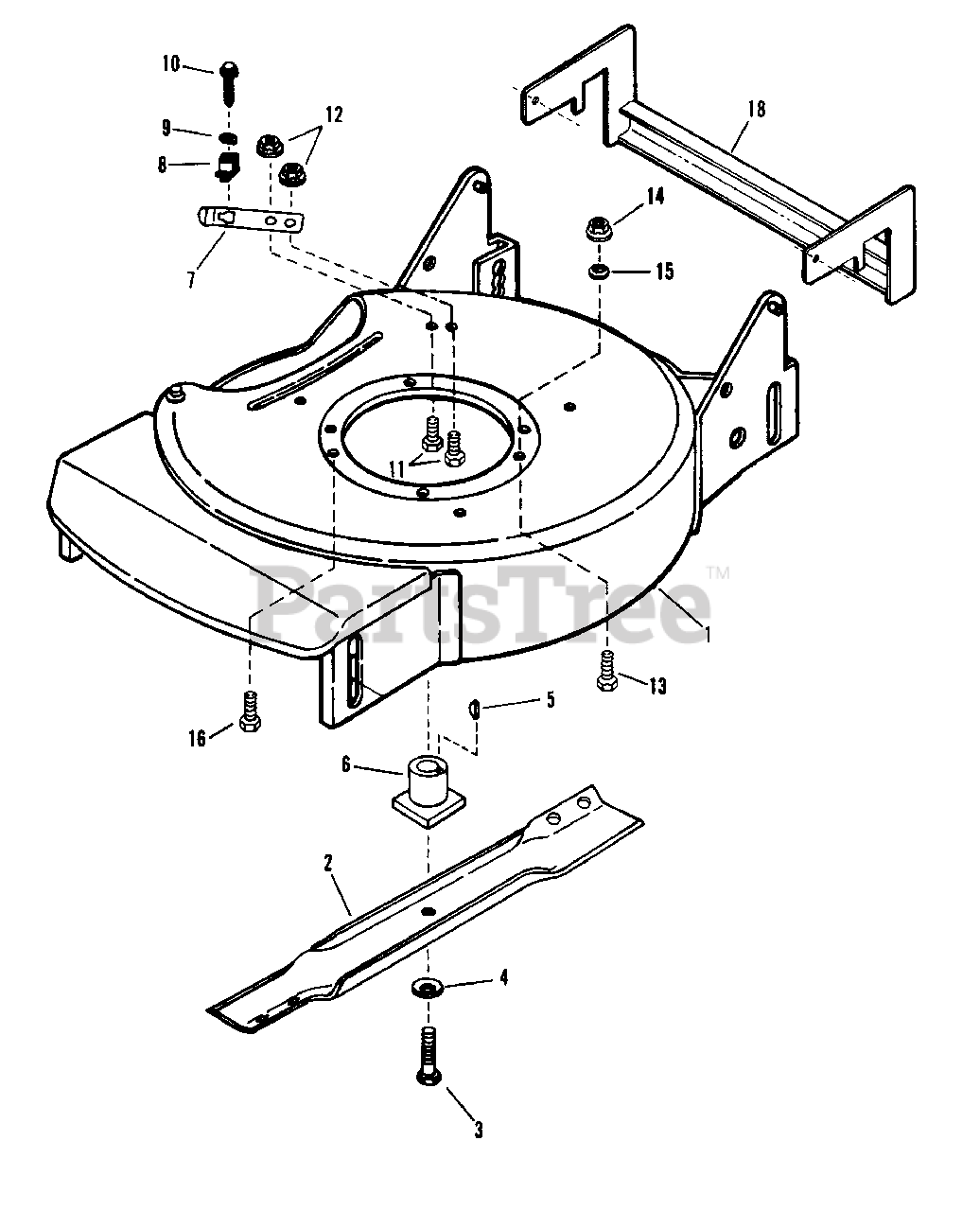

19307T-2 (83520) - Snapper 19" Walk-Behind Mower, 3hp Cutting Deck, Blade Interlock Parts Diagram

19" Walk-Behind Mower, 3hp

Cutting Deck, Blade Interlock Parts Diagram

  • Title

1

Snapper 7057662

WELDMENT, Deck (Tall Engine Mount)
(Superseded to 7057662YP)

Note: Was 47972

$364.99

$

Usually ships in 2-12 days

0

2

Snapper 7017031

BLADE, Cutter

Note: (Replaces 19711)

$27.99

$

In Stock, only 1 left!

0

Snapper 7017167

BLADE, Cutter

Note: (Recycling Models)

$

$

Not available

3

Snapper 7090167

SCREW, 3/8-24 x 2" Hex Head Cap, Grade 5
(Superseded to 7090167SM)

$3.99

$

Usually ships in 2-12 days

0

4

Snapper 7012063

WASHER, Cone
(Superseded to 703963)

$6.99

$

In Stock, only 2 left!

0

5

Snapper 7010783

KEY, Hi-Pro
(Superseded to 7010783YP)

$3.99

$

Usually ships in 2-12 days

0

6

Snapper 7012927

HUB, Blade Drive
(Superseded to 7012927YP)

Note: ('90 Models & Earlier)

$13.99

$

In Stock, only 2 left!

0

Snapper 7015626

HUB, Blade Drive
(Superseded to 7015626YP)

Note: ('91 Models & Later)

$15.99

$

In Stock, only 1 left!

0

7

Snapper 7032137

SPRING, Interlock
(Superseded to 7032137YP)

$19.99

$

Usually ships in 2-12 days

0

8

Snapper 7012048

INSULATOR, Interlock
(Superseded to 7012048YP)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper 7090385

WASHER, #8 Tab

$

$

Not available

10

Snapper 7090379

SCREW, #8-18 x 3/4" Sheet Metal
(Superseded to 7090379YP)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper 7090071

SCREW, 1/4-20 x 1/2" Hex Head Cap, Grade 5
(Superseded to 703818)

$3.49

$

In Stock, only 1 left!

0

12

Snapper 7091584

NUT, 1/4-20 Hex Flange
(Superseded to 703233)

Note: Was 90583

$4.49

$

In Stock, Qty 5

0

13

Snapper 7090204

SCREW, 5/16-18 x 5/8" Hex Head Cap, Grade 2
(Superseded to 703822)

Note: (only 1 shown)(Tecumseh) ENGINE MOUNTING HARDWARE

$4.49

$

In Stock, only 1 left!

0

14

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585 (Tecumseh) ENGINE MOUNTING HARDWARE

$5.49

$

In Stock, Qty 20+

0

15

Snapper 17191

RETAINER, 5/16" Bolt

Note: (Tecumseh) ENGINE MOUNTING HARDWARE

$

$

Currently unavailable

16

Snapper 7090324

SCREW, 3/8-16 x 1" Hex Washer Self-Tap
(Superseded to 704000)

Note: (Briggs) ENGINE MOUNTING HARDWARE

$4.99

$

Usually ships in 2-12 days

0

17

Snapper 7011762

COVER, Spark Plug
(Superseded to 7011762YP)

Note: (Not shown)

$3.99

$

Usually ships in 2-12 days

0

18

Snapper 7049753

STRUCTURE, Fender

Note: (European Models Only)

$

$

Currently unavailable
