19305D (83518) - Snapper 19" Walk-Behind Mower, 3hp Upper & Middle Handles & Controls - Series 5 Parts Diagram

19" Walk-Behind Mower, 3hp

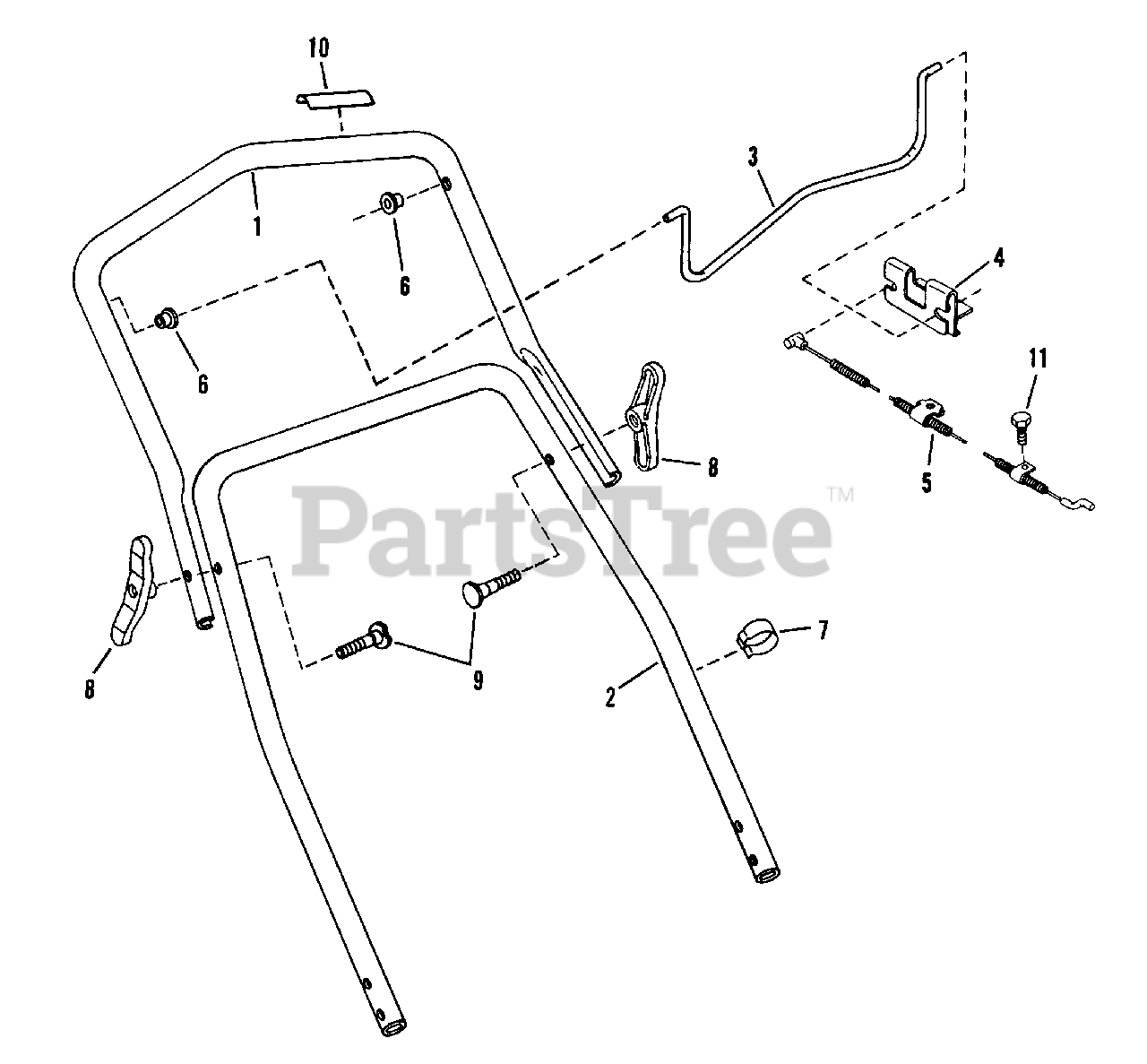

Upper & Middle Handles & Controls - Series 5 Parts Diagram

  • Title

1

Snapper 7036204

HANDLE, Upper

Note: Was 36198 (19303 Series)('88 & Later Models)

$

$

Not available

2

Snapper 7036202

HANDLE, Middle
(Superseded to 7036202YP)

Note: (19303 Series)('88 & Later Models)

$49.99

$

Usually ships in 2-12 days

0

3

Snapper 7019714

CONTROL, Blade
(Superseded to 7047011YP)

$

$

Not available

4

Snapper 7033904

CLIP (Left Hand-Tecumseh, Right Hand-Briggs)
(Superseded to 7034872YP)

Note: Was 32560

$5.99

$

In Stock, Qty 5

0

5

Snapper 7014305

CABLE, Control (Briggs & Stratton)
(Superseded to 7014305YP)

$23.99

$

In Stock, only 4 left!

0

Snapper 7014306

CABLE, Control (Tecumseh)
(Superseded to 7014306YP)

$18.99

$

Usually ships in 2-12 days

0

6

Snapper 7014343

BUSHING
(Superseded to 7014343YP)

$3.99

$

In Stock, Qty 20+

0

7

Snapper 7023813

CLIP
(Superseded to 7023813SM)

Note: Was 14374

$3.49

$

In Stock, Qty 20+

0

8

Snapper 7015693

NUT, 1/4-20 Wing
(Superseded to 014X79MA)

$4.99

$

Usually ships in 2-12 days

0

9

Snapper 7090965

SCREW, 1/4-20x1-3/8" Curved Head
(Superseded to 7090965YP)

$15.99

$

Usually ships in 2-12 days

0

10

Snapper 14310

DECAL, Blade Control

$

$

Currently unavailable

11

Snapper 7090898

SCREW, #10-32x1/4" Hex Sems (Tec.)

$

$

Not available

Snapper 7090816

SCREW, #10-32x3/8" Hex Head Cap (B&S)

$

$

Not available
