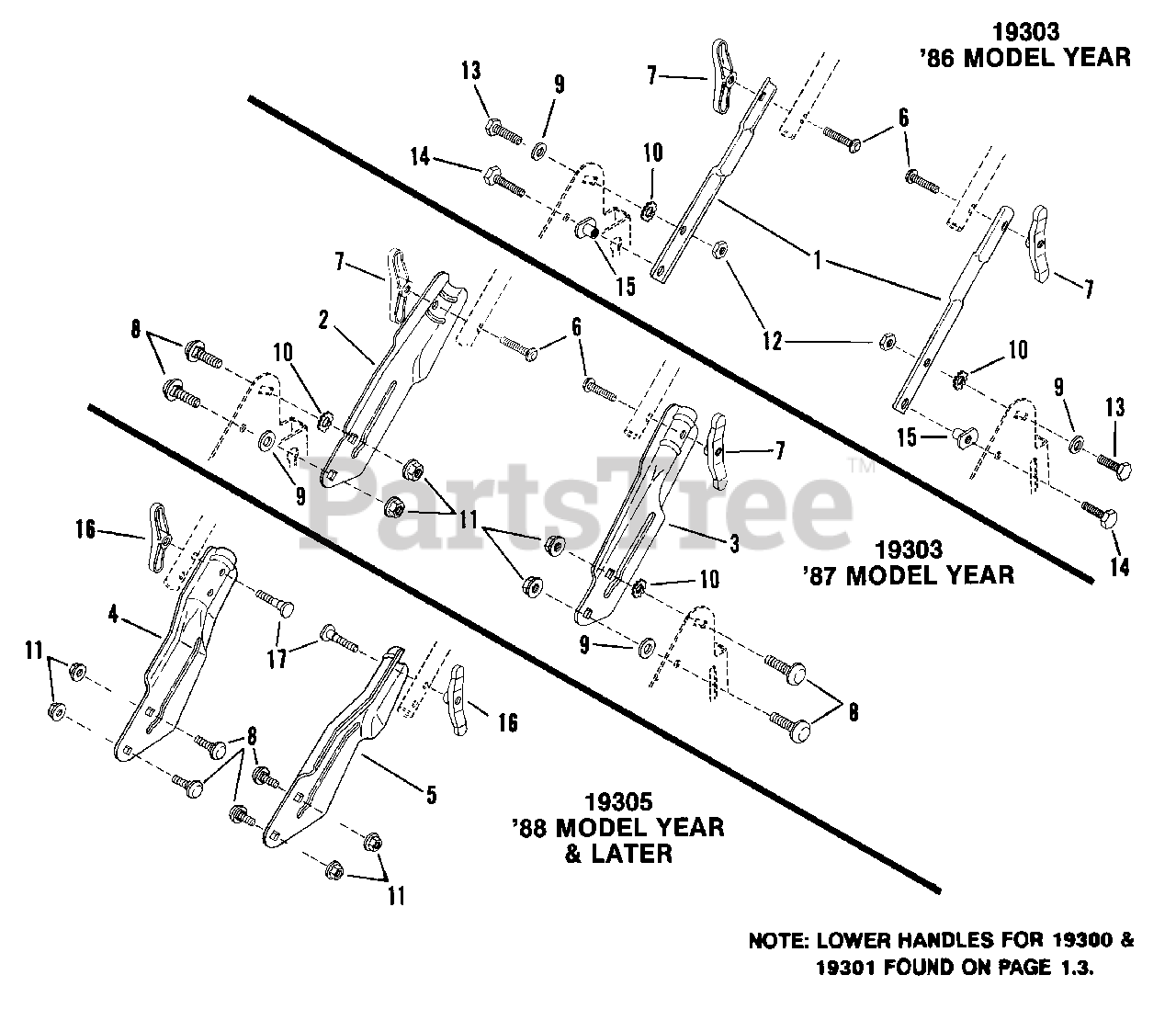

19303D (83517) - Snapper 19" Walk-Behind Mower, 3hp Lower Handles - Series 3 & 5 Parts Diagram

19" Walk-Behind Mower, 3hp

Lower Handles - Series 3 & 5 Parts Diagram

  • Title

1

Snapper 7038209

HANDLE, Lower

Note: (19303). ('86 Model Year)

$

$

Not available

2

Snapper 7038246

HANDLE, Lower R.H.
(Superseded to 7038246YP)

Note: (19303). ('87 Model Year)

$25.99

$

Usually ships in 2-12 days

0

3

Snapper 7038247

HANDLE, Lower L.H.
(Superseded to 7038247YP)

Note: (19303). ('87 Model Year)

$33.99

$

Usually ships in 2-12 days

0

4

Snapper 7035342

HANDLE, Lower R.H.
(Superseded to 7035342YP)

Note: (19305). ('88 Model Year & later)

$43.99

$

In Stock, only 1 left!

0

5

Snapper 7046502

HANDLE, Lower L.H.
(Superseded to 7046502YP)

Note: Was 38401 (19305). ('88 Model Year & later)

$56.99

$

In Stock, only 1 left!

0

6

Snapper 7090015

BOLT, 1/4-20 x 1-3/4" Short Neck Carriage
(Superseded to 7090015YP)

$3.99

$

Usually ships in 2-12 days

0

7

Snapper 7015693

NUT, 1/4-20 Wing
(Superseded to 014X79MA)

Note: Was 14207

$4.99

$

Usually ships in 2-12 days

0

8

Snapper 7090799

BOLT, 5/16-18 x 5/8" Short Neck Carriage, Grade 5
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

9

Snapper 7090188

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

10

Snapper 7090189

WASHER, 5/16" Internal/External Tooth Lock
(Superseded to 703936)

$4.49

$

In Stock, only 1 left!

0

11

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

12

Snapper 7090222

NUT, 5/16-24 Hex Center Lock
(Superseded to 703896)

$3.49

$

In Stock, Qty 20+

0

13

Snapper 7090233

SCREW, 5/16-24 x 3/4" Hex Head Cap, Grade 5
(Superseded to 703336)

$4.49

$

In Stock, Qty 5

0

14

Snapper 7090534

SCREW, 5/16-15 x 1/2" Hex Head Cap, Grade 2
(Superseded to 704317)

Note: Was 90203

$4.49

$

Usually ships in 2-12 days

0

15

Snapper 7090388

T-NUT, 5/16-18
(Superseded to 7090388YP)

$3.49

$

In Stock, only 2 left!

0

16

Snapper 7015693

NUT, 1/4-20 Wing
(Superseded to 014X79MA)

$4.99

$

Usually ships in 2-12 days

0

17

Snapper 7090965

SCREW, 1/4-20 x 1-3/8" Curved Head
(Superseded to 7090965YP)

$15.99

$

Usually ships in 2-12 days

0
